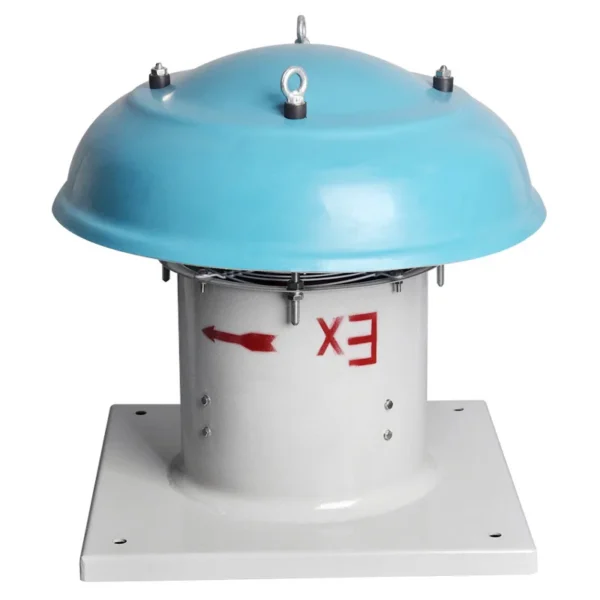

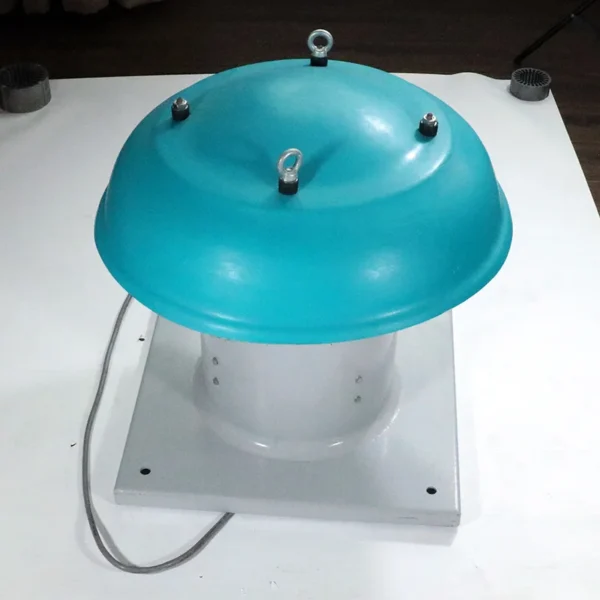

Axial Flow Fan, DWT, 35-11, 370W, 380V

This axial flow fan is published with the manufacturer’s full specification — voltage AC 220V / AC 380V, power source Electric. Made by Shenhai Explosion-Proof Technology Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Axial Flow Fan

• Model Number: BDW
• Power Source: Electric
• Voltage: AC 220V / AC 380V
• Material: Aluminum Alloy
• Blade Material: Aluminum Alloy
• Speed: Customize

Technical Specifications

Product Details

Product Parameters

Explosion proof sign	Degree of protection	Rated frequency (S)	Cable outer diameter	Inlet thread
Ex db IIC T4 Gb Ex tb IIIC T135℃ Db	IP54	50	φ10-φ14	G3/4 or pressure plate

Model and specification	Impeller diameter (mm)	Rated voltage (V)	Rated speed (r/min)	Impeller angle	Air volume (m3/h)	Total pressure (Pa)	Installed power (kw)
BDW-1-2#	200	380/220	2800	43°	1230	112	0.09
					380/220	1450	43°	618	64	0.06
BDW-1-2.8#	280		380/220	2800	35°	2921	190	0.25
					380/220	1450	35°	1510	105	0.18
BDW-1-3.15#	315		380/220	2800	35°	3074	218	0.37
					380/220	1450	35°	1998	141	0.25
BDW-1-3.55#	355		380/220	2800	35°	3367	246	0.37
					380/220	1450	35°	2188	160	0.25
BDW-1-4.#	400		380/220	1450	35°	3560	260	0.37
BDW-1-4.5 #	450		380/220	1450	38°	3450	142	0.37
				450	380/220	1450	42°	4644	150	0.55
BDW-1-5 #	500	380	1450	38°	7655	116	0.55
				BWEXD-5 #	500	380	1450	43°	8316	123	0.75
BDW-1-5.6 #	560					43°	9581	173	0.75
				BWEXD-5.6 #	560			48°	11682	186	1.1
BDW-1-6.3 #	630					41°	10739	154	1.1
				BWEXD-6.3 #	630			45.2°	14454	169	1.5
BDW-1-7.1 #	710				1450/960	40°	13400	178	1.1
				BWEXD-7.1 #	710		960	43.5	16160	189	1.5
						960	46°	14498	123	1.1
BDW-1-8 #	800			960	44°		31325	180	2.2
			BWEXD-8 #	800						37073	248	4.0
BDW-1-9 #	900				46°		35227	200	3.0
			BWEXD-9 #	900						39800	230	4.0
BDW-1-10 #	1000							48300	247	5.5
			BWEXD-10 #	1000						54300	268	7.5
BDW-1-11.2 #	1120				42°		56460	353	7.5
			BWEXD-11.2 #	1120				46°	67892	415	11

Product Description

1. The design of this series of fans adopts the three-dimensional flow theory of impeller machinery, and the experimental data is carefully designed to ensure the excellent aerodynamic performance of the fans, with low noise, high efficiency Features such as low vibration and low energy consumption; 2. This product consists of explosion-proof motors, impellers, air ducts, hoods, and other components; 3. Transmission form: direct motor connection; 4. Maintenance method: Disassemble the hood for maintenance.

Serial Number	Specification and model	φA	φD	G	H	□L×L	□L1×L1
1	BWEXD-2.8#	580	290	30	280	380×380	500×500
2	BWEXD-3.15#	580	325		30	280	415×415	535×535
3	BWEXD-3.55#	580	365		30	320	455×455	575×575
4	BWEXD-4#	650	410		30	370	500×500	620×620
5	BWEXD-4.5#	650	460		30	370	550×550	670×670
6	BWEXD-5#	900	510	50	370	600×600	720×720
7	BWEXD-5.6#	900	570		558	450	660×660	780×780
8	BWEXD-6.3#	1000	640		628	450	730×730	850×850
9	BWEXD-7.1#	1000	720		699	450	810×810	930×930
10	BWEXD-8#	1250	810		798	630	900×900	1020×1020
11	BWEXD-9#	1340	910			630	1000×1000	1120×1120
12	BWEXD-10#	1650	1010			630	1100×1100	1220×1220
13	BWEXD-11.2#	1800	1130			630	1220×1220	1340×1340

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment; 2. It is applicable to the places in Zone 21 and 22 of combustible dust environment; 3. Suitable for IIA, IIB and IIC explosive gas environment; 4. Applicable to T1-T4 temperature group; 5. It is widely used in oil refining, chemical, textile, gas station and other dangerous environments, offshore oil platforms, oil tankers and other places; 6. Indoor and outdoor.
