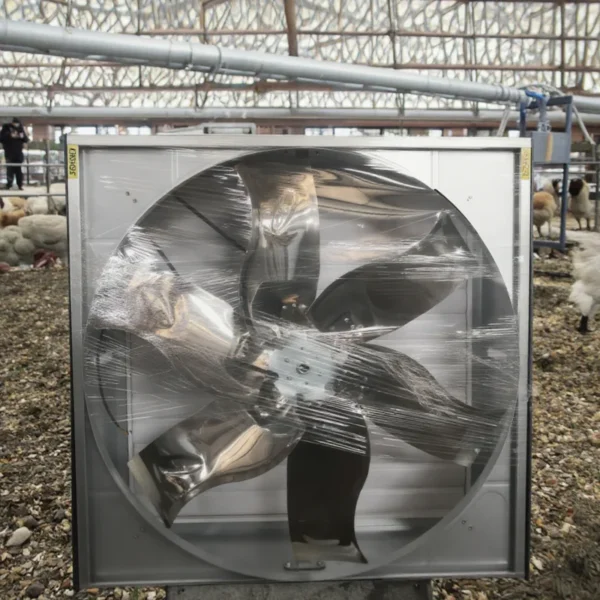

Push pull exhaust fan — 220V, 380V, 415V, air flow 18000-51000m3/h. The complete factory specification follows. Made by Shandong Muhe Machinery Co., Ltd. (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Push Pull Exhaust Fan
- Model Number: MHC-800, MHC-1000, MHC-1100, MHC-1220, MHC-1380, MHC-1530
- Power Source: Electric
- Voltage: 220V, 380V, 415V
- Air Flow: 18000-51000m3/h
- Blade Material: Stainless Steel
- Speed: 1350RPM
Technical Specifications
| Voltage | 220V, 380V, 415V |
|---|---|
| Speed | 1350RPM |
| Type | Wall-Mounted Axial Fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Brand Name | MUHE |
| Model Number | MHC-800, MHC-1000, MHC-1100, MHC-1220, MHC-1380, MHC-1530 |
| Product Name | Push-Pull Centrifugal Fan |
| Application | Animal Husbandry/Greenhouse Farm |
| Size | 800*800/1000*1000/1100*1100/1220*1220/1380*1380/1530*1530—450MM |
| Fan Type | Wall Air Fan |
| Blade | Stainless Steel 403 |
| Motor | 100% Copper Wire |
| Condition | 100% Original NEW |
| Air Flow | 18000-51000m3/h |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model (Drop Hammer) | Blade Dia(MM) | Blade Rotational Speed(RPM) | Air Flow (M³/H) | Noise (DB) | Input Power (W) | Rated Voltage (V) | Size High-Wide-Thickness(MM) |
MHC-800 | 710(28") | 650 | 18000 | ≤ 70 | 370 | 220/380 | 800-800-450 |
MHC-1000 | 910(36") | 650 | 26000 | ≤ 70 | 550 | 220/380 | 1000-1000-450 |
MHC-1100 | 1000(40") | 600 | 33000 | ≤ 70 | 750 | 220/380 | 1100-1100-450 |
MHC-1220 | 1100(43") | 440 | 39500 | ≤ 70 | 1100 | 220/380 | 1220-1220-450 |
MHC-1380 | 1270(50") | 440 | 43500 | ≤ 70 | 1100 | 220/380 | 1380-1380-450 |
MHC-1530 | 1400(55") | 420 | 51000 | ≤ 70 | 1500 | 220/380 | 1530-1530-450 |
FAN MODEL | Dimention(MM) | ||||||||
A | B | C | D | E | |||||
MHC-800 (28") | 800 | 800 | 450 | 305 | 145 | ||||
MHC-1000(36") | 1000 | 1000 | 450 | 305 | 145 | ||||
MHC-1100(40") | 1100 | 1100 | 450 | 305 | 145 | ||||
MHC-1220(43") | 1220 | 1220 | 450 | 305 | 145 | ||||
MHC-1380(50") | 1380 | 1380 | 450 | 305 | 145 | ||||
MHC-1530(55") | 1530 | 1530 | 450 | 305 | 145 | ||||
2. Plastic Handle, Easy To Carry ,
Advantage:
We Have the Laser Cutting Machine.
2. Shutter Fixed Parts: High Quality Nylon.
High Anti-Corrosion Performance, Open Flexibly, Long Service Life, No Deformation ,
2. Blast-Sanding Treatment, Eliminate Internal Stress to Improve Its Own Rigidity and Stability
Advantage:
Light Weight, Low Vibration ,
Advantage:
High Strength, Low Noise, Free Maintenance And Long Service Life.
2.Guide Rod: 304 Stainless Steel With Special Material Outside, High Strength, No Rust, Reduce Friction.
3.Rivet: 304 Stainless Steel , Wear-Resisting, Do not Rust.
Advantage:
It Can Keep the Shutters Open at Complete 90 Degree to Ensure the Lowest Air Resistance and Biggest Air Volume.

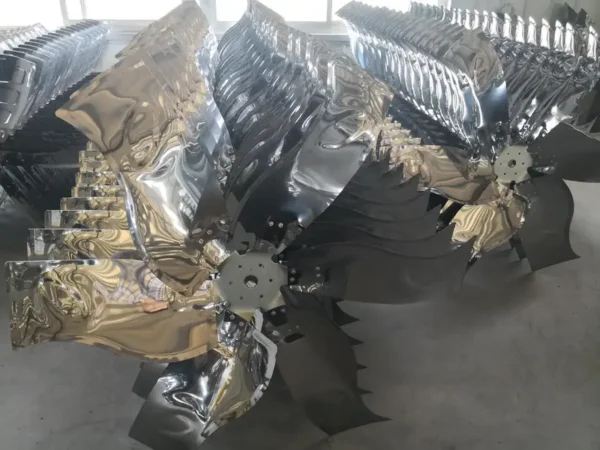

2. Diameter: 1270 mm
Advantage:
Large Air Flow, No Deformation, No Fracture, No Dust, Attractive and Durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Type: B type, B88
Advantage:
B Type Belt is 3 Times Longer Service Life than A Type Belt, Maintenance Free.
Advantage:
Double Protection to Ensure Do Not Rust.
2. Spring: 304 stainless Steel, No Deformation ,No Rust.
Advantage:
Light Weight, No Deformation, Long Service Life. Added with Wear-Resistant Shaft Sleeve, Reducing Friction , Ensure the Shutters Open Smoothly.

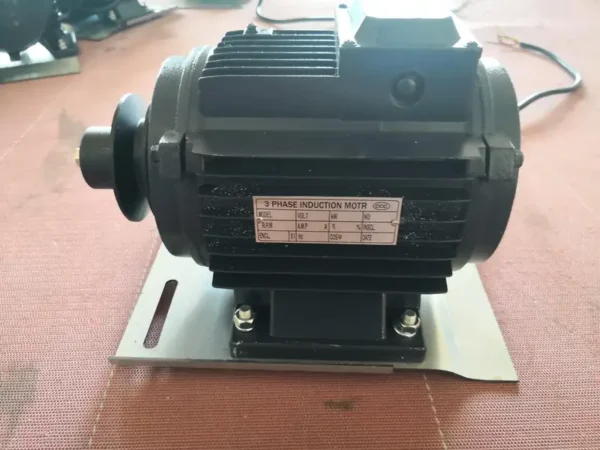

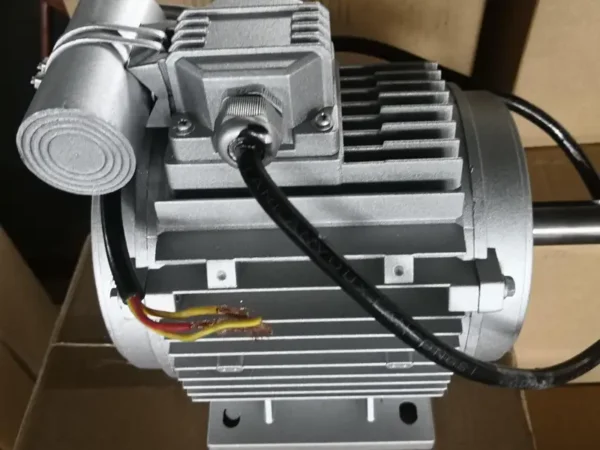

2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor Voltage and Frequency Can Be Customized.
100 % Copper Wire.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $125 / set
- 100–299 set: US $120 / set
- 300–1499 set: US $115 / set
- 1500+ set: US $105 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this push pull exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the push pull exhaust fan be supplied for my local voltage?
The standard configuration is 220V, 380V, 415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
