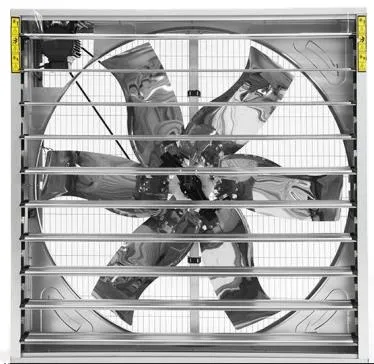

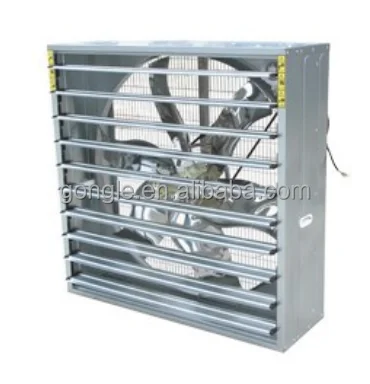

Push Pull Fan, Centrifugal, 1mm, 220v, 0.35kw, Wall Fan

Key specification for this push pull fan: 220v/380v/415v, 0.35kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw. Everything below is reproduced from the factory data sheet. Made by Qingzhou Gongle Electric Fan Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Push Pull Fan

• Power: 0.35kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw
• Voltage: 220v/380v/415v
• Blade Material: Stainless Steel
• Frame Material: Galvanized Sheet/Stainless Steel
• Warranty: 2 Years
• Place Of Origin: Shandong, China

Technical Specifications

Product Details

Product Description

Push Pull Fan With Centrifugal System 1mm Thickness Galvanized Sheet Exhaust Fan With Competitive Price

Advantages of Push Pull Fan With Centrifugal System 1mm Thickness Galvanized Sheet Exhaust Fan With Competitive Price
1) Blade is made of the stainless steel, molded, big air volume, no distortion, no broken.
2) Fan house adopt double-mesh design, light weight, elegant appearance, easy to install.
3) Round protection grill, heavy duty, protect fan blades, safety and steady.
4) Adopt the handle as new inset design from our engineer, easy for carry, transport and installation. Also it has no effect on the appearance.

Main Features of Push Pull Fan With Centrifugal System 1mm Thickness Galvanized Sheet Exhaust Fan With Competitive Price

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.

2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.

3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.

4) Wall-Mounting fan , easy installation and maintenance.
5) Belt Drive, Big airflow.

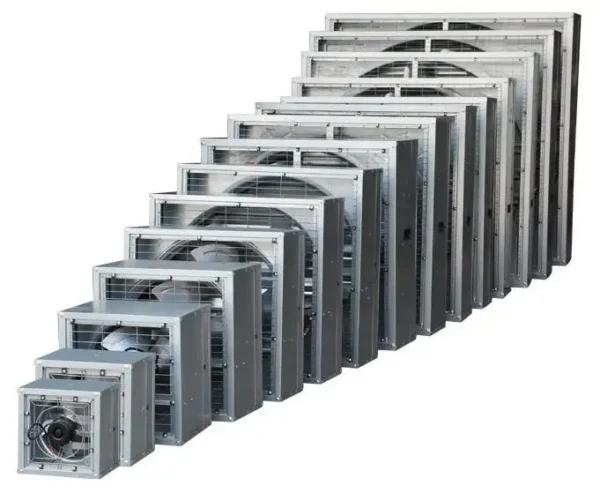

Specification

Item	Diameter(mm)	Blade Speed(r/min)	Air Flow(m3/h)	Input Power(Kw)	Voltage(v)	Size(mm)
9FJ-710	710	700	23500	0.37	220/380	800*800*450
9FJ-900	900	650	28000	0.55	220/380	1000*1000*450
9FJ-1000	1000	600	35000	0.75	220/380	1100*1100*450
9FJ-1100	1100	540	40000	0.75	220/380	1220*1220*450
9FJ-1250	1250	439	43000	1.1	220/380	1380*1380*450
9FJ-1400	1400	439	55800	1.5	220/380	1530*1530*450

Details Images

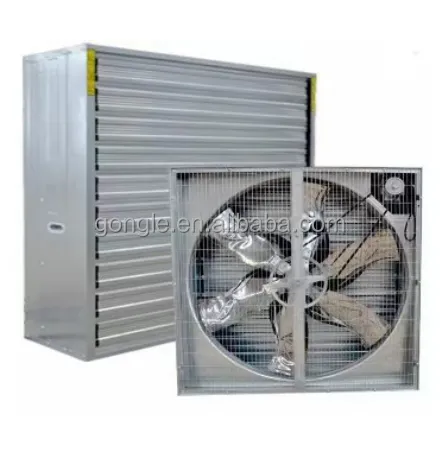

Frame with Plastic Handle

1. Frame: Hot Galvanized sheet with zinc thickness of 275g/m2, high anti-corrosion performance
2. Plastic Handle, easy to carry , Convenient to load

Advantage:
GONGLE has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is 100%, easy to assemble.

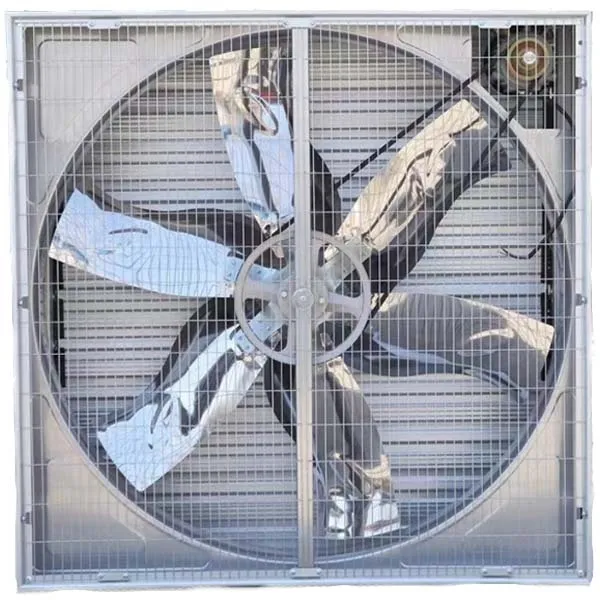

Fan Blades

1. Material : Krupp 430 stainless steel or 304 S.S, thickness 1.2mm
2. Diameter: 1250mm or 1270mm3.the blades has two types

Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy for option

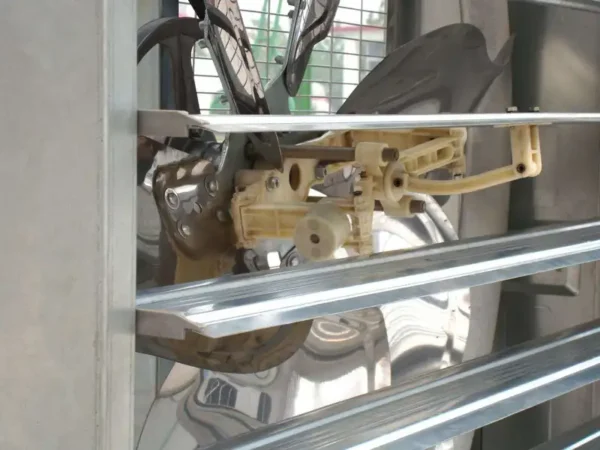

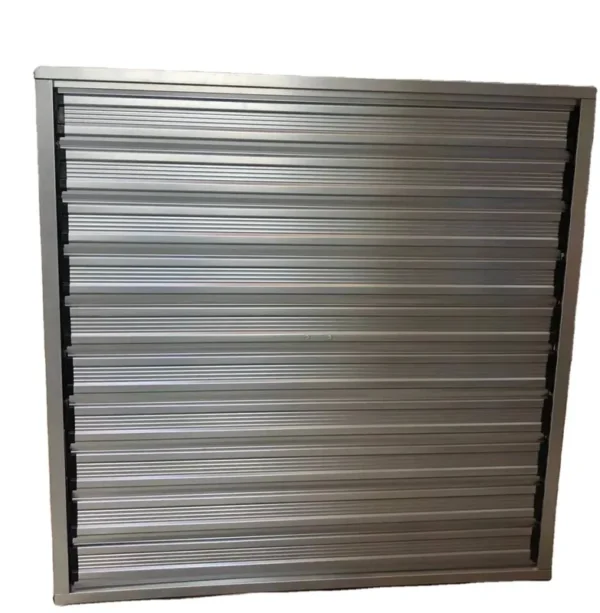

push pull centrifugal system

easy to open shutters, energy saving
Material: High quality Nylon PA66

Advantage:
It open shutters automaticly by less power, high efficiency.

Motor

1. Brand: Chinese famous motor, XIZI /NOSCH motor,Siemens motor, ABB motor and WEG motor or Laoyite brand
2. Motor Protection Grade: IP55
3. Insulation Class: F grade4.100% copper wire

Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.

Motor Fixed Nuts and Washer

1. Hexagon Nuts
2. Stainless Steel Washer

Advantage:
More firmly, never loosen. Not rust, Easy to change Motor.

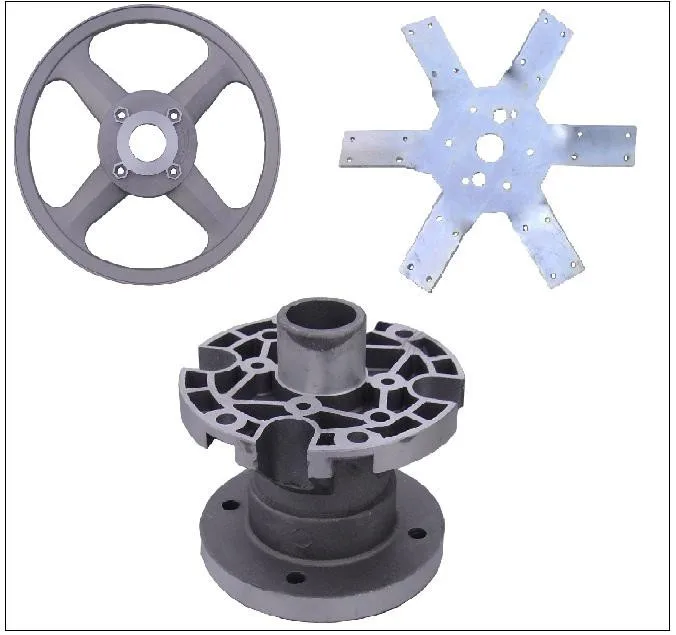

Belt pulley and angle

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability

Advantage:
Light weight, Low vibration ,attractive appearance.

Belts

Brand: Three powers belt (usa)
Type: B type, B88

Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

Saft nets

1.Material: Hot-dip galvanized wire is coated with Plastic 2.can also be two parts

Advantage:
Double Protection to ensure never rust.

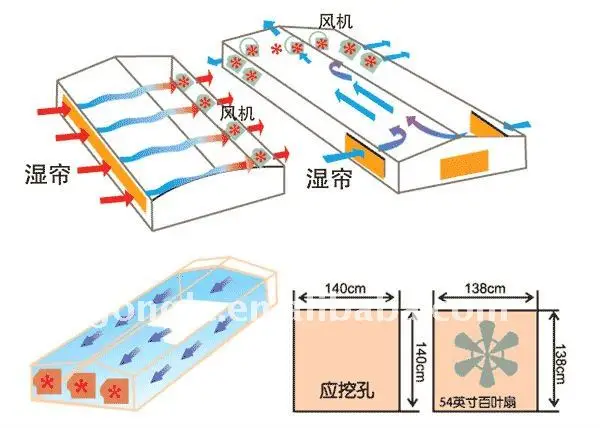

Installtion guide

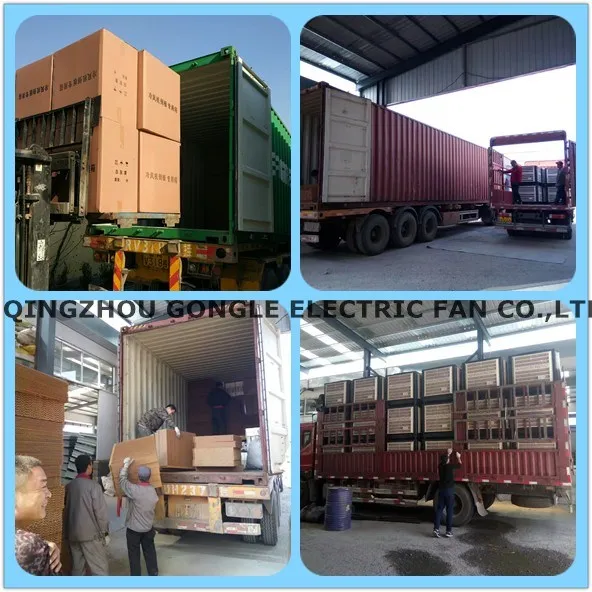

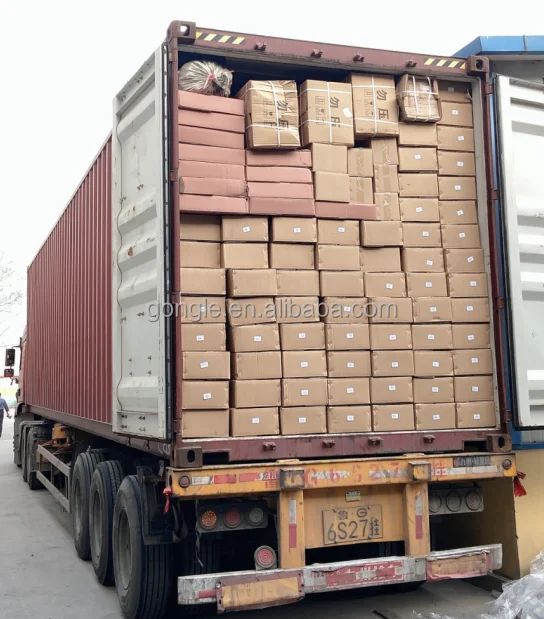

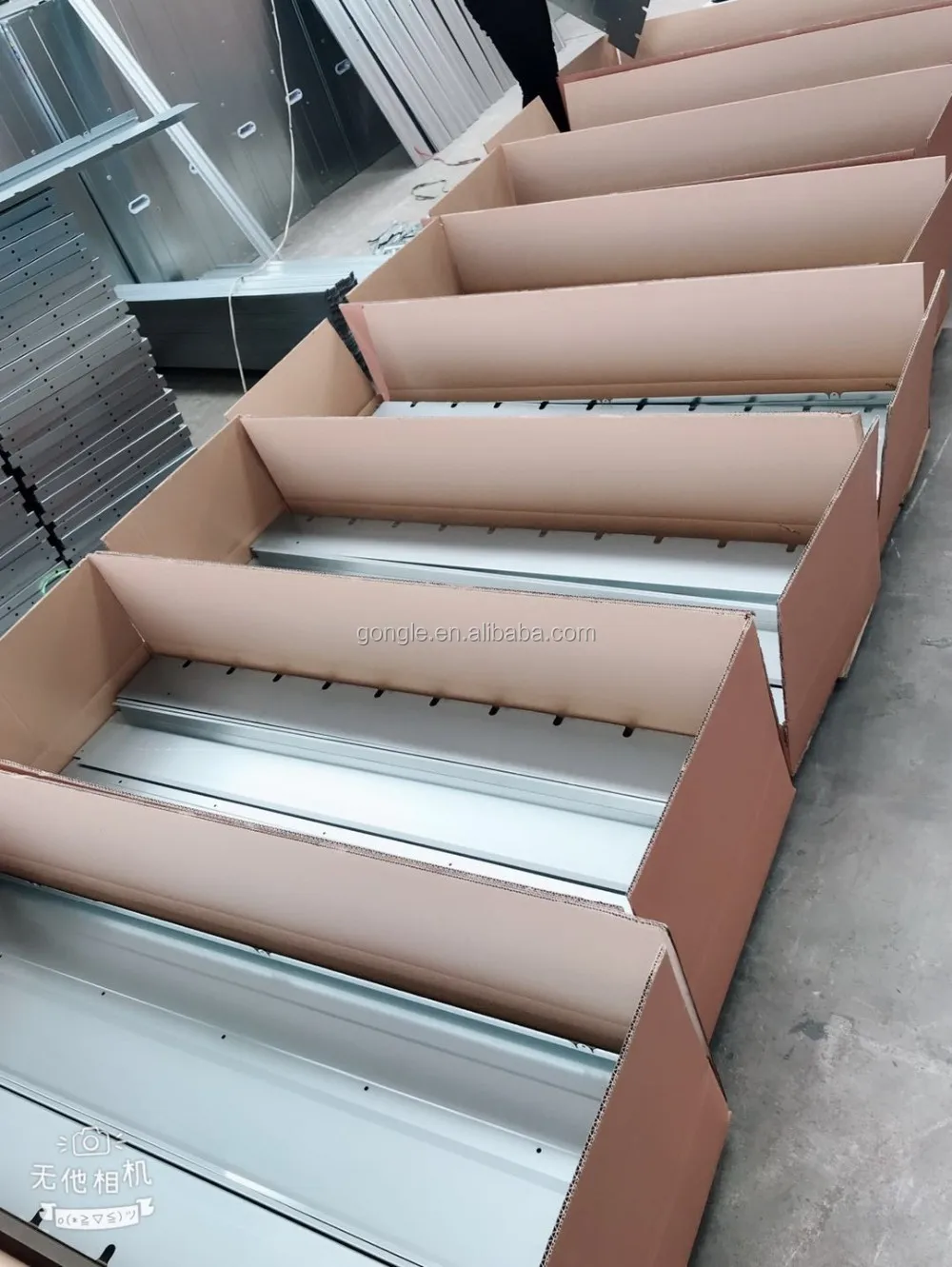

Packing & Delivery

1.The fan can be assembled or disassembled

2.Package is with cartons, if assembly, can be full package with cartons
3.The delivery can be by LCL or FCL

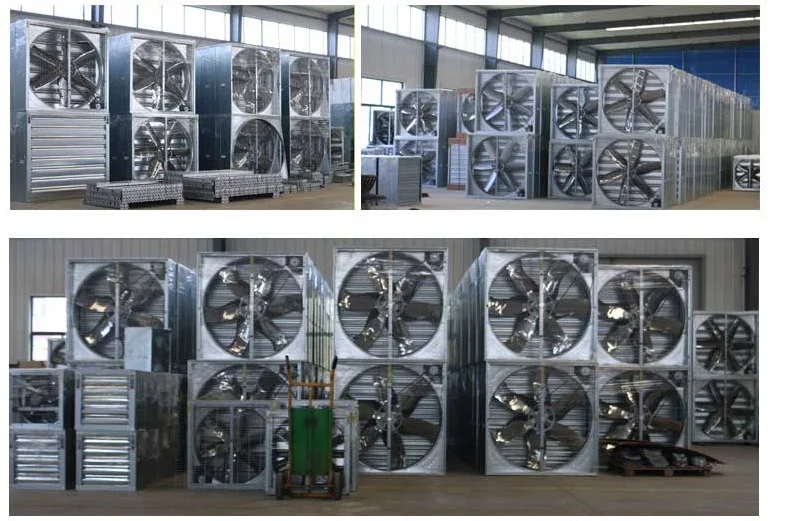

Company Profile

Qingzhou Gongle Electric Fan Co.,Ltd. Is a private enterprise from primary Qingzhou City Electric Fan Company which is founded in 1978,in No.1388 Industrial Road Qingzhou. Now there is 260 staffs,3 senior engineers,12 technicians,14 FQC. The factory covers an area of 26640 square meters,20,000 building area. The products cover the whole country, Southeast asia,Middle East, Northern America ,etc. Our company is a professional manufacture making ventilation fans,industrial wall fans, exhaust fans,stand fans,cooling pad, axial flow fan,oil burning stoves, tobacco-specific baking hot stove ,special fans, Y-series small motors ,etc. There is 9 big series and more than 40 kinds of products in the Gongle brand. The products can be widely used in enterprise workshops,textile mills, garment production workshops,big internet bars,storerooms, animal husbandry,breeding,closed poultry houses, flower plastic tents and greenhouses etc. They help cooling ,heating,and drying for woods,food and chemical etc. Tobacco baking houses and dry dipper barn group designed in 2003, put into production in 2004 is the initiate inland. achieved a high-quality baking of leaf and dry dipper. The company own the strong technic power and perfect examine method. The product quality always comes out top in previous industry assessments. The products gained provincial and department excellent products title of honor. The company has passed ISO9001:2000 international QMS certificate.and gained CE certificate, It gained the import/export right in 2005. The quality is stable and reliable by advanced arts and technology control, so they are trusted by clients at home and abroad. We would like to use super quality , fair price and good after service to going into the market to create brilliance with GMB. Welcome the customers to come and guide business negotiations.

FAQ

1,Why do you choose us ?

Quality, we’re poultry and pig equipments manufacturer , both experienced and professional.
Price, we can offer best price for you at best quality!
Trust,is the first important for an enterprise, our client trust us, and we offer our best products and services in return !

2.How about sample policy?
We’d like to provide samples for you to check quality , charges depends on your purchase terms. You need to pay samples charges first, and we can return the sample charges after your bulk orders or consistent small orders!

3.Which shipping way is available?
1)By sea .
2)By air .
3)By express (DHL,UPS,FEDEX,TNT,EMS, etc. )to your door;

4. How do you pack my products?
We will pack the product according to the characteristic of the products, by carton box, by plastic film or plastic belt, by steel tray, or on your request.

5.Payment Terms?
(1)Alibaba Trade Assurance
(2)T/T (30% deposit to start production, 70% balance before shipping)
(3) LC

6.Type of Shipping and Lead time:
(1)By express: Around 5-7 working days
(2)By AIR: Around 10-20 working days
(3) By SEA: Around 25-45 working days

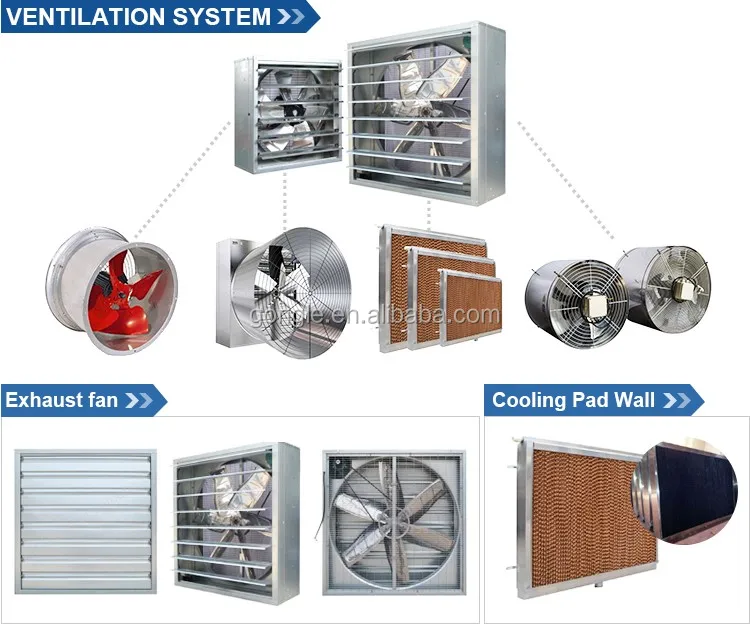

Relevant products

Air Cooler

Cattle fan

butterfly cone fan

Push-pull fan

Air heater

roof unpowered fan

Heavy hammer fan

Cooling pad

FRP cone fan

Large size Fan

Circulation Fan

Direct Drive Fan

Contact us

If want any other industrial cooling equipments,welcome to contact us,we will do for you!And offer you the most cheapest Price with the best quality products!!!
Mobile/WeChat/Whatsapp: +86 -133 5670 4276
E-mail: alice_gongle@126.com
QQ:155287067

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–49 set: US $102 / set
  • 50+ set: US $100 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this push pull fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the push pull fan be supplied for my local voltage?

The standard configuration is 220v/380v/415v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
