Pwm Fan, 0-10V, BLDC, PM2.5, CO2

Key specification for this pwm fan: 12V/24V/110V/220V/240V, material ABS Plastic. Everything below is reproduced from the factory data sheet. Made by Suzhou Mia Intelligent Technology Co., Ltd. (7 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Pwm Fan

• Model Number: MIA-A900
• Voltage:: 12V/24V/110V/220V/240V
• Material: ABS Plastic
• Speed:: Three speed controller
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

NOTE

Please contact us to confirm the total payment before placing the order! All prices listed are EXW prices, without package fee, national delivery fee and etc.

Contacts: Tina Yu
Email: tina.miaventilation@miachina.net
Tel/ WA: 0086 188 5295 0357

Wechat: cqa09336
Website: www.miachina.net

Technical Parameters& Dimensions

Model: MIA-A900 & MIA-A900(RS485)

Basic Function:

* 3 speed control for AC version

0-10V stepless speed regulation for BLDC/ EC version
* Temperature and humidity display
* Manual/automatic mode switching
* PM2.5 display
* PM10 display
* VOC display
* Filter's changing reminder
* Inner loop/ Electrostatic interface
* WIFI(APP)
* Clock display
* Sensitive monitoring
* Automatic brightness adjustment at night

External Dimension	86x86mm	Temperature Display Range	0℃ ~ +50℃
Bolt Center	60mm(Standard)	PM2.5 Display Range	1ug/m3 ~ 999ug/m3
Terminal Blocks	Maximum 2.5 mm2 wire	Operating Temperature	-I0℃ ~ +50℃
Rated Voltage	AC 220~240V 40~60Hz	Operating Humidity	5%RH ~ 90%RH(not dew formation)
Standby Power Loss	≤ 2.0W	Storage Temperature	-I0℃ ~ +60℃
Controller Power	≤ 200W	Storage Humidity	≤ 60% RH
Output Interface	Three-speed Fan	Service Life	≥ 10 Year
CO2 Display Range	350 ~ 1999 ppm

Air Ventilation System Controller

Model: MIA-CX

Basic Function:

* Three speed control

Model: MIA-CY &MIA-CY485

Basic Function:

* Three speed control
* Temperature display
* Time Setting
* Filter's changing reminder

Extended Function for MIA-CY485:
* RS485
* Bypass/ Inner loop/ Electrostatic interface

Model: MIA-C900

Basic Function:

* Three speed control for AC version

0-10V stepless speed regulation for BLDC/ EC version

* Temperature and humidity display
* Time Setting
* Filter's changing reminder
* Bypass/ Inner loop/ Electrostatic interface

Extended Function:
* Optional matching AC/DC Fan

Model: MIA-B900

Basic Function:

* Three speed control
* Temperature and humidity display
* Manual/automatic mode switching
* PM2.5 display
* PM10 display
* VOC display
* Filter's changing reminder
* Inner loop/ Electrostatic interface
* WIFI(APP)
* Clock display
* Sensitive monitoring
* Automatic brightness adjustment at night

Model: MIA-6G & MIA-6G(RS485)

Basic Function:

* Three speed control
* Time setting
* Manual/automatic model switching
* Temperature and humidity display
* PM2.5 display
* Filter's changing reminder
* APP control
* Inner loop/ External loop/ Bypass/ Electrostatic interface

Extended Function:
* Optional matching CO2 display
* RS485 (MODBUS Communication protocol)
* AC/DC fan

Model: MIA-7G

Basic Function:

* Three speed control
* 4.3 inch LCD screen
* Temperature display
* Time setting
* PM2.5 display
* APP control
* RS485 Communication interface

Model: MIA-9G

Basic Function:

* Three speed control for AC version

0-10V stepless speed regulation for BLDC/ EC version
* Temperature and humidity display
* Manual/automatic mode switching
* PM2.5 display
* PM10 display
* VOC display
* Filter's changing reminder
* Inner loop/ Electrostatic interface
* WIFI(APP)
* Clock display
* Sensitive monitoring
* Automatic brightness adjustment at night



Model: MIA-ES900 & MIA-ES900(RS485)

Basic Function:

* Three speed control
* Temperature and humidity display
* Time Setting
* PM2.5 display
* Bypass/ Inner loop/ Electrostatic interface
* APP control

Extended Function:
* Optional matching RS485 (MODBUS Communication protocol)

Overview：

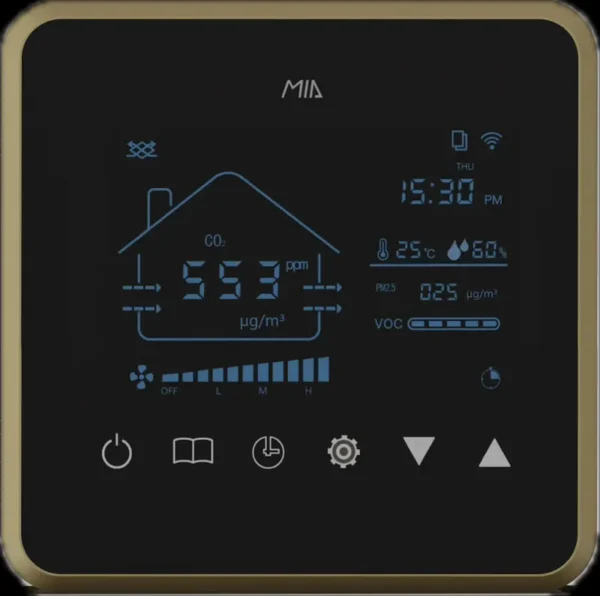

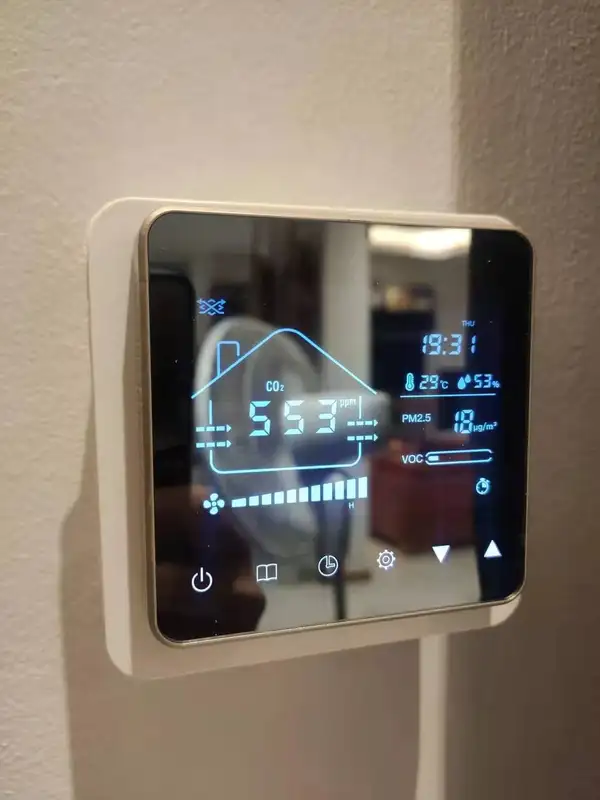

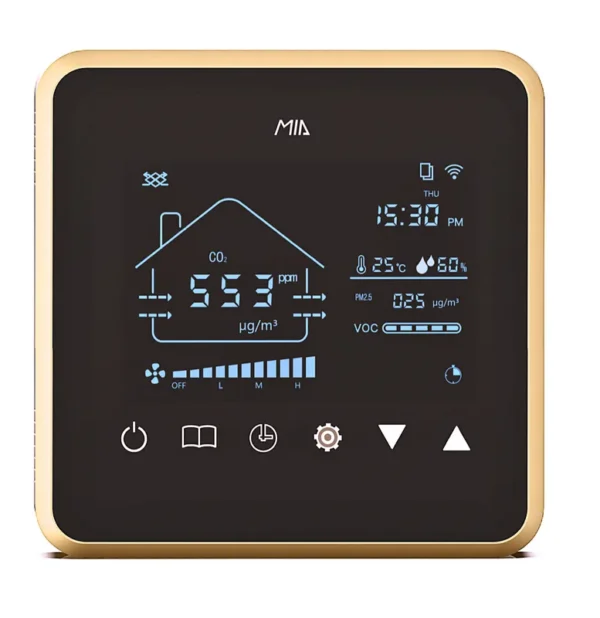

LCD digital display intelligent fresh air controller, you can choose from the two modes of manual and timing to control the fan's operation. Controller's output signal can directly control the fan's starting and speed. It can be widely used in residential, commercial and industrial applications, and can effectively improve Air quality, creating a healthy, comfortable, efficient, environmentally friendly, energy-saving living and working environment.

Contacts

Recommended Products

Applicable scenarios

Company Profile

Certifications

Ordering and Pricing

• Minimum order quantity: 1 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this pwm fan?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the pwm fan be supplied for my local voltage?

The standard configuration is 12V/24V/110V/220V/240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Suzhou Mia Intelligent Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Mia Intelligent Technology Co., Ltd. range on HVACR Nexus.
