Key specification for this radial fan: voltage DC310V, blade material PA66. Everything below is reproduced from the factory data sheet. Made by Haining Afl Electric Appliances Co., Ltd. (3 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Radial Fan
- Model Number: B3P133-DC072-002
- Voltage: DC310V
- Blade Material: PA66
- Speed: 4500RPM
- Warranty: 2 Years
- Place Of Origin: Zhejiang, China
Technical Specifications
| Type | Backward Curved Blade Radial Fan, Multi-Vane Radial Fan, High-Pressure Radial Fan |
|---|---|
| Voltage | DC310V |
| Speed | 4500RPM |
| Blade Material | PA66 |
| Mounting | Free Standing |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | AFL |
| Model Number | B3P133-DC072-002 |
| Selling Units | Multiple of 100 items |
| Volume Per Batch | 0 cm³ |
| Gross Weight Per Batch | 0.0 kg |
Product Details
B3P133-DC072-002 Backward Curved Blade High-Pressure Radial Fan DC310V 4500RPM Waterproof and Dustproof
B3P133-DC072-002 DCBackward Centrifugal Fan
Protection Class:IP42
Approvals:CCC CE
Insulation Class:B

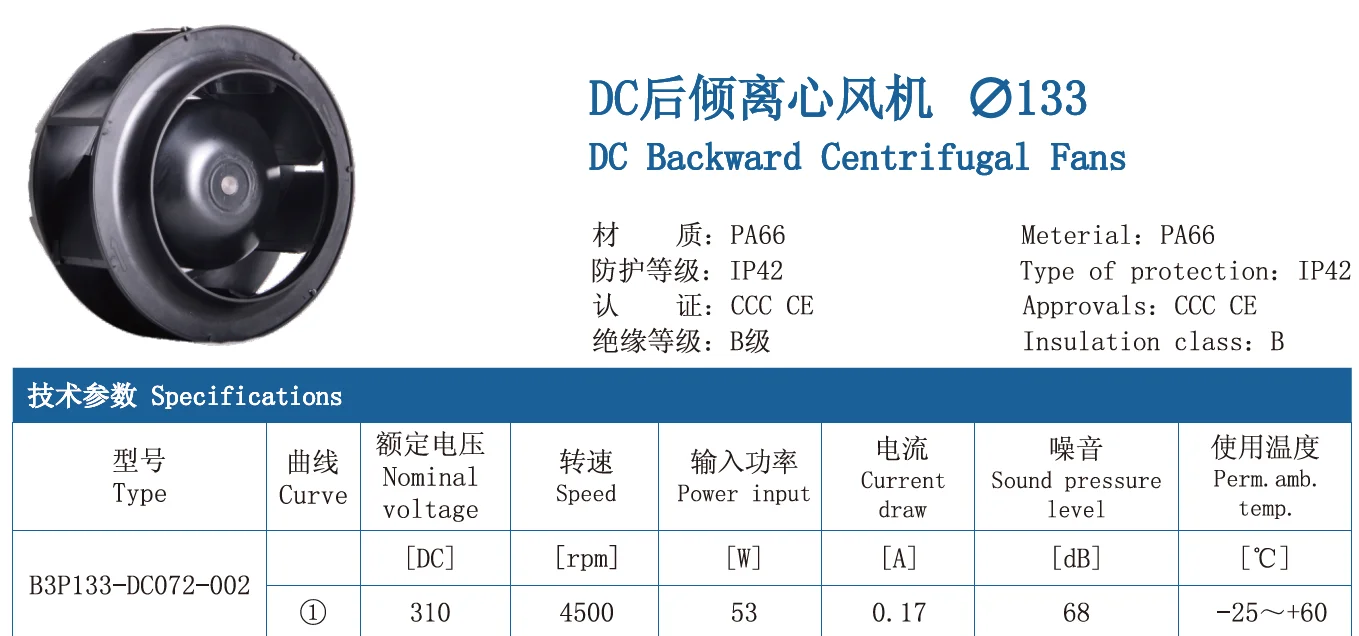

PRODUCT SPECIFICATIONS
| No | Item | Date |
| 1 | Power | 53W |
| 2 | Nominal Voltage | 310V |
| 3 | Speed | 4500RPM |
| 4 | Current | 0.17A |
| 5 | Sound Pressure | 68dB |
| 6 | Temperature | -25~60℃ |
| 7 | Fan Model | B3P133-DC072-002 |
PRODUCT CONFIGURATION
The company was established in Hangzhou, Zhejiang Province in 2014. The English company name is Hangzhou Qi Liu Electric Appliance Co., Ltd. Our company mainly engages in R&D and the manufacturing of external rotor fans. In 2017, Hai Ning AFL Electric Appliance Co., Ltd. was registered in Hai Ning. In 2019, we purchased land to build a factory in Hai Ning City, Zhejiang Province. The new factory was put into use in 2020, with a total construction area of 43,000 square meters, equipped with 14 assembly production lines and supporting inspection and testing equipment as well as related parts processing equipment. The company's current products include EC motor products with a power range from 100 watts to 5KW. Specific products are external rotor backward-curved centrifugal fans, EC external rotor axial flow fans, and EC external rotor forward-curved fans; AC motor products range from 30W to 3KW. Specific products are external rotor backward-curved centrifugal fans, external rotor axial flow fans, and external rotor forward-curved fans. AFL Company's products have passed CE, UL, ETL, and CCC certifications, and some products have passed TUV explosion-proof testing and certification. The products can be used in the power and new energy industry, factory purification industry, fresh air purification and dehumidification industry, medical and pharmaceutical industry, AHU and commercial air conditioning industry, telecommunications and data center industry, special motor cooling industry, rail transit industry, and other HVAC industries.
AFL has 40 stable and professional R&D technical personnel, mainly coming from Japan's three major motor companies and large and medium-sized enterprises in China's domestic industry. Three core technology leading enterprises have first-class technical capabilities in the same domestic industry, and the technical team has leading comprehensive strength in the same domestic industry. The technical team maintains technical exchanges and cooperation with efficient research institutes such as the Department of Electrical Engineering of Zhejiang University and the National Air-Cooled Technology Research and Promotion Center of Shanghai Jiao Tong University, as well as the Institute of Electrical Engineering of the Chinese Academy of Sciences. Among them, the EC outer rotor motor chip is independently developed and designed by AFL engineers, and all electronic components adopt the top three global industry brands.
AFL has a professional R&D laboratory covering 2,000 square meters, equipped with 40 sets of professional airflow testing equipment, noise testing chambers, thermal shock testing equipment, temperature rise testing equipment, salt spray testing equipment, and walk-in environmental testing equipment. We can provide relevant test reports and carry out targeted new product development according to customer requirements.
AFL currently derives 40% of its total sales revenue from exports, with 85% of these exports going to Europe. AFL has established a sales company in Poland and distributors in Italy, Turkey, France, and the United Kingdom;
Manufacturing Technology
Test Laboratory
Authentication
Ordering and Pricing
- Minimum order quantity: 10000 piece
- Volume pricing:
- 10000+ piece: US $34 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this radial fan?
The standard minimum order quantity is 10000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the radial fan be supplied for my local voltage?
The standard configuration is DC310V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
