Ceiling Fan, 6.1m, HVLS, 1.5kW, Aluminum

The ceiling fan listed here carries 220 V, 380 V, 440 V, 1.5kw, documented exactly as the manufacturer publishes it. Made by Shanghai Aipu Fans Co., Ltd. (17 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ceiling Fan

• Model Number: AWF61
• Power: 1.5kw
• Voltage: 220 V, 380 V, 440 V
• Blade Material: Aluminum
• Material: Aluminum Alloy
• Noise Level: 40.0db+

Technical Specifications

Product Details

Product Description

Product Name	Industrial HVLS ceiling fan
Model size	AWF61
Brand	Aipukeji

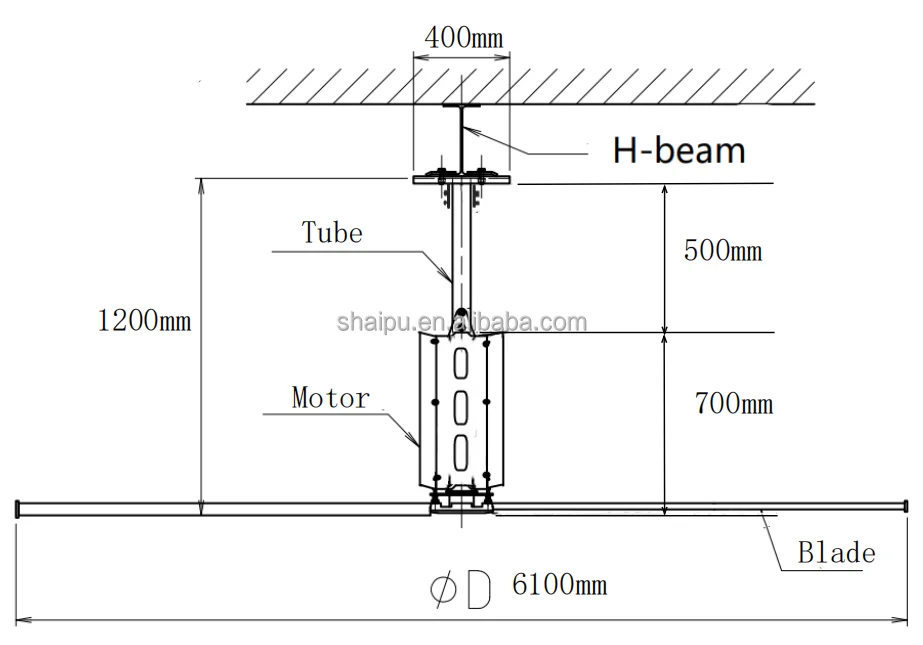

Diameter	6100mm / 20FT
Blade	4/5/6/8/10 PCS

* High air-volume HVLS fan
* Nord geared motor
* Danfoss VFD controller
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
* Area coverage up to 2000 sqm per fan
* Available sizes: 8.6m, 8m, 7.3m, 6.6m, 6.1m, 5.5m, 5.2m, 4.9m, 4.5m, 4m, 3.8m…

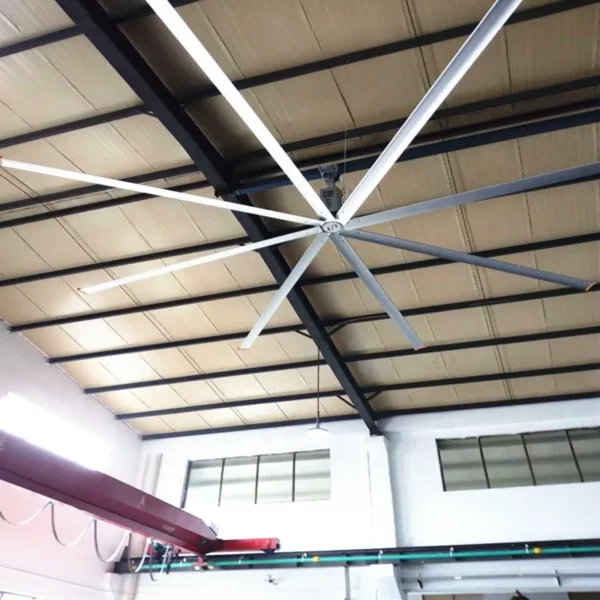

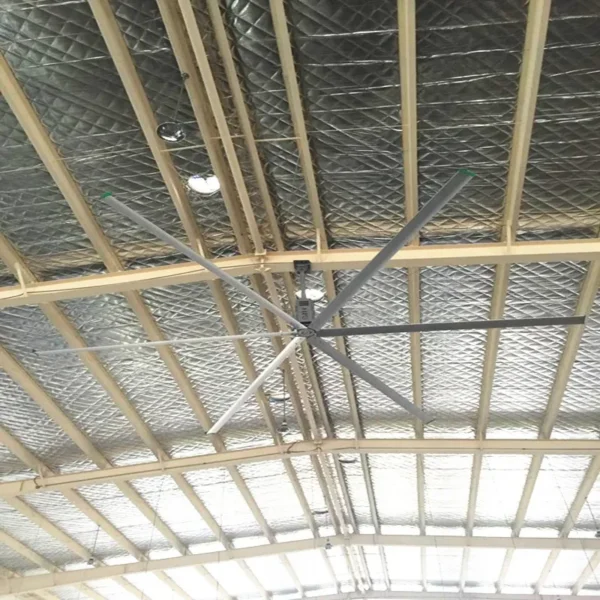

HVLS (High volume low speed) is the new solution of energy saving to solve the ventilation or cooling problem with large space. Our large energy-saving ceiling fans comes with maximum diameter of 8.6 meters, applying the HVLS principle and advanced technology manufacturing. One unit of 7.3m ceiling fan takes only 1.5KW even less power to cover area of 1,600 square meters, which is equal to the effect of 30 sets of small fans.

• Product performance description

• – High Volume Low Speed Ceiling Fan

1. Energy efficient design cuts facility energy costs up to 30%. An effective supplement to air conditioning providing 3% to 5% savings per degree of thermostat reduction.

2. Keep fresh air circulating to reduce bacteria, smoke, and mildew. Prevent damage caused by excessive moisture by helping keep these areas dry.

3. A cool and comfortable work environment allows your employees to perform at their best and deliver more effectively on company
goals.

Details Images

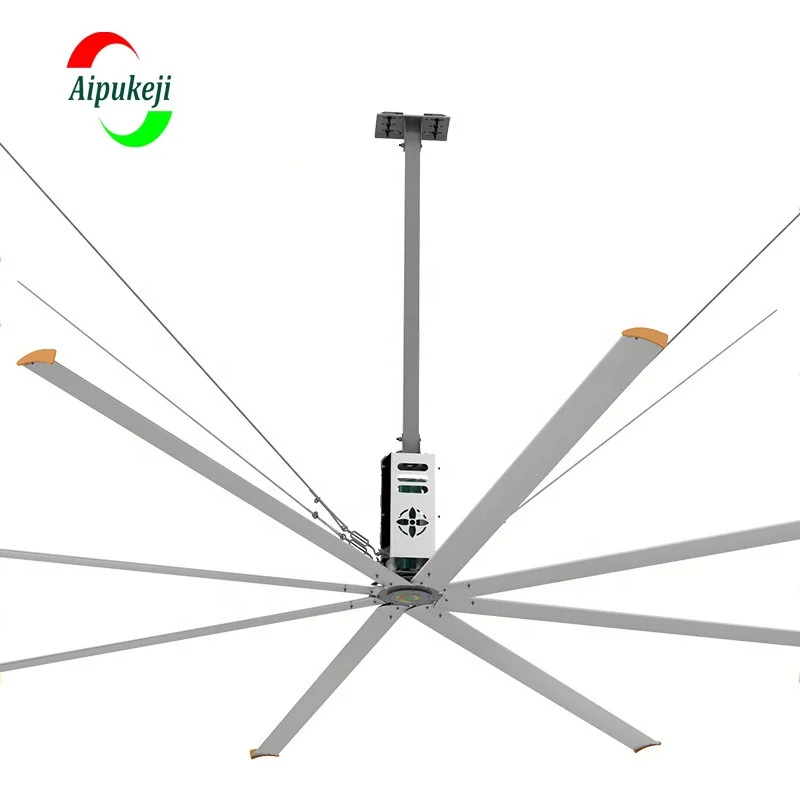

All the fasteners are Diameter of 14 mm high strength bolts and non-slipping self-locking nuts;

All ceiling fans are equipped with frequency conversion control system device;

All ceiling fans are equipped with H-beam buckle mounting parts;

All ceiling fans are equipped with preventing air turbulence tail and propeller blades.

Blade safety connection pieces connect the blades one by one to the blade brackets (Even if the blades brackets are broken, the fan would not falling off due to the connecting piece device.)

Each fan is equipped with 4 pcs of steel wire rope (enhance the stability of ceiling fan, to prevent the risk of loosening of screws)

Safety alarm device, built-in overload phase protection, timely alarm signal to ensure safe running. The perspective window is designed to observe the operating parameters of the fan conveniently

• • Motor System – imported Germany Nord motor

1. Low backlash assembly process and gear grinding technique, low noise2. Strength the bearing frame structure, increase oil seal
and strength the motor structure with trapezoidal shaft structure, higher safe;
3. IP55 protection grade, IE2 stardard
4. Passed CCC, CE, UL certificates
5. Can run on clockwise and counterclockwise direction

Control System – VFD Controller

1. Danfoss electrical sets, with safety protection module inside which will interrupt the output automatically in case of some
accidents.2. Protection level is IP55, passing UL, EMC, ROHS certificates;
3. Safety & Protection: over-load, over-current, cutting off t he power automatically in emergency situation

Patented Airfoil Blades

High strength aircraft grade magnalium, fluorocarbon painting on surface, aerodynamic fan blade design. Patented fan blade design:
3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss
of connecting components.

Related Products

Packing&Shipping

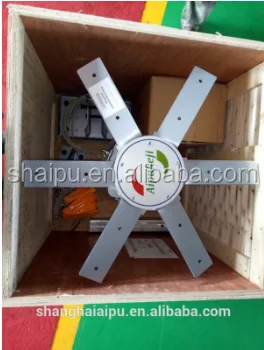

The fan will be package into unfumigated wooden cases.

Package size:

80cm*80cm*50cm

300cm*26cm*28cm

GW: About 190kg

Company Introduction

Shanghai Aipu Fans Co., Ltd was established in Shanghai, China. Since its establishment in 2006, it has been manufacturing industrial-grade high-quality ventilation products, aiming to provide the fastest pre-sale, after-sale and the best ventilation solutions. Based on the industry-leading concept and manufacturing technology, AIPU technology with abundant technical advantages, first-class product quality and advanced management concepts, has grown into a R&D, production and marketing as one of the integrated company with core technology. Aipukeji has always been committed to the pursuit of excellence in quality, to meet customer demand, to create high-quality products.

Our Services & Strength

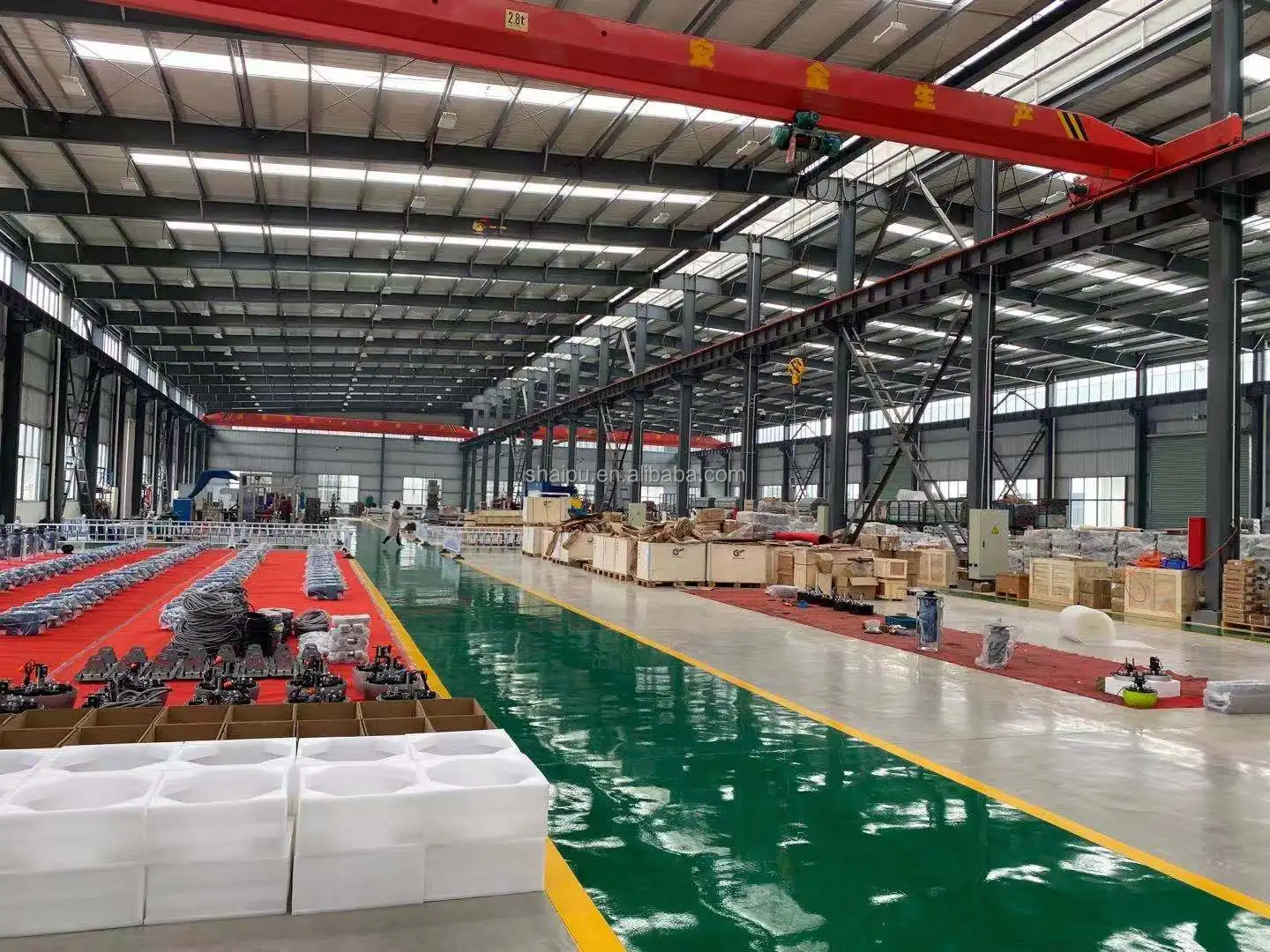

We have 8000 square meters of production base, equipped with high-precision automatic production machine. The products produced by the automatic machine have higher quality and higher cost-effective, and the automatic machine is also the guarantee of our high productivity. The factory is equipped with the latest production equipment and production technology, the establishment of a machining center, cutting center, welding center and testing center. Aipukeji’s products are sold well all over the world and are highly praised by domestic and foreign clients.

FAQ

Q1. Are you the factory?

A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.

Q2. What about the lead time?

A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.

Q3. Do you have any MOQ limit for HVLS CEILING FAN?

A: Low MOQ, 1pc for sample checking is available

Q4. How to proceed an order for HVLS CEILING FAN?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the specification parameter and places deposit for formal order.

Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $1090 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ceiling fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this ceiling fan carry?

It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the ceiling fan be supplied for my local voltage?

The standard configuration is 220 V, 380 V, 440 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
