Key specification for this refrigeration cold storage chiller: model no DD-22.3/120, certification CE&ISO9001&ISO14001. Everything below is reproduced from the factory data sheet. Made by Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Refrigeration Cold Storage Chiller
- Warranty: 2 Years
- Certification: CE&ISO9001&ISO14001
- Place Of Origin: Henan, China
- Application: Cold Storage Room Freezer Room
- Single Package Size: 100X100X100 cm
- Weight (Kg): 100
Technical Specifications
| Core Components | Engine, fan |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 2 Years |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 100 |
| Place Of Origin | Henan, China |
| Brand Name | Heleng |
| Model No | DD-22.3/120 |
| Product Name | DD DJ DL Cold Storage Room Refrigerator Air Cooler |
| Fin Space | 4.5mm, 6mm, 9mm or customized |
| Color | White/Blue/Silver/stainless steel color |
| Tube Plate | Copper pipe |
| Heat Exchanger Air Area | 8㎡ to 500㎡ |
| Certification | CE&ISO9001&ISO14001 |
| Application | Cold Storage Room Freezer Room |
| Air Duct | High air duct design |
| Defrosting Way | electric defrosting |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 65.0 kg |
Product Details

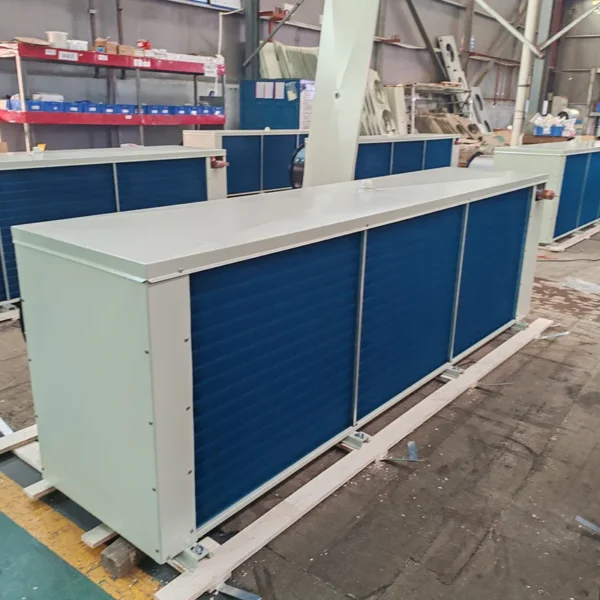

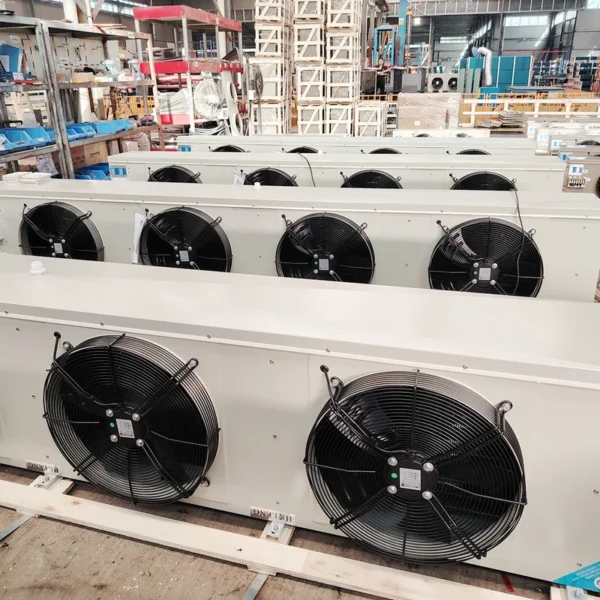

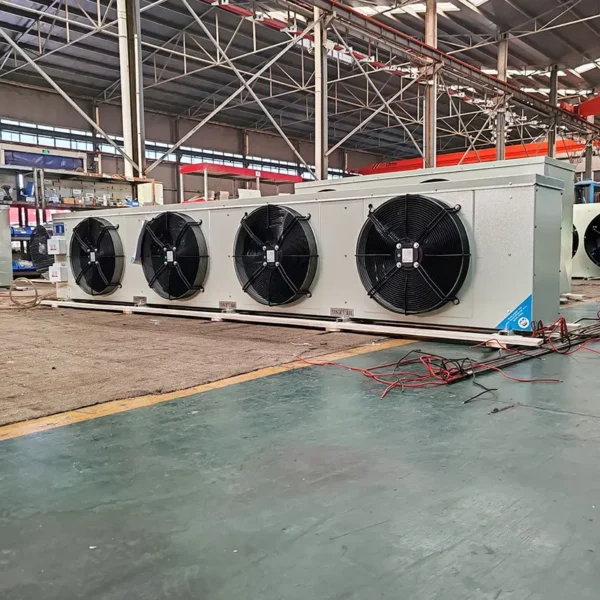

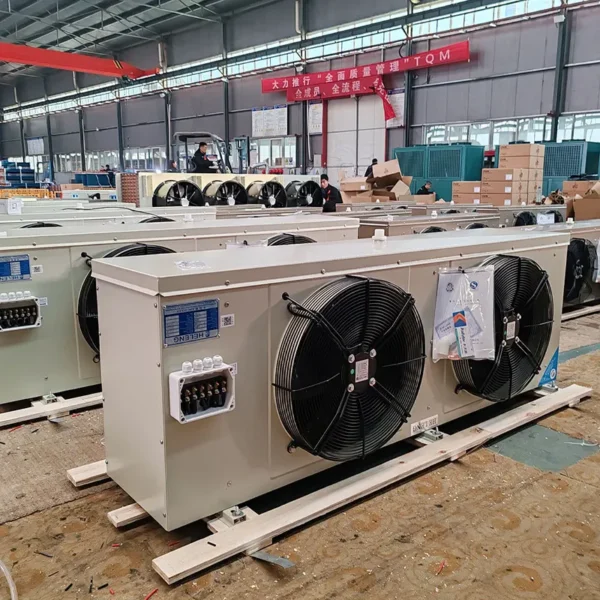

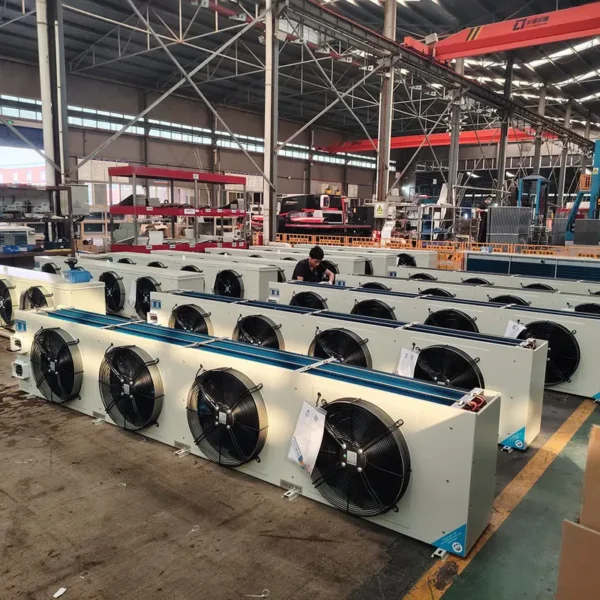

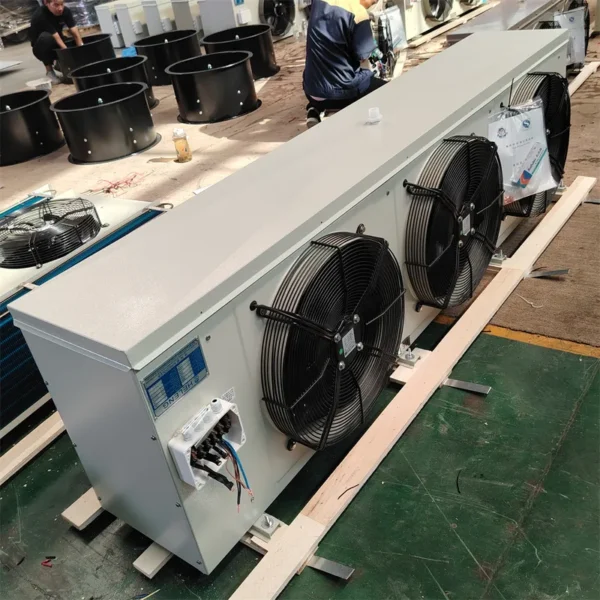

Cold Room Fan Unit Cooler Cooled Evaporator with Condensing Unit electric defrost air cooler
| Table of main technical parameters of DD series cooling fan | |||||||||||||
| Model | Volume | Parameter of fan | Eletrothemal defrosting | ||||||||||
| Refrigerating | Nominal | Inlet/Outlet | |||||||||||
| capacity | area | refrigerant | Quantity | Voltage | Power | Range | |||||||
| Diameter | Air | ||||||||||||
| of fan | Volume | ||||||||||||
| W | m2 | L | mm | N | mm | V | W | m3/h | m | KW | |||
| DD-2.8/15 | 2825 | 15 | 2.7 | φ12/φ22 | 2 | 350 | 380/220 | 2×135 | 2×2670 | 8 | 3 | ||
| DD-3.7/22 | 3700 | 22 | 3.5 | φ12/φ22 | 2 | 350 | 380/220 | 2×135 | 2×2670 | 8 | 3 | ||
| DD-5.3/30 | 5300 | 30 | 5.8 | φ16/φ25 | 2 | 400 | 380/220 | 2×190 | 2×3500 | 10 | 3.9 | ||
| DD-7.0/40 | 7000 | 40 | 7.6 | φ16/φ25 | 2 | 400 | 380/220 | 2×190 | 2×3500 | 10 | 3.9 | ||
| DD-11.2/60 | 11200 | 60 | 10.1 | φ19/φ35 | 2 | 500 | 380 | 2×420 | 2×6500 | 15 | 7.5 | ||
| DD-14.9/80 | 14900 | 80 | 13.5 | φ19/φ35 | 2 | 500 | 380 | 2×420 | 2×6500 | 15 | 9 | ||
| DD-18.7/100 | 18700 | 100 | 17.3 | φ19/φ38 | 3 | 500 | 380 | 3×420 | 3×6500 | 15 | 12 | ||
| DD-18.7/100 | 18700 | 100 | 17.3 | φ19/φ38 | 3 | 500 | 380 | 3×550 | 3×6570 | 15 | 12 | ||
| DD-22.3/120 | 22300 | 120 | 19.6 | φ19/φ38 | 3 | 500 | 380 | 3×420 | 3×6500 | 15 | 14.4 | ||
| DD-22.3/120 | 22300 | 120 | 19.6 | φ19/φ38 | 3 | 500 | 380 | 3×550 | 3×6570 | 15 | 14.4 | ||
| DD-26.2/140 | 26200 | 140 | 22.7 | φ25/φ50 | 4 | 500 | 380 | 4×420 | 4×6500 | 15 | 16.8 | ||
| DD-26.2/140 | 26200 | 140 | 22.7 | φ25/φ50 | 4 | 500 | 380 | 4×550 | 4×6570 | 15 | 16.8 | ||
| DD-29.8/160 | 29800 | 160 | 25.8 | φ25/φ50 | 4 | 500 | 380 | 4×420 | 4×6500 | 15 | 19.2 | ||
| DD-29.8/160 | 29800 | 160 | 25.8 | φ25/φ50 | 4 | 500 | 380 | 4×550 | 4×6570 | 15 | 19.2 | ||
| DD-37.2/200 | 37200 | 200 | 32.2 | φ25/φ50 | 2 | 600 | 380 | 2×1500 | 2×10000 | 15 | 18 | ||
| DD-48.4/250 | 48400 | 250 | 41.9 | φ25/φ50 | 3 | 600 | 380 | 3×1500 | 3×10000 | 15 | 21.6 | ||
| DD-57.9/310 | 57900 | 300 | 51.6 | φ25/φ50 | 3 | 600 | 380 | 3×1500 | 3×10000 | 15 | 25.2 | ||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $590 / piece
- 5–9 piece: US $580 / piece
- 10+ piece: US $335.24 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this refrigeration cold storage chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this refrigeration cold storage chiller carry?
It is supplied with CE&ISO9001&ISO14001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd. range on HVACR Nexus.
