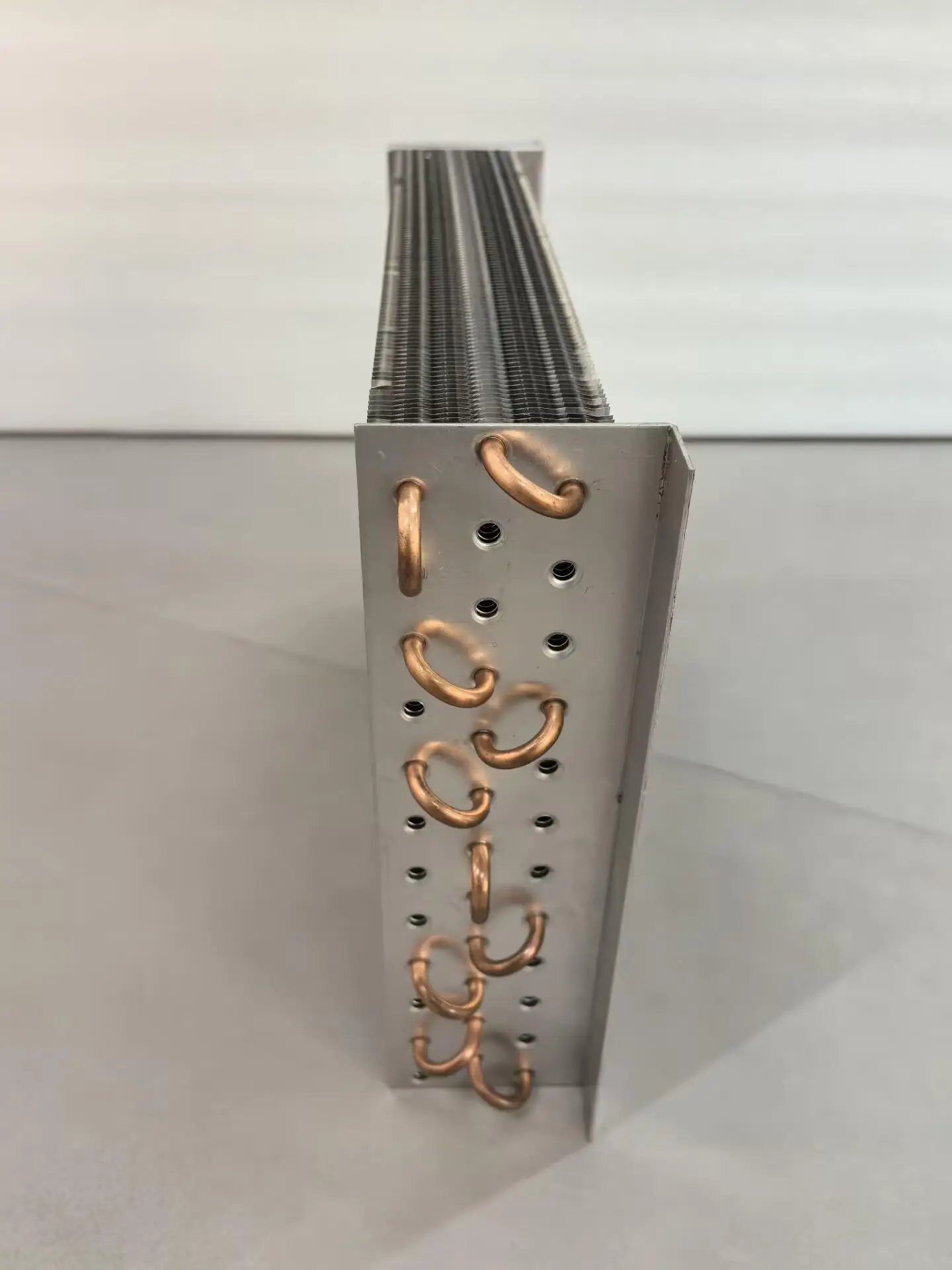

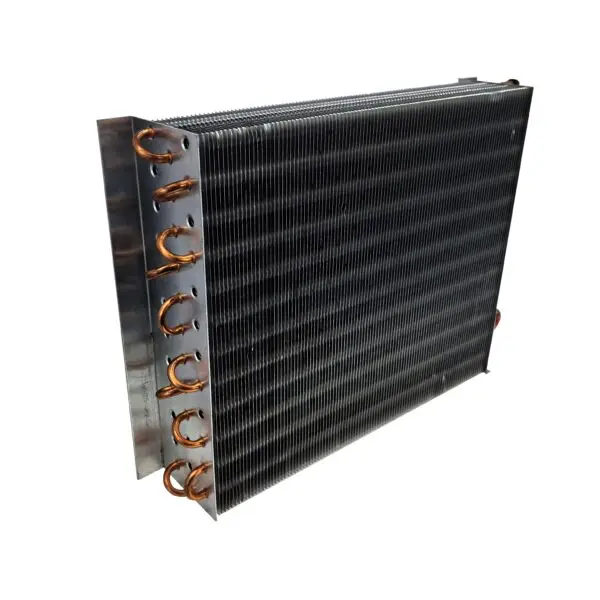

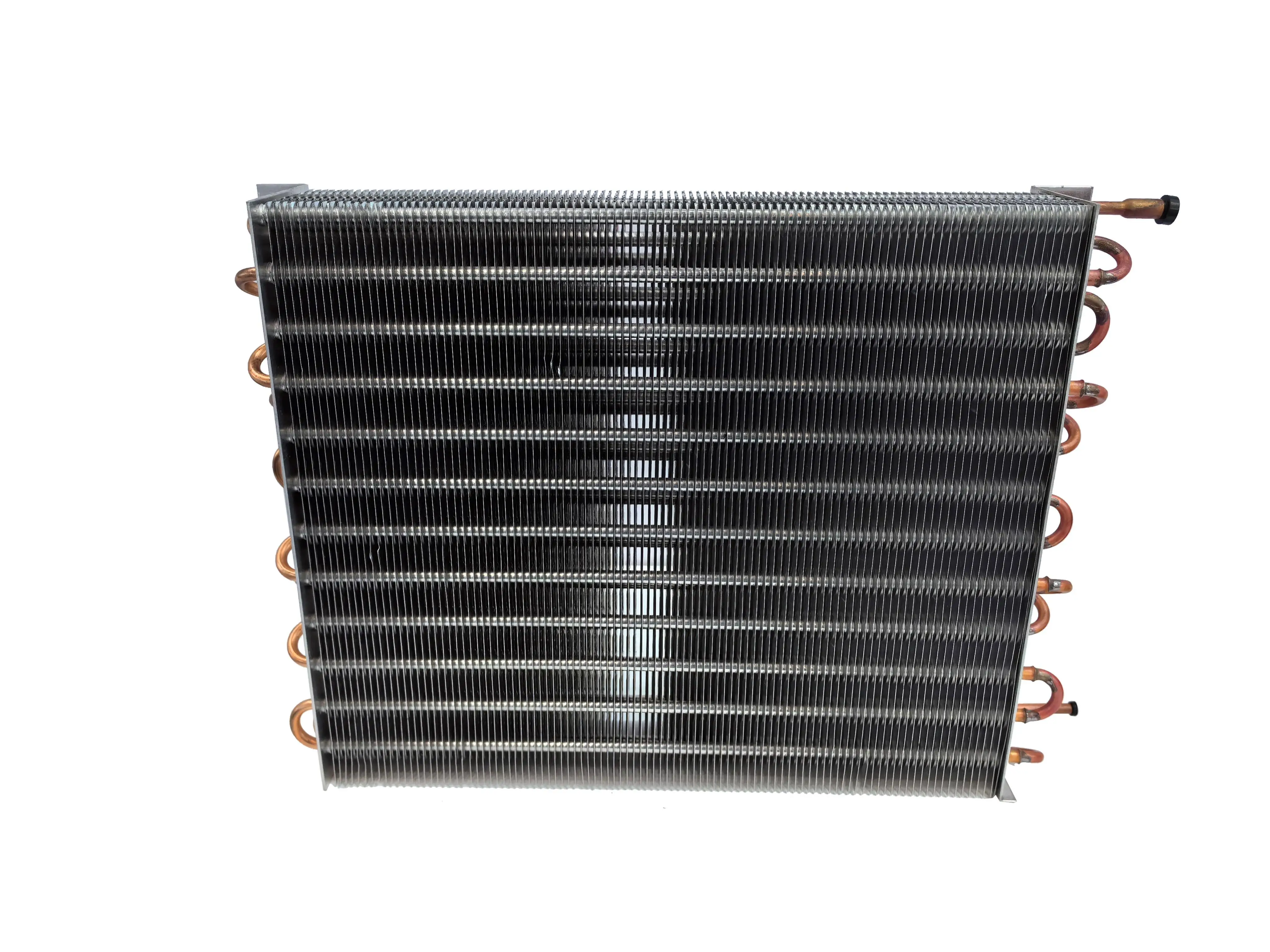

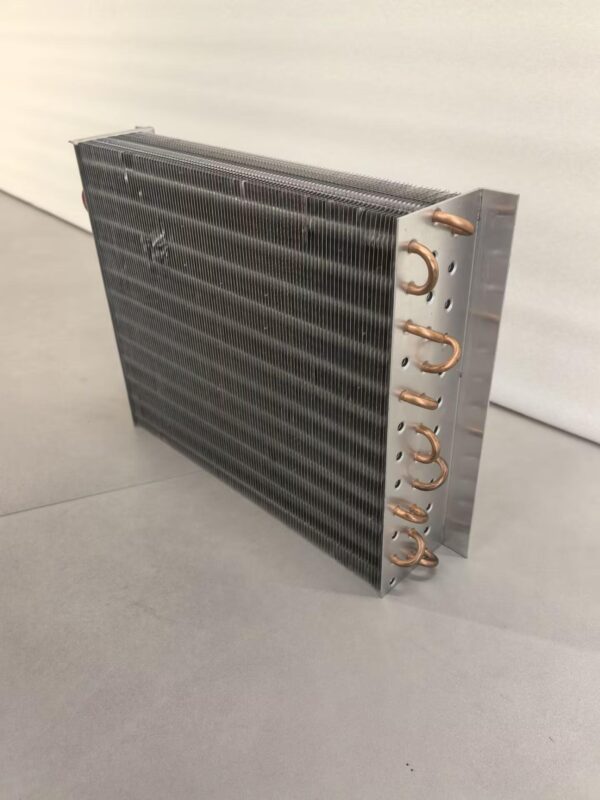

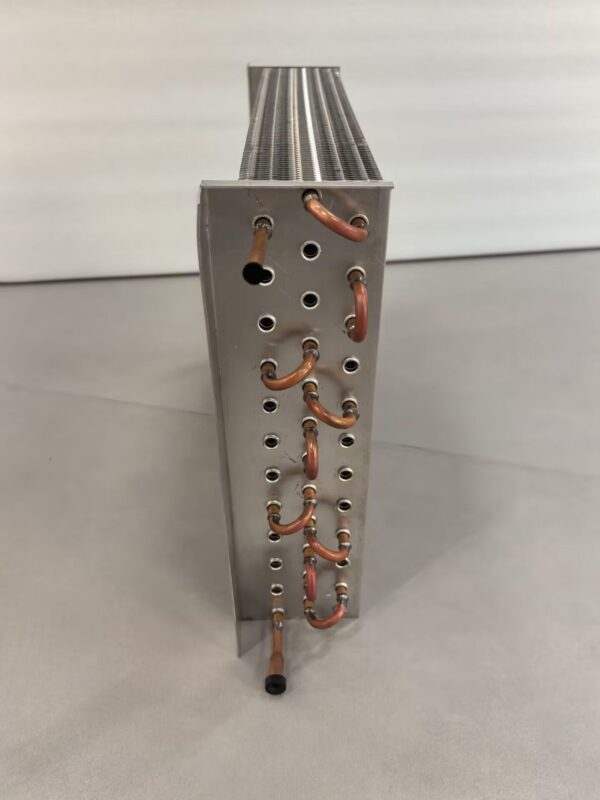

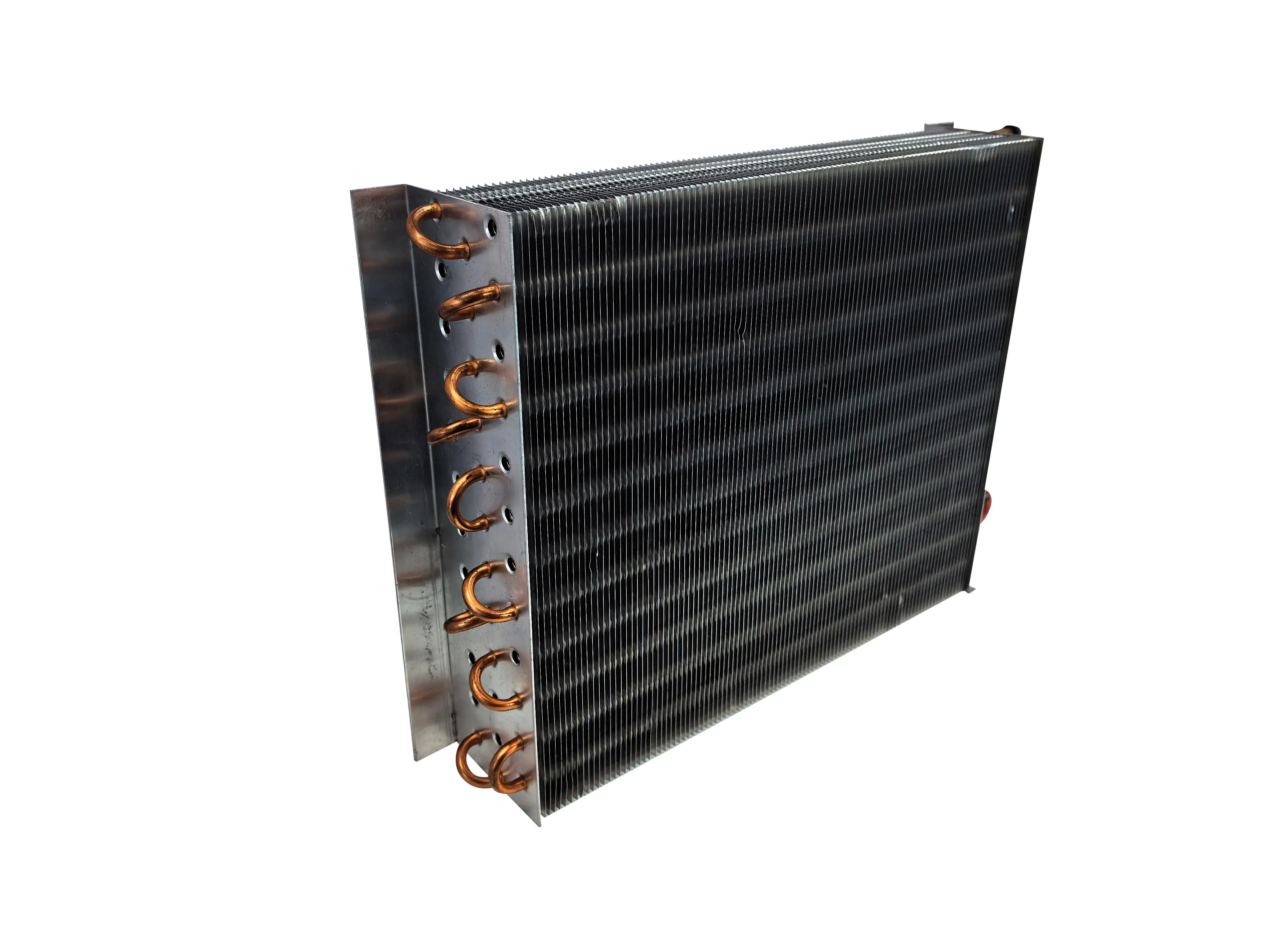

This air cooled condenser pairs copper tube with aluminium fin, the standard commercial refrigeration construction that balances conductivity, corrosion resistance and cost. It is dimensioned for the compact plant found in display showcases, ice makers, vending machines and ice cream equipment, where the condenser has to reject full compressor heat within a cabinet-sized footprint. Machinery test report and video outgoing inspection are supplied with each batch.
Key Features of This Air Cooled Condenser
- Material: Aluminum Fin + Cooper Tube
- Refrigerant: R290A,CO2,R404A,R22,R134A
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Commercial
- Type: Condenser
Technical Specifications
| Type | Condenser |
|---|---|
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Zhejiang, China |
| Brand Name | Beifeng |
| Application | Commercial |
| Product Name | Air Cooled Condenser |
| Material | Aluminum Fin + Cooper Tube |

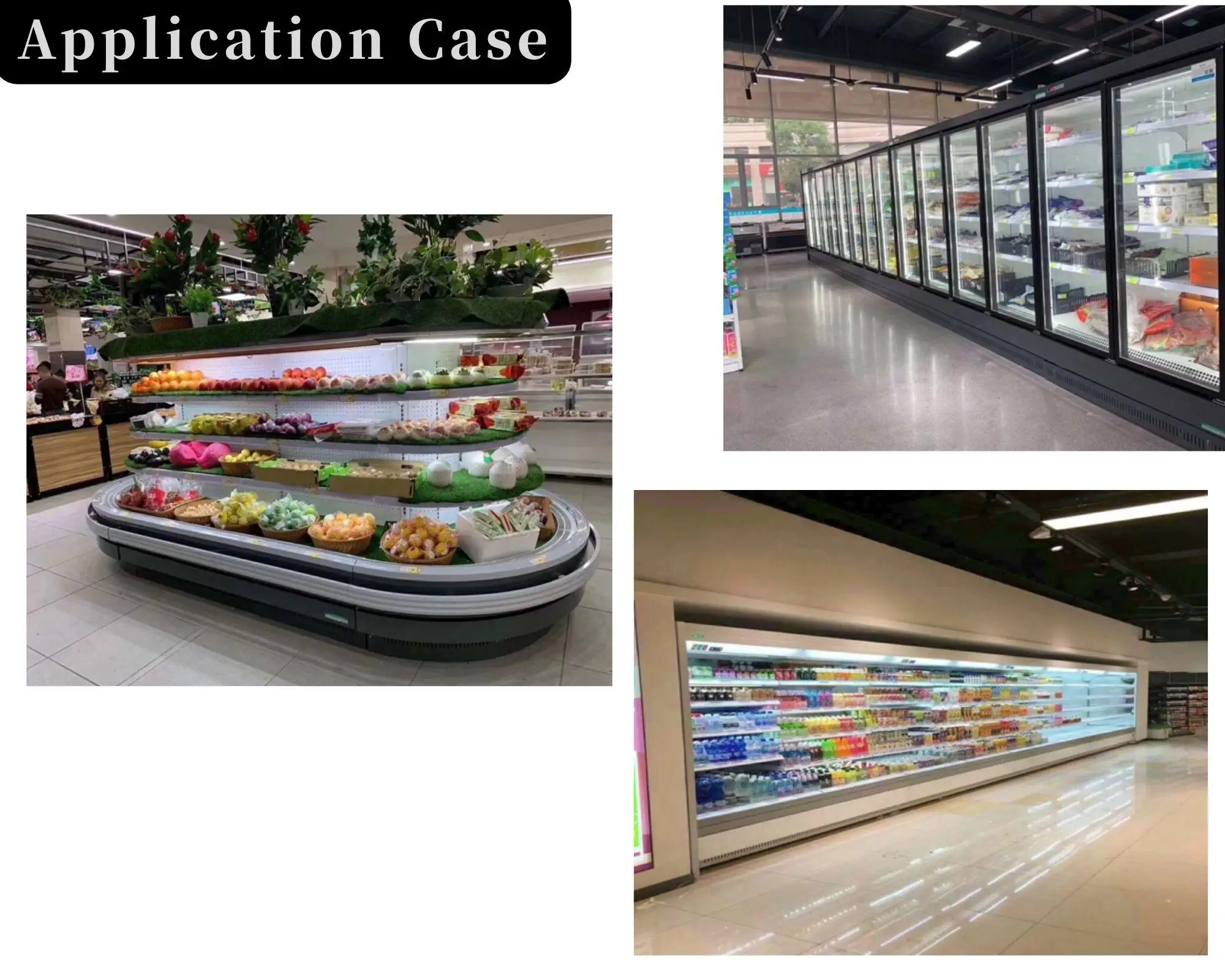

| Usage | Show Case,Ice Maker,vending machine,Ice Cream Machine,Cabinet Freezer |
| Refrigerant | R290A,CO2,R404A,R22,R134A |
| Selling Units | Single item |
|
item
|
Heat Exchanger
|
|
Type
|
Tubular Fin Condenser
|
|
Applicable Industries
|
Show Case，Refrigerator，Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Place of Origin
|
China
|
|
Province
|
Zhejiang
|
|
Warranty
|
1 Year
|
|
Application
|
Refrigeration Parts
|
|
Condition
|
New
|
|
Pipe Diameter
|
5mm internal grooved
|
|

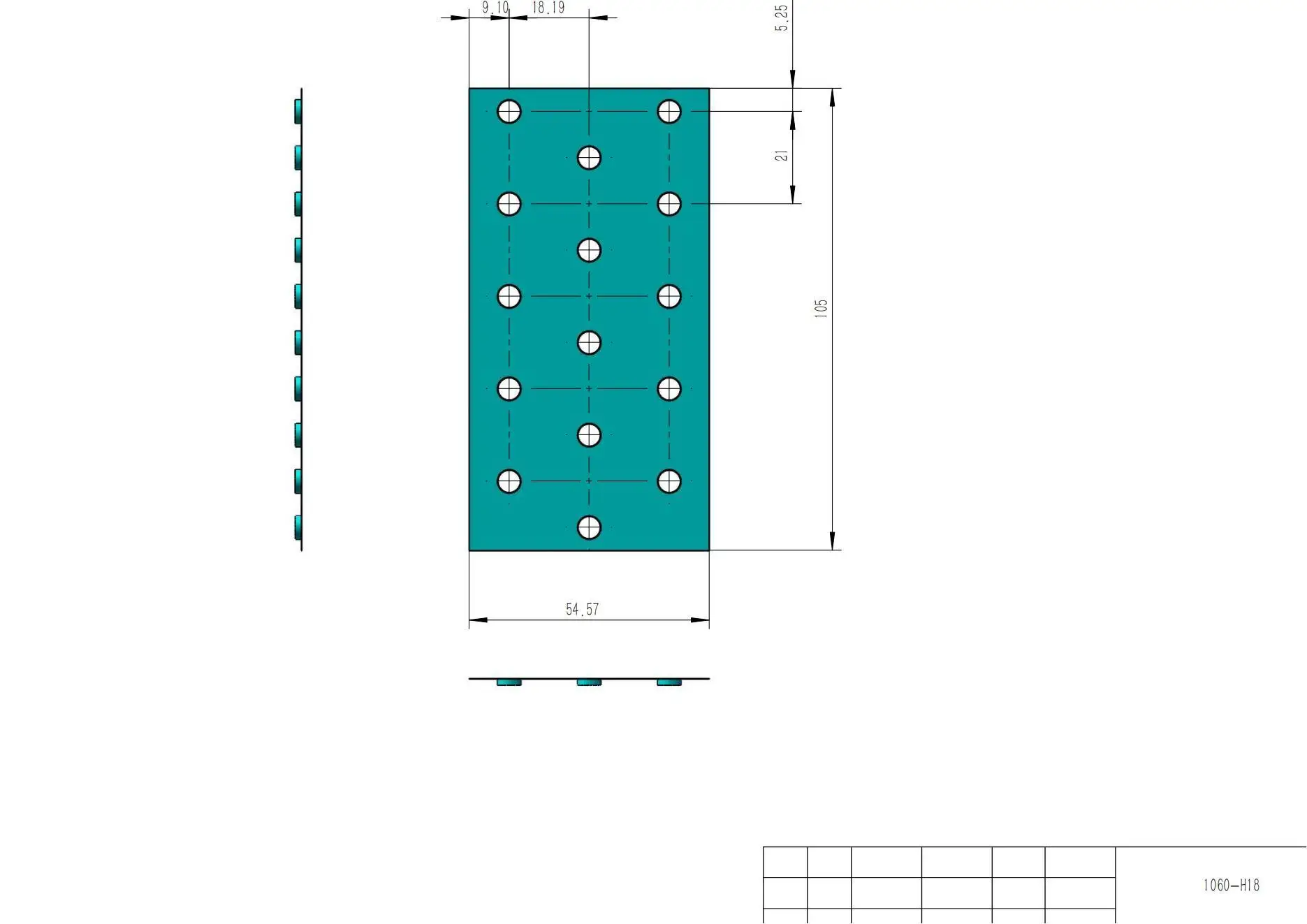

Fin Tooling（RowxHole Distance）
|
18.19×21
|
|
Application
|
Cooling System
|
|
Material
|
Aluminum Fin + Cooper Tube
|
|
Usage
|
Show Case，vending machine,Ice Maker，Ice Cream Machine，Refrigerator
|
|

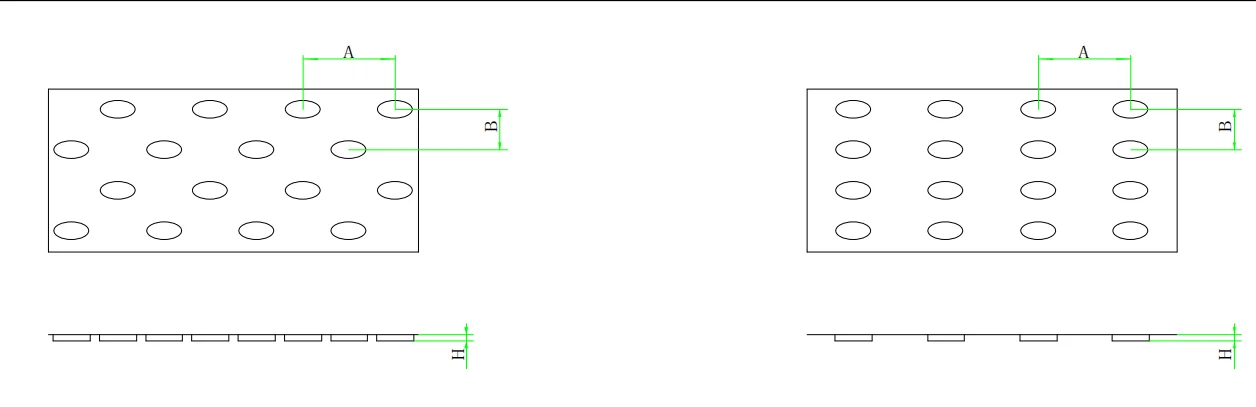

FIN TOOLING
|
||||||||||||
|
NO
|
Copper tube Dia
|
fin space H（mm）
|
Hole arrangement
|
Finned form
|
specification AxB
|
TUBE MATERIAL
|
||||||
|
1
|
Φ5
|
2~4
|
triangle
|
ripple
|
21×18.19
|
COPPER TUBE
|
||||||
|
2
|
Φ7
|
1.8~3.5
|
triangle
|
ripple
|
25×21.65
|
COPPER TUBE
|
||||||
|
3
|
Φ7.94
|
1.8~3.2
|
triangle
|
ripple
|
25.4×16
|
COPPER TUBE
|
||||||
|
4
|
Φ7.94
|
3~5
|
triangle
|
ripple
|
25.4×19.05
|
COPPER TUBE
|
||||||
|
5
|
Φ7.94
|
1.8~5.2
|
Isosceles triangle
|
ripple
|
25×21.65
|
COPPER TUBE
|
||||||
|
6
|
Φ9.52
|
1.7~2.7
|
Isosceles triangle
|
ripple or flat sheet
|
25×21.65
|
COPPER TUBE
|
||||||
|
7
|
Φ9.52
|
3~6
|
Isosceles triangle
|
ripple
|
25×21.65
|
COPPER TUBE
|
||||||
|
8
|
Φ9.52
|
3~6.5
|
Isosceles triangle
|
ripple
|
31.75×27.5
|
COPPER TUBE
|
||||||
|
9
|
Φ9.52
|
2.5~4.2
|
square
|
ripple
|
25×25
|
COPPER TUBE
|
||||||
|
10
|
Φ9.52
|
3~6
|
square
|
ripple or flat sheet
|
30×30
|
COPPER TUBE
|
||||||
|
11
|
Φ11.5
|
5~9
|
square
|
ripple
|
35×35
|
COPPER TUBE
|
||||||
|
12
|
Φ12.7
|
4.5~9
|
triangle
|
ripple
|
48×48
|
COPPER TUBE
|
||||||
|
13
|
Φ12.7
|
3.6~9
|
Isosceles triangle
|
ripple
|
38×32.9
|
COPPER TUBE
|
||||||
|
14
|
Φ12.7
|
8~10
|
triangle
|
ripple
|
75×25
|
COPPER TUBE
|
||||||
|
15
|
Φ12.7
|
6~10
|
triangle
|
ripple
|
60×30
|
COPPER TUBE
|
||||||
|
16
|
Φ14.3
|
4~9
|
Isosceles triangle
|
ripple
|
52×45
|
COPPER TUBE
|
||||||
|
17
|
Φ15
|
8~10
|
triangle
|
ripple
|
75×25
|
COPPER TUBE
|
||||||
|
18
|
Φ15
|
8~10
|
triangle
|
ripple
|
60×30
|
COPPER TUBE
|
||||||
|
19
|
Φ15.2
|
2.2~4
|
Isosceles triangle
|
ripple
|
38×32.9
|
COPPER TUBE
|
||||||
|
20
|
Φ8
|
5,6
|
2ROW、4ROW
|
ripple
|
38.1×22
|
ALUMINIUM TUBE
|
||||||
|
21
|
Φ8
|
5
|
3ROW
|
ripple
|
38.1×22
|
ALUMINIUM TUBE
|
||||||
Frequently Asked Questions
What is the minimum order quantity for this air cooled condenser?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this air cooled condenser?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
