The removable tube listed here carries 220v/380v/customized, material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Changzhou Vrcoolertech Refrigeration Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Removable Tube
- Voltage: 220v/380v/customized
- Material: Stainless Steel
- Fin Material: Titanium, Stainless steel 316/304, Copper
- Tube Material: Copper ,Cu-Ni, stainless steel, titanium etc.
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Fluid Compatibility | Oil |
| Material | Stainless Steel |
| Voltage | 220v/380v/customized |
| Core Components | heat exchanger |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Low Maintenance Cost |
| Place Of Origin | China |
| Weight (Kg) | 150 |
| Brand Name | Vrcooler |
| Liquid Flow Rate | 1.2-15.2L/KW |
| Maximum Pressure Rating | 4.5Mpa(652.67psi) |
| Dimension(L*W*H) | 1400*300*724 |
| Fin Material | Titanium, Stainless steel 316/304, Copper |
| Application | Use at high temperature and high pressure |
| Packing | Wooden Package |
| Repair Service | Provided |
| Tube Material | Copper ,Cu-Ni, stainless steel, titanium etc. |
| Selling Units | Single item |
| Single Package Size | 40X115X40 cm |
| Single Gross Weight | 130.0 kg |
Product Details
Product description

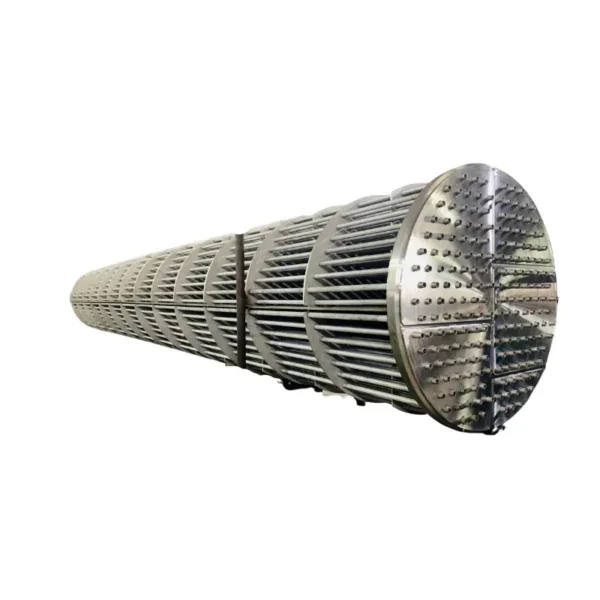

Stainless Steel Tubular Heat Exchanger

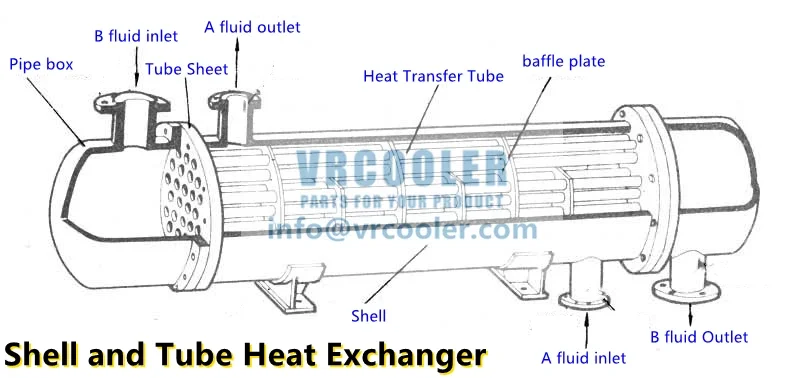

The shell and tube heat exchanger is composed of a shell and a tube bundle containing many tubes, and the heat exchange between the cold and hot fluids is carried out through the tube wall. As a traditional standard heat exchange equipment, shell and tube heat exchangers are widely used in chemical, oil refining, petrochemical, power, nuclear energy and other industrial installations, especially in high temperature and high pressure and large-scale heat exchangers. The application in the heater occupies an absolute advantage. Generally, the working pressure of shell and tube heat exchangers can reach 4 MPa, the working temperature is below 200 ℃, and higher pressure and temperature can be reached in individual cases. Generally, the diameter of the shell is less than 1800 mm, and the length of the tube is less than 9 meters. In individual cases, there are larger or longer ones. Shell and tube heat exchanger features: Shell-and-tube heat exchangers have strong structure, large processing capacity, wide range of material selection, strong adaptability, easy manufacture, low production cost, convenient cleaning, and can also be applied under high temperature and high pressure. We offer a large range of heat exchanger products for the industrial, food and beverage, HVAC, marine, air handling and cooling, petrochemical, power generation and refrigeration industries. Our shell and tube products are available in 100% replacement and custom designs. Product Features: Compact Design Corrosion Resistant Stainless Steel High Performance
ASEM Standard The material can be carbon steel and stainless steel.
Parts

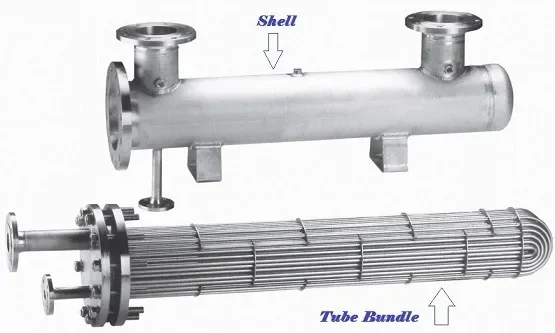

The shell and tube heat exchanger is composed of a shell and a tube bundle containing many tubes
The shell is the larger outer component of the heat exchanger and provides structural support and containment for the tube bundle. It's typically cylindrical in shape and can have various configurations, such as fixed tube sheet, floating head, U-tube, and more.
Carbon Steel: Carbon steel is a commonly used material for heat exchanger shells, especially in industrial applications.
Stainless Steel: Stainless steel offers excellent corrosion resistance and can withstand a wide range of corrosive fluids and environments.
Nickel Alloys: Nickel-based alloys, such as Inconel and Hastelloy, are used when dealing with extremely corrosive fluids, high temperatures, or aggressive chemical environments.
Nickel Alloys: Nickel-based alloys, such as Inconel and Hastelloy, are used when dealing with extremely corrosive fluids, high temperatures, or aggressive chemical environments.
Copper Alloys: Copper alloys can be used in heat exchangers where water or other non-corrosive fluids are involved.
Titanium: Titanium is known for its exceptional corrosion resistance, particularly in highly corrosive environments such as those involving seawater or certain chemicals.

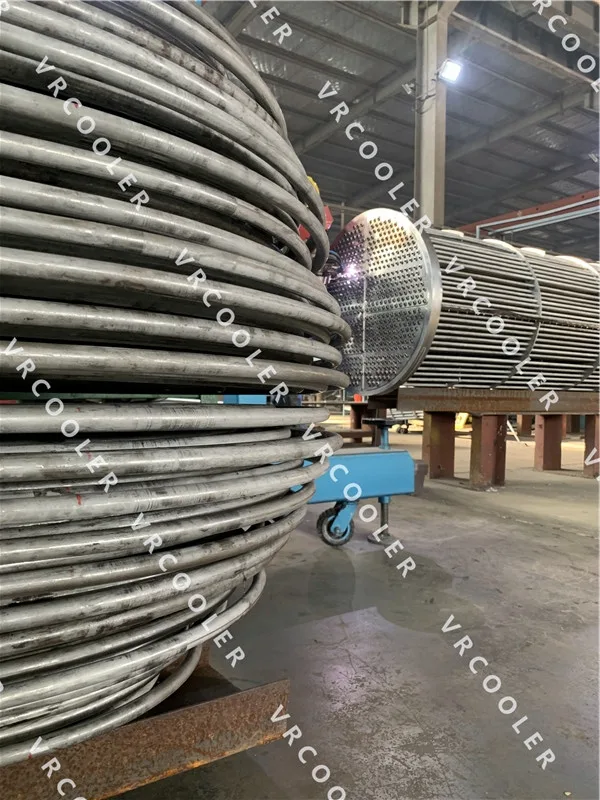

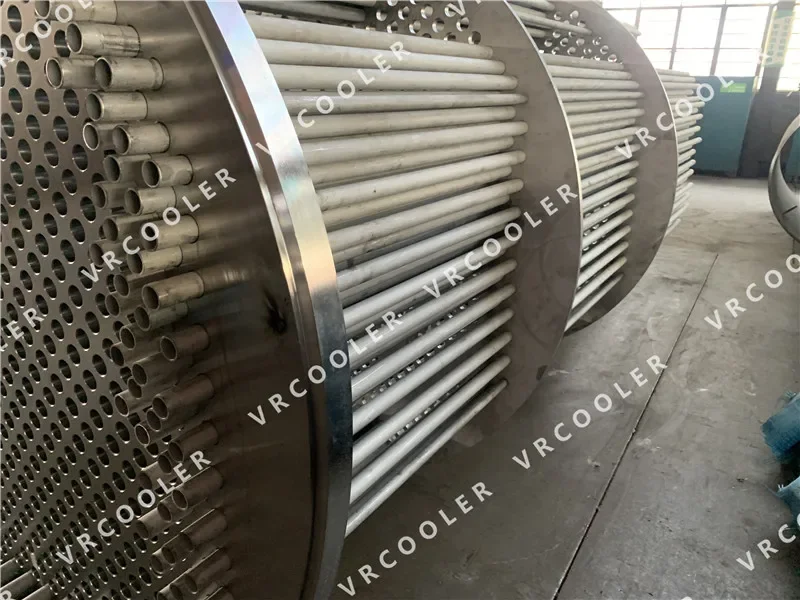

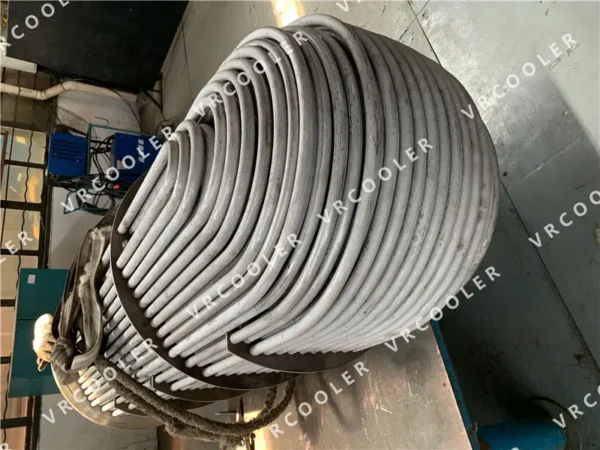

Inside the shell, there is a bundle of tubes, which are usually smaller in diameter compared to the shell. These tubes are the pathways through which one of the fluids flows. Heat is transferred between the fluids through the tube walls.
Material Options:
Carbon Steel Stainless Steel Copper and Copper Alloys Nickel Alloys Titanium Brass

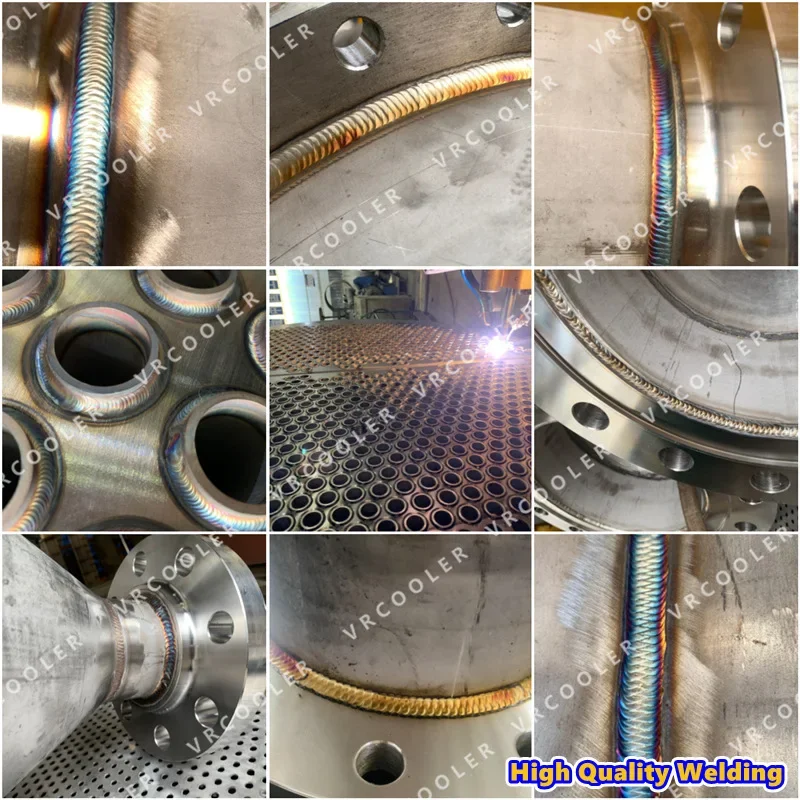

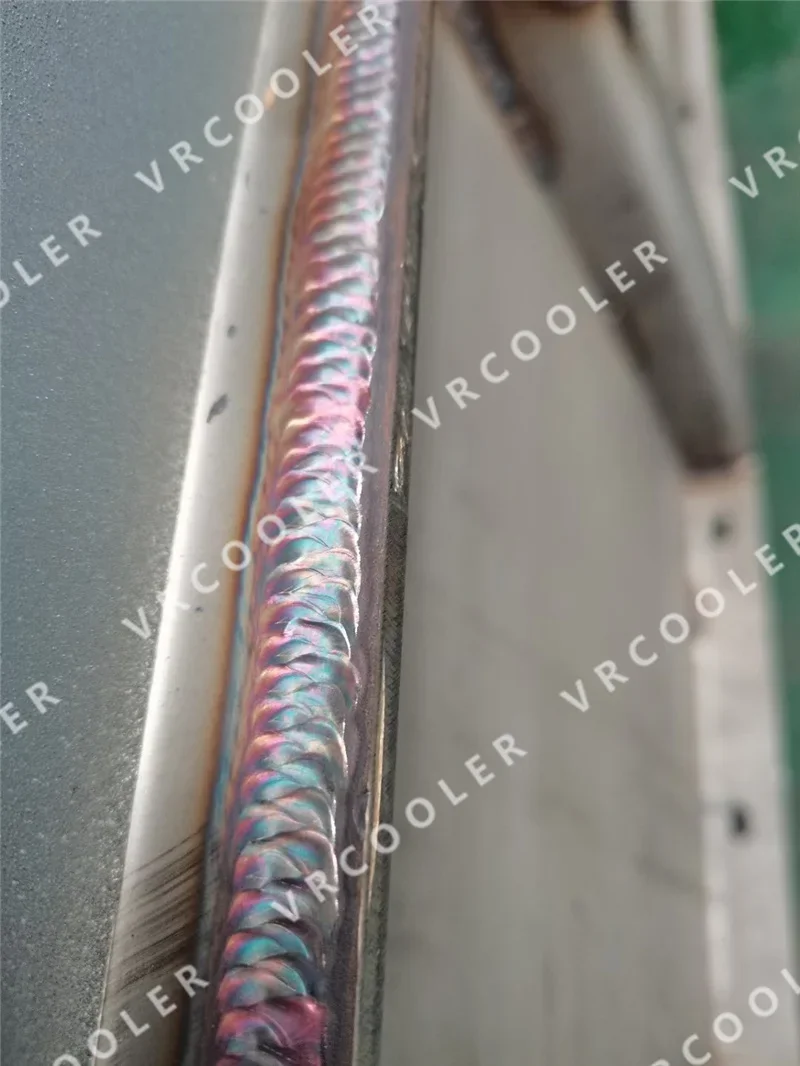

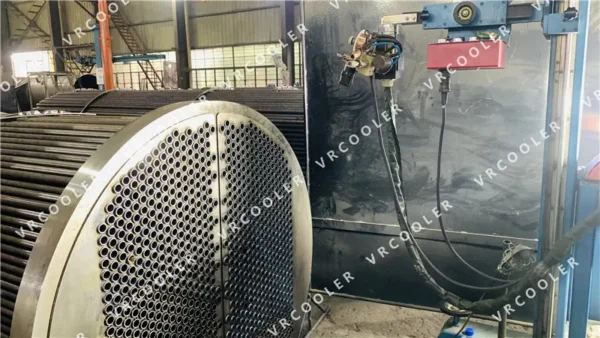

High Quality Welding
Technical Support

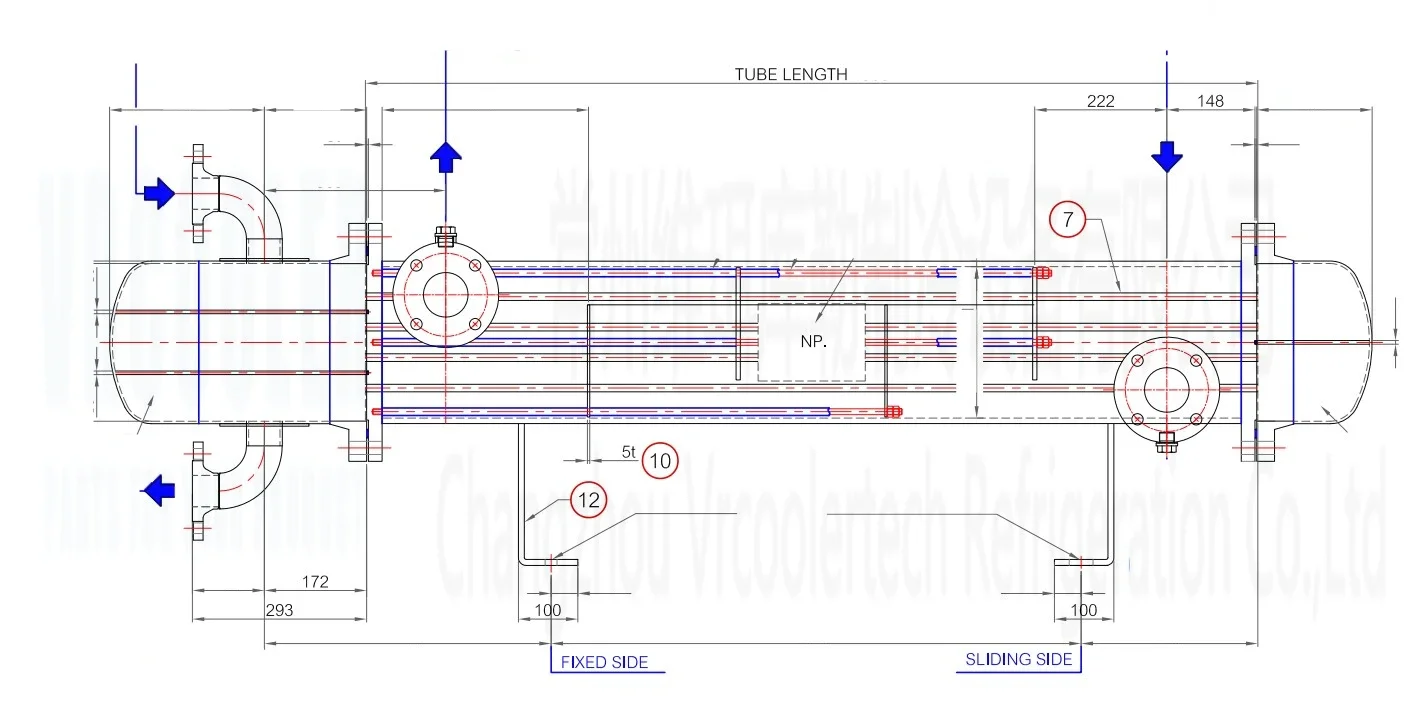

We can provide detailed drawing after your order.
We can also provide Custom services.

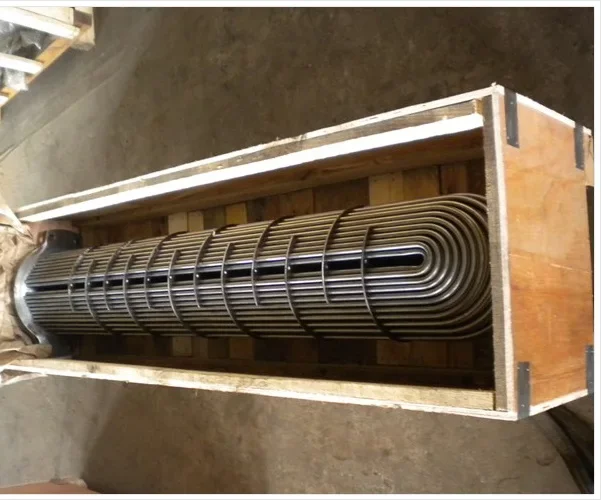

Packing & Delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we
will use pe film for packing or pack it according to customers special request.
will use pe film for packing or pack it according to customers special request.
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China. Tel: +86-0519-81695177 E-mail: info@vrcooler.com ; sales@vrcooler.com Website: www.vrcoolertech.com ; www.vrcooler.com
FAQ
1.What is your delivery time? 20—30days. 2.What are the payment terms? 50% T/T before production and balance before shipment. 3.What is your warranty? One year after shipping.. 4.What is the valid time of the quotation? 30 days. 5.Can we do our OEM logo? Yes, we can do OEM logo for you.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $2725 / unit
- 50–99 unit: US $2209 / unit
- 100+ unit: US $1988 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this removable tube?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the removable tube be supplied for my local voltage?
The standard configuration is 220v/380v/customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Vrcoolertech Refrigeration Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Changzhou Vrcoolertech Refrigeration Co., Ltd. range on HVACR Nexus.
