Key specification for this right angle non-locking fan: 250V AC, material Plastic. Everything below is reproduced from the factory data sheet. Made by Xiamen Jinbeili Electronics Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

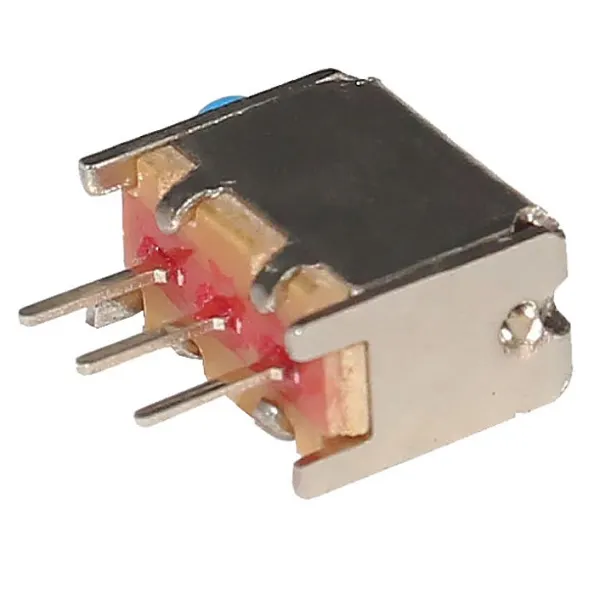

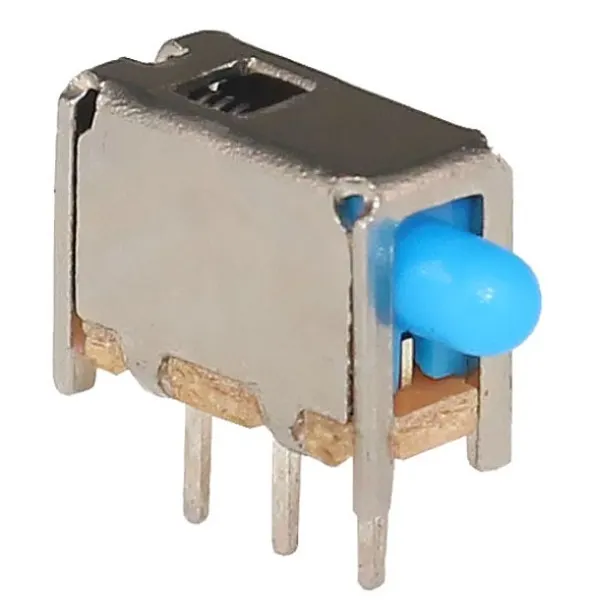

Key Features of This Right Angle Non-Locking Fan

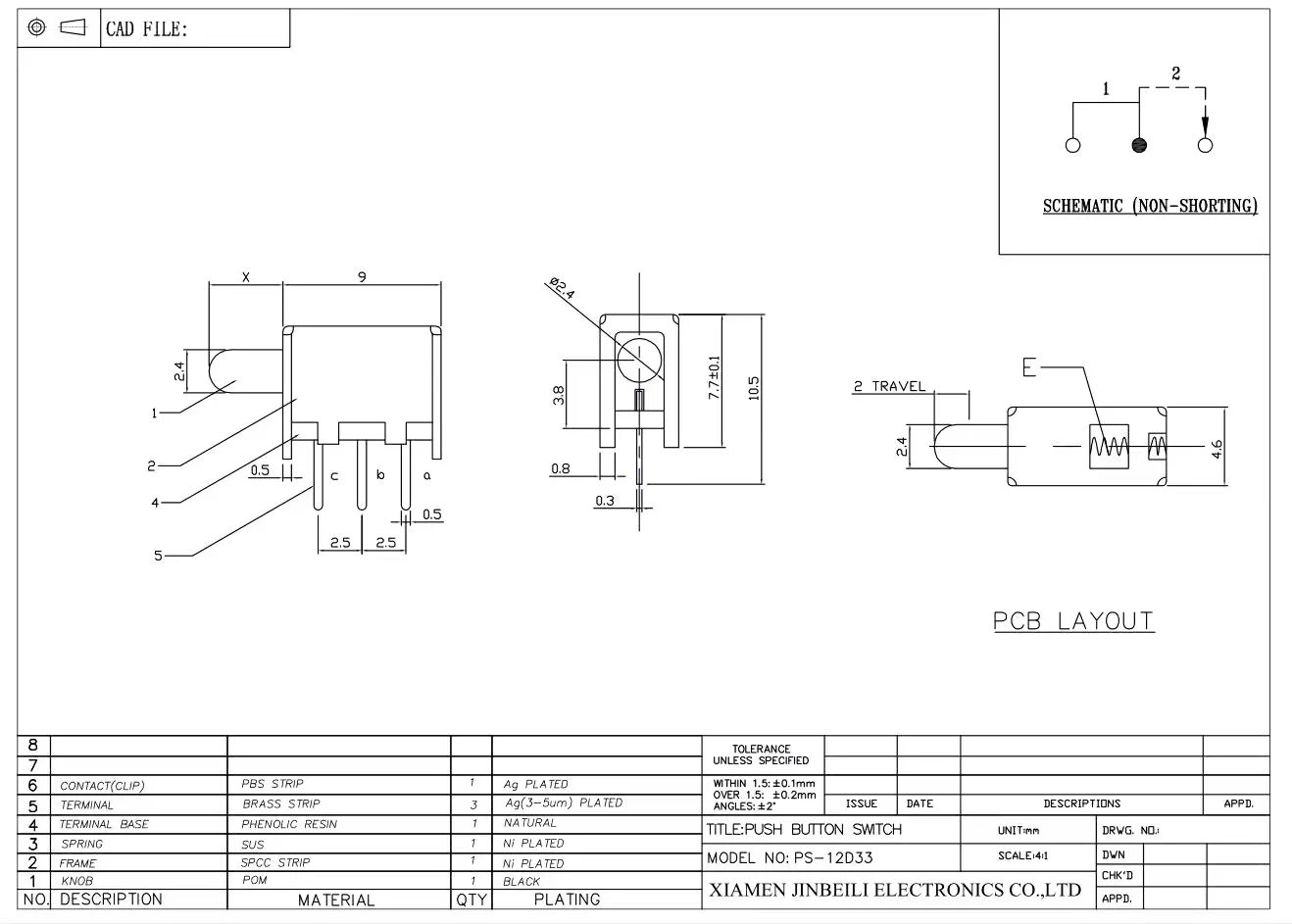

- Model Number: PS-12D33
- Max. Voltage: 30V
- Voltage Withstanding: 250V AC
- Material: Plastic
- Place Of Origin: Fujian, China
- Application: Home Appliance, Electric, Industrial Control, Latching
Technical Specifications
| Max. Voltage | 30V |
|---|---|
| Max. Current | 0.1A |
| Switch Combination | 1NO1NC |
| IP Level | NO |
| Material | Plastic |
| Terminal Type | Pin Terminal |
| Illuminated Type | Ring Illuminated |
| LED | No |
| Application | Home Appliance, Electric, Industrial Control, Latching |
| Whether The Smart | No |
| Structure | Electronic |
| Place Of Origin | Fujian, China |
| Model Number | PS-12D33 |
| Brand Name | Jinbeili |
| Mechanism | 10000 cycles |
| Voltage Withstanding | 250V AC |
| Insulation Resistance | ≥100MΩ |
| Travel | 2.0±0.15mm |
| Rating | DC 30V 0.3A |
| Timing | Non-shorting |
| Protection Level | NO |
| Selling Units | Single item |
| Single Package Size | 10X10X5 cm |
| Single Gross Weight | 0.5 kg |
Product Details
If you need original PDF Format data sheet to refer to , please contact us
worldwide marketplace , and capable of customizing products in different colors , materials , marking , finishes and shapes to
meet customers specific needs.

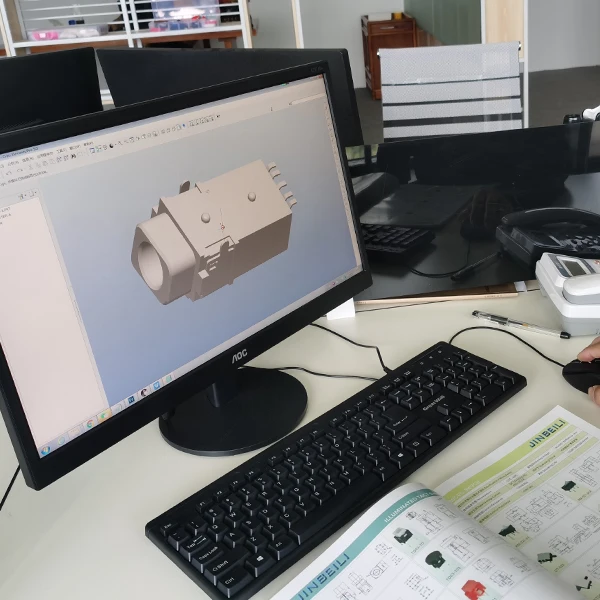

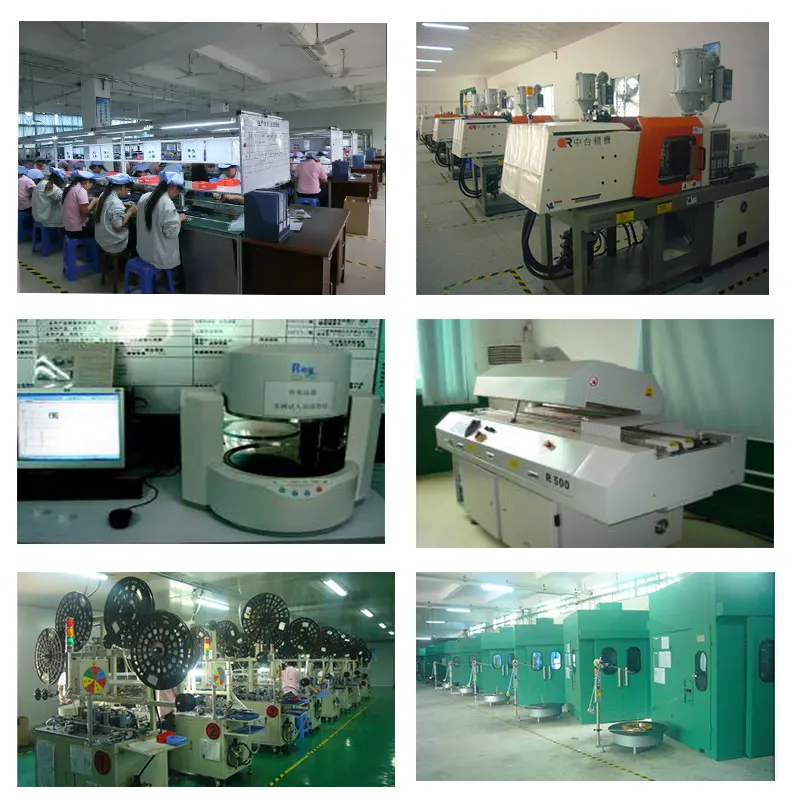

R&D Development

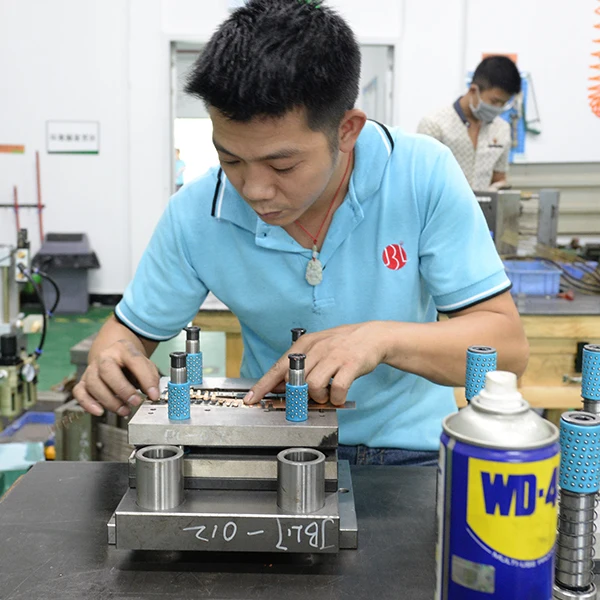

Tooling

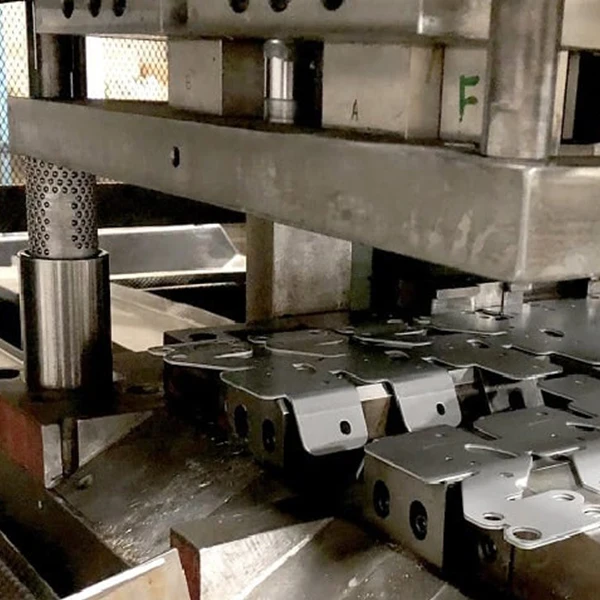

Stampling
Plastic Molding
elastomer

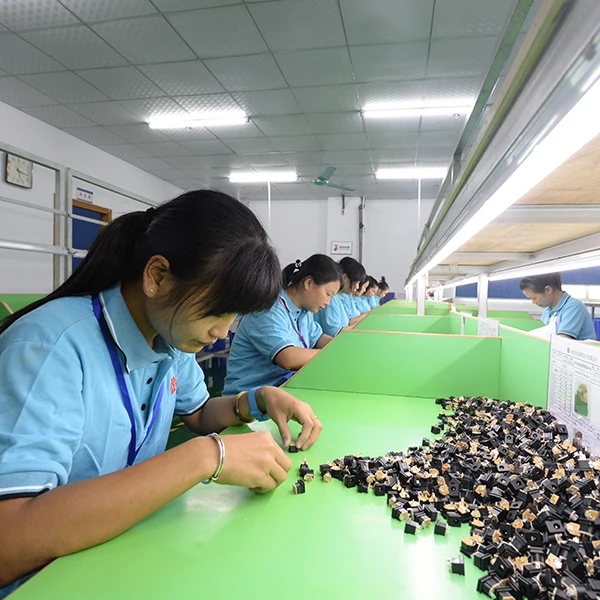

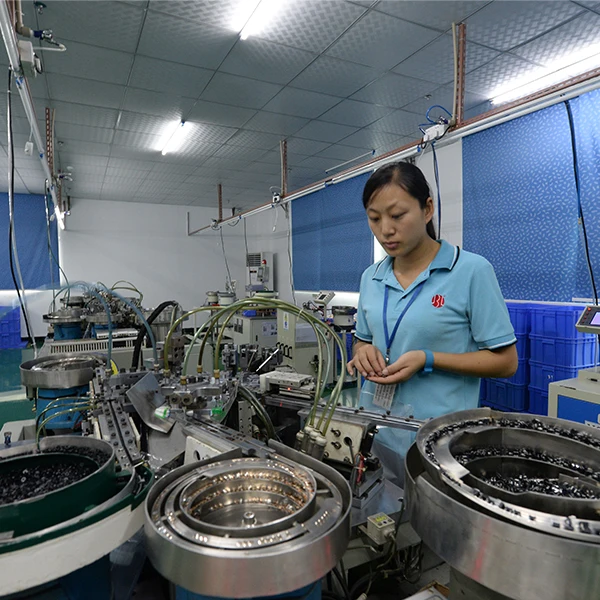

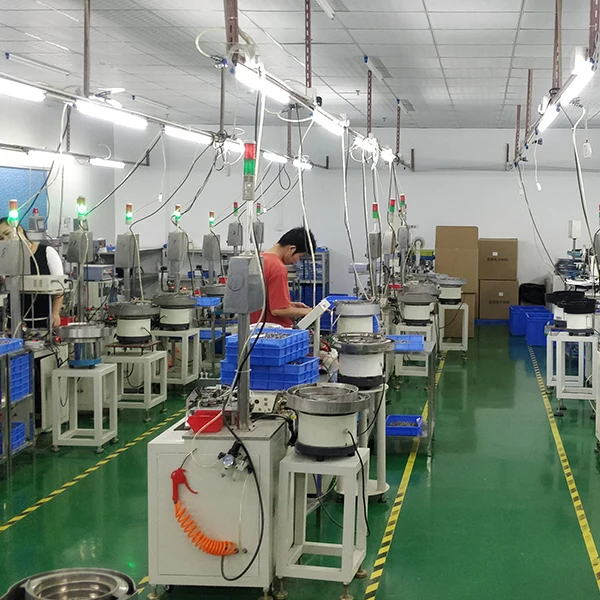

Automate Assembly Line

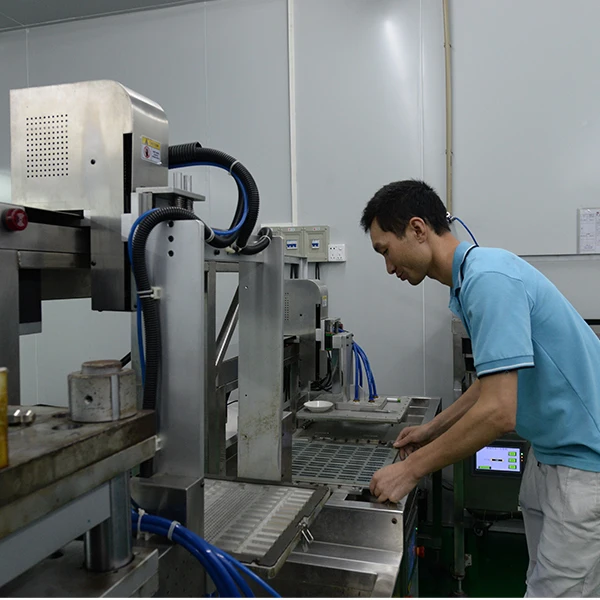

Testing & Inspection
3, Please keep our products away from moisture and sunlight to avoid oxidation when storing them.

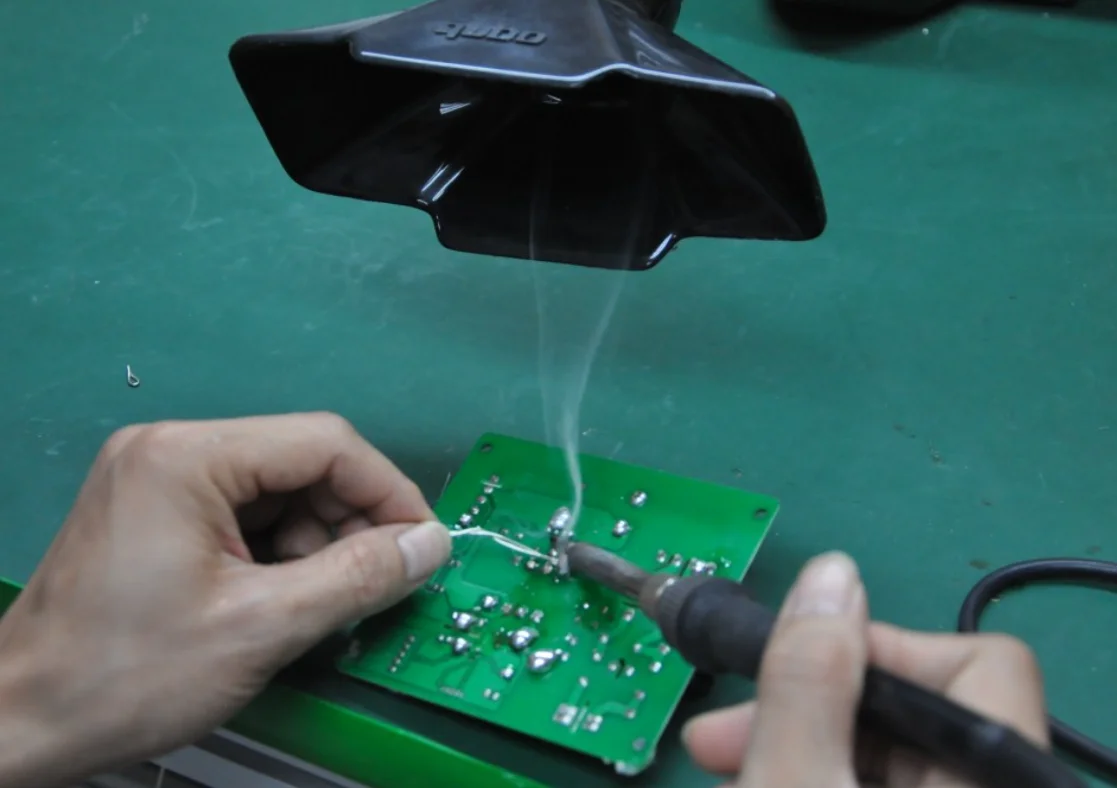

Type | Manual soldering |
Max Temp | 360℃ |
Max Time | 2 S |
Rework | less than 2 times |
Operating Temp | -20℃ to + 70℃ |

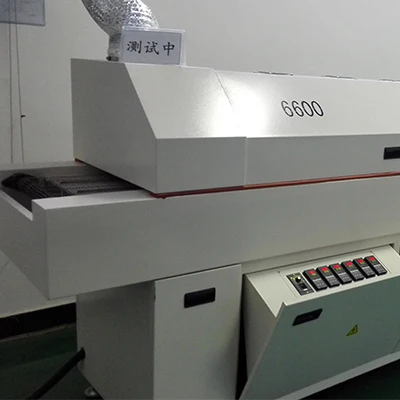

Type | Wave Soldering |
Pre-Heat Temp | 130℃ |
Pre-Heat Time | 1.3 minutes |
Max Soldering Temp | 250℃ |
Soldering Time | 2s – 3s |
Deliver Speed | 1300mm/min |
A: Of course. Please contact us via Alibaba , we will send you PDF format sheet as soon as possible
2, Q : Do you customize material of switch as buy's requirement ?
A : Yes, we do. we customize different colors, materials, shapes etc. Please provide us your spec sheet and requirement
3, Q : Could I get a sample to test ?
A: Sure, we provide you free sample, but shipping cost should be paid by buyer
4, Q : How quick could you deliver a order ?
A: For custom order, it takes about 15 days normally. It depends on quantities of your order.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–299 piece: US $0.15 / piece
- 300+ piece: US $0.1 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this right angle non-locking fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the right angle non-locking fan be supplied for my local voltage?
The standard configuration is 30V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

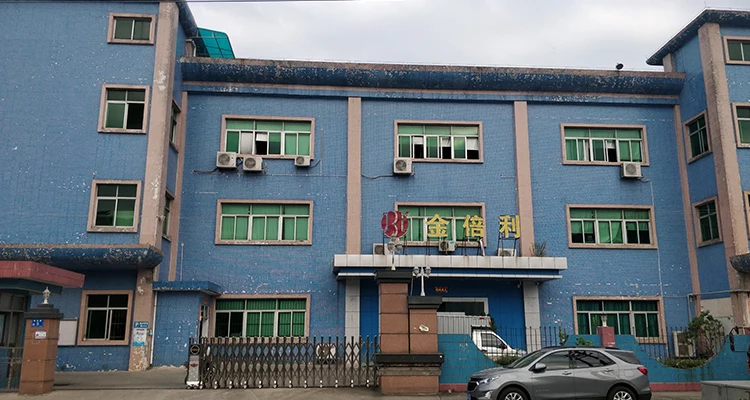

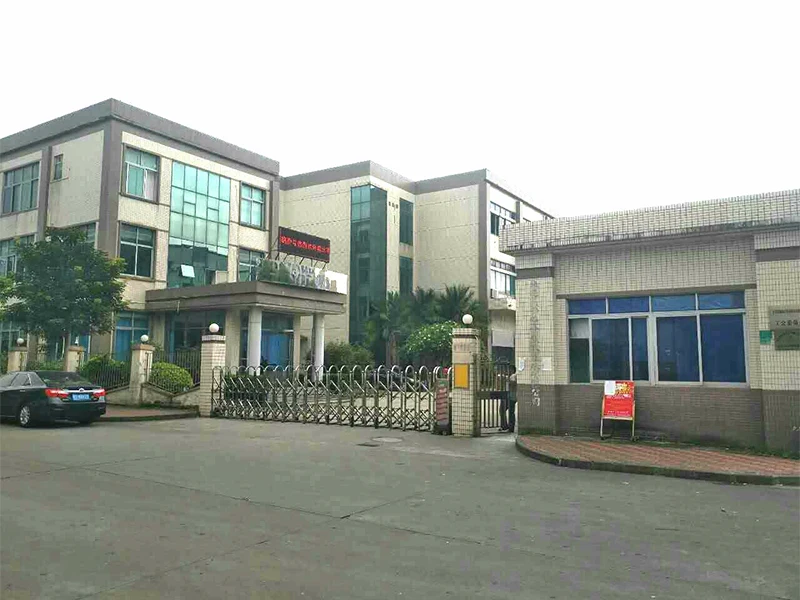

About the Manufacturer
This product is produced by Xiamen Jinbeili Electronics Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xiamen Jinbeili Electronics Co., Ltd. range on HVACR Nexus.
