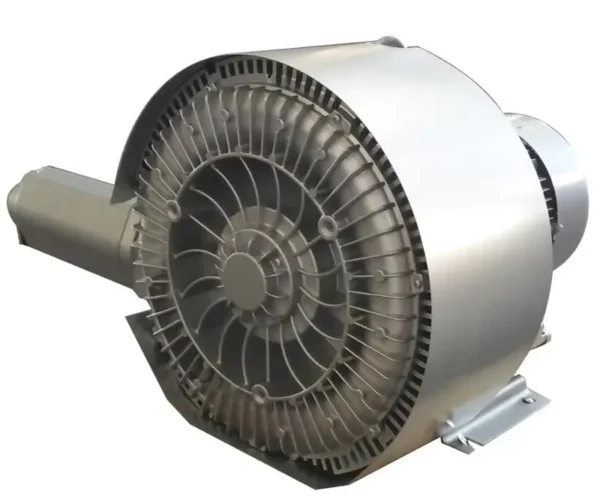

Key specification for this ring blower: airflow 230(m3/h),275(m3/h), power source Electric. Everything below is reproduced from the factory data sheet. Made by Taizhou Rexchip Mechanical And Electrical Co., Ltd. (10 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ring Blower
- Power Source: Electric
- Airflow: 230(m3/h),275(m3/h)
- Place Of Origin: China
- Application: Wastewater Treatment
- Customized Support: OEM
- Pressure: High Pressure
Technical Specifications
| Application | Wastewater Treatment |
|---|---|
| Power Source | Electric |
| Customized Support | OEM |
| Pressure | High Pressure |
| Place Of Origin | China |
| Airflow | 230(m3/h),275(m3/h) |
| Phase | Three |
| Stage | double |
| Selling Units | Single item |
Product Details
We are the manufacturer for side channel blowers(also called regenerative blower, ring blower), located in Wenling, Zhejiang, China, We've been focus and professional on blower manufacturing for 15 years experience .Because of good quality now we have been the biggest supplier of this blower in domestic market, and export big quantity to Europe and America each month. and we help lots of customers to find the most suitable blower for their equipment.
Specification
| Model | Frequency | Power | Voltage | Current | Airflow | Vaccum | Compress | Noise | Weight | |
| Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg | ||
| 520H46 | 50 | 3.00 | 200-240Δ | 345-415Y | 12.5Δ/7.2Y | 230 | -340 | 410 | 72 | 39 |
| 60 | 3.45 | 220-275Δ | 380-480Y | 12.5Δ/7.3Y | 275 | -380 | 360 | 74 | ||
Blower for Pneumatic Conveying Systems
When bulk goods need to be conveyed gently from A to B, segregation-free and without break-up, a variety of pneumatic conveying systems can be used, dependent on the application, such as suction conveying systems, pressure conveying systems, suction-pressure conveying systems, impulse conveying systems or dense-phase conveying systems.
Pneumatic conveying (the transfer of dry bulk products such as flour and plastic pellets through a pipe line) has been one of the major uses for Ring blowers and one in which REXCHIP has developed much engineering expertise.
The advantages of Rexchip blowers:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Smart design and low noise
7. ATEX explosion proof motor is available for all the blowers.
8. IE2 and IE3 motor are available for some blowers.
9. Good quality and competitive prices.
10. Quick delivery date.
Our blowers are widely used in the following applications
1. Aquaculture (fish and prawn pong aeration)
2. Waste water treatment, sewage treatment system.
3. Pneumatic conveying systems.
4.Pharmaceutical machinery
5.Garment machinery
6.Wood working machinery
7.Plastic machinery
8.Printing machinery
9.Textile machinery
10.Packaging machinery
11.Clay bricks for manufacturing
12.Paper processing.
13. Industrial cleaning machinery
14. Air knives
15. Dental suction equipment
Application scenarios:
Our certification: (CE, ISO & CCC)
Our exhibition:

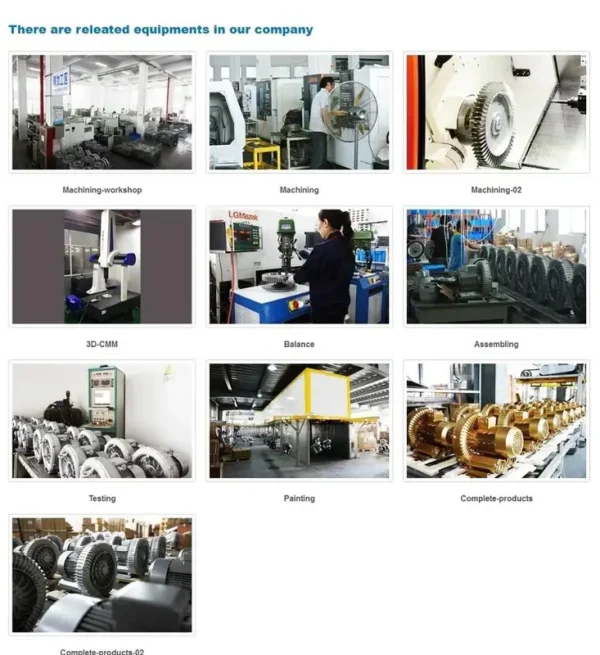

Our workshop
The instruction for Rexchip blowers:
The team of Rexchip has focused on this kind of blower for more than 15 years. We only produce side channel blowers, it's also called ring blower, regenerative blower, air blower, vacuum pump etc.. We also supply belt drive blowers and all the parts for this kind of blower. The range of the power for our blowers is from 0.12kw to 30kw.
Each production procedure is operated in our own workshop, tooling making, die casting, stamping, high precision machining, assembling and automatic spraying, so we could control the quality, cost and delivery date better.
Please do not hesitate to consult for free if you have any questions
Rainie Chen
Taizhou REXCHIP Mechanical and Eletrical Co., Ltd
Shangma Industry Zone, Wenling, Zhejiang, China
Website: http://www.rexchipblower.com
tel/wechat: +0086 13819447020
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $363 / piece
- 100+ piece: US $350 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
