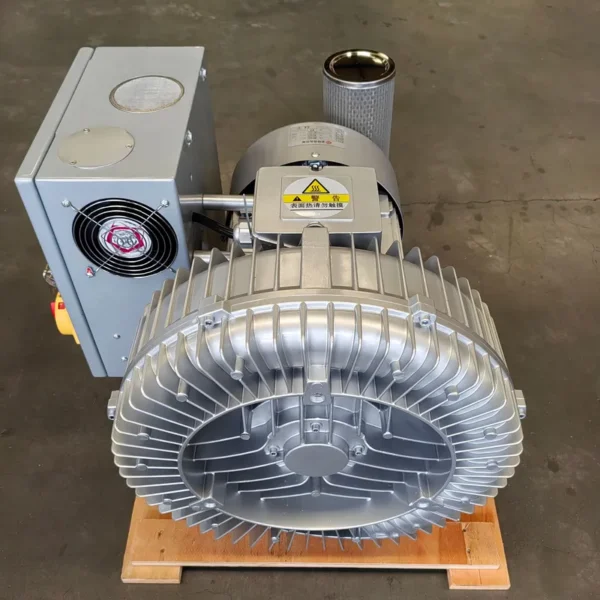

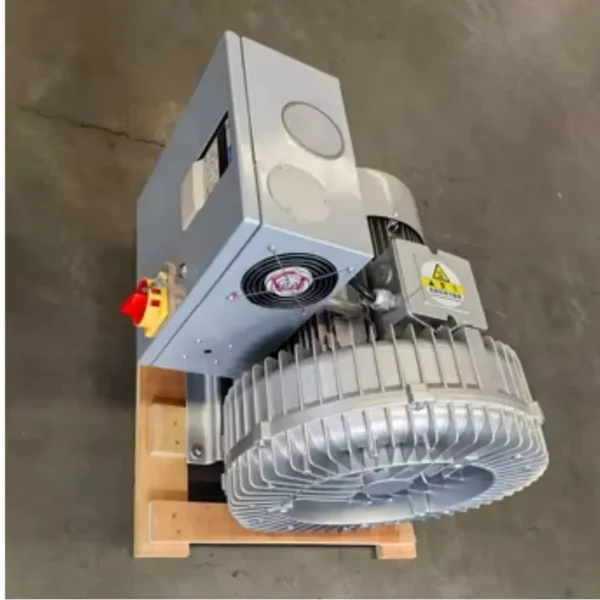

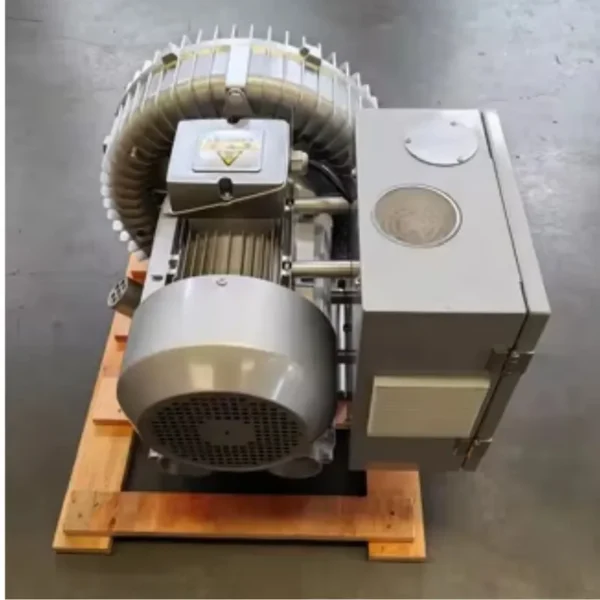

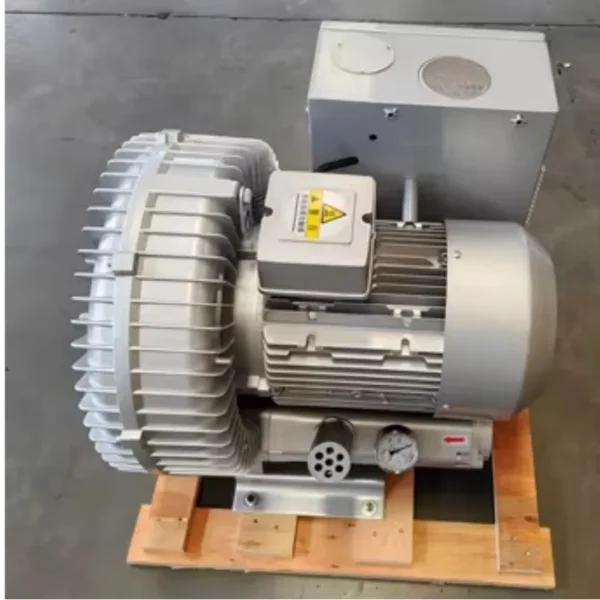

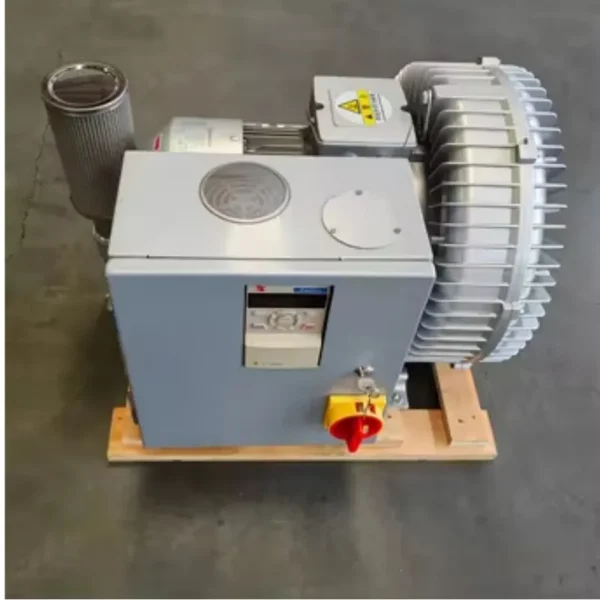

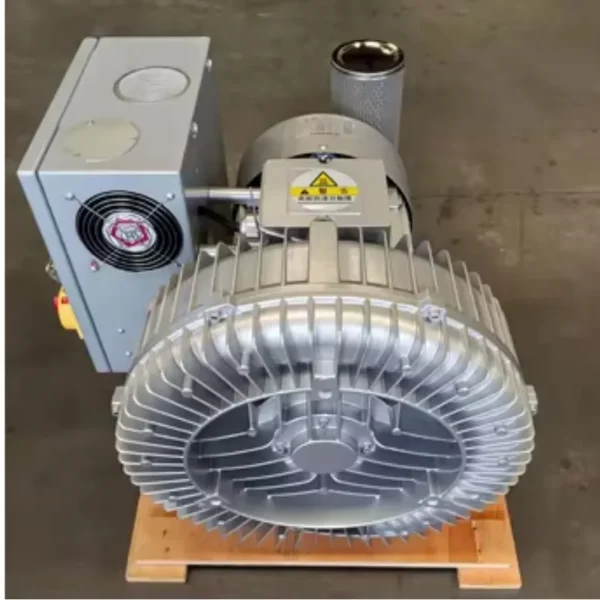

Ring blower — rated voltage 3phase 220V/380V/custom, 700m3/h. The complete factory specification follows. Made by Jinan Golden Bridge Precision Machinery Co., Ltd. (16 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ring Blower
- Model Number: 2GH 830-H27
- Power Source: Electric
- Horsepower: 10
- Rated Power: 7.5kw
- Rated Voltage: 3phase 220V/380V/custom
- Max Airflow: 700m3/h
Technical Specifications
| Application | Industrial vacuum |
|---|---|
| Structure | vortex pump |
| Max Flow Rate | 700m3/h |
| Max Pressure | 260mbar |
| Power Source | Electric |
| Chemical Compatibility | Dry air |
| Impeller Material | Aluminum Alloy |
| Applicable Temperature | 15-45°C |
| Import Size | DN60 |
| Connection Type | bearing |
| Outlet Type | Universal Style |
| Discharge Pipe Size | 1-1/2 in |
| Displacement | 700m3/h |
| Control Method | Manual Control |
| Motor | Three-Phase Motor |
| Surface Treatment | Spraying |
| Warranty | 1year |
| Customized Support | OEM |
| Horsepower | 10 |
| Pressure | High Pressure |
| Filter Material | Non-Woven Fabric Filter Core |
| Model Number | 2GH 830-H27 |
| Place Of Origin | Shandong, China |
| Brand Name | JQT |
| Product Name | vacuum pump regenerative Vortex blowers |
| Rated Voltage | 3phase 220V/380V/custom |
| Rated Power | 7.5kw |
| Max Airflow | 700m3/h |
| Vacuum | -270mbar |
| Certification | CE Certificate |
| Material | Cast Aluminum |
| Package | Wooden Case Package |
| MOQ | 1 Set |
| Selling Units | Single item |
| Single Package Size | 60X55X56 cm |
| Single Gross Weight | 80.000 kg |
Product Details
R: 1 years, any product itself question,you can contact with us.
2. What is the material of your machine , is oil free?
R: our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free.
3. How to operate your machine?
R: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your voltage and phase,its important.
4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.
R: You need to tell us Air flow, operating pressure, operating mode(vacuum or pressure), motor voltage and frequency, and then we'll choose you the right one.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $915 / unit
- 10–19 unit: US $900 / unit
- 20+ unit: US $890 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ring blower carry?
It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ring blower be supplied for my local voltage?
The standard configuration is 3phase 220V/380V/custom. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
