The ring blower listed here carries rated voltage 48vdc, 33m3/h, documented exactly as the manufacturer publishes it. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ring Blower
- Model Number: WS145110-48-150-X300
- Power Source: Electric
- Power Cord Length: 300MM
- Power: 312W
- Rated Voltage: 48vdc
- Voltage: 48 vdc
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 48vdc |
| Electric Current Type | DC |
| Material | Aluminum |
| Blade Material | Aluminum |
| Noise Level | 60-70dB |
| Pressure | High Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Power Cord Length | 300MM |
| Place Of Origin | Zhejiang, China |
| Brand Name | WONSMART |
| Model Number | WS145110-48-150-X300 |
| Brand | WONSMART |
| Product Name | 32kPa 48v brushless dc blower |
| Color | Silver |
| Voltage | 48 vdc |
| Max Airflow | 33m3/h |
| Max Pressure | 32Kpa |
| Power | 312W |
| Certification | CE ROHS ETL REACH |
| Type | Turbine Blower |
| Function | fuel cell system |
| Selling Units | Single item |
| Single Package Size | 14X14X10 cm |
| Single Gross Weight | 4.000 kg |
Product Details

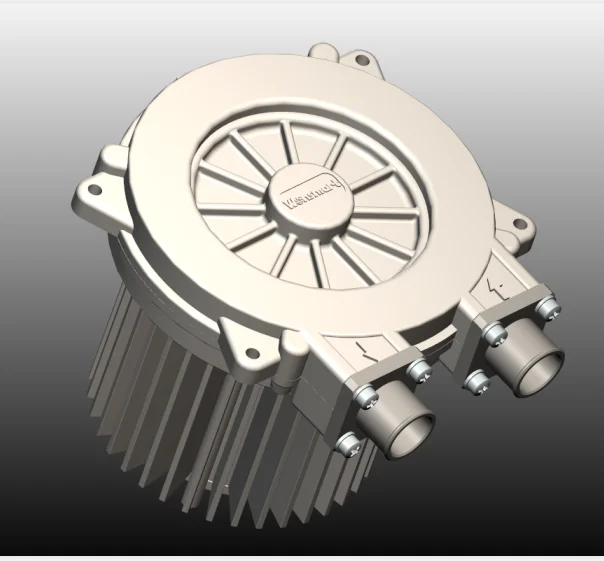

Part Name | DC brushless ring blower |
Part No | WS145110-48-150-X300 |
Rated votlage | 48VDC |
Max power consumption | 312W |
Life time(MTTF) | >10,000hours |
Unit weight | 1.52 KGS |
Bearing | NMB Ball bearing |
Insulation class | Class F |
Driver board | External |
Speed control | PWM or 0~5V |

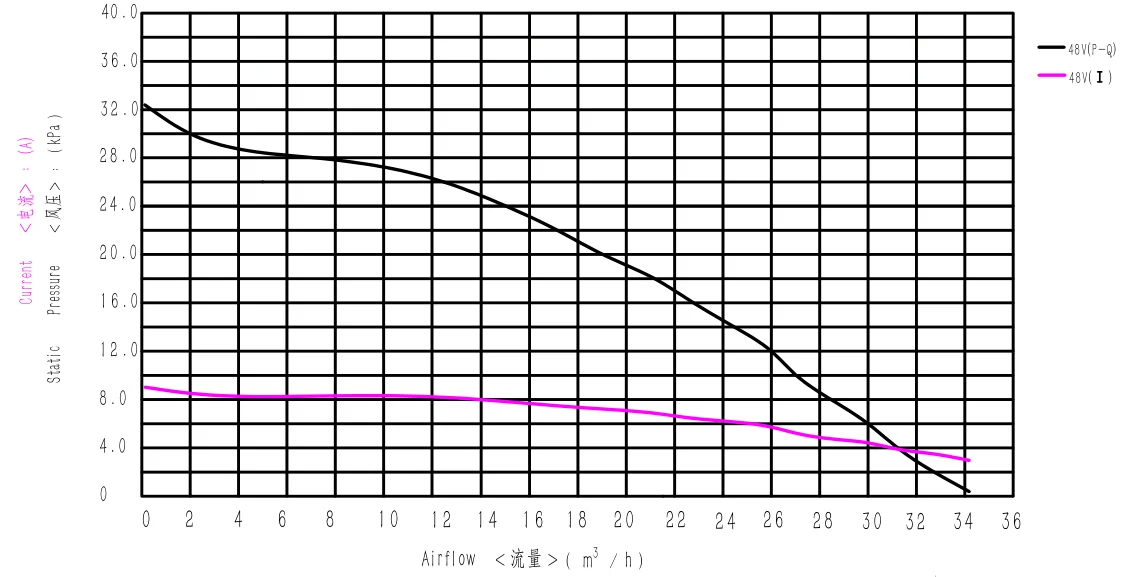

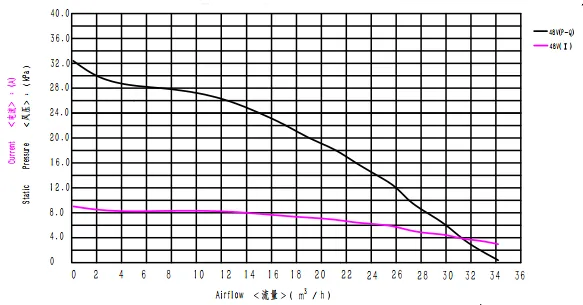

@Free blowing | @Working point | @Static pressure | ||||||||||||||
Speed | Current | Airflow | Speed | Current | Airflow | Pressure | Speed | Current | Pressure | |||||||
[rpm] | [A] | [m3/h] | [rpm] | [A] | [m3/h] | [kPa] | [rpm] | [A] | [kPa] | |||||||
15,000 | 3 | 33 | 14,800 | 6.5 | 22 | 16 | 13000 | 8.8 | 32 | |||||||
Wiring diagram for driver controller
24 hours online customer service, please contact us!
We are factory with 4,000 square meters and we have been focus on high pressure BLDC
blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

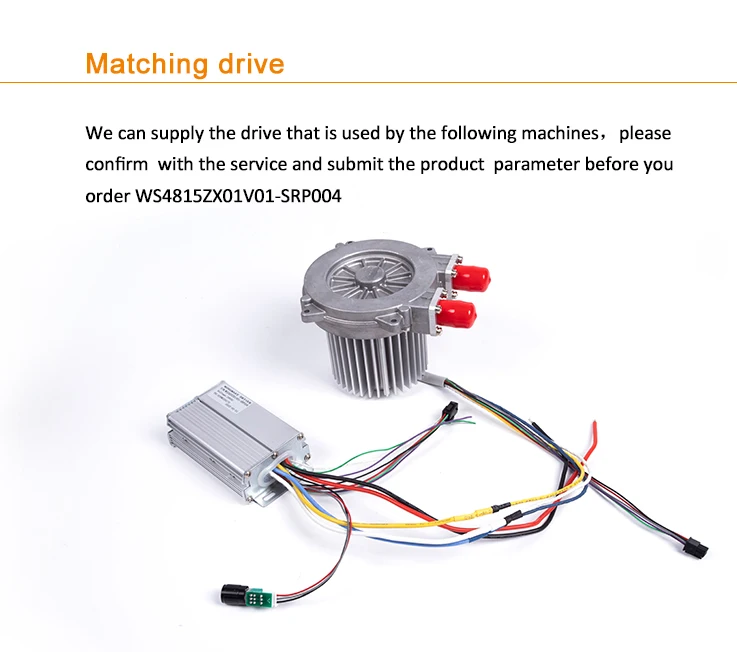

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $138.2 / piece
- 11–49 piece: US $114.4 / piece
- 50–99 piece: US $108 / piece
- 100+ piece: US $105 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ring blower carry?
It is supplied with CE ROHS ETL REACH documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ring blower be supplied for my local voltage?
The standard configuration is 48vdc. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
