Key specification for this rooftop kitchen smoke extractor: 110V 220V 230V 380V 415V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Qingdao Pengsheng Electric Appliance Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Rooftop Kitchen Smoke Extractor
- Power Source: Electric
- Voltage: 110V 220V 230V 380V 415V
- Blade Material: Aluminum Alloy
- Material: Aluminum alloy
- Speed: 1400RPM/1720RPM
- Feature: working in high temperature environment
Technical Specifications
| Voltage | 110V 220V 230V 380V 415V |
|---|---|
| Type | Roof Axial Fan |
| Blade Material | Aluminum Alloy |

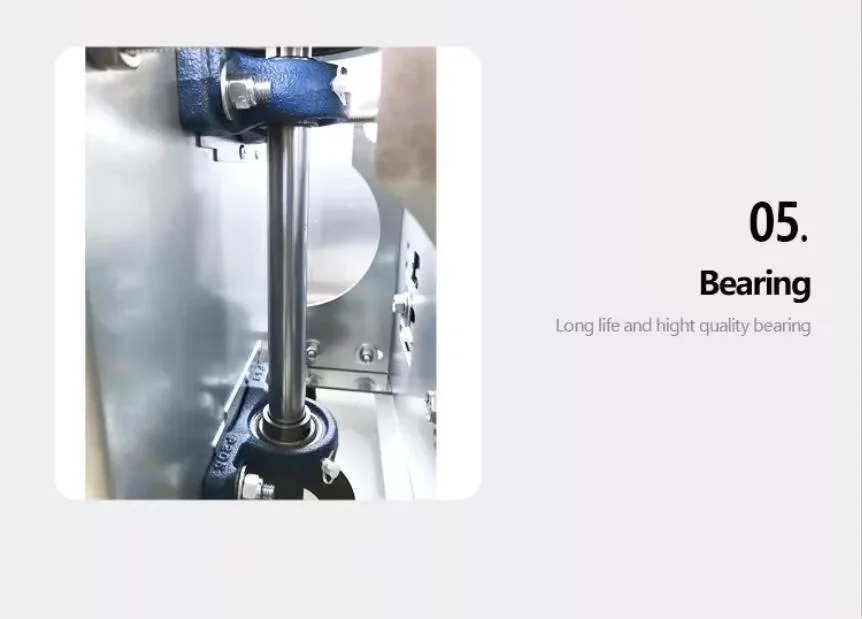

| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Product Name | RCU14 |
| Usage | Pre-start Check,Commissioning,Routine maintenance |
| Material | Aluminum alloy |
| Feature | working in high temperature environment |
| Base Size | 560mm*560mm |
| Speed | 1400RPM/1720RPM |
| Brand | PengSheng |
| Advantage | Exhaust cooling |
| Keyword | Motor |
| Other Name | Somke Fan |
| Selling Units | Single item |
| Single Package Size | 76X76X71 cm |
| Single Gross Weight | 30.000 kg |
Product Details
Product Overview

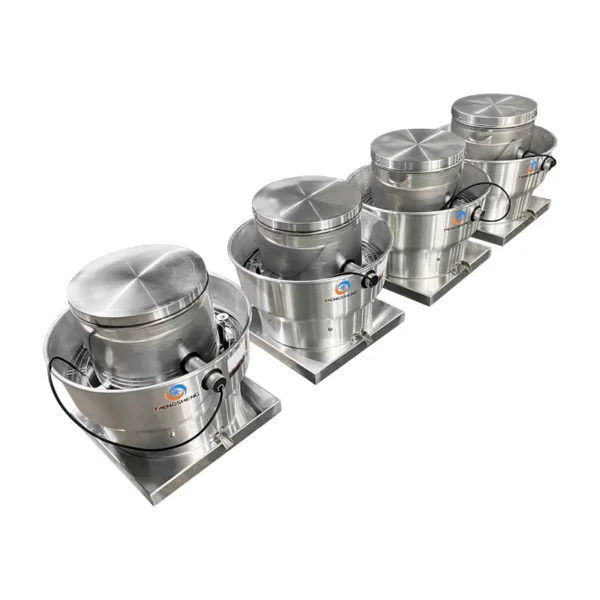

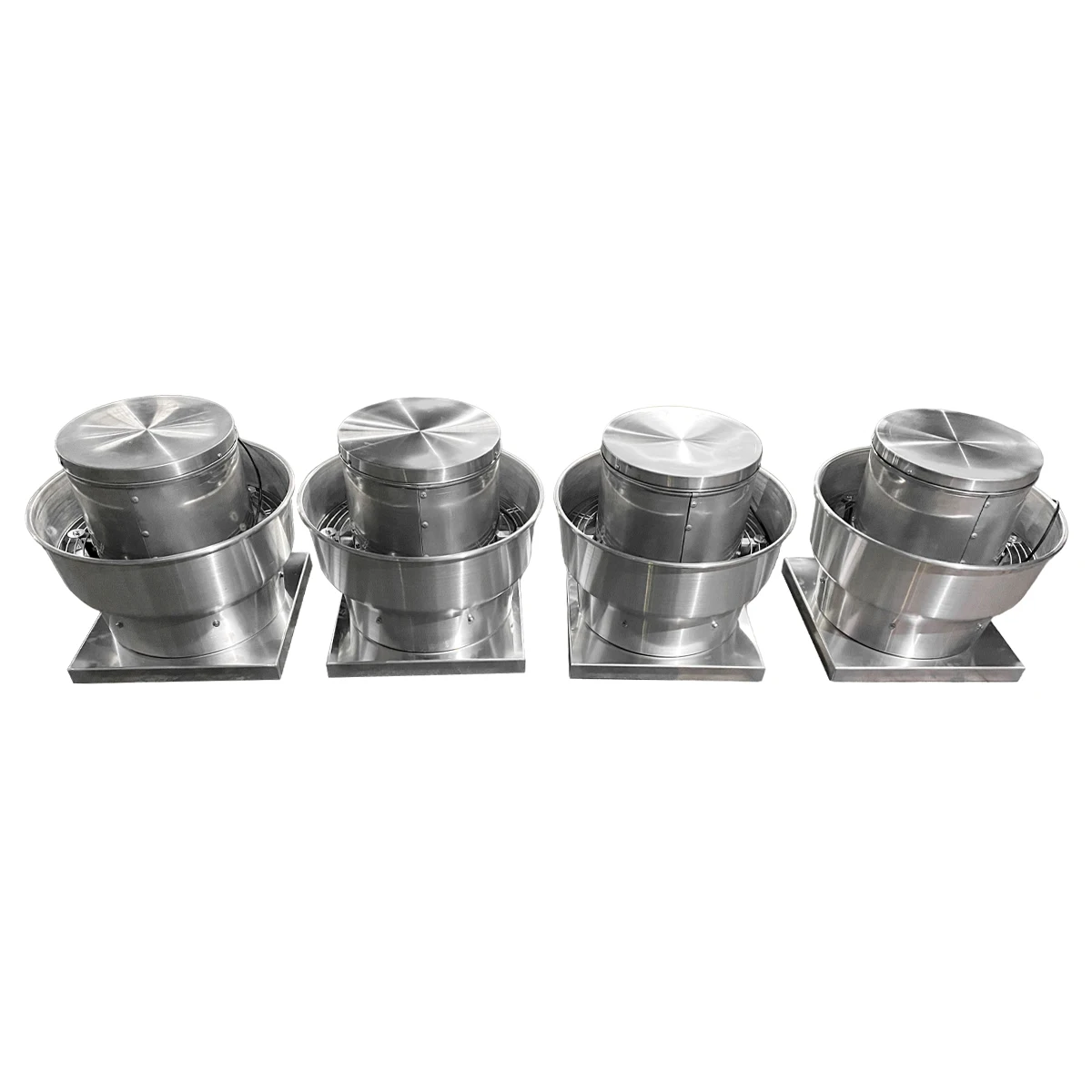

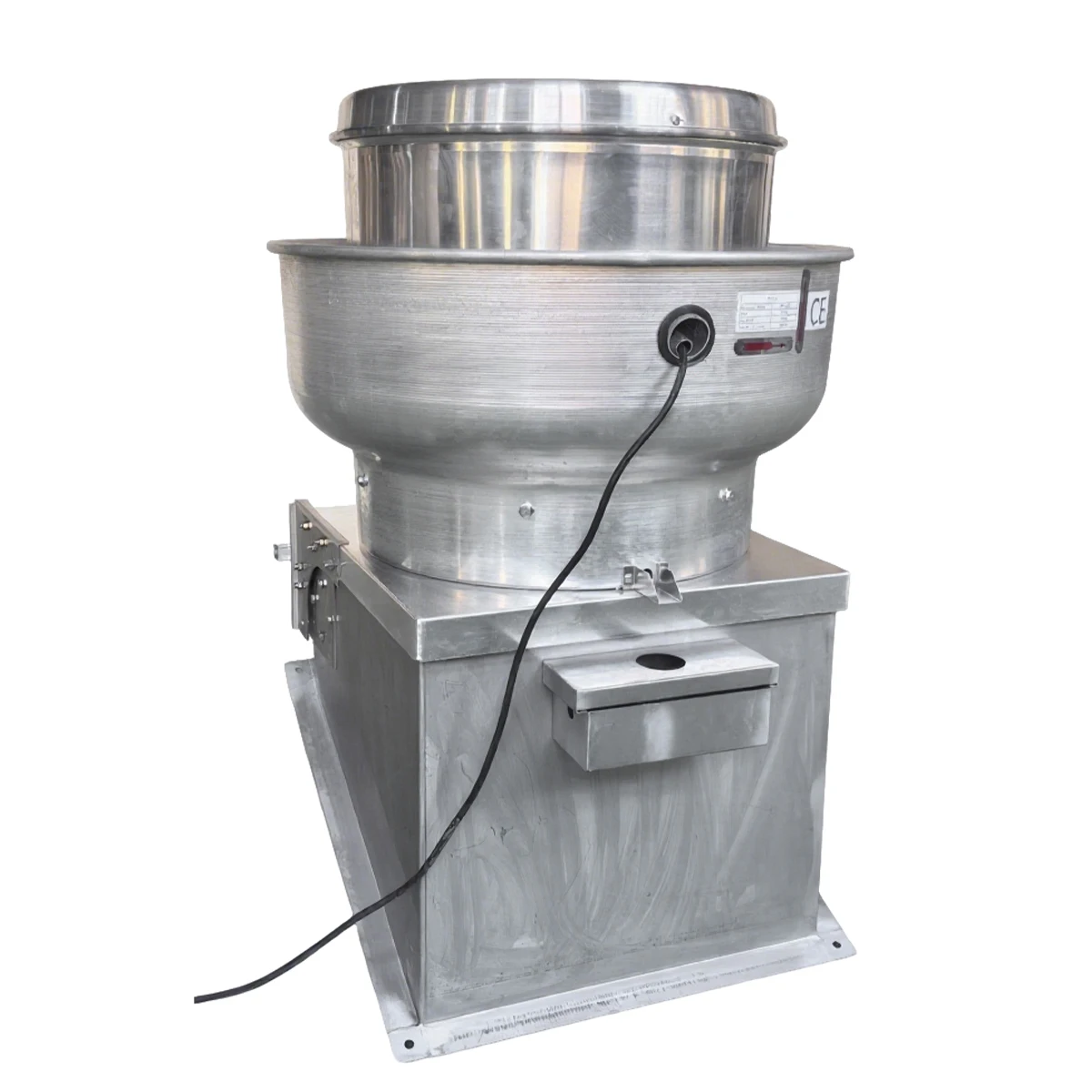

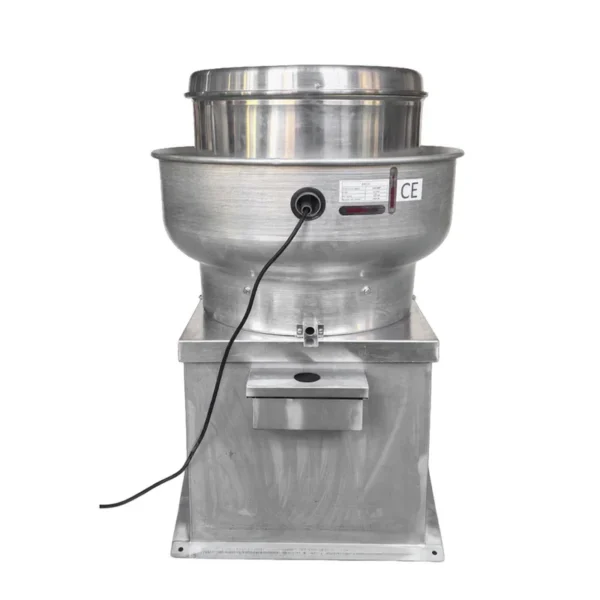

Industrial Vent Fan Upblast Roof Fan Commercial Kitchen Hood Exhaust Fan
FEATURES AT A GLANCE
1.High Temperature proof
2.Smoke Exhaust Fan 3.Full Mold, Aluminum Alloy Structure
4.Advanced Motor Cooling Of Blower
5.Direct Drive And Belt Drive Are Available 6.Anti-explosive Type Is Available
7. ISO9001:2018 certificate
8.The Maximum Temperature Working Environment
8.The Maximum Temperature Working Environment
PRODUCT SPECIFICATIONS
Model | Power | Fan Speed | Air Flow | Drive | Voltage |
RCU05 | 0.25HP | 1720RPM | 1240CFM | Direct Drive | 220V/60HZ |
RCU08 | 0.5HP | 1720RPM | 2600CFM | Direct Drive | 220V/60HZ |
RCU10 | 1HP | 1720RPM | 3800CFM | Direct Drive | 220V/60HZ |
0.75HP | 1400RPM | 3100CFM | Belt Drive | 220V/60HZ | |
RCU14 | 1.5HP | 1720RPM | 4800CFM | Direct Drive | 220V/60HZ |
RCU16 | 2HP | 1720RPM | 5800CFM | Direct Drive | 220V/60HZ |
RCU18 | 2HP | 1300RPM | 7700CFM | Direct Drive | 220V/60HZ |
RCU20 | 2HP | 1100RPM | Belt Drive | 220V/60HZ | |
2HP | 1130RPM | 8700CFM | Direct Drive | 220V/60HZ | |
RCU24 | 4HP | 1120RPM | 12000CFM | Direct Drive | 380/220V,60HZ |
RCU28 | 5.5HP | 1120RPM | 14000CFM | Direct Drive | 380/220V,60HZ |
RCU28 | 7.5HP | 1120RPM | 17000CFM | Direct Drive | 380/220V,60HZ |
RCU32 | 10HP | 1120RPM | 19000CFM | Direct Drive | 380/220V,60HZ |
Details introduced
Installation
1. Must Be Install According To The Air Flow Marking 2.Must Be Connect To The Piping Or Equip With Safety Accessories 3. Must Be Installing In A Proper Way And Make Sure The Outlet Is Without Any Unusual Materials 4.Try To Installing The Fan As Easy As For The Maintenance Purpose 5.Fan Required Flanges In Order To Avoid The Piping Damage When Vibrated 6.Speed Controller Or Transformer Is Available To Connect To The Fan 7.Wiring Diagram Is In The Package. 8.Wiring Must Be Strictly Following The Wiring Diagram. 9. Electrical Installation Must Be Done By Professional Technicians, 10.Electrical Installation Must Be Connecting In The Special Control Box.
Maintenance
1.Before Repair Or MaintenanceThe Fan,Please Make Sure The Fan Is Stop And The Fan Is Not Working In Overload Condition 2.When Disassemble The Larger Fan,Please Care For The Weight To Avoid Blocking And Scratching rea, 3. Cleaning The Fan Once AYear, So That It Can Keep The Function And Avoid The Unnecessary Damage. 4.Ball Bearing Is Free Maintenance Except For The Necessary Updates. ard 5.When Cleaning The Fan, Please Do Not Use The High Pressure Washer Or Strong Solvent,And Do Not Take Out The Damaging Impeller 6.Make Sure The Fan Is Operating Without Any Noise
Failure Detection
1. Make Sure The Fan Is In The Load Condition. 2. Verify The Impeller Is Without Block. 3. Please Do Check With The Heat-variable Switch And Motor Protector.If The Switch Is Not In Connected, Please Do Check It. If Its Need To Restart Makes Sure The Power Supply is Cut Off In A Few Minutes Until The Rated Current Is Not HigherThan1.6A.If The Motor Has The Heat Protector, It Will AutomaticallyReset After Cool Down. 4.Make Sure The Capacitor Is Connected According To The Wiring Diagram. 5. Please Change The Capacitor At The First Time When The Fan Is Not Work. 6. Please Contact The Distributor If The Fan Is Still Not Work 7.When Send Back The FanTo The Distributor,Please Clean It And Make Sure The Cables Are
We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping or air transportation.
Customer evaluation display
FAQ
Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?
1.Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
1.Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
Contact Us
Name: Lisa / Ivy Lee
Name: Lisa / Ivy Lee
Wechat: 13370862510
Whatsapp: +86 13370862510
Email: qdpsfan@163.com
Contact with me~
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $325 / set
- 50–99 set: US $305 / set
- 100+ set: US $285 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rooftop kitchen smoke extractor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the rooftop kitchen smoke extractor be supplied for my local voltage?
The standard configuration is 110V 220V 230V 380V 415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Pengsheng Electric Appliance Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Pengsheng Electric Appliance Co., Ltd. range on HVACR Nexus.
