Rotary evaporator — 220V/380V/60Hz, power source Electric. The complete factory specification follows. Made by Shanghai Linbel Instrument Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Rotary Evaporator
- Power Source: Electric
- Power(W): 4.0Kw
- Voltage: 220V/380V/60Hz
- Material: high borosilicate glass
- Glass Material: GG-17(3.3) Borosilicate Glass
- Rotating Speed: 20-130rpm
Technical Specifications
| Processing | Vacuum Distillation |
|---|---|
| Material | high borosilicate glass |
| Power Source | Electric |
| Core Components | Motor, PID |
| Voltage | 220V/380V/60Hz |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Power(W) | 4.0Kw |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 85 |
| Brand Name | Linbel |
| Dimension(L*W*H) | 1250*600*2100mm |
| Product Name | High Quality Distillation 20L Oil Extraction Machine |

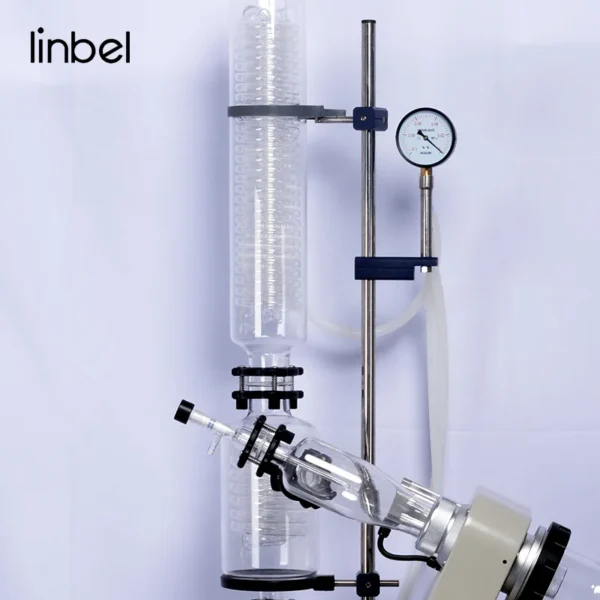

| Condenser | Vertical |
| Sealing | PTFE |
| Rotating Speed | 20-130rpm |
| Glass Material | GG-17(3.3) Borosilicate Glass |
| Rotary Flask | 20L |
| Collecting Flask | 10L |
| After Warranty Service | Video technical support |
| Local Service Location | None |
| After-Sales Service Provided | Online support |
| Selling Units | Single item |
Product Details

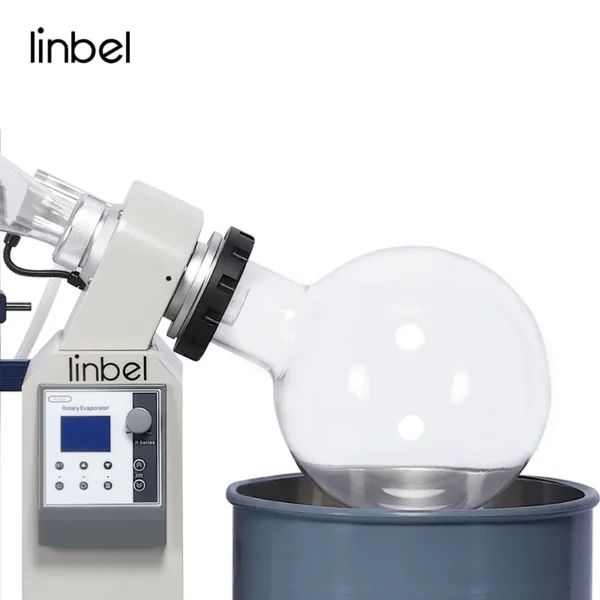

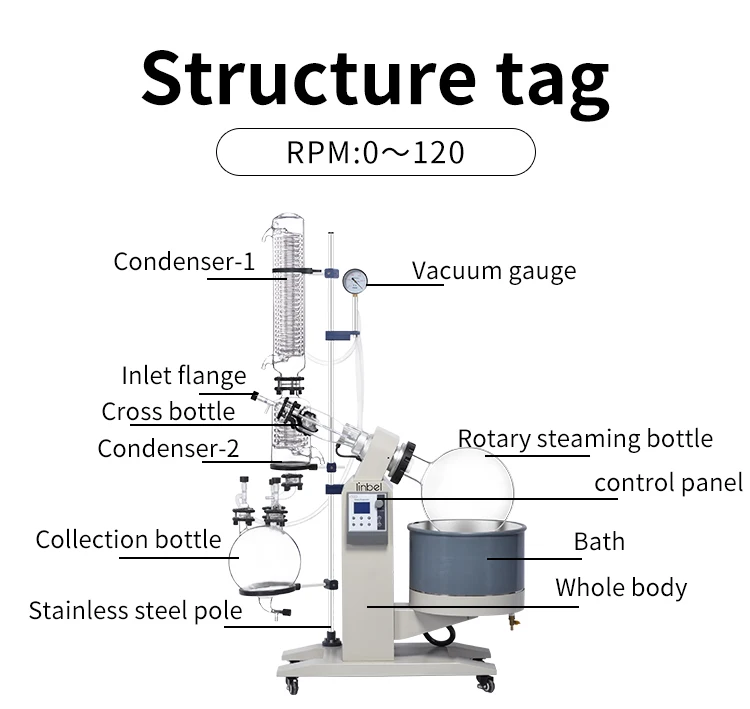

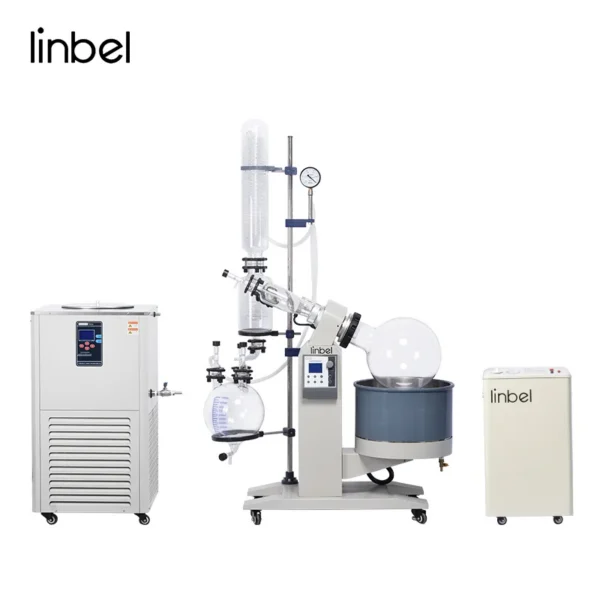

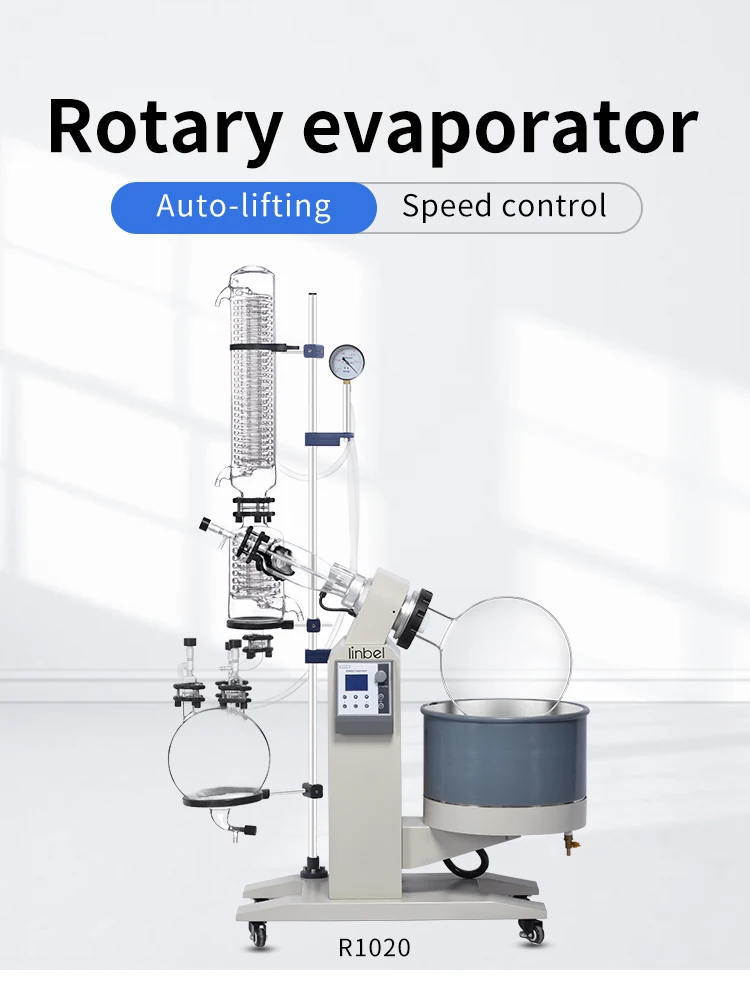

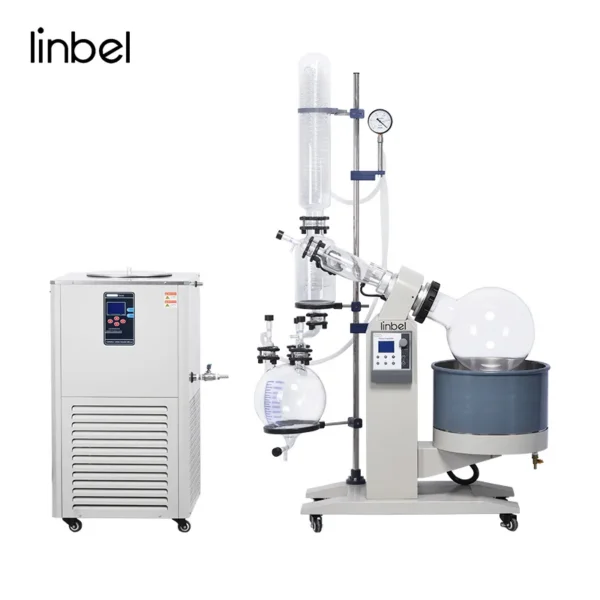

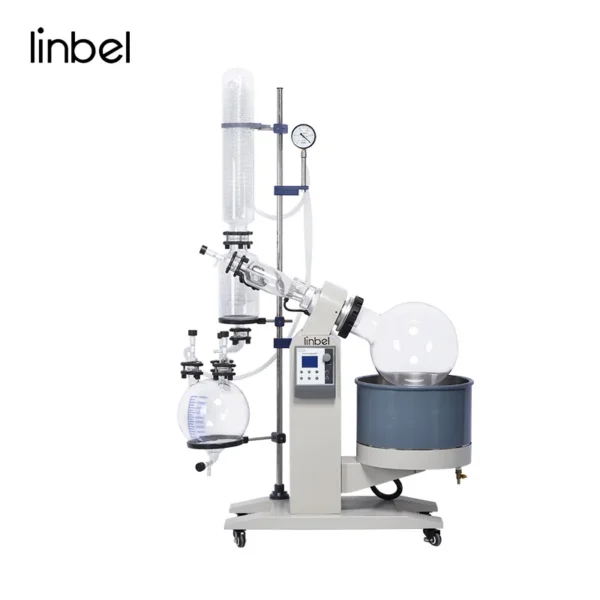

Rotary Evaporator Distillation Equipment 20L Auto Rotary Evaporator
The temperature control range of Linbel is from -120℃ (-184℉) to 300℃ (572℉), with a dynamic temperature control accuracy of ±0.5℃ and a static temperature control accuracy of ±0.1℃.
The rotary evaporator can be rotated under constant temperature and under negative pressure to form a film, and is condensed and recovered in the evaporation solvent. It is especially suitable for concentration, crystallization, separation and recovery of heat sensitive materials. It is an important equipment for scientific research, pilot test and production in bioengineering, chemical, food and other industries.
| Model | R1005/1006 | R1010 | R1020 | R1050 |
| Optimum Ambient(℃) | 5~35 | |||
| Power Supply(V/Hz) | Single phase 220/60 | Three phase 380/60 | ||
| Host speed | Digital display frequency conversion stepless speed regulation | Digital DC stepless speed regulation | ||
| Motor Rotating Control(rpm) | 10~140 | 20~130 | 20~110 | |
| Rotary motor(W) | 40 | Brushless 250 | ||
| Temperature Control(℃) | Digital Display,Room Temp-99 | |||
| Maximum vacuum(Pa) | 399.9(≤3mmHg) | |||

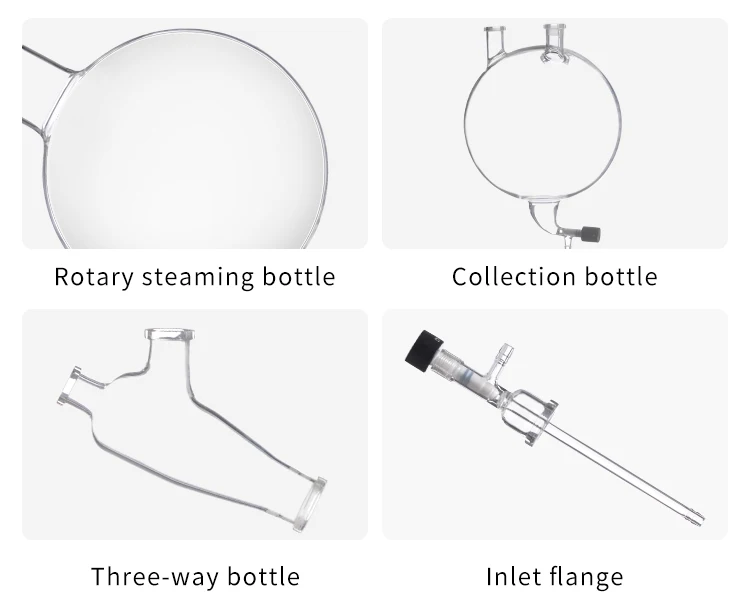

| Rotary Flask(L) | 5/6 FlangetypeØ50 | 10 FlangetypeØ125 | 20 FlangetypeØ125 | 50 FlangetypeØ125 |
| Collection Flask(L) | 3 | 5 | 10 | 20 |

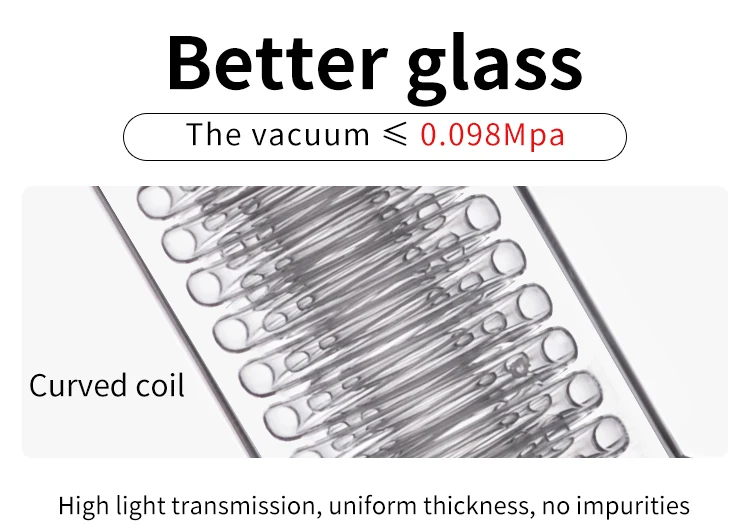

| Condenser | Vertical double serpentine tube | Vertical, main cold + sub-cool, high efficiency three-return condenser | ||
| Condensation area(m2) | 0.27 | Main cold 0.42 Deputy cold 0.22 | Main cold 0.8 Deputy cold 0.39 | Main cold 0.91 Deputy cold 0.52 |
| Evaporation Speed(L/h) | Water≥2 Alcohol≥4 | Water≥3.5 Alcohol≥7 | Water≥5 Alcohol≥13 | Water≥10 Alcohol≥23 |

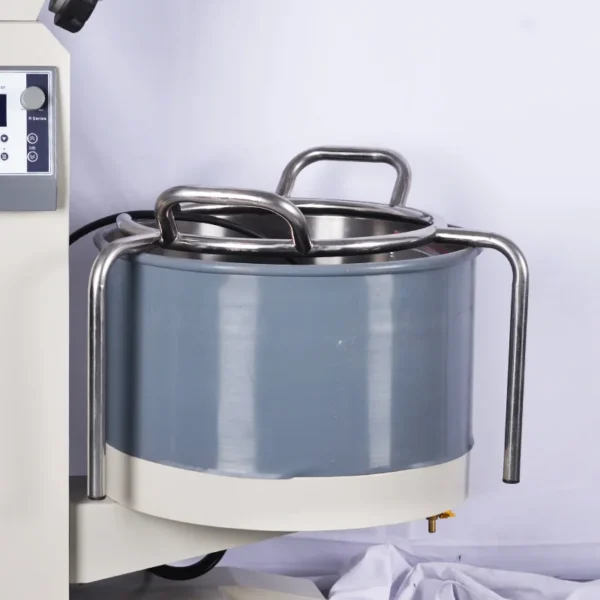

| Water bath material | Stainless Steel | |||
| Bath Size(mm) | Φ300×170 | Φ350×220 | Φ450×260 | Φ550×320 |
| Lift Type | Electric(Automatic) lift | |||
| Lift Distance(mm) | 0~150 | 0~160 | 0~190 | 0~180 |
| Motor Power(kW) | 2.0 | 3.0 | 4.0 | 4.0(220V) |
| Dimension(mm) | 860×500×1000 | 920×550×1700 | 1250×600×2100 | 1320×770×2340 |
If you are interested in our products, please feel free to contact us. We will do our best to service you.

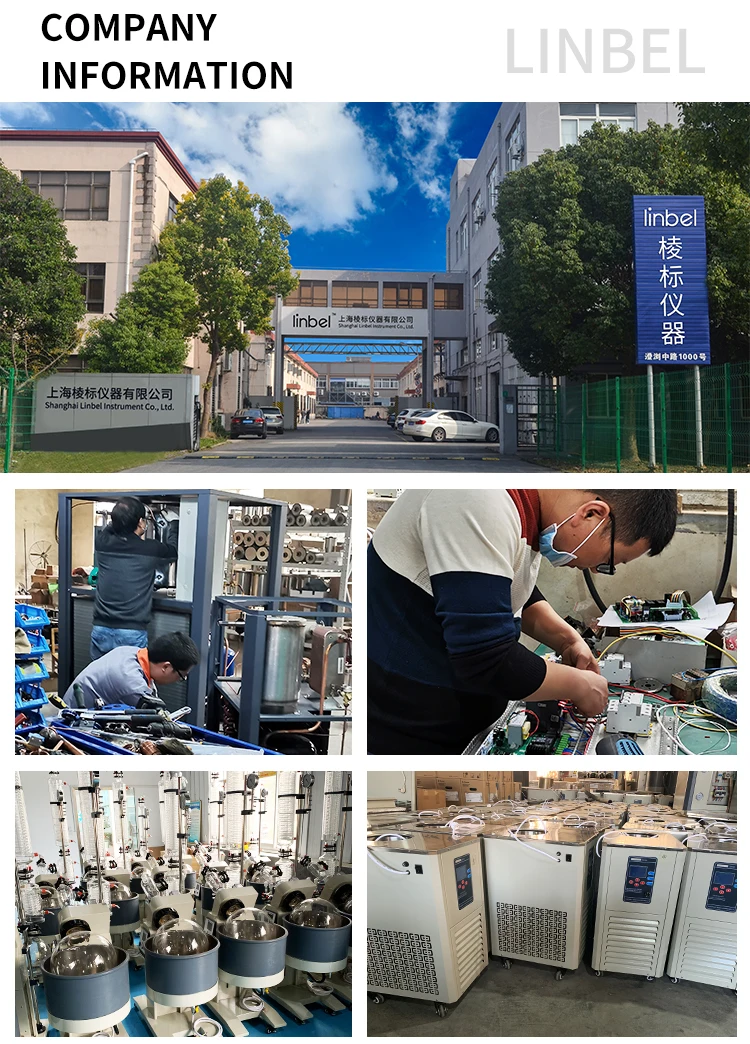

Shanghai Linbel Instrument Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability. Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system.our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel. Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing. So we look forward to working with you to bring you the best results.
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1.5 years warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Jack Zhang
Email: info@linbel.com
WhatsApp: +86 1885 1451 573
Web: linbel.en.alibaba.com
cnlinbel.en.alibaba.com
linbel.net
linbel.com
Add: Huibin Industrial Park, No.1555 Huibin Road, Qingpu Dist, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $2500 / set
- 5+ set: US $2400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rotary evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the rotary evaporator be supplied for my local voltage?
The standard configuration is 220V/380V/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
