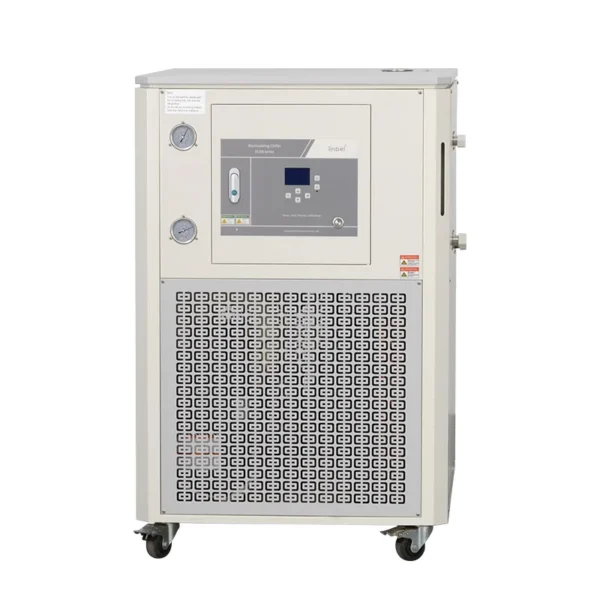

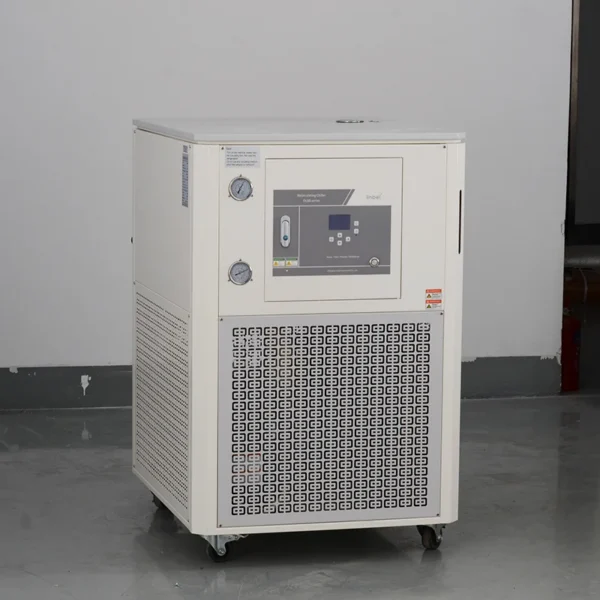

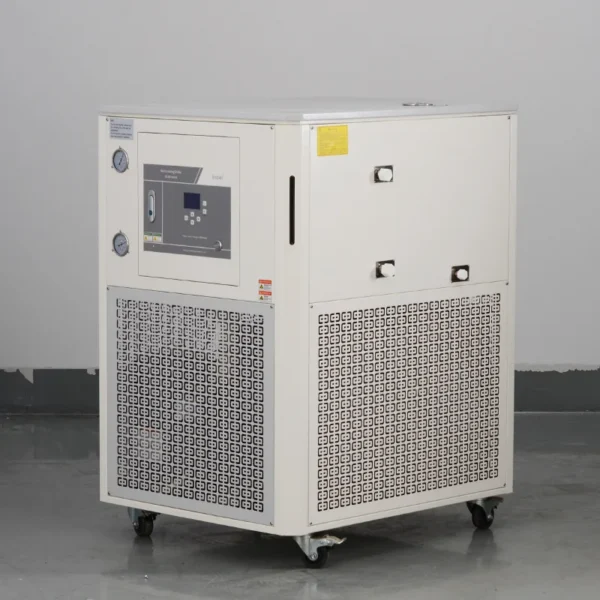

The recirculating chiller listed here carries 380 V, 220 V, 10KW, documented exactly as the manufacturer publishes it. Made by Shanghai Linbel Instrument Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Recirculating Chiller
- Model Number: DLSB-50/80
- Power: 10KW
- Voltage: 380 V, 220 V
- Refrigerant: R404A, R23
- Warranty: 1.5 year
- After Warranty Service: Online support
Technical Specifications
| Voltage | 380 V, 220 V |
|---|---|
| Power | 10KW |
| Compressor Brand | TECUMSEH, Bitzer, Emerson |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Accurate Temperature Control |
| Core Components | Motor, Pump, Engine, Pressure Vessel, PLC |

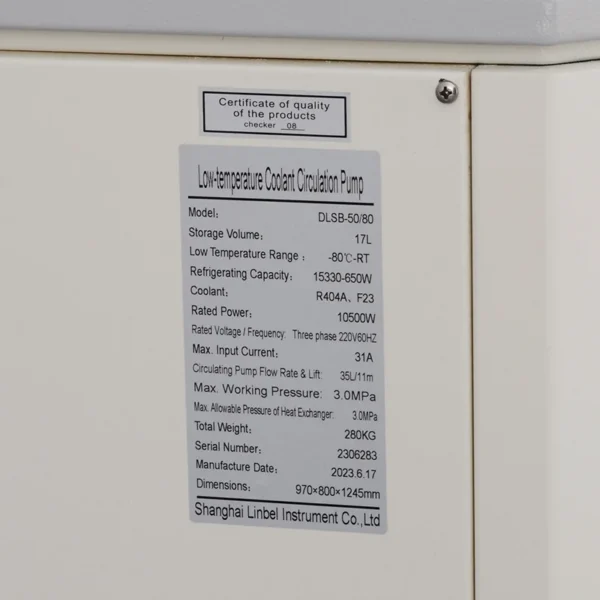

| Model Number | DLSB-50/80 |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 340 |
| Brand Name | Linbel |
| Dimension(L*W*H) | 970*800*1245mm |
| Working Temperature Range | ≤30℃ |
| Product Name | -80 degrees 50L air to water recirculating cooler |
| Name | 50 litre cooling water chiller -80C recirculating chiller |
| Application | Industrial Cooling Solutions |
| Refrigerant | R404A, R23 |
| Color | Light Gray |

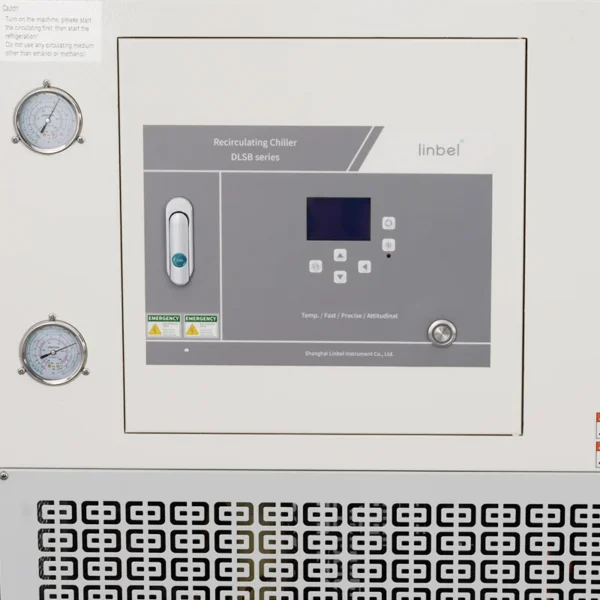

| Function | Digital Temperature Controller |
| Controller | PID Controller |
| After Warranty Service | Online support |
| After-Sales Service Provided | Free spare parts |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

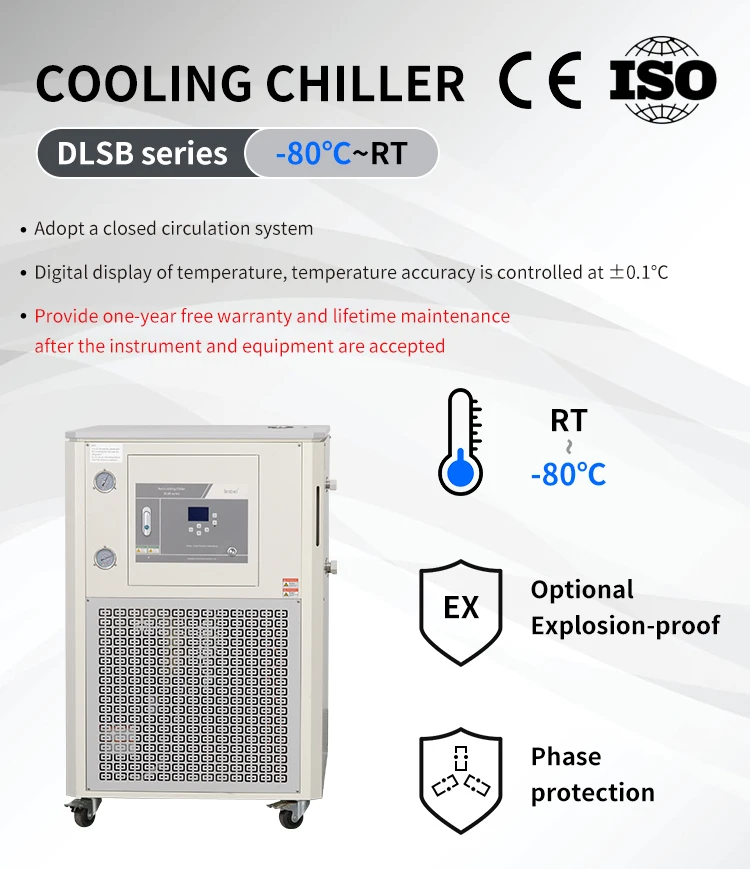

-80 recirculating chiller ultracool circulation chiller ultra-low refrigerated cooler glycol chiller
The temperature control range of Linbel is from -120℃ (-184℉) to 300℃ (572℉), with a dynamic temperature control accuracy of ±0.5℃ and a static temperature control accuracy of ±0.1℃.
| Model | 5/80 | 10/80 | 20/80 | 40/80 | 50/80 | 100/80 | 200/80 | 300/80 | ||
| Technical date | Temp. range | -80℃ ~ RT ; ±0.5℃ | ||||||||
| Ambient Temp. | ≤30℃ | |||||||||
| Ambient humidity | 60% | |||||||||
| Voltage(V) | 110/220 | 220 | 220/380/460 | |||||||
| Frequency(Hz) | 50/60 | |||||||||
| Power(Kw) | 1.6 | 2.3 | 3.5 | 5.6 | 10 | 13 | 16 | 20 | ||
| Cooling capacity(W) | 25℃ | 1200 | 2000 | 3200 | 6000 | 12000 | 16000 | 22000 | 29000 | |
| 0℃ | 900 | 1700 | 2600 | 5200 | 10000 | 13000 | 20000 | 25000 | ||
| -40℃ | 700 | 1100 | 2064 | 4100 | 7300 | 9000 | 10000 | 14000 | ||
| -60℃ | 400 | 850 | 1400 | 2300 | 4000 | 5200 | 6200 | 8000 | ||
| -80℃ | 120 | 450 | 650 | 1200 | 2000 | 2800 | 3500 | 5000 | ||
| Temp. sensor | PT100 | |||||||||
| Protection | Overvoltage, time delay, overcurrent, overheating, leakage, protector | |||||||||

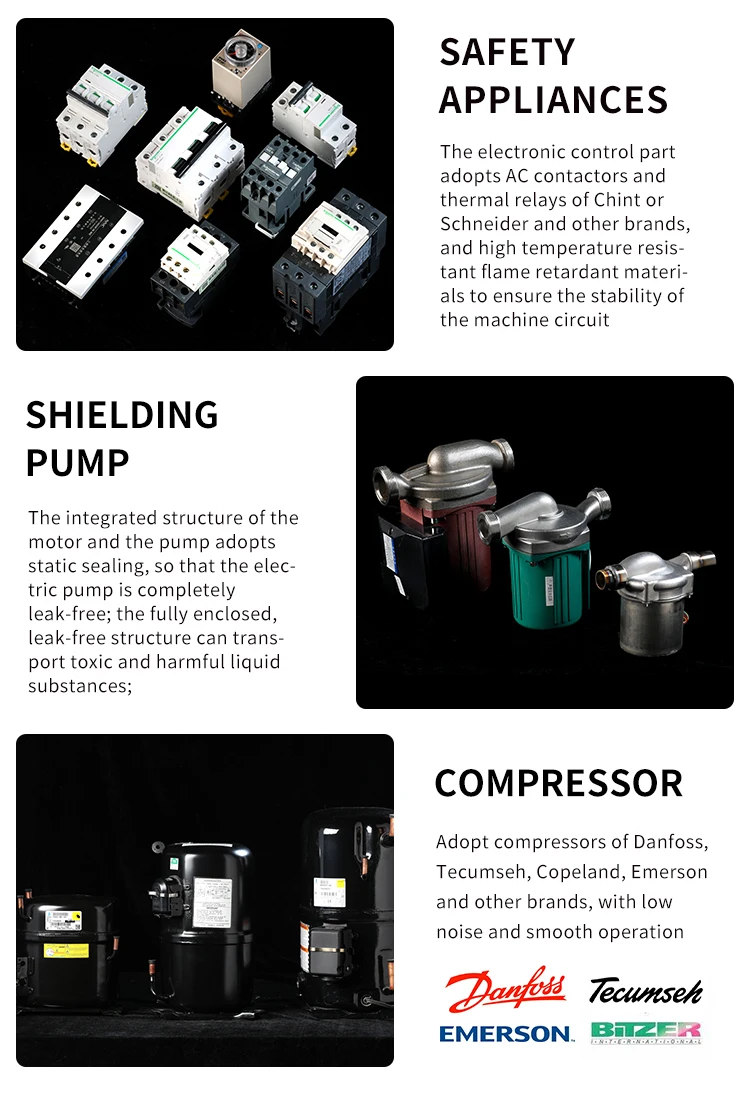

| Compressor | Type | Closed | ||||||||
| Brand | Danfoss / Tecumseh | |||||||||
| Power(Kw) | 1.5 | 3 | 4.5 | 5.25 | 9 | 9 | 15 | 19.5 | ||
| Current(A) | 7 | 13 | 20 | 23 | 30 | 30 | 30 | 38 | ||
| Horsepower | 1 | 1.5 | 3 | 3.5 | 6 | 6 | 10 | 13 | ||
| Quantity | 2 | |||||||||
| Refrigerant | R404A, R23 | |||||||||
| Condenser | Type | Air cooling | ||||||||
| Fan type | External rotor axial flow fan | |||||||||
| Quantity | 1 | 2 | ||||||||
| Evaporator | Type | Plate heat exchanger | ||||||||
| Tank volume(L) | 5 | 7 | 10 | 10 | 17 | 35 | 100 | 100 | ||
| Flow(L/min) | 15 | 25 | 35 | 35 | 35 | 35 | 97 | 97 | ||
| External circulation adapter size(DN) | 15 | 15 | 15 | 20 | 20 | 20 | 25 | 25 | ||
| Circulating pump | Type | Magnetic pump / Shield pump | ||||||||
| Brand | Puneet | |||||||||
| Power(W) | 15 | 100 | 280 | 280 | 280 | 280 | 550 | 550 | ||
| Current(A) | 0.5 | 0.5 | 1.2 | 1.2 | 1.2 | 1.2 | 2 | 2 | ||
| Rated head(m) | 3 | 8 | 8 | 11 | 11 | 11 | 15 | 15 | ||
| Rated flow(L/min) | 15 | 25 | 25 | 35 | 35 | 35 | 180 | 180 | ||
| Appearance dimension | Running weight(KG) | 95 | 210 | 250 | 255 | 330 | 350 | 570 | 590 | |
| Chiller size | L(mm) | 600 | 770 | 810 | 810 | 970 | 970 | 1400 | 1400 | |
| W(mm) | 480 | 670 | 710 | 710 | 800 | 800 | 970 | 970 | ||
| H(mm) | 770 | 1180 | 1240 | 1240 | 1245 | 1345 | 1580 | 1780 | ||

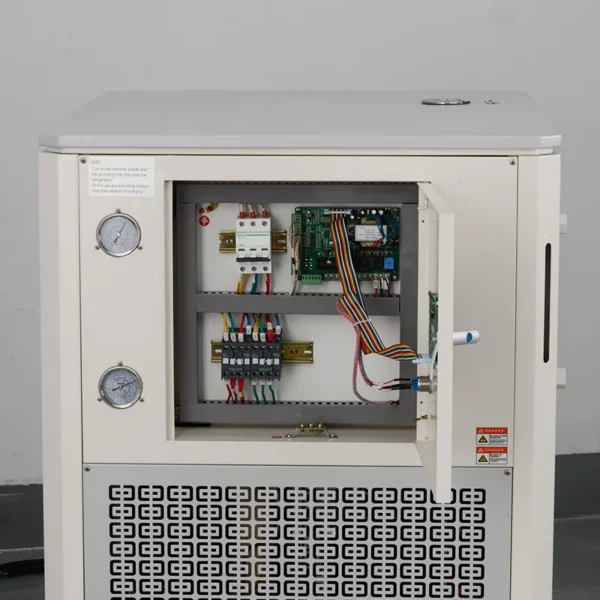

| *PLC | Control system | Siemens S7-200 smart PLC | ||||||||
| Programming | 5 programs can be written, each with up to 40 steps | |||||||||
| Control model | Material temperature and equipment outlet temperature can be switched automatically | |||||||||
| Protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) | |||||||||
| Control panel | 7-inch Siemens color touch screen (optional 10 inch) | |||||||||
| Data export | Support USB flash disk data export, and export temperature data in TXT format | |||||||||

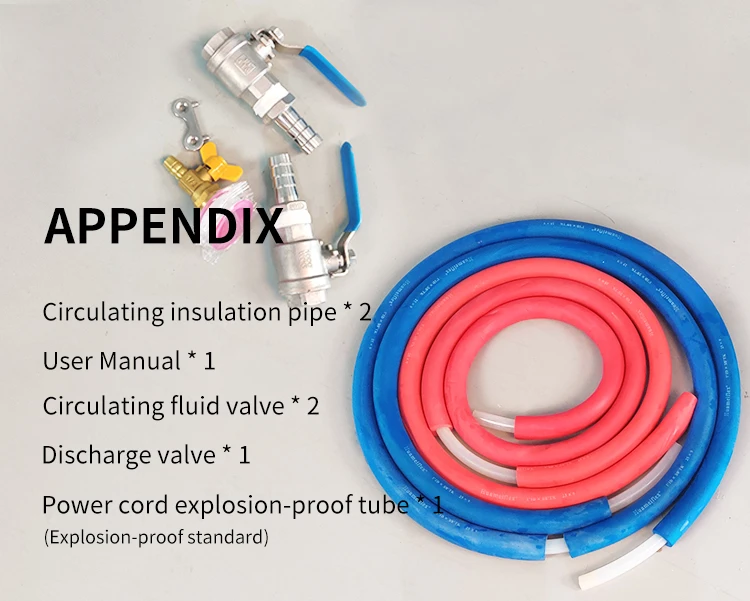

| Packing list | 2 sets of adapter valves, one roll of raw meal | |||||||||
| 2 stainless steel insulated hoses | ||||||||||
| Operation instructions | ||||||||||
| All data are measured in the factory, and users will have errors in the process of use | ||||||||||
| *PLC for optional PLC part data, it is not applicable if there is no PLC | ||||||||||
If you are interested in our products, please feel free to contact us. We will do our best to service you.
Shanghai Linbel Instrument Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability. Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system.our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel.Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing So we look forward to working with you to bring you the best results.
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1.5 years warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Jack Zhang
Email: info@linbel.com
WhatsApp: +86 1885 1451 573
Web: linbel.en.alibaba.com
cnlinbel.en.alibaba.com
linbel.net
linbel.com
Add: Huibin Industrial Park, No.1555 Huibin Road, Qingpu Dist, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $6300 / set
- 5+ set: US $6000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this recirculating chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the recirculating chiller be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
