Key specification for this cooling circulator -80c chiller: 380V/60Hz, 16KW. Everything below is reproduced from the factory data sheet. Made by Shanghai Linbel Instrument Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Circulator -80c Chiller
- Model Number: DLSB-200/80
- Power: 16KW
- Voltage: 380V/60Hz
- Refrigerant: R404A, R23
- Warranty: 1.5 year
- After Warranty Service: Online support
Technical Specifications
| Voltage | 380V/60Hz |
|---|---|
| Power | 16KW |
| Compressor Brand | Copeland, Hitachi, TECUMSEH, Bitzer, Emerson |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Core Components | Pressure Vessel, Pump, PID |
| Model Number | DLSB-200/80 |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 570 |
| Brand Name | Linbel |
| Dimension(L*W*H) | 1400*970*1580mm |
| Product Name | Water cooled recirculating chiller ultra low temperature air chiller |
| Name | 200 litre cooling water chiller -80C recirculating chiller |
| Application | Industrial Cooling Solutions |
| Refrigerant | R404A, R23 |
| Color | Light Gray |
| Function | Digital Temperature Controller |
| Controller | PID Controller |
| After Warranty Service | Online support |
| After-Sales Service Provided | Free spare parts |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

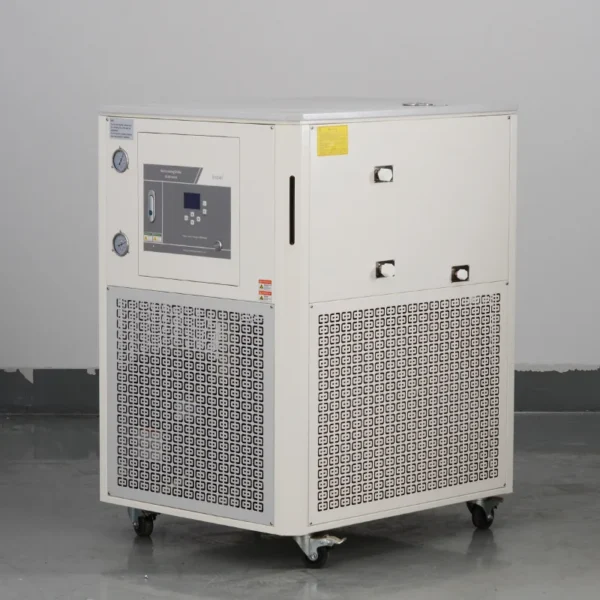

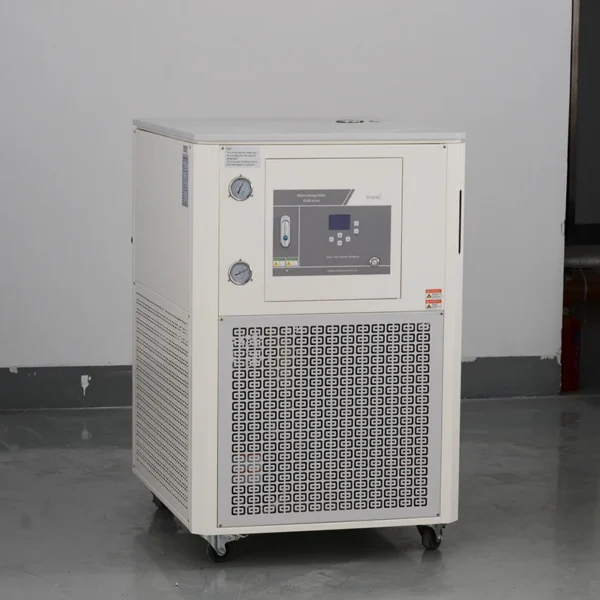

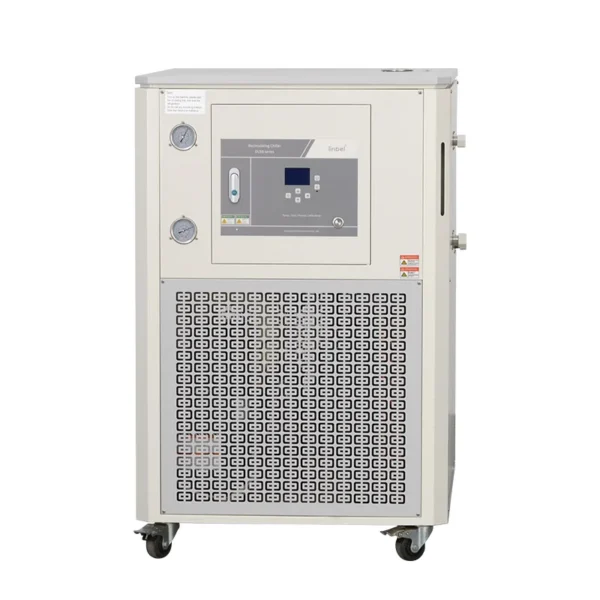

Linbel Laboratory Using 200l Air Cooling Circulator -80c chiller
The temperature control range of Linbel is from -120℃ (-184℉) to 300℃ (572℉), with a dynamic temperature control accuracy of ±0.5℃ and a static temperature control accuracy of ±0.1℃.
| Model | 5/80 | 10/80 | 20/80 | 40/80 | 50/80 | 100/80 | 200/80 | 300/80 | ||
| Technical date | Temp. range | -80℃ ~ RT ; ±0.5℃ | ||||||||
| Ambient Temp. | ≤30℃ | |||||||||
| Ambient humidity | 60% | |||||||||
| Voltage(V) | 110/220 | 220 | 220/380/460 | |||||||
| Frequency(Hz) | 50/60 | |||||||||
| Power(Kw) | 1.6 | 2.3 | 3.5 | 5.6 | 10 | 13 | 16 | 20 | ||
| Cooling capacity(W) | 25℃ | 1200 | 2000 | 3200 | 6000 | 12000 | 16000 | 22000 | 29000 | |
| 0℃ | 900 | 1700 | 2600 | 5200 | 10000 | 13000 | 20000 | 25000 | ||
| -40℃ | 700 | 1100 | 2064 | 4100 | 7300 | 9000 | 10000 | 14000 | ||
| -60℃ | 400 | 850 | 1400 | 2300 | 4000 | 5200 | 6200 | 8000 | ||
| -80℃ | 120 | 450 | 650 | 1200 | 2000 | 2800 | 3500 | 5000 | ||
| Temp. sensor | PT100 | |||||||||
| Protection | Overvoltage, time delay, overcurrent, overheating, leakage, protector | |||||||||
| Compressor | Type | Closed | ||||||||
| Brand | Danfoss / Tecumseh | |||||||||
| Power(Kw) | 1.5 | 3 | 4.5 | 5.25 | 9 | 9 | 15 | 19.5 | ||
| Current(A) | 7 | 13 | 20 | 23 | 30 | 30 | 30 | 38 | ||
| Horsepower | 1 | 1.5 | 3 | 3.5 | 6 | 6 | 10 | 13 | ||
| Quantity | 2 | |||||||||
| Refrigerant | R404A, R23 | |||||||||
| Condenser | Type | Air cooling | ||||||||
| Fan type | External rotor axial flow fan | |||||||||
| Quantity | 1 | 2 | ||||||||
| Evaporator | Type | Plate heat exchanger | ||||||||
| Tank volume(L) | 5 | 7 | 10 | 10 | 17 | 35 | 100 | 100 | ||
| Flow(L/min) | 15 | 25 | 35 | 35 | 35 | 35 | 97 | 97 | ||
| External circulation adapter size(DN) | 15 | 15 | 15 | 20 | 20 | 20 | 25 | 25 | ||
| Circulating pump | Type | Magnetic pump / Shield pump | ||||||||
| Brand | Puneet | |||||||||
| Power(W) | 15 | 100 | 280 | 280 | 280 | 280 | 550 | 550 | ||
| Current(A) | 0.5 | 0.5 | 1.2 | 1.2 | 1.2 | 1.2 | 2 | 2 | ||
| Rated head(m) | 3 | 8 | 8 | 11 | 11 | 11 | 15 | 15 | ||
| Rated flow(L/min) | 15 | 25 | 25 | 35 | 35 | 35 | 180 | 180 | ||
| Appearance dimension | Running weight(KG) | 95 | 210 | 250 | 255 | 330 | 350 | 570 | 590 | |
| Chiller size | L(mm) | 600 | 770 | 810 | 810 | 970 | 970 | 1400 | 1400 | |
| W(mm) | 480 | 670 | 710 | 710 | 800 | 800 | 970 | 970 | ||
| H(mm) | 770 | 1180 | 1240 | 1240 | 1245 | 1345 | 1580 | 1780 | ||
| *PLC | Control system | Siemens S7-200 smart PLC | ||||||||
| Programming | 5 programs can be written, each with up to 40 steps | |||||||||
| Control model | Material temperature and equipment outlet temperature can be switched automatically | |||||||||
| Protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) | |||||||||
| Control panel | 7-inch Siemens color touch screen (optional 10 inch) | |||||||||
| Data export | Support USB flash disk data export, and export temperature data in TXT format | |||||||||

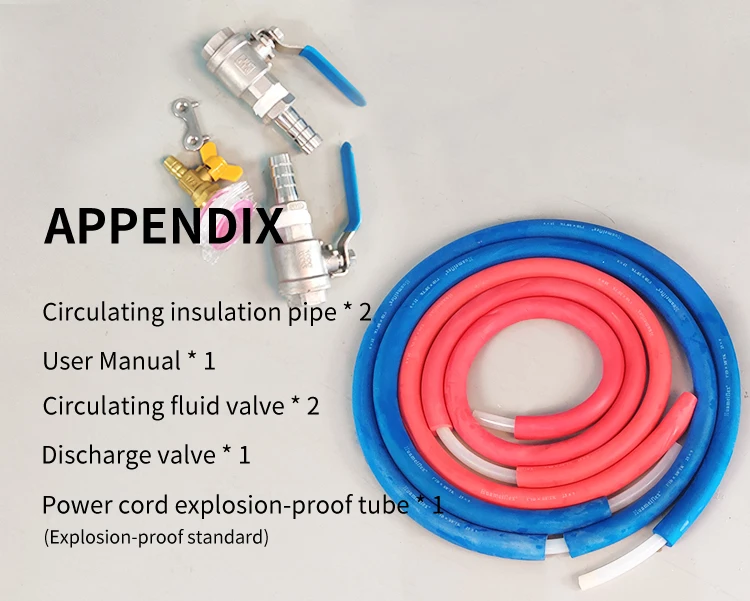

| Packing list | 2 sets of adapter valves, one roll of raw meal | |||||||||
| 2 stainless steel insulated hoses | ||||||||||
| Operation instructions | ||||||||||
| All data are measured in the factory, and users will have errors in the process of use | ||||||||||
| *PLC for optional PLC part data, it is not applicable if there is no PLC | ||||||||||
