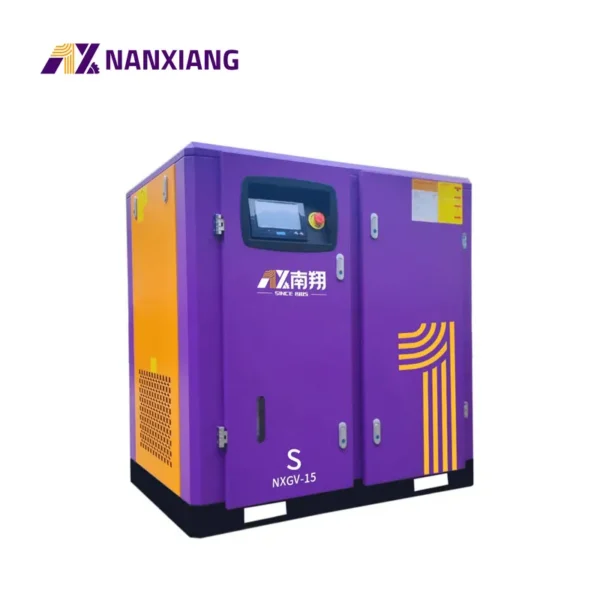

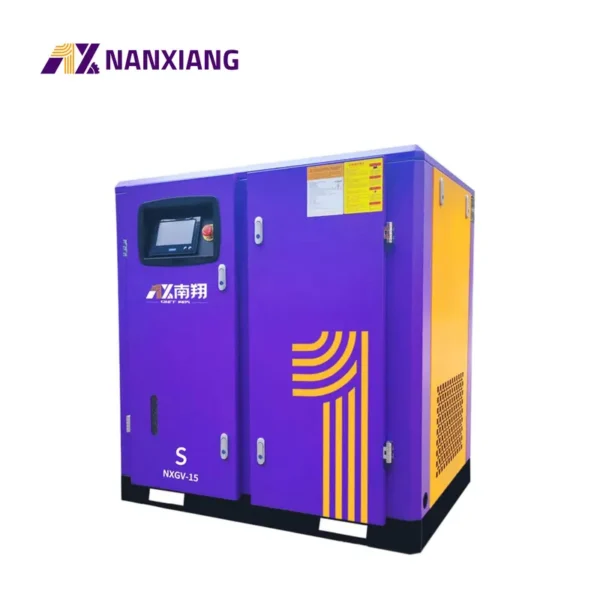

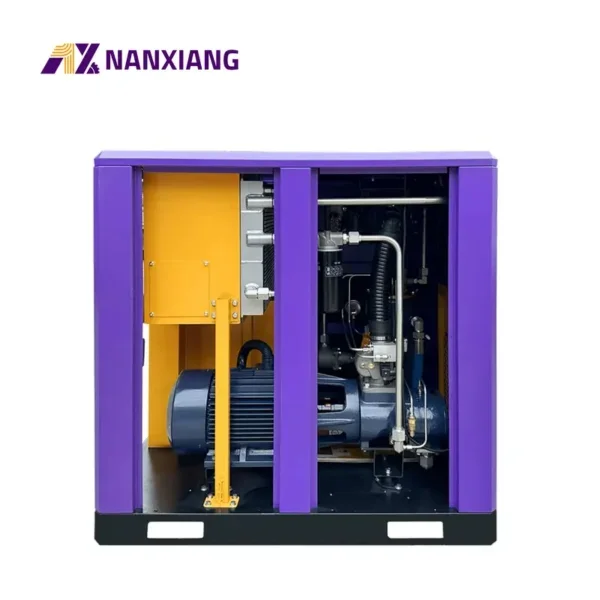

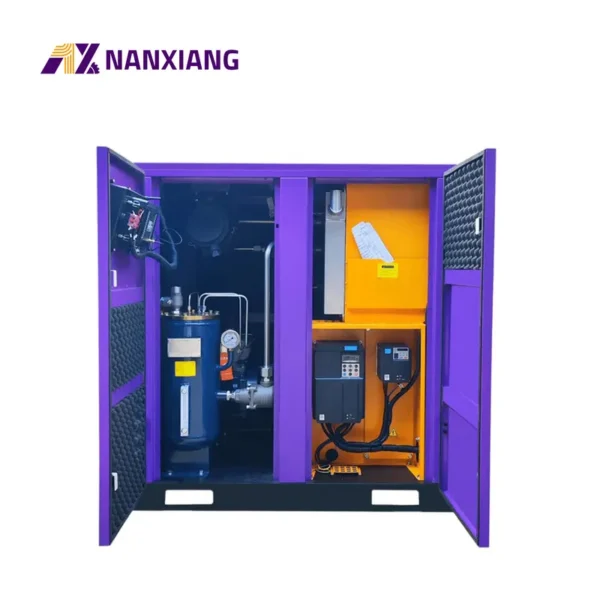

Rotary Screw Air Compressor, GHH, 18kw, 13bar

The rotary screw air compressor listed here carries 220v/380v(can be customized), power source AC Power, documented exactly as the manufacturer publishes it. Made by Jiangxi Nanxiang Air Compressor Co., Ltd. (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Rotary Screw Air Compressor

• Model Number: NXG-18V
• Power Source: AC Power
• Motor Power: 18 / 25
• Voltage: 220v/380v(can be customized)
• Air Capacity: 2.0-3.1m3/min
• Warranty: 1 Year

Technical Specifications

Product Details

Product Details

Mode	NXG-18V
Free Air Delivery(m³/min)	2.0-3.1
Motor Power(kw/hp)	18 / 25
Starting Mode	Variable frequency
Working pressure(bar)	7-13
Type of Cooling	Air cooling/Water cooling
Dimension(mm)	1300*910*1290
Weight(kg)	520
Air Outlet Pipe Diameter(inch)	DN25

ABOUT THIS ITEM:

● HH-RAND Air end, imported technology with higher precision; ● Premium IP54 IE3 asynchronous motors & Super Premium IP55 IE4 motors ● Divided-type inverter MD-500 from INOVANCE； ● Double VSD system； ● 8000 hours of synthetic lubricating oil； ● IOT inside the PLC system； ● Schneider contactor； ● SKF bearings; ● Produce more free air delivery and have a longer service lifetime； ● Thermostat valve and differential pressure sensor are equipped；

Wide Applications

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage, Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage, Shops, Advertising Company, etc.

Our Services

Pre sale:
1. Professional technical personnel, 24*7 online services
2. Customize your compressor based on your specs

After sales:
1. Before shipping each machine, we will test it out
2. Free maintenance parts within 1 year
3. Warranty of the air end for 5-10 years
4. Customizable languages

Product Parameters

Model	Power (kW/HP)	Rated pressure (bar)	Lubricating Oil Volume (L)	Air Flow & Outlet (m³/min)	Dimensions (mm)	Weight (kg)	Air Outlet Pipe Diameter
NXG-7.5V	7.5 / 10	7-13	7	0.8-1.2	940*650*830	165	DN15
NXG-11V	11 / 15	7-13	12	1.1-1.7	1180*800*1210	370	DN20
NXG-15V	15 / 20	7-13	12	1.6-2.5	1180*800*1210	382	DN20
NXG-18V	18 / 25	7-13	18	2.0-3.1	1300*910*1290	520	DN25
NXG-22V	22 / 30	7-13	20	2.32-3.66	1300*910*1290	520	DN25
NXG-30V	30 / 40	7-13	20	3.7-5.9	1450*960*1470	580	DN40
NXG-37V	37 / 50	7-13	20	4.6-6.8	1450*960*1470	720	DN40
NXG-45V	45 / 60	7-13	20	5.6-8.9	1450*960*1470	760	DN40
NXG-55V	55 / 75	7-13	45	7.4-11.2	1800*1250*1670	1480	DN50
NXG-75V	75 / 100	7-13	45	9.8-14.5	1800*1250*1670	1680	DN50
NXG-90V	90 / 120	7-13	65	11.92-17.95	1800*1250*1670	1880	DN50
NXG-110V	110 / 150	7-13	80	13.63-21	2560*1650*1900	2400	DN80
NXG-132V	132 / 175	7-13	88	16.04-24.65	2560*1650*1900	2700	DN100
NXG-160V	160 / 215	7-13	100	18.89-30.7	2560*1650*1900	2900	DN100
NXG-185V	185 / 250	7-13	120	23.2-37	3450*2000*2150	3600	DN100-16
NXG-200V	200 / 270	7-13	120	26.0-41.5	3450*2000*2140	3750	DN100-16
NXG-220V	220 / 300	7-13	120	30.3-45.6	4000*2280*2250	3900	DN125-16
NXG-250V	250 / 335	7-13	160	32.5-50.2	4000*2280*2250	4150	DN125-16
NXG-315V	315 / 420	7-13	160	45.18-63.0	4000*2280*2250	4800	DN125-16
NXG-355V	355 / 475	7-13	180	47.97-67.5	4500*2280*2250	5200	DN125-16

Note:

Standard voltage is 380V/50HZ/3P, other voltages are available for customization.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs. So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.

Recommended Air Compressors

Production Process

Company Profile

About Us

Jiangxi Nanxiang Air Compressor, restructured from state-owned enterprise ( Nanchang Air Compressor Factory), is one of the earliest Chinese manufacturers specializing in air compressors. As a certified supplier of China National Nuclear Corporation (CNNC), Nanxiang focus on the production of high-quality air compressors. The product range include permanent magnet variable speed screw air compressors, oil-free air compressors, centrifugal compressors, etc. all products are certified by ISO & CE.

Our Team

Nanxiang team comprises seasoned experts in fluid machinery, with extensive experience in energy-efficient engineering design and supply chain management.

FAQ

Q1: Why Choose us?
A: Our products are all qualified by CE & ISO 9001. Our company introduces the advanced technology of German screw machine, adhering to the German industrial design concept and rigorous manufacturing process, specializing in screw compressor design, production and sales enterprises.
Q2: Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q4: Which shipping way can you provide?
A: We can provide shipping by sea, by air , by express and etc. according to customer requirements.
Q5: How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q6: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Prepare and Well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.

Contact Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $1999 / set
  • 5–9 set: US $1500 / set
  • 10+ set: US $1400 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this rotary screw air compressor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this rotary screw air compressor carry?

It is supplied with CE, TUV, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the rotary screw air compressor be supplied for my local voltage?

The standard configuration is 220v/380v(can be customized). Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangxi Nanxiang Air Compressor Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangxi Nanxiang Air Compressor Co., Ltd. range on HVACR Nexus.
