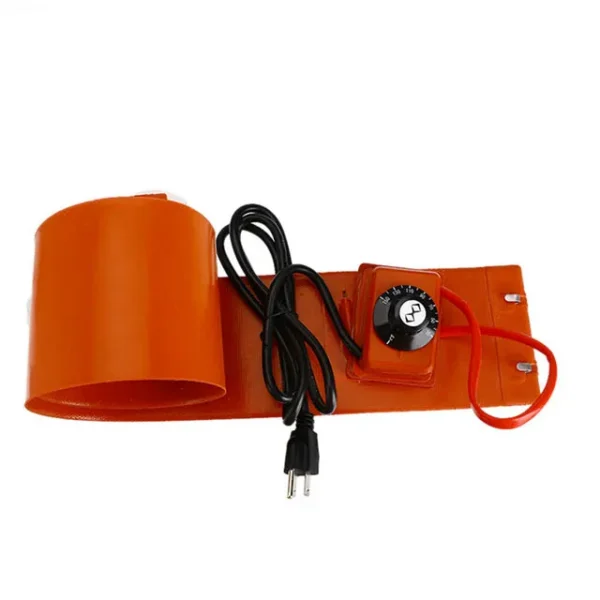

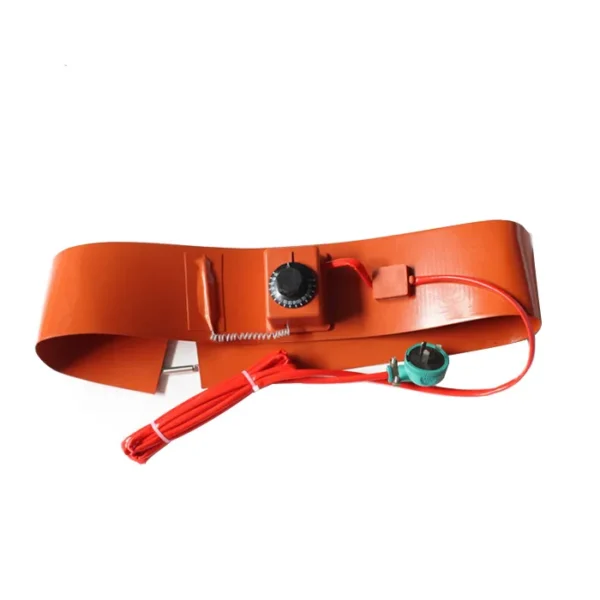

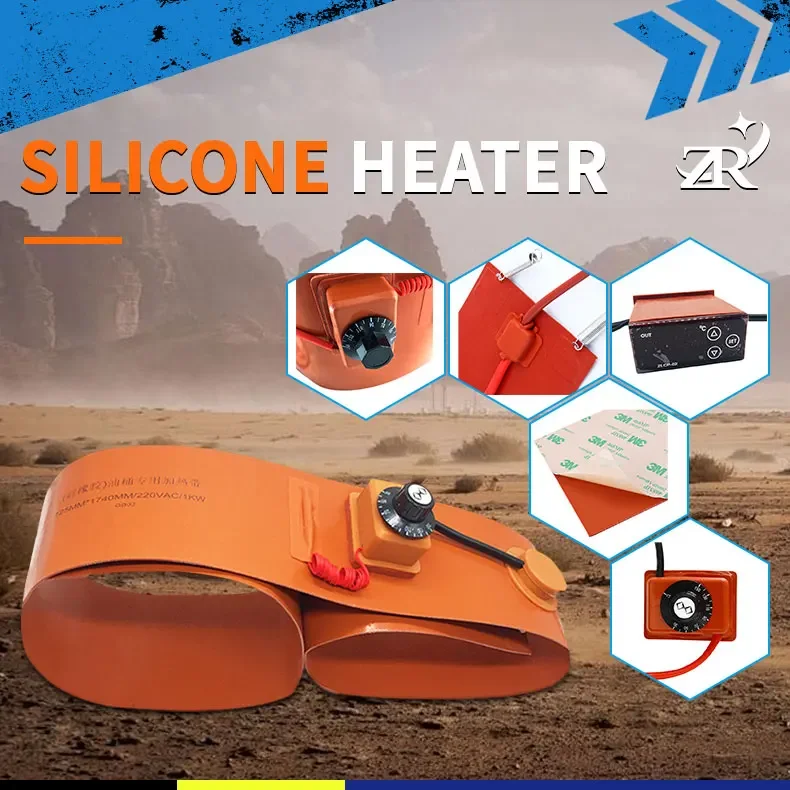

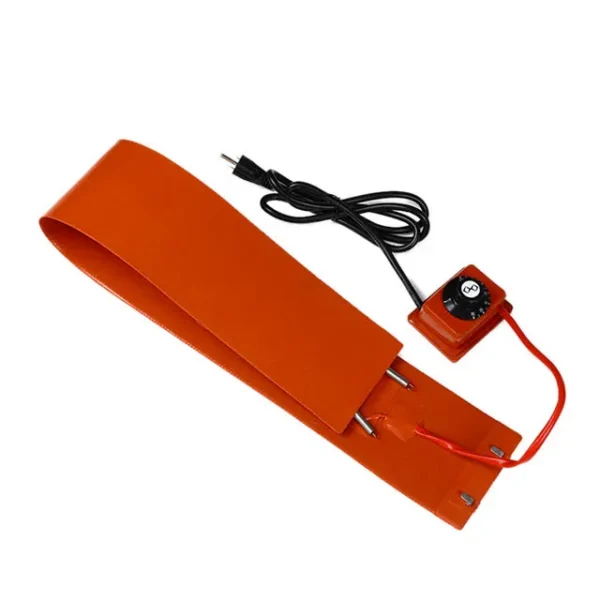

Rubber Band Heater, 110V/120V/220V, 1KW/2KW/3KW, 200L

Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact;

the heating elements of nickel alloy foil processing form, more uniform heating. In this way, we can let the heat transfer to any desired place.

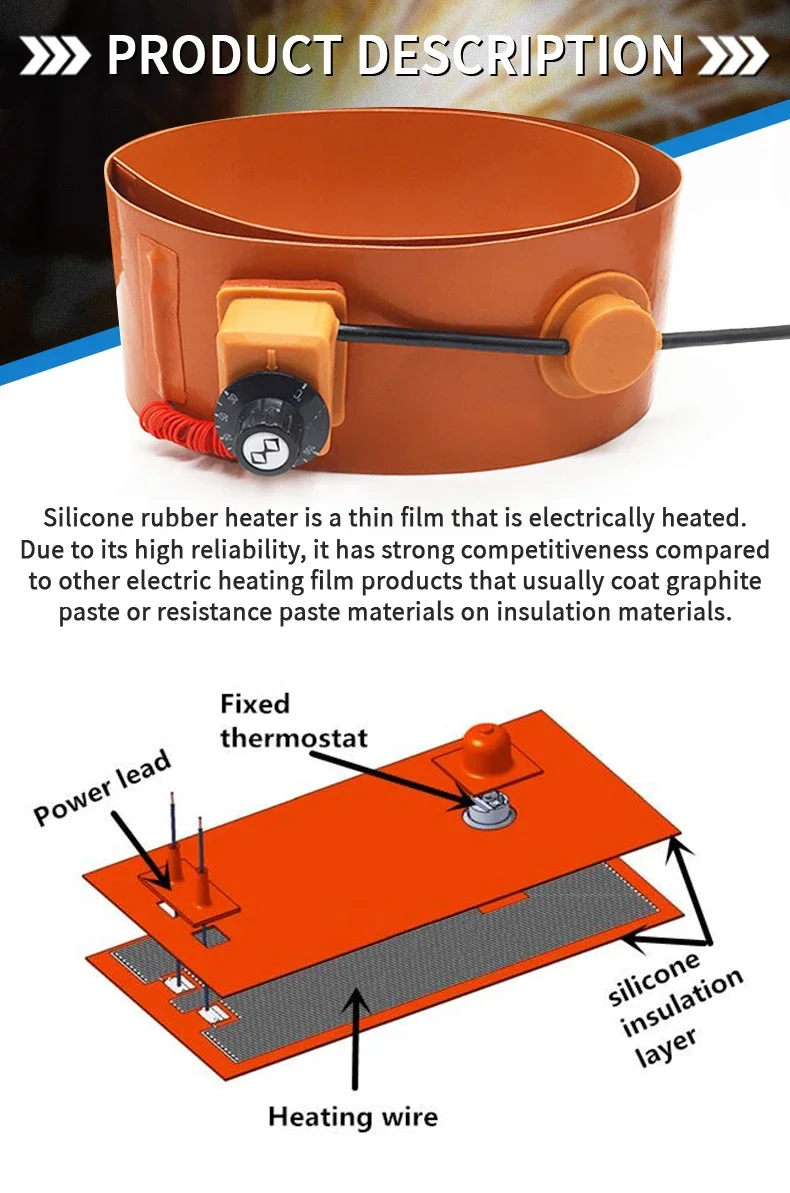

Silicone Rubber Heater can be manufactured from etched foil or from resistance wire as a wire wound circuit. The circuit pattern is vulcanized between two layers of silicon rubber

and can be easily mounted to heat sinks or devices that need to be heated.
Silicone rubber's flexility can make your Silicone Rubber Heater in the shape of flat, spiral wrap, blanket, and molded to shape.

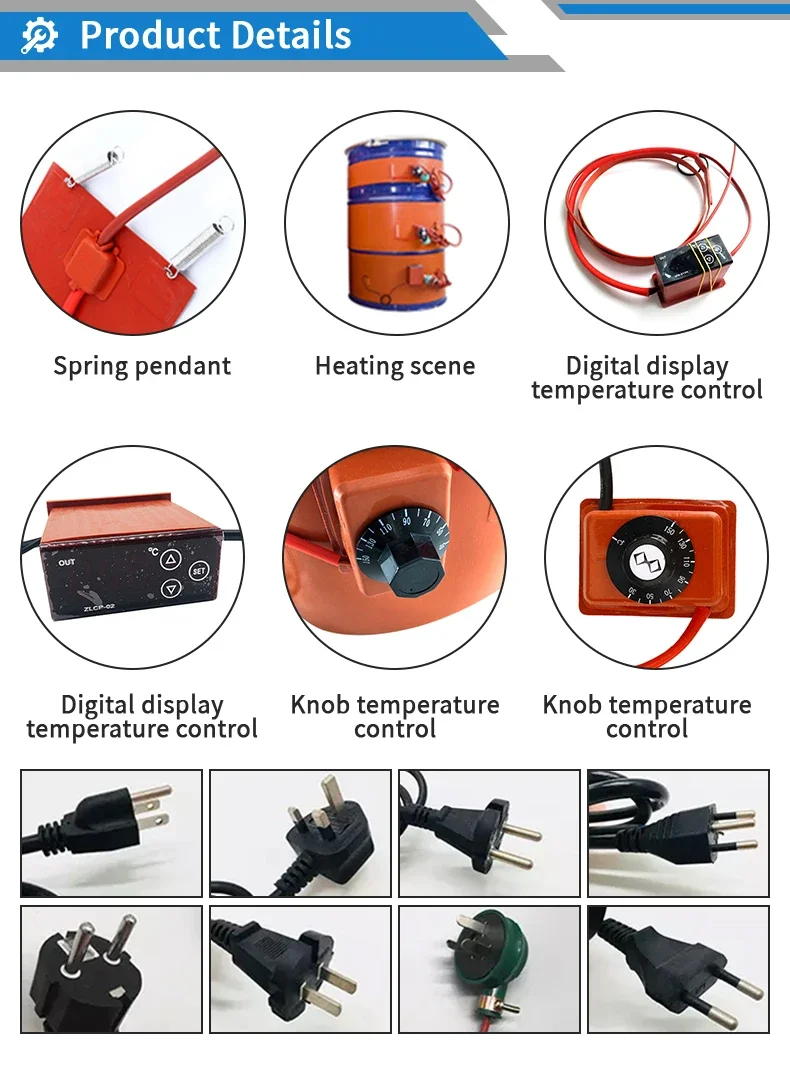

Silicon rubber heater can be supplied with thermistors , thermostats, thermal fuses and thermocouples.
Silicone rubber's flexility will assemble the heater to your application through the process of vulcanization and the use of silicone and pressure sensitive adhesives.

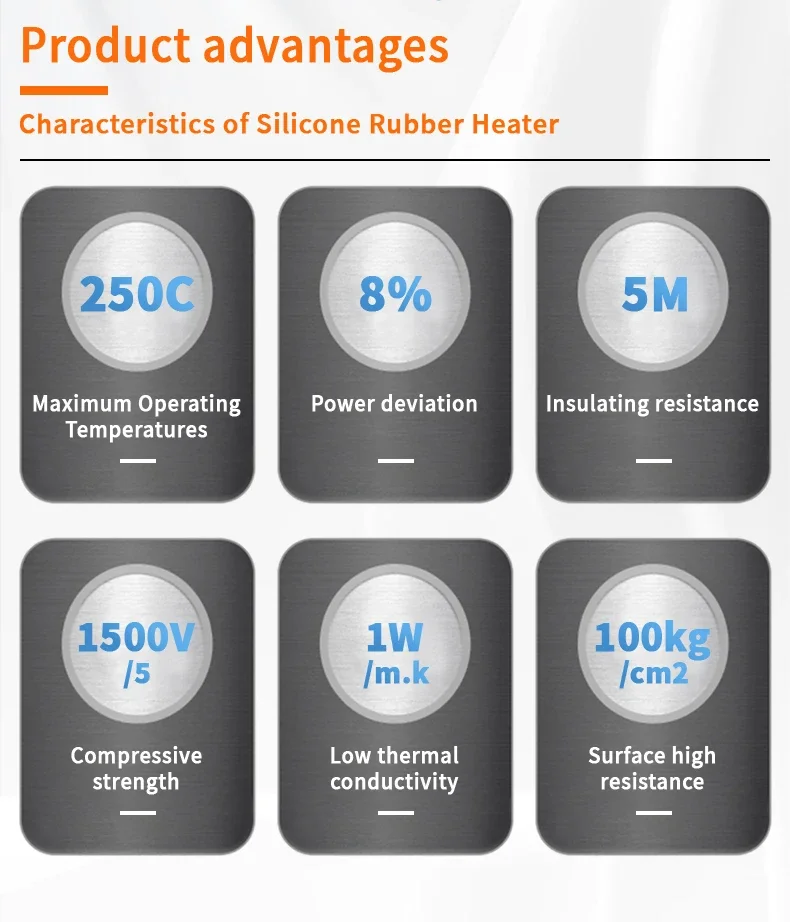

Product Feature
1.Maximum Operating Temperatures: 250 C
2.Power deviation: 8%
3.insulating resistance: 5 M
4.Compressive strength: 1500V/5
5. Fast heat diffusion, Uniform heat transfer, Directly heat objects on;high thermal efficiency, high strength, long service life,work safe uneasy for ageing.

Introduction of silicon rubber heater:

silicon rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm

thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides,

and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with

other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials.

As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.

Features for silicon rubber heater:

1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.

2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.

3. Water, acid and alkali resistance, high-strength of electric insulation.

4. High mechanical strength with 100kg/cm2 mechanical pressure.

5. Small size: Small space occupied when applying this heating product.

6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.

7. Its wide range of temperature,-60 C~250 C, can not be simply achieved by other electrical appliances.

8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials

are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm2, which is uncomparable for any other electric heaters.

9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.
