The water heater listed here carries 110v/220v/ 240v/ 380v, power source Electric, documented exactly as the manufacturer publishes it. Made by ZReal Automation Co.,Ltd. (3 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Heater
- Power Source: Electric
- Voltage: Customized
- Voltages Available: 110v/220v/ 240v/ 380v
- Material: Stainless Steel
- Warranty: 1 Year
- Certification: CE.ROHS
Technical Specifications
| Type | Immersion Heater |
|---|---|
| Power Source | Electric |
| Voltage | Customized |
| Material | Stainless Steel |
| Core Components | Engine |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 20 |
| Brand Name | ZR |
| Dimension(L*W*H) | Customized |
| Working Temperature Range | 0 – 100 ℃(0-180℉) |
| Voltages Available | 110v/220v/ 240v/ 380v |
| Working Temperature | 0℃–700℃ |
| Dimension | Customers Request |
| Diameter | 8mm to 30mm |
| Watt Tolerance | – 10% to +5% or customized |
| Wattage | Customized |
| Certification | CE.ROHS |
| Color | Customized |
| Usage | Industry Usage |
| Selling Units | Single item |
| Single Package Size | 100X10X10 cm |
| Single Gross Weight | 20.0 kg |
Product Details

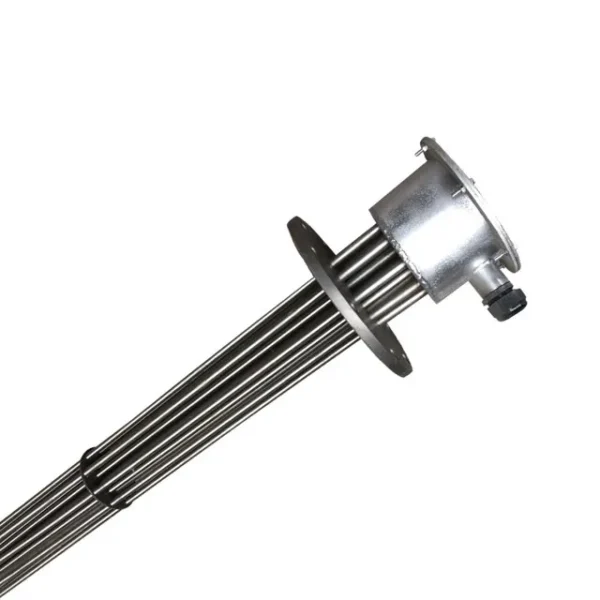

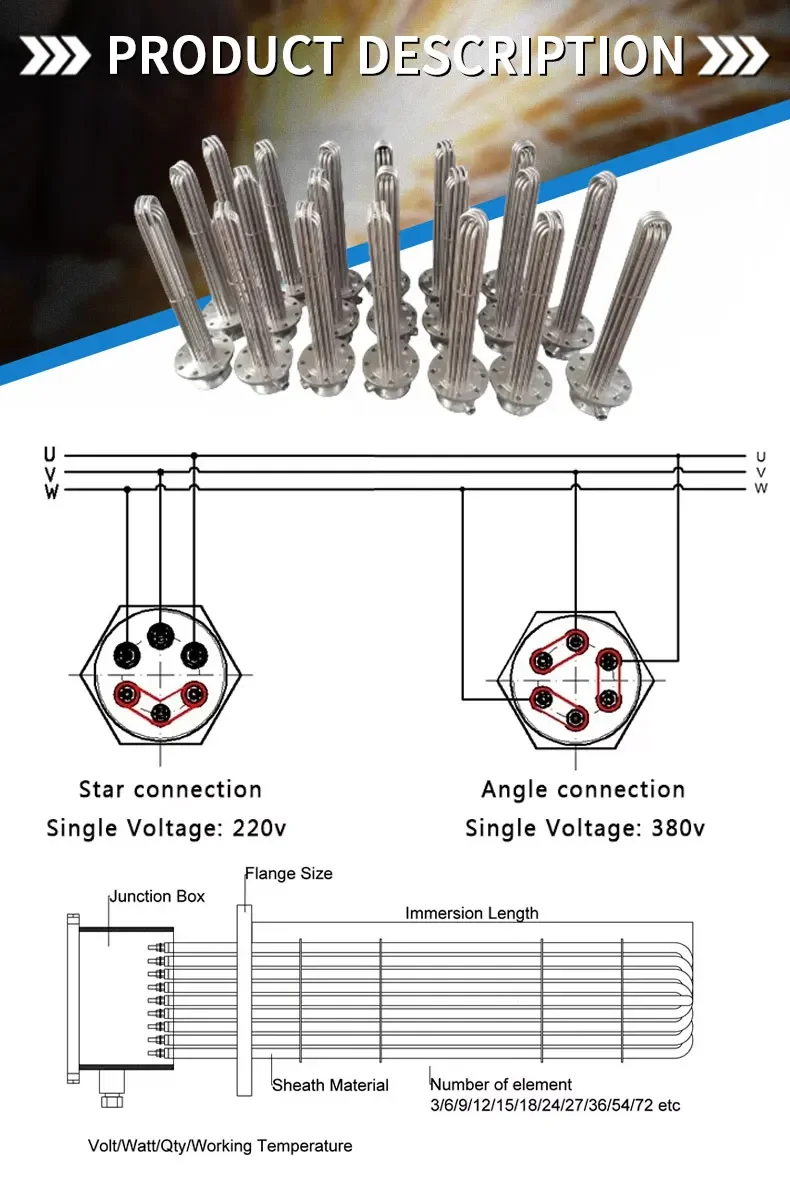

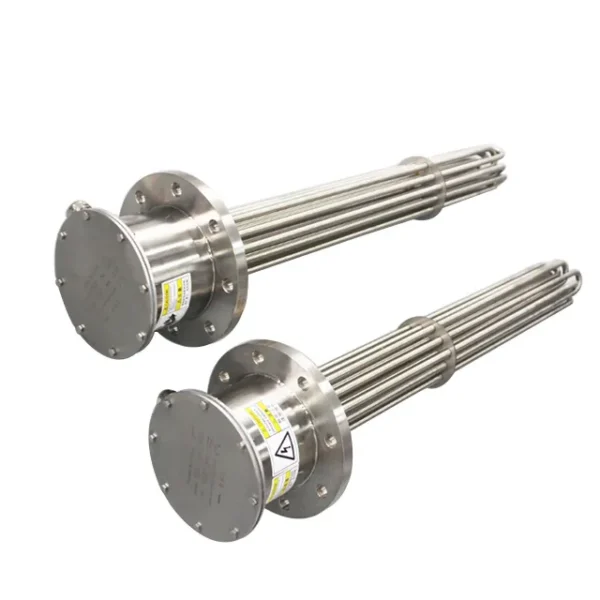

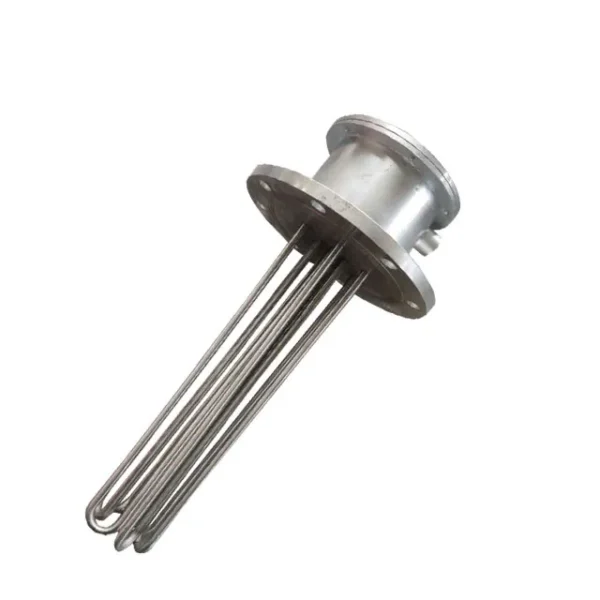

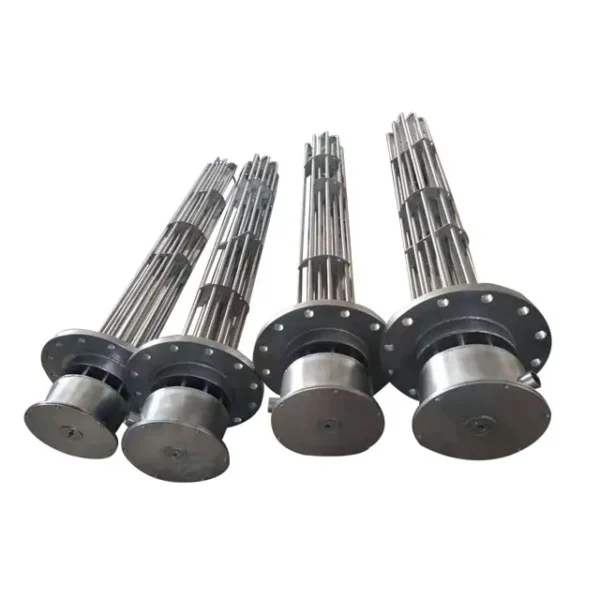

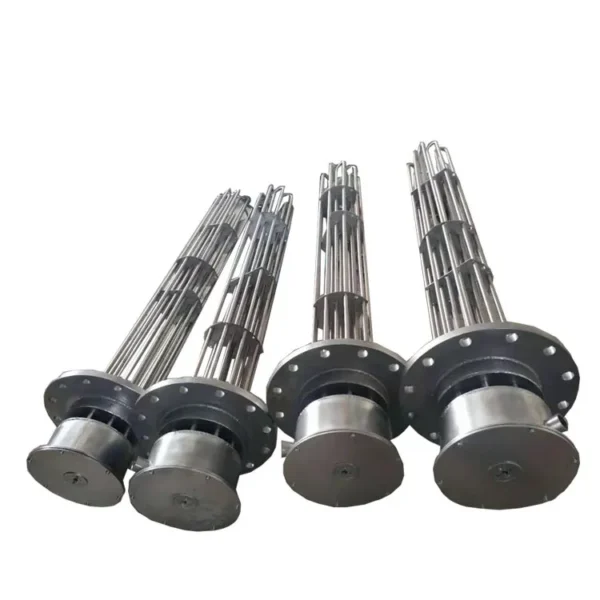

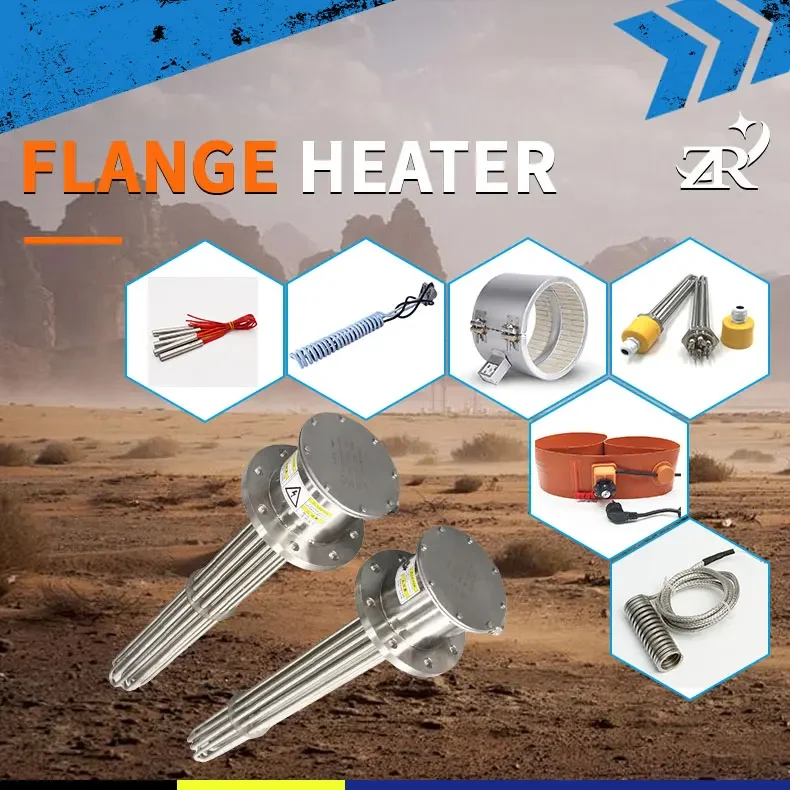

Flange tubular heating element (Immersion flange heater) with electrical connection wiring boxes .
They feature high watt density for rapid heat transfer and are commonly used for heating gases
& liquids such as water, oil, heat transfer fluid, and corrosive solutions.Due to high mechanical strength,
high thermal efficiency, safe and pollution-free, flange heater is widely applicable to all kinds of saltpeter trough,
sink, sump, acid and alkali tank, fusible metal melting furnace, air heating furnace, drying furnace, drying oven, hot die and other devices.
Once the medium temperature reaches the set value required by the process, the control system adjusts the output power of the electric
heater through the PID/PLC control system according to the temperature sensor signal, and realizes real-time temperature control of the
resistive load of the heating element. When the heating element is over-temperature or low liquid level, the automatic protection device
of the heating element immediately cuts off the heater power to prevent the heating element from burning out, which can extend the service life.
| Product Name | Industrial Electric Flange Tubular Immersion Heater For Tank Water Heating |
| Voltages available | 110v, 220v, 230v, 240v, 380V, according to your requirement |
| Power available | According to your requirement |

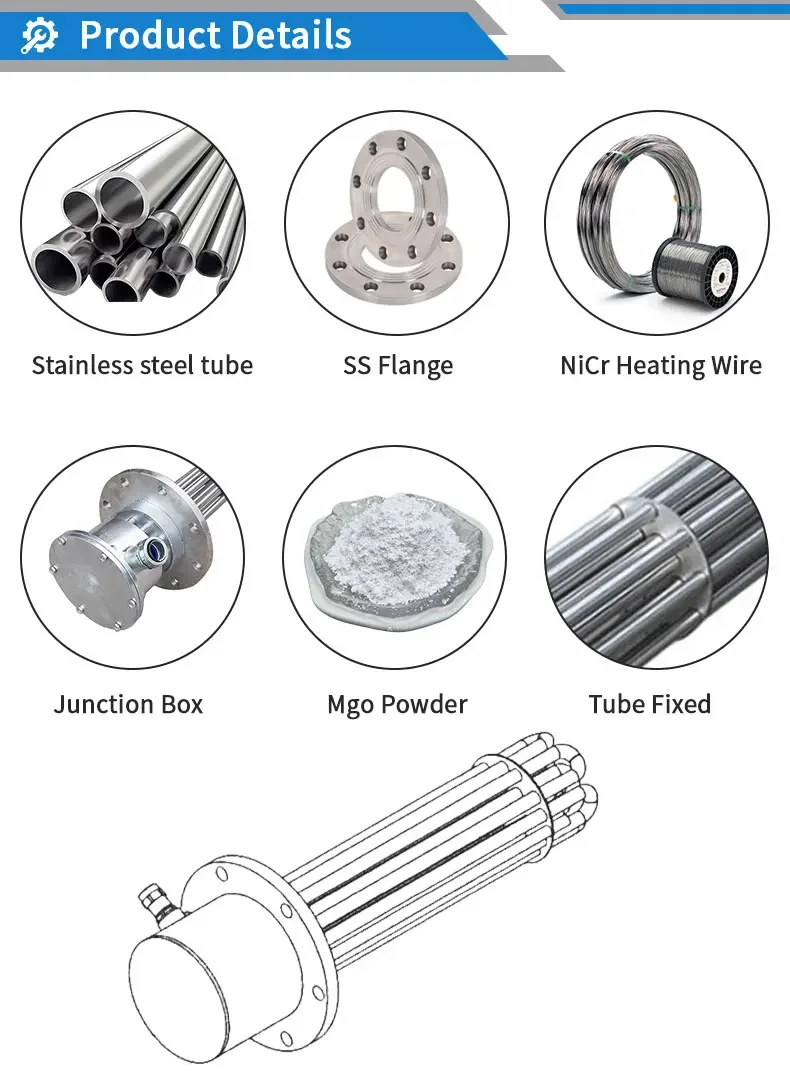

| Tube Sheath | Stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti |
| Tube Diameter | 8mm, 12mm, can be customized |
| Tube Length | 100mm – 10000mm, can be customized |
| Resistance heating wire | Ni-Cr or FeCr |
| Insulation | High-purity Mgo |
| Application | Liquid heating/ Gas heating/ Acid and alkali tank heating/ Water tank heating etc. |
* We support OEM order,and print Brand or Logo on surface.
* We can custom tubular heating elements specially(According to your size,voltage,power etc.)
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $100 / piece
- 10–99 piece: US $80 / piece
- 100+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this water heater carry?
It is supplied with CE.ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the water heater be supplied for my local voltage?
The standard configuration is Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ZReal Automation Co.,Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full ZReal Automation Co.,Ltd. range on HVACR Nexus.
