The sandwich panel listed here carries type Clean Room Booth, certification CE ISO GMP, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Sandwich Panel
- Material: Stailess Steel SUS304/201/Q195 /galvanized Sheet
- Warranty: 1 Year
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Certification: CE ISO GMP
- Place Of Origin: Guangdong, China
- Application: 100 Lab / Laboratory Clean Room
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | Anlaitech |
| After-Sales Service Provided | Engineers available to service machinery overseas, Free spare parts |
| Product Name | Air Clean Room Clean Booth |
| Certification | CE ISO GMP |
| Application | 100 Lab / Laboratory Clean Room |
| Type | Clean Room Booth |
| Material | Stailess Steel SUS304/201/Q195 /galvanized Sheet |
| Name | Cleanroom Project |
| Usage | Air Purification System |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | None |
| Packaging Details | Standard export packing (Stretch film+foam+Wooden case) |
| Port Of Dispatch | Guangzhou |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100 sets per Month |
Product Details

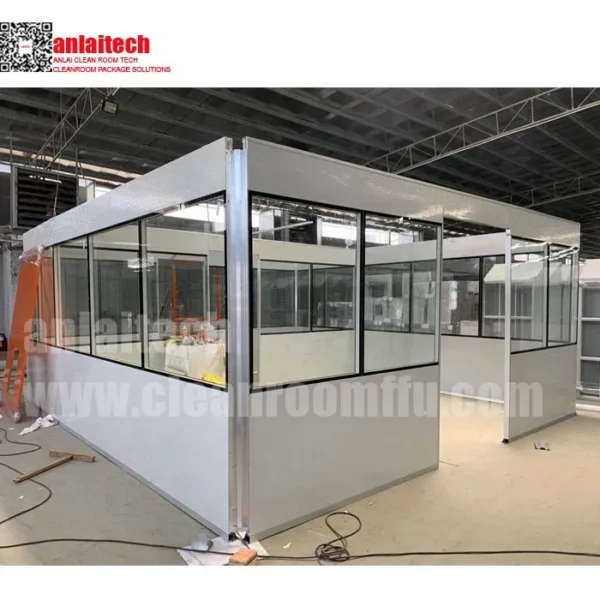

ISO14644-1 standard Class 10000 clean room

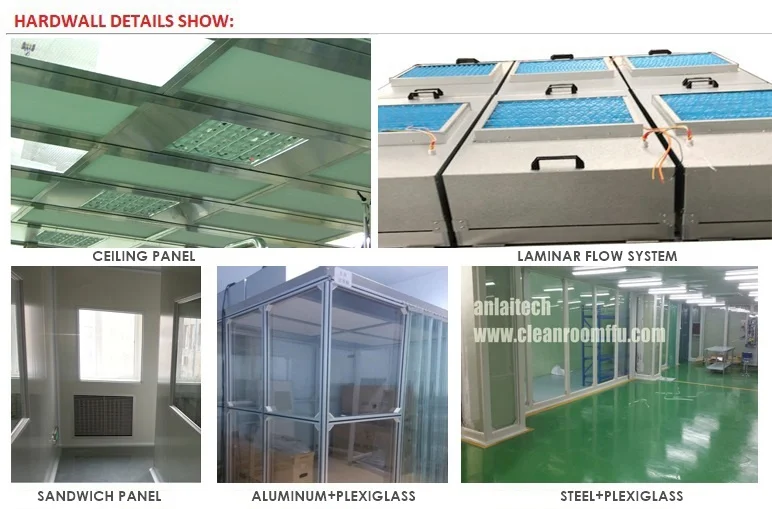

Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.

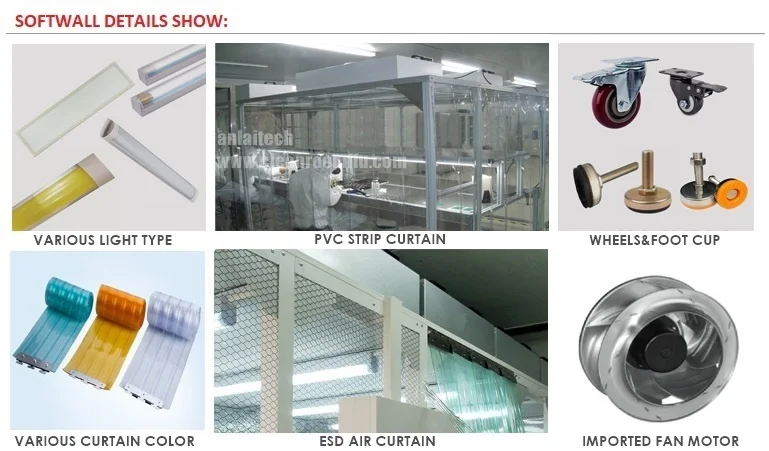

Configuration:
| Parameter | Softwall Clean Booth | Hardwall Clean Booth | |
| Cleanliness | From Class 100 to Class 1000,000 | ||
| External Dimension | As per requirement | ||
| FFU | Dimension | 2'X4' | |
| Cabinet Material | Stainless Steel | ||
| Power source | 110V/60hz/av/dc, 220V/60HZ/AV/DC | ||
| HEPA Filter | H14 Hepa filter | ||
| Frame Material | Stainless Steel | ||

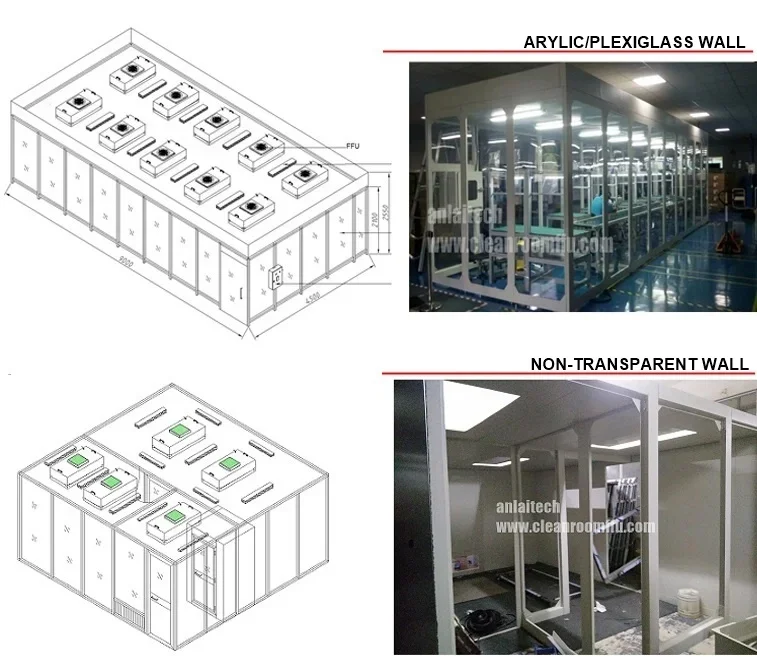

| Wall Material | Anti-static soft PVC wall 106~109Ω | Anti-static acrylic 106~109Ω | |
| Lighting | Lamps | Available in LED and T5 | |
| Air condition | As per requirement | Available in constant temperature air conditioner/constant temperature and humidity conditioner | |
Besides above configuration, we can customized as required.
Technical Paremeters:
| Model | Inner dimension | Number of | Air volume(m3/h) |
| W * D * H (mm) | FFU | ||
| ALCS6 * 8 | 2000 * 3000 * 2400 | 6 | 6600 |
| ALCS 8 * 12 | 2440 * 3660 * 2400 | 12 | 13200 |
| ALCS 8 * 16 | 2450 * 4880 * 2400 | 16 | 17600 |
| ALCS 8 * 20 | 2440 * 6100 * 2400 | 20 | 22000 |
| ALCS6 * 8 | 2000 * 3000 * 2400 | 2 | 2200 |
| ALCS 8 * 16 | 2440 * 4880 * 2400 | 4 | 4400 |
| ALCS 12 * 16 | 3660 * 4880 * 2400 | 6 | 6600 |
| ALCS 20 * 24 | 6100 * 7300 * 2400 | 12 | 13200 |
| ALCS6 * 8 | 2000 * 3000 * 2400 | 1 | 1100 |
| ALCS 8 * 16 | 2440 * 4880 * 2400 | 2 | 2200 |
| ALCS 12 * 16 | 3660 * 4880 * 2400 | 4 | 4400 |
| ALCS 20 * 24 | 6100 * 7300 * 2400 | 8 | 8800 |
| ALCS16 * 24 | 4880 * 7300 * 2400 | 2 | 2200 |
| ALCS18 * 30 | 5480 * 9150 * 2400 | 4 | 4400 |
| ALCS20 * 42 | 6100 * 12800 * 2400 | 6 | 6600 |
Please contact with us for your best clean room solutions.
PRODUCT FEATURES:
Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.
Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.
Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change dust-free production.
Flexibility: Less limitation or low requirements for the floor and spot situation, the iner space is enough to use and the frame canbe recycled
DESIGN INTO PRODUCTION:
DESIGN INTO PRODUCTION:
Following options are available

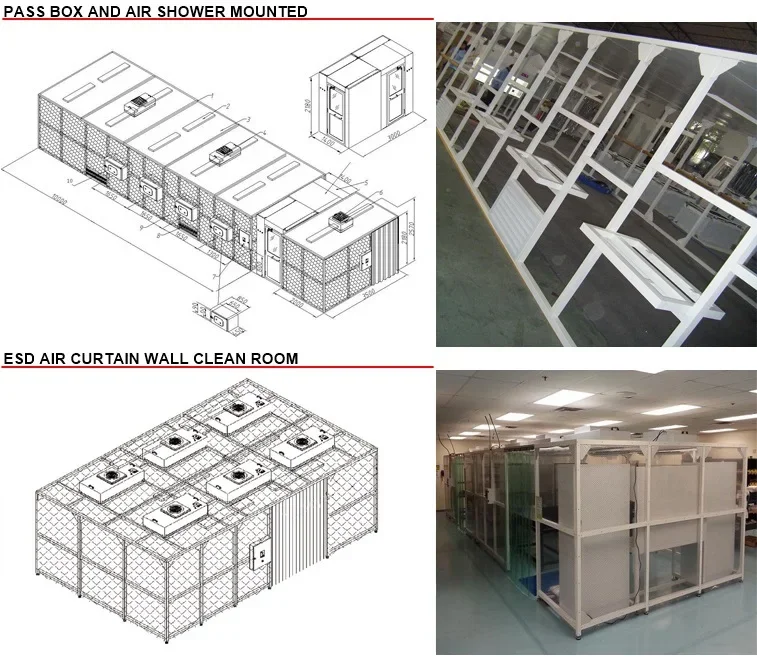

1. Pass box
2. Air shower
3. ULPA filter
4. Sticky mats
5. Barometer
6. Gowning area
7. Pressure different control device
8. Transparent/grid PVC curtain
9. Thermo-static and humid-static air conditioning system.

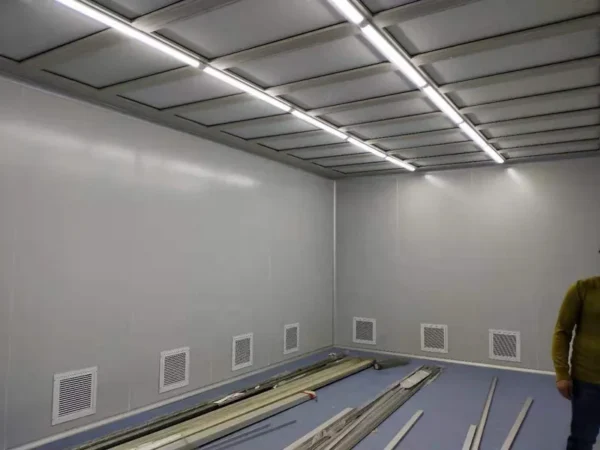

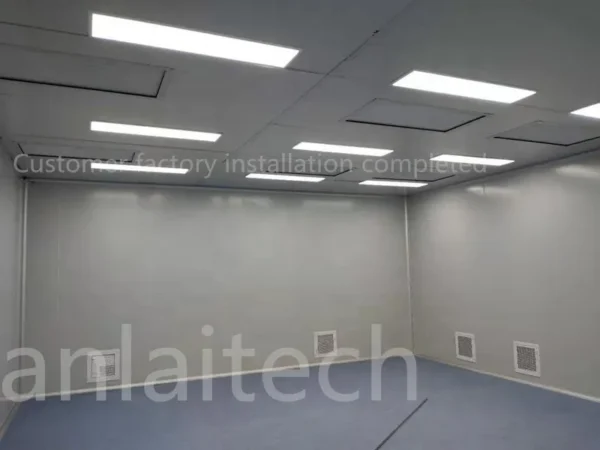

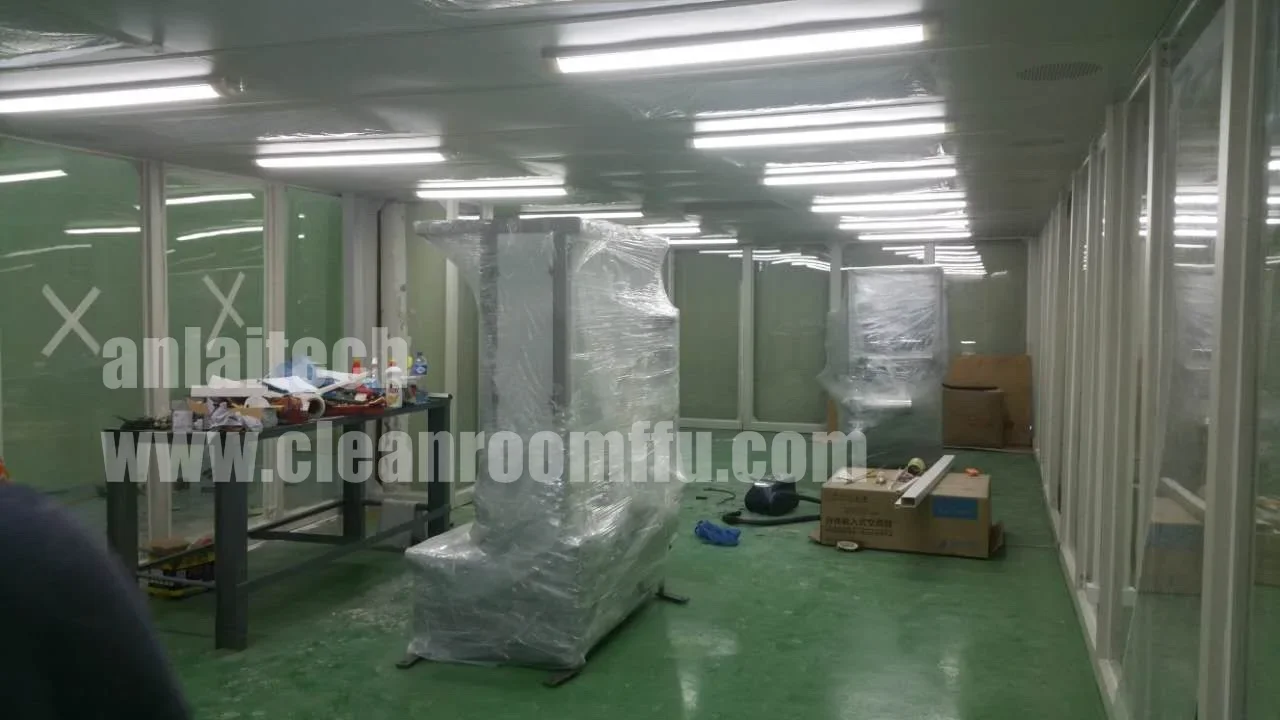

PROJECT REFERENCE1:

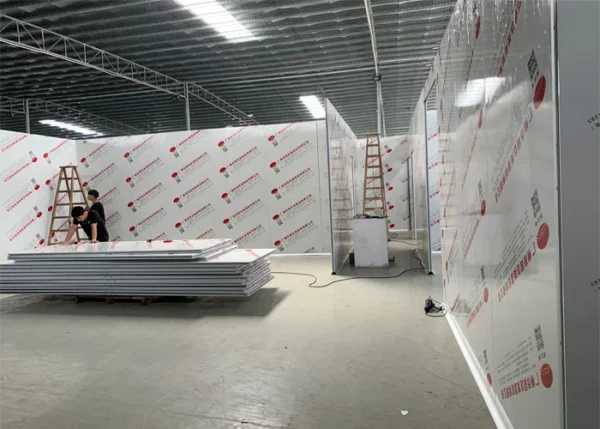

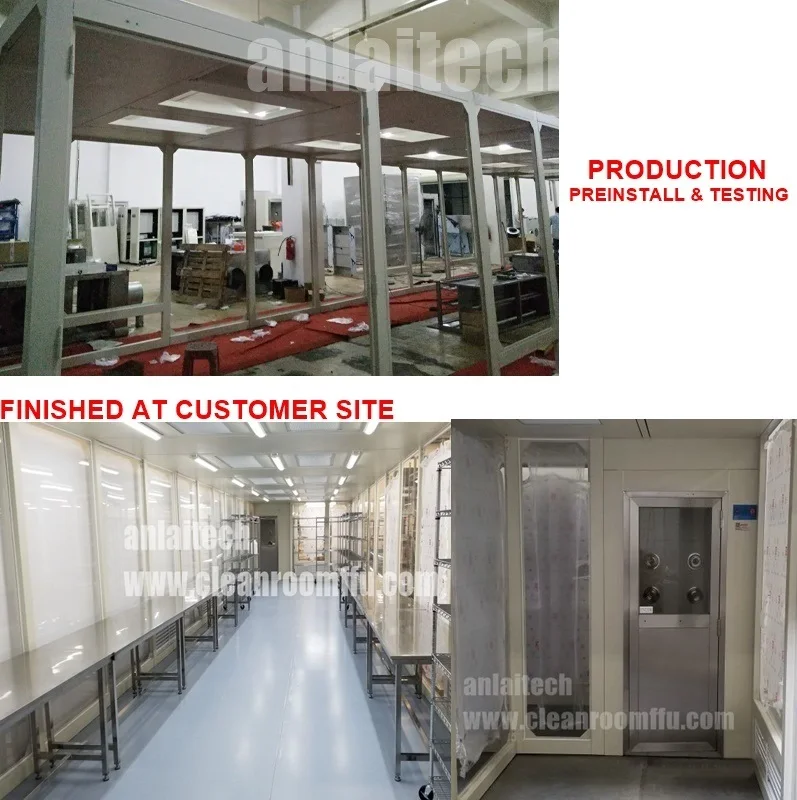

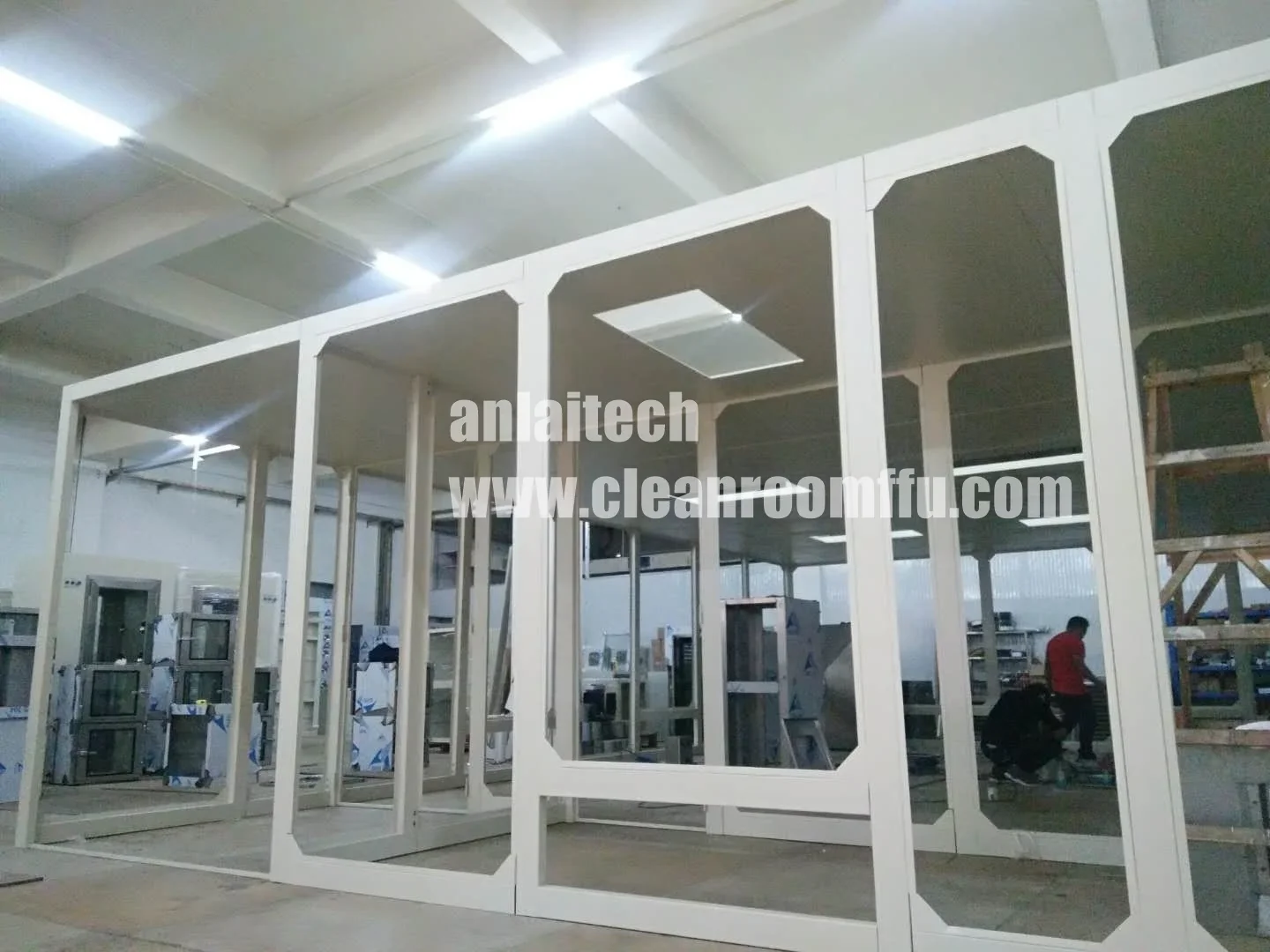

FACTORY PREINSTALLED, TESTED
SAFETY EXPORTED, EASYINSTALLATION
EQUIPPED WITH AIR CONDITIONING SYSTEM, LOW RUNNING COST

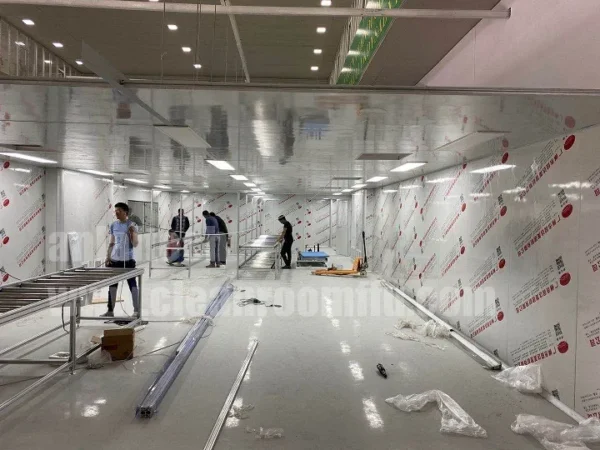

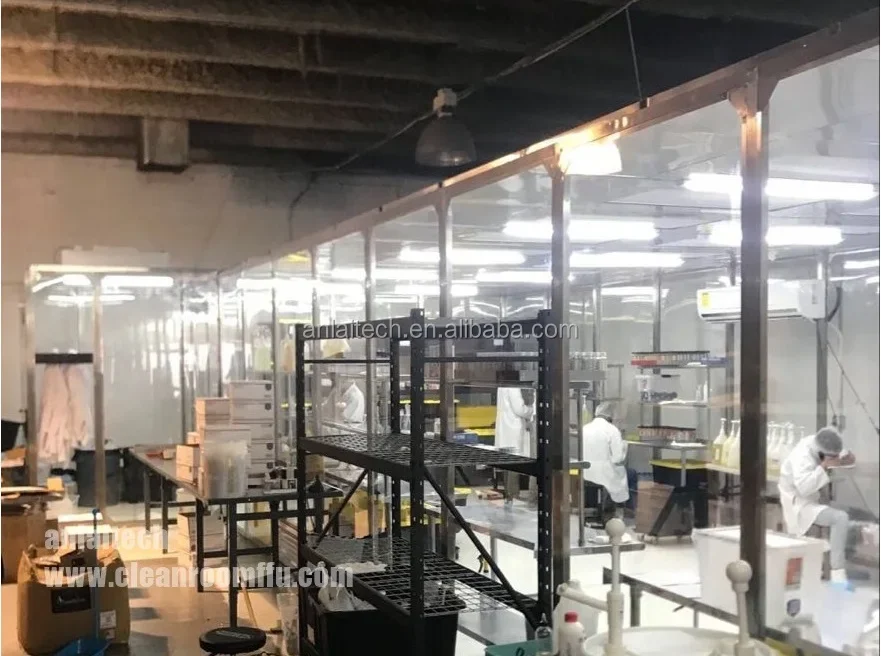

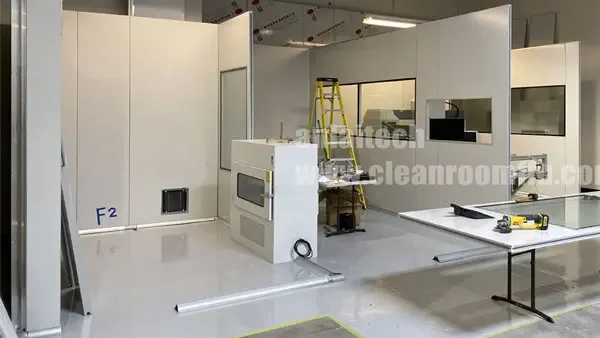

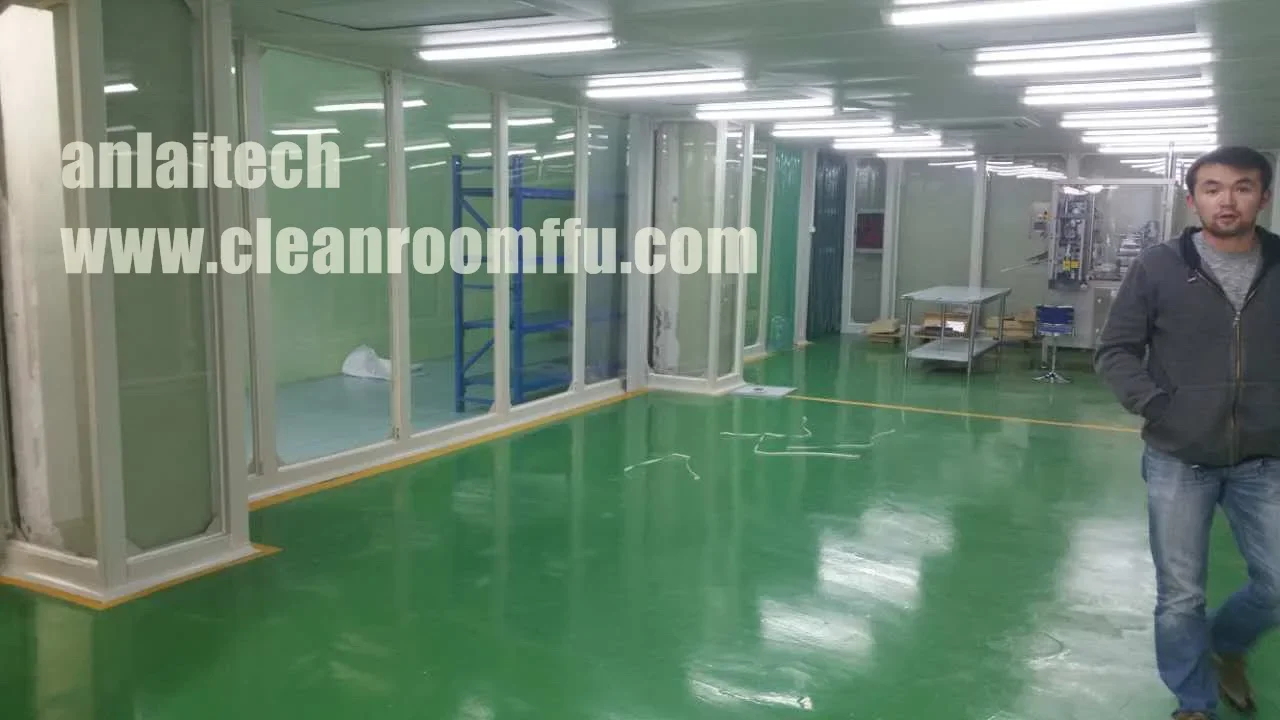

PROJECT REFERENCE2:
PROJECT REFERENCE3:
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
–appearance testing
–functional test and visual inspection
–electrical safety tests
–air velocity testing
–noise testing
Advantages:
Own factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
WELOME TO CONTACT WITH US:)
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sandwich panel?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this sandwich panel carry?
It is supplied with CE ISO GMP documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
