This hepa fan is published with the manufacturer’s full specification — 220 V, 110V, 875 CFM. Made by Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Hepa Fan
- Power: 0.2
- Voltage: 220 V, 110V
- Maximum Air Flow: 875 CFM
- Material: galvanized Zinc
- Warranty: 1 Year
- Certification: CE Certification
Technical Specifications
| Application | Laboratory, Industrial |
|---|---|
| Maximum Air Flow | 875 CFM |
| Filter Type | HEPA Filter |
| Filter Merv Rating | 14 |
| Type | FFU |
| Voltage | 220 V, 110V |
| Material | galvanized Zinc |
| Mobility | Mobile |
| Size | 2X4 |
| Condition | New |
| Warranty | 1 Year |
| Filter Efficiency | 95% |
| Place Of Origin | Guangdong, China |
| Brand Name | Anlaitech |
| Power | 0.2 |
| Weight (Kg) | 40 |
| After-Sales Service Provided | Overseas service center available |
| Name | laminar flow system |
| Function | Fan Filter Unit (FFU) |
| Motor | DC OR AC, CHEAPER PRICE |
| Certification | CE Certification |
| Filter | HEPA PTFE Cartridge Filter |
| Selling Units | Single item |
Product Details

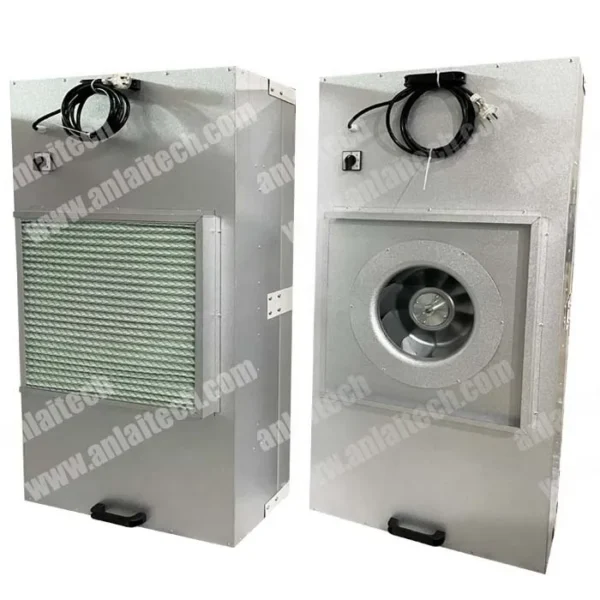

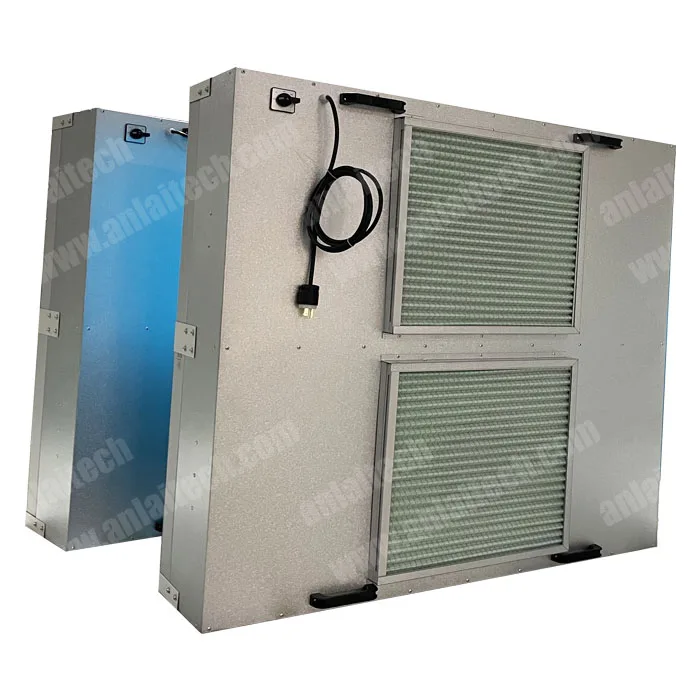

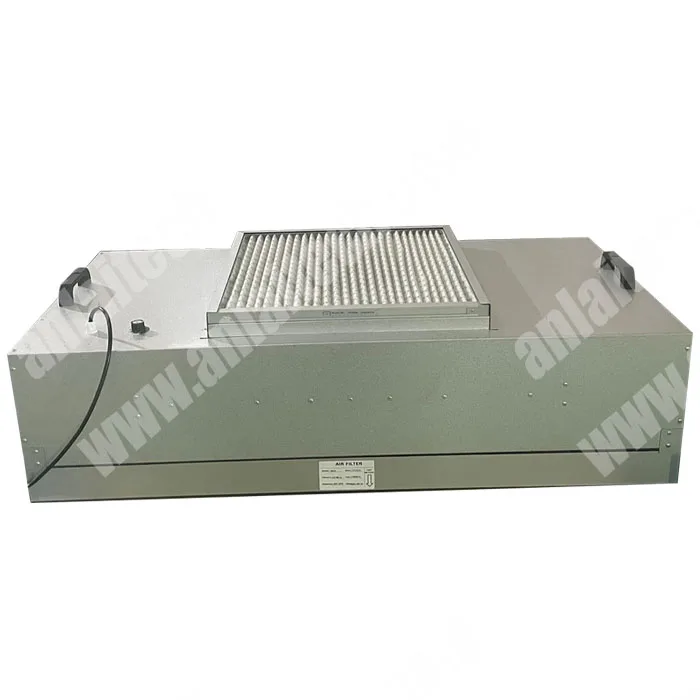

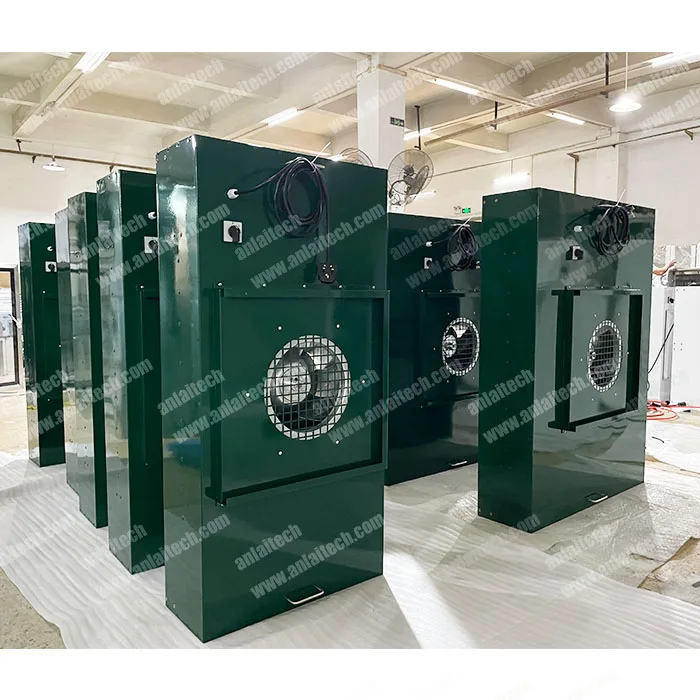

Fan Filter Units (FFU)
Features:
The master switch inner set with insurance and indicator light
The control mode is flexible, can be three or five air velocity speed adjustment
Abnormal indicator light to understand the operation state of the equipment
Options available:
1. ULPA filter (99.9995 @0.1μm)
2. stainless steel or AL case
3. super thin design
4. other requirements
Model | AL-FFU2*2 | AL-FFU2*4 | AL-FFU3*4 | AL-FFU4*4 | |||
Overall size W * L * H (mm) | 575 * 575 * 350 | 575 * 1175 * 350 | 875 * 1175 * 350 | 1175 * 1175 * 350 | |||

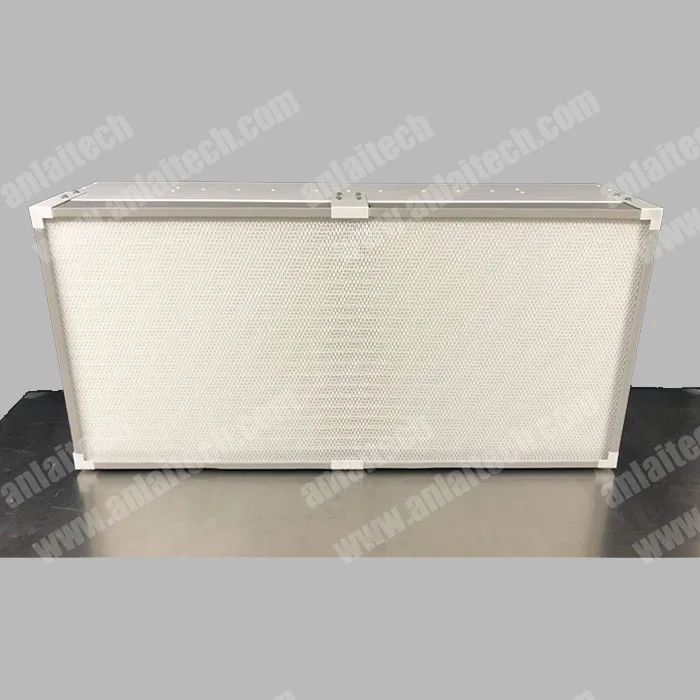

HEPA filter size W * L * H (mm) | 570 * 570 * 69 | 570 * 1170 * 69 | 870 * 1170 * 69 | 1170 * 1170 * 69 | |||
Efficiency | HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995% | ||||||
Prefilter (optional) | Washable non-woven fabric | ||||||
Construction | Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet | ||||||
Air velocity (m/s) | 0.36~0.56 | 0.36~0.56 | 0.36~0.56 | 0.36~0.56 | |||
Air velocity (m/s) | 410~513 | 840~1080 | 1290~1650 | 1720~2160 | |||
Noise (dB) | 48 ~ 58 | 48 ~ 58 | 52 ~ 62 | 52 ~ 62 | |||
Power | AC single phase 110/220V 50/60Hz Or EC 220V | ||||||

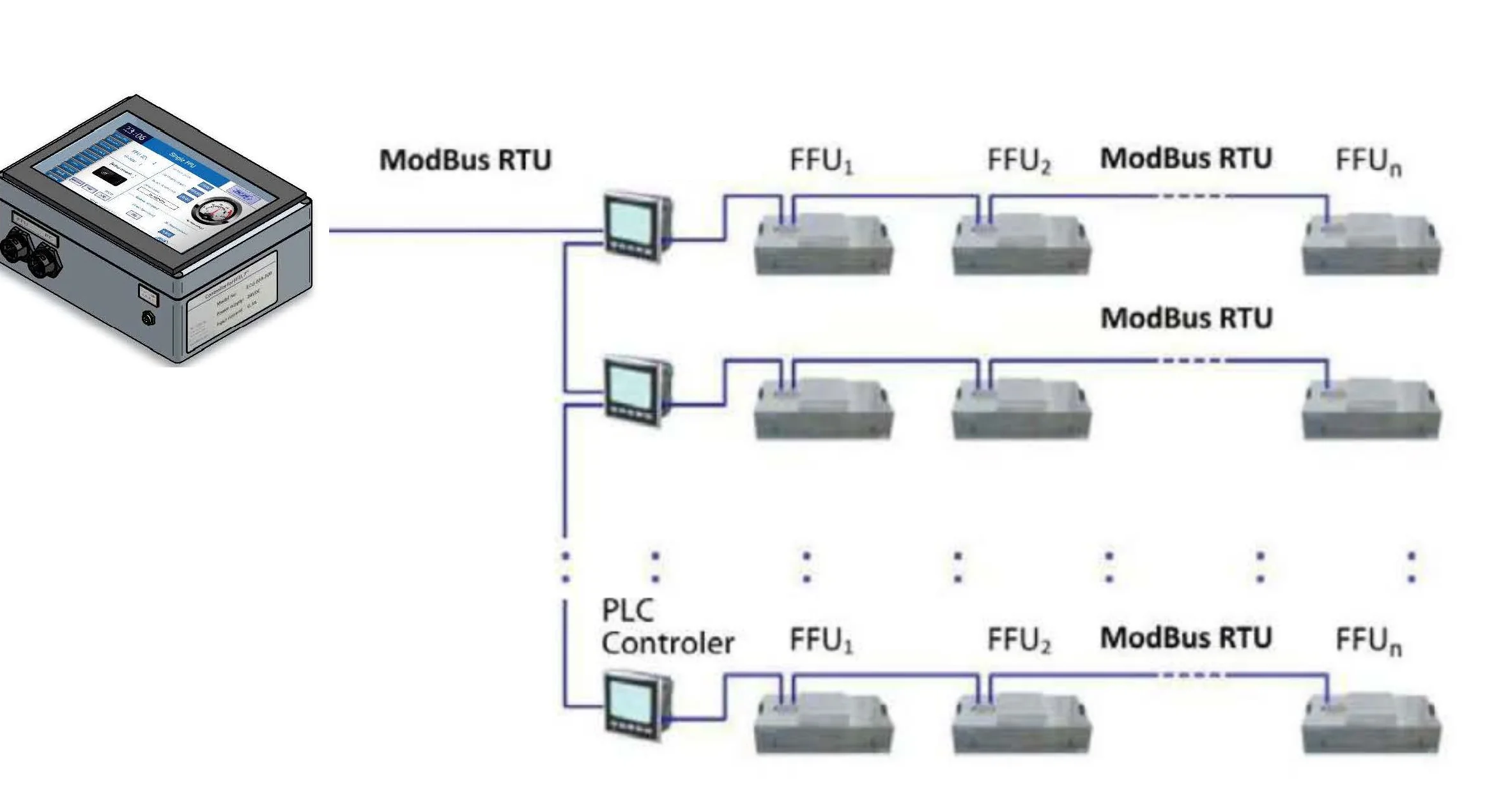

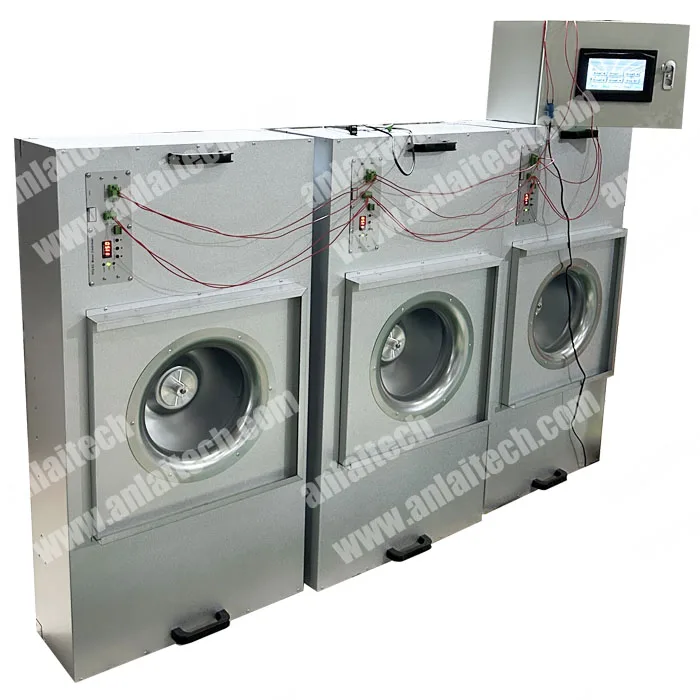

the new intelliegent FCU Touch screen control system offers various features for its user.
1.Touch Screen, English version
3. Can be connected together with several controllers
4. Modbus Connectivity

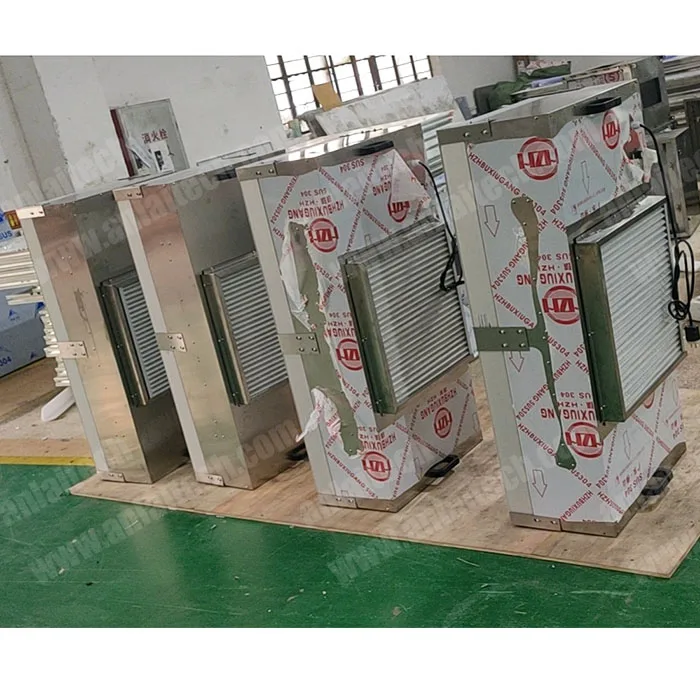

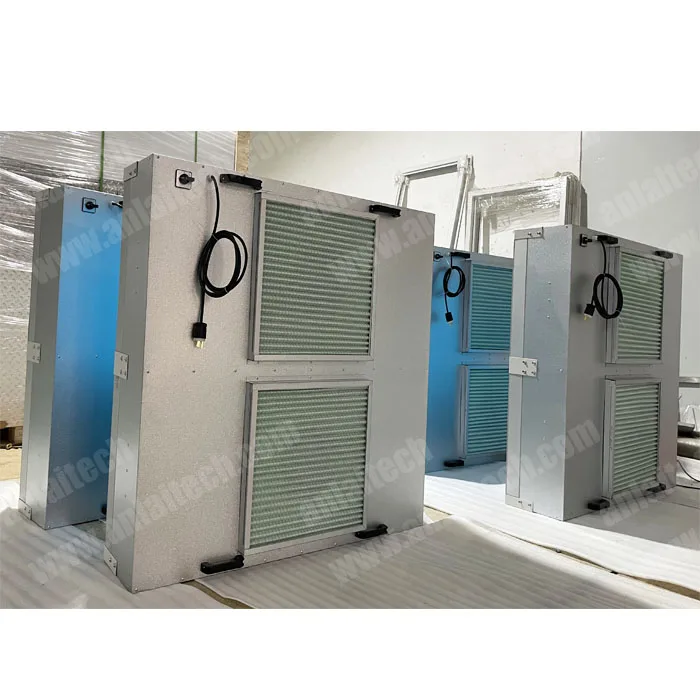

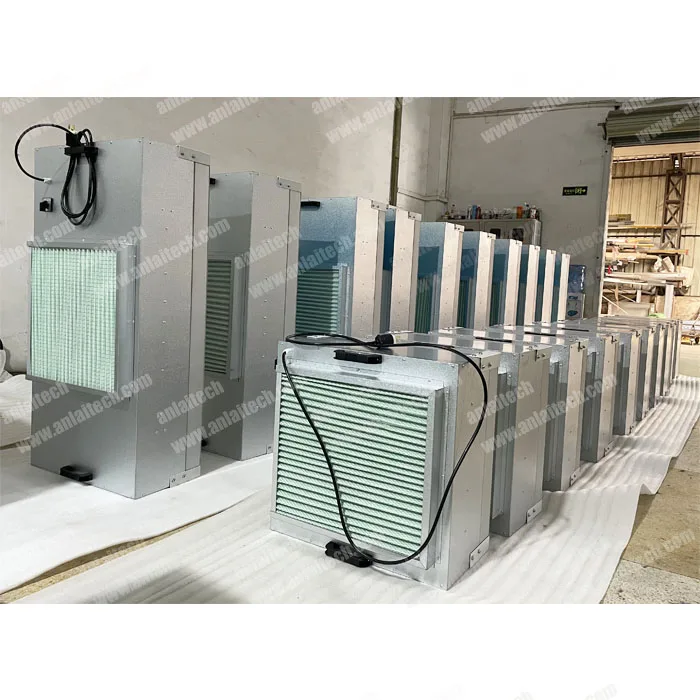

Customized FFU into Production:
1. Q: Are you manufacturer or trader?Where are your factory located?
A: We are manufacturer with professional designers and engineers. Our factory is located in Guangzhou city.
2. Q: How long is your warranty? Can we extend?
A: 13months after installation and commissioning. Warranty can be extended with extra charge.
A: Yes, we have engineer team for ODM and OEM services
4. Q: What documents will you provide?
A: We will provide DQ, IQ, PQ, OQ, FAT, operation manual, maintenance instruction, layout drawing etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hepa fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this hepa fan carry?
It is supplied with CE Certification documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the hepa fan be supplied for my local voltage?
The standard configuration is 220 V, 110V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
