Key specification for this sanitary shell and tube: 110V 220V 240V 380V 400V 480V, material SS316L. Everything below is reproduced from the factory data sheet. Made by Shanghai Ritai Medicine Equipment Project Co., Ltd. (17 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Sanitary Shell And Tube
- Voltage: 110V 220V 240V 380V 400V 480V
- Material: SS316L
- Warranty: 1 Year
- Certification: ASME, NB, GB, PED EC, ISO 9001, TUV,
- Place Of Origin: Shanghai, China
- Heat Exchanger Type: Tube Heat Exchanger
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Voltage | 110V 220V 240V 380V 400V 480V |
| Core Components | pipeline |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Sanitary |
| Place Of Origin | Shanghai, China |
| Brand Name | RITAI |
| Maximum Pressure Rating | 15bar |
| Dimension(L*W*H) | Customized |
| Documents | DQ, IQ, OQ, PQ, FAT, SAT, Operation Manual, Drawing, etc. |
| Certification | ASME, NB, GB, PED EC, ISO 9001, TUV, |
| GMP Verification Support | SFDA, FDA, WHO, EU, TGA, CFDA, cGMP |
| Material | SS316L |
| Selling Units | Single item |
Product Details
Product Description
Applications
Sanitary Tube-in-Tube heat exchanger was special developed for WFI point of use cooling application when flow rate is less than 1500 Lph, it’s easy to be stalled and operation, quickly cooling response time, no contamination risk and free maintenance.
Working principle

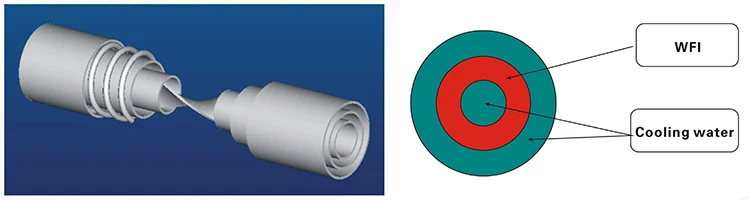

The unit is made up of three seamless tubes placed within each other. Between the services tubes there are spirals to make sure that the space is kept between the tubes and to create a turbulent flow and therewith a better heat transfer. There are no any crevices or dead spots in product channel.
The three tubes are then bent together 180° to a U-bend. E-Pharma bends the three tubes with the spirals in one step which makes it no leakage risk (no welds in the turn). The product is going in the middle tube and the cooling or heating media in the inner and outer ones.
Any thermal expansion is taken up by the bend so the unit is very resistant against thermal fatigue that comes from big temperature differences in heating/cooling duties or when sterilizing with steam.

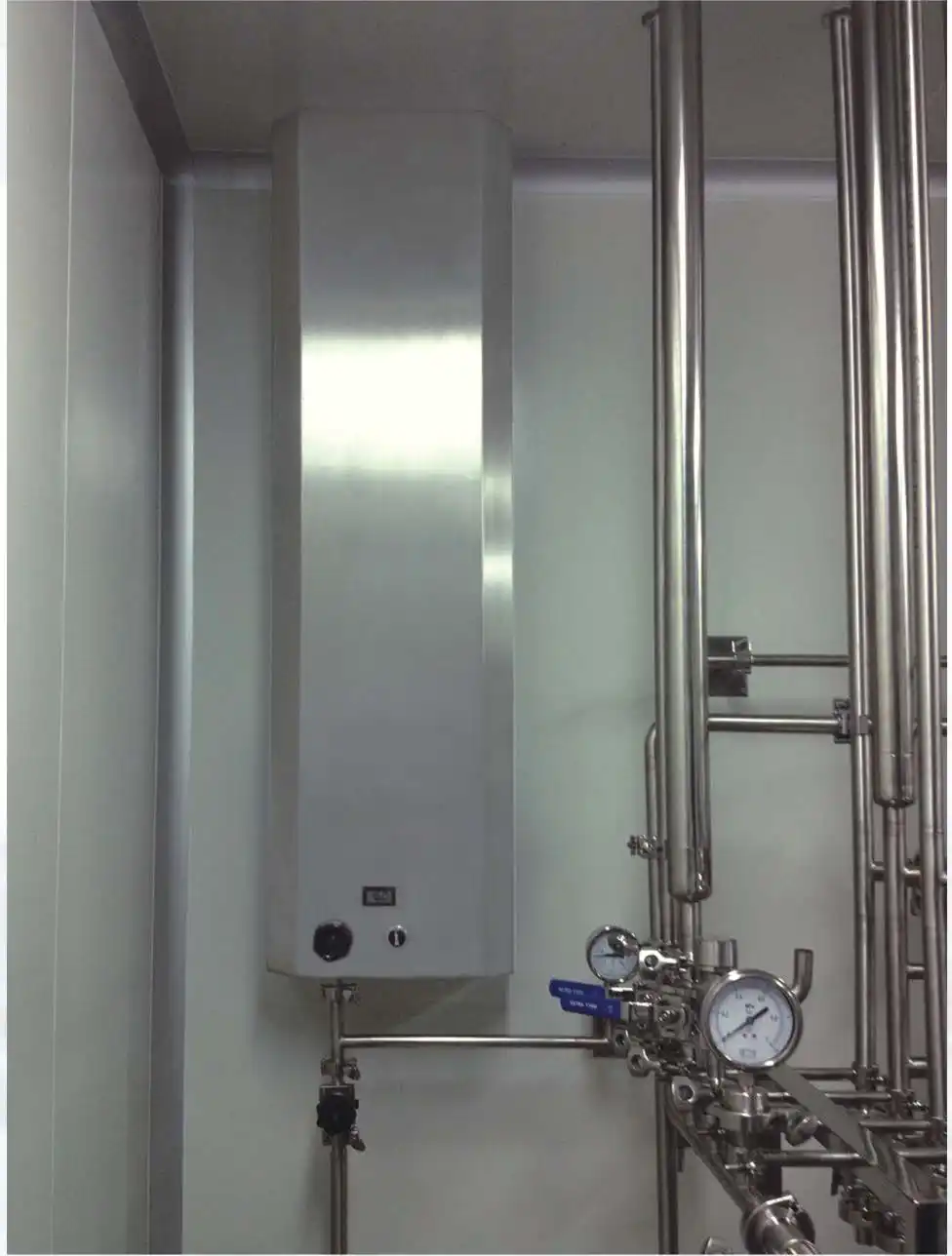

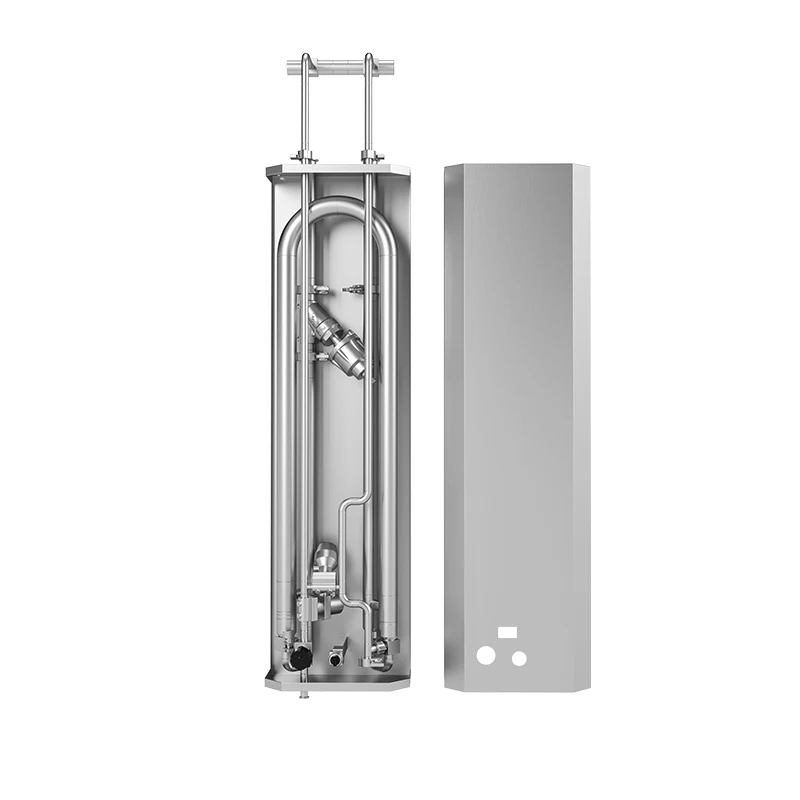

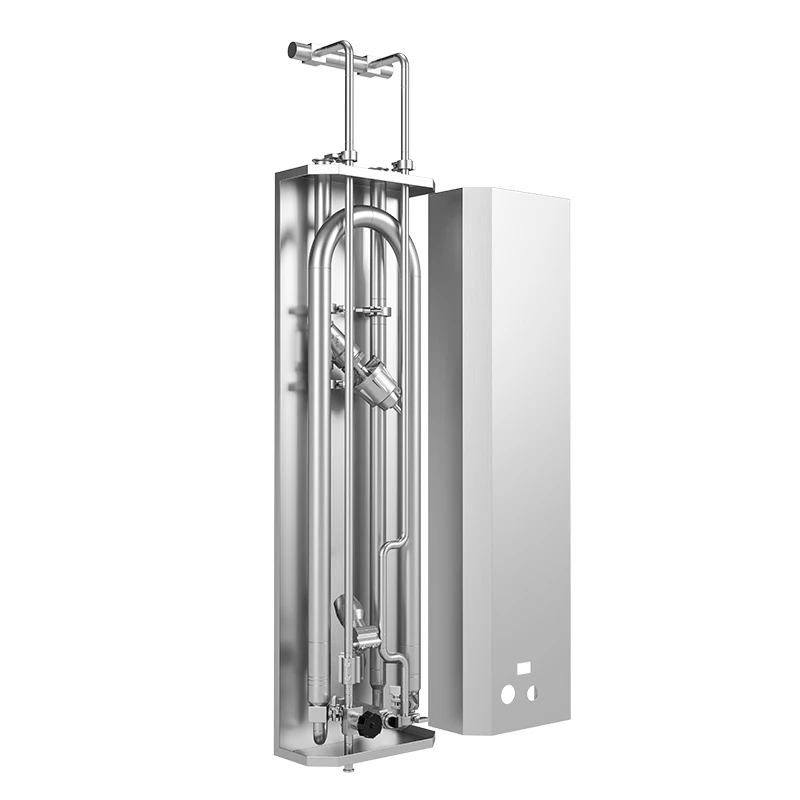

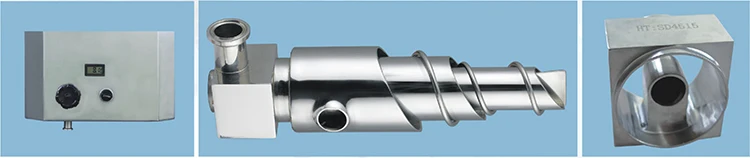

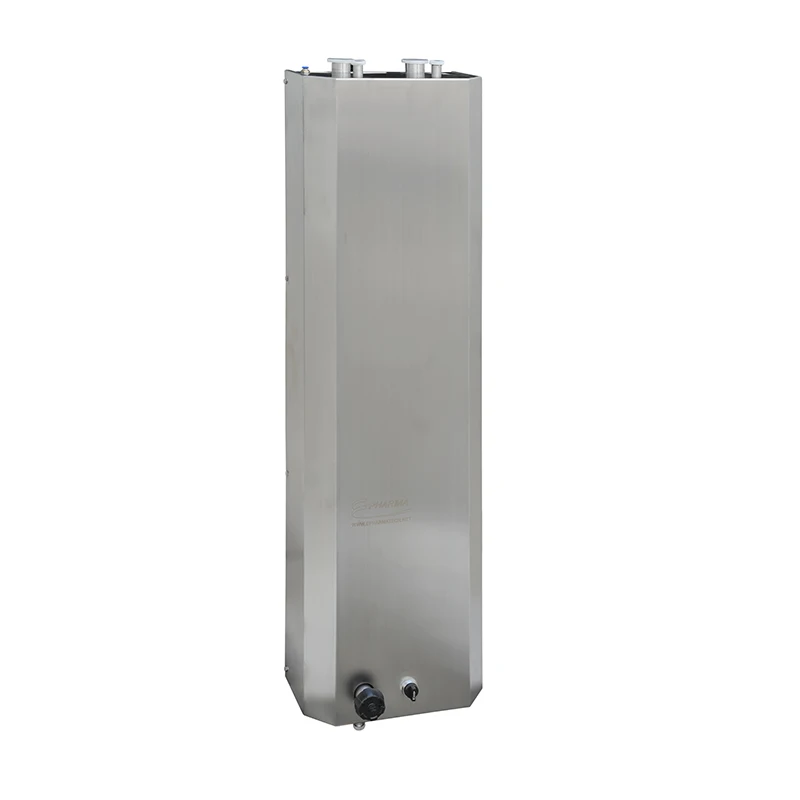

The heat exchanger can be sold as a naked unit or a complete point of use cooler, the module is to prefer since it is easy to install and use directly. The module consists of the Tube-in-Tube, cladding, valve arrangements and a pitot tube arrangement etc. The pitot tube is especially made for tube in tube heat exchanger connect to main pipe system.
A counter-current flow gives the most efficient heat transfer and also the possibility to have crossing temperature programs.

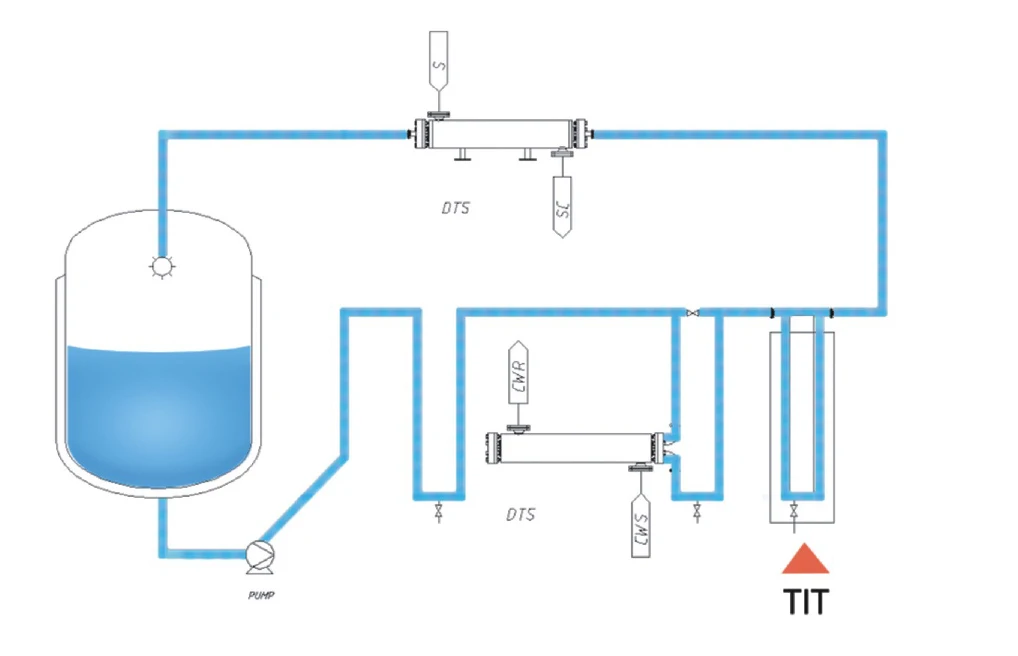

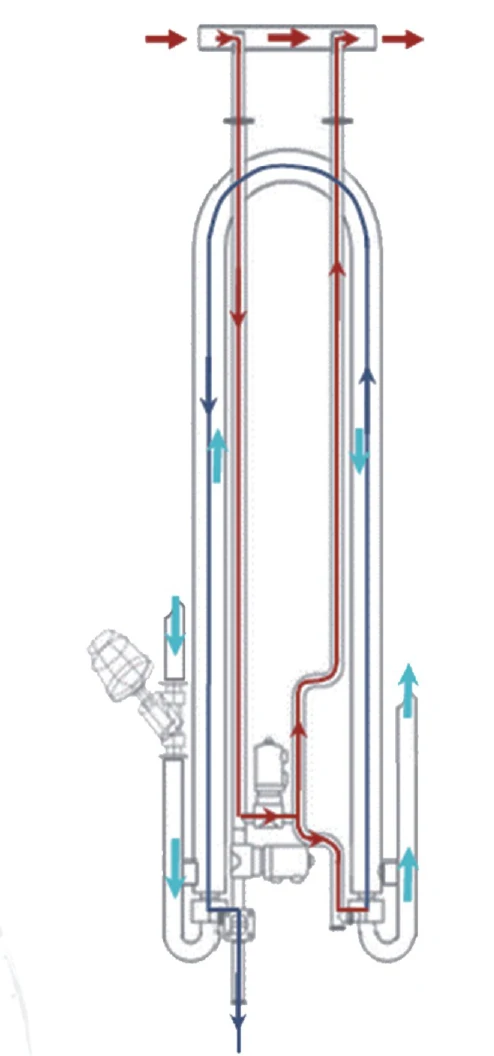

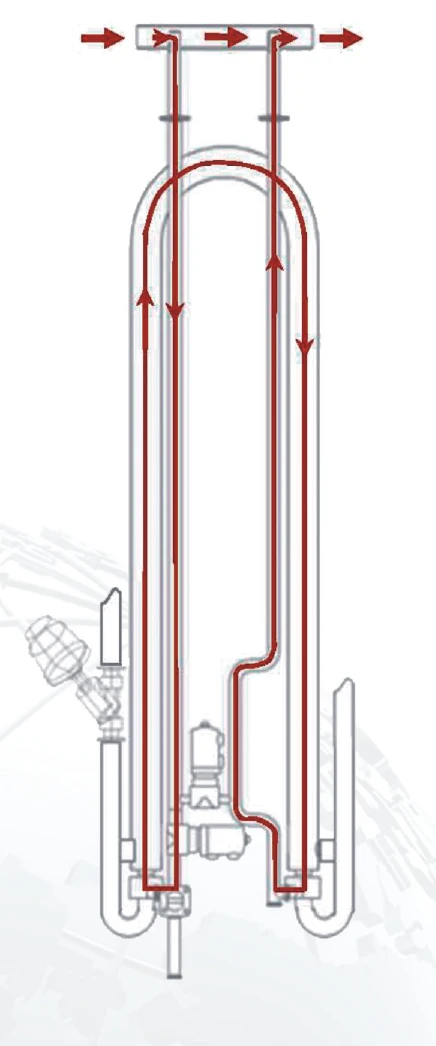

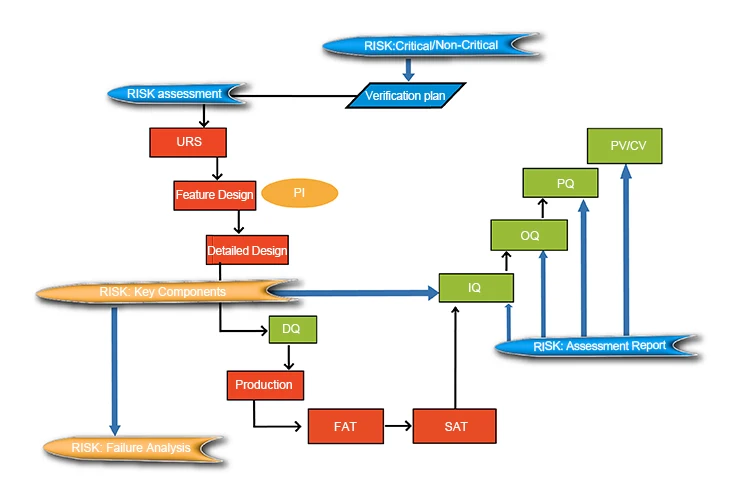

Process Flow Diagram
Features and Benefits
• No internal welds, to prevent inter leakage • All heat exchanger contact surfaces are electro polished to have an Ra<0,5 µ m • The high efficient heat transfer gives a fast response to temperature changes(10s) • Keep operator safe with outlet temperature indicator • Small module design, save space and very easy to install in-line in the WFI system • Forged connection to make sure drainable on the product side • Easy to steam in place or over high temperature water sterilized • Full document package • Free maintenance for main parts
Company Profile
With more than 25 years of industry experience, Shanghai Ritai focuses on providing comprehensive modular engineering services in the fields of biopharmaceuticals, bioengineering and life sciences. This includes all aspects from design to manufacturing to installation and commissioning, ensuring that our services meet the cGMP standards set by SFDA, FDA, WHO and the European Union, and providing complete verification support. In addition, we provide customers with design, manufacturing, installation, commissioning, training and after-sales services that comply with GB, ASME, PED and other standards and specifications. The products are produced in strict accordance with GMP and FDA requirements, and the quality indicators have reached the international advanced level. Performance, appearance, Both longevity and service enjoy a good reputation in the market.
Production workshop

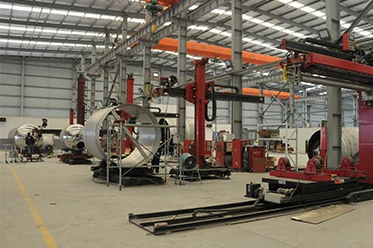

Automatic polishing and welding
Manual welding

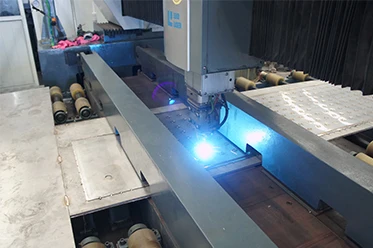

Continuous laser welding
Product warehouse

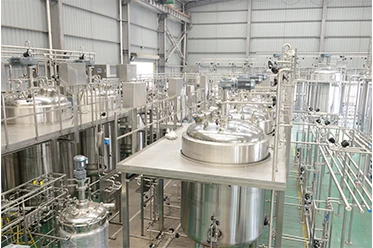

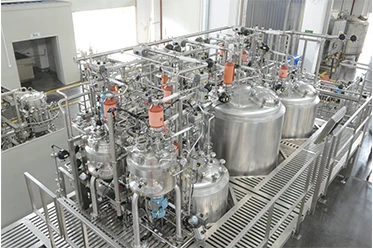

Assembly workshop

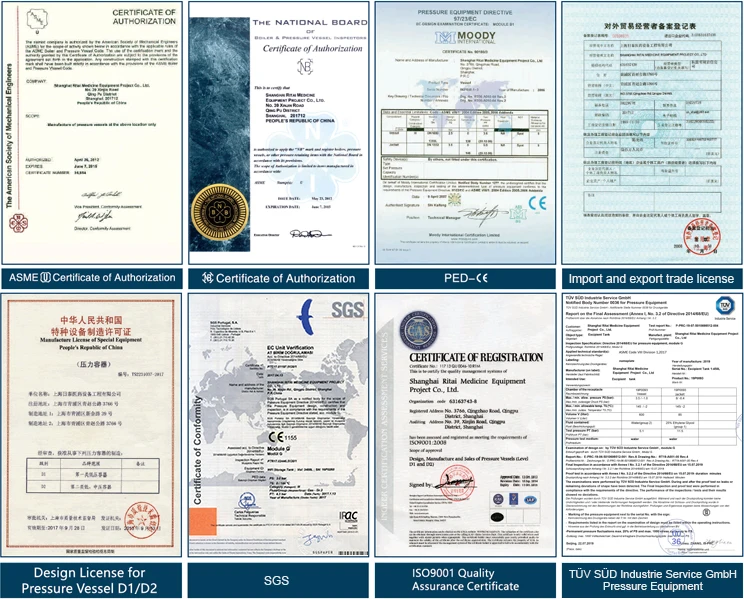

Certifications
