Selling tunnel freezer — voltage 220 380v, 85 KW(113.99hp). The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Selling Tunnel Freezer
- Power(W): 85 KW(113.99hp)
- Voltage: 220 380v
- Refrigeration Capacity: 86.5 KW (+40 degree C/-40 degree C
- Refrigerant: R22
- Warranty: 1 Year
- After Warranty Service: Video technical support
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Temperature Control | -20℃ to 0℃ |
| Voltage | 220 380v |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Key Selling Points | Competitive Price |
| Power(W) | 85 KW(113.99hp) |
| Place Of Origin | China |
| Weight (Kg) | 1000 |
| Brand Name | sure |
| Dimension(L*W*H) | 6600mm*4000mm*2900mm(259.84in*157.48in*114.17in) |
| Product Name | IQF Tunnel Quick Freezer |

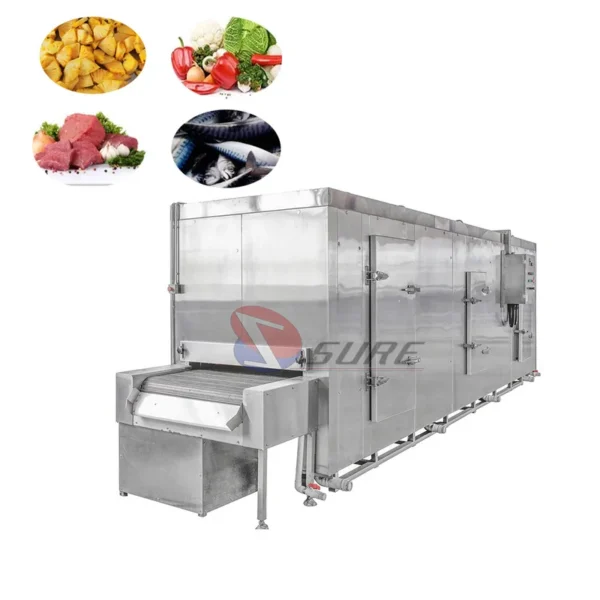

| Application | Food Quick Frozen Machine |

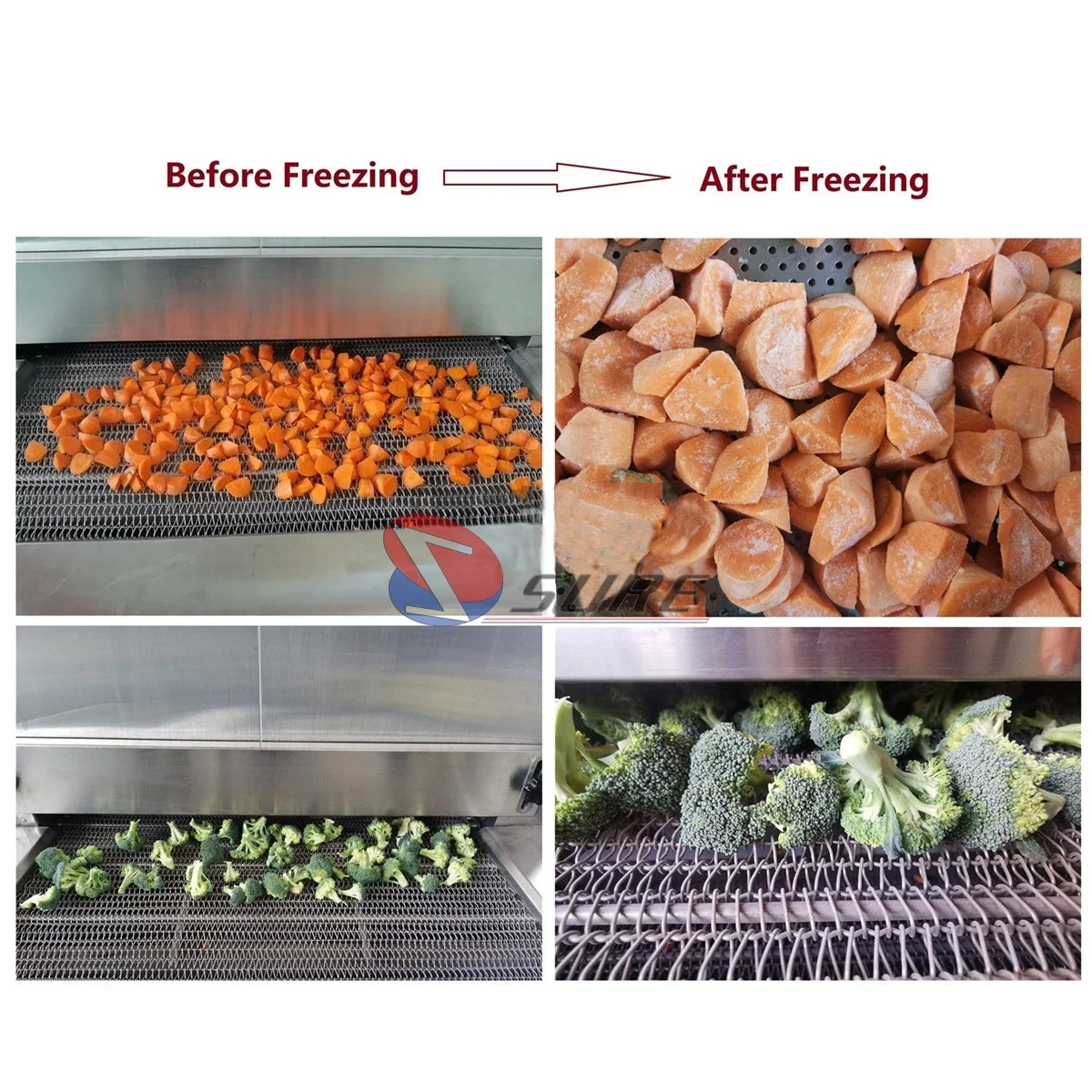

| Products | Fruits and vegetables |
| Inner Air Temperature | -40±2 degree Celsius |
| Belt Width | 1100mm |
| Refrigerant | R22 |
| Condensing Type | Evaporative cooled |
| Refrigeration Capacity | 86.5 KW (+40 degree C/-40 degree C |
| After Warranty Service | Video technical support |
| Certification | ce |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

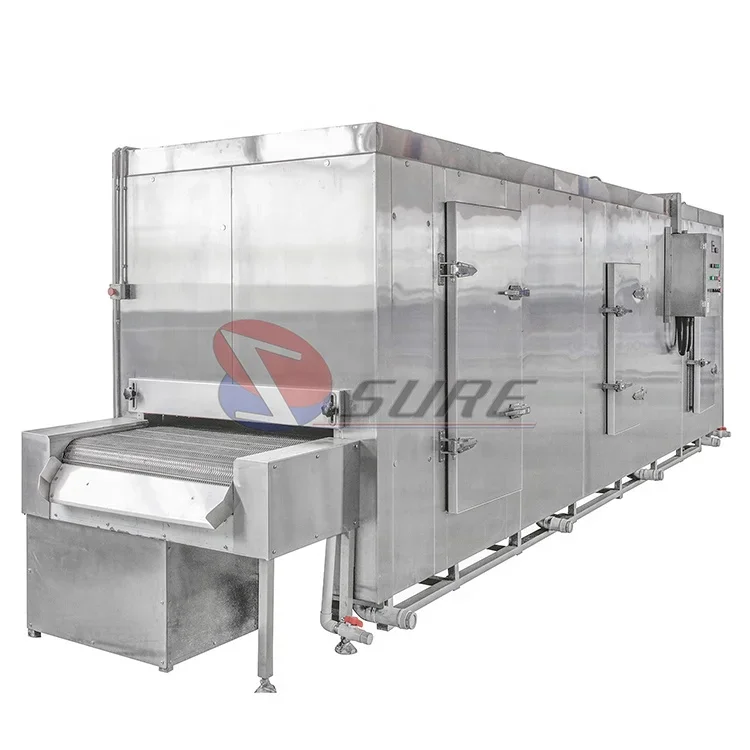

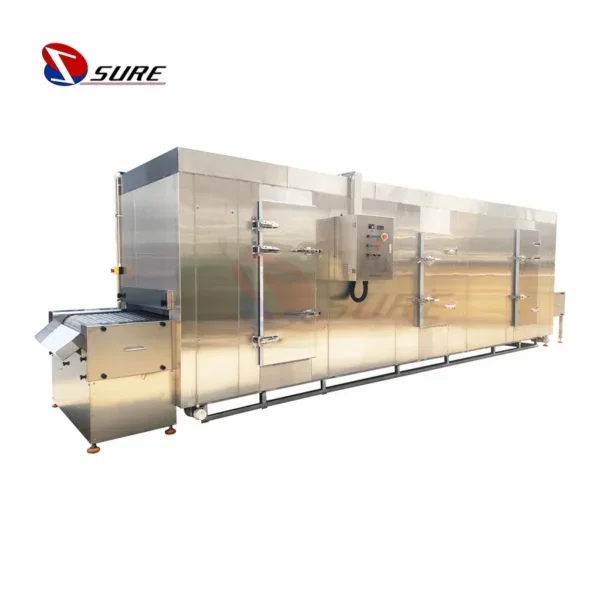

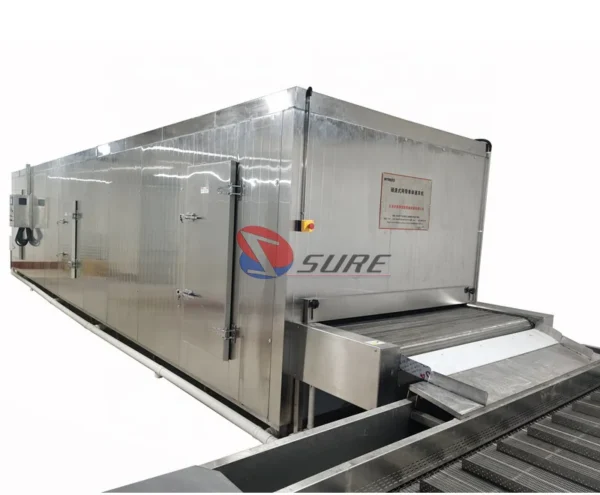

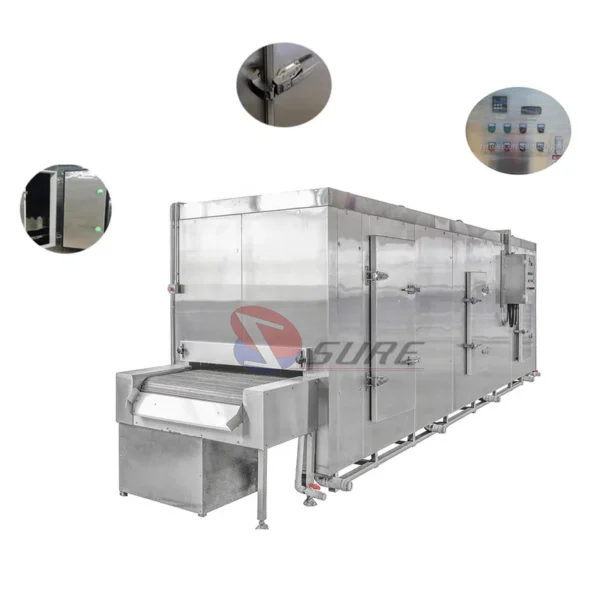

TUNNEL FREEZER
model | output | consunptioninstalled power | refrigeration power | dimension | belt width |
tf100 | 100kg/h | 2.25kw | 15kw | 7.4*1.5*2.2m | 1000mm |
tf150 | 150kg/h | 2.95kw | 21kw | 8.0*1.8*2.3m | 1300mm |
tf200 | 200kg/h | 4.5kw | 30kw | 10.2*1.8*2.3m | 1300mm |
tf300 | 300kg/h | 6.5kw | 43.5kw | 11.2*2.3*2.3m | 1800mm |
tf500 | 500kg/h | 10.3kw | 75kw | 13.5*3.0*2.5m | 2500mm |
tf1000 | 1000kg/h | 19.8kw | 142kw | 22.9*3.0*2.5m | 2500mm |
tf1500 | 1500kg/h | 28.6kw | 225kw | 26.4*3.5*2.5m | 3000mm |
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;

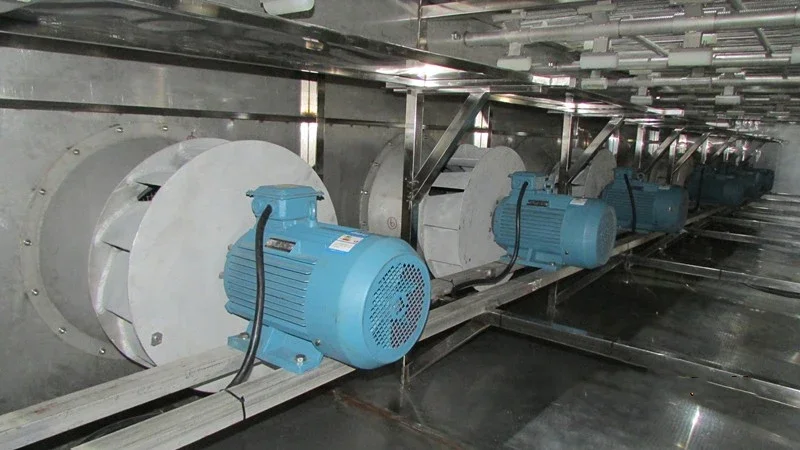

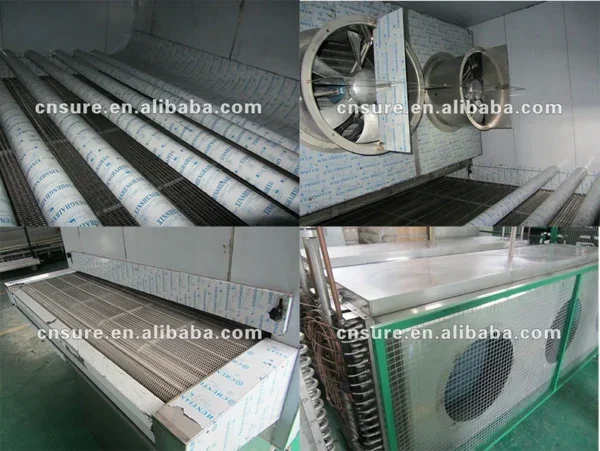

(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of
cabinet through stainless steel draining pipes;
2. Low operating cost through maximized cryogen efficiency.
3. Higher frozen product quality from a quicker freeze.
4. Reduced labor for cleaning and improved food safety through hygienic design.
5. Less product dehydration through reduced freezing time resulting in higher product yield
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $39900 / set
- 3+ set: US $32500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this selling tunnel freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this selling tunnel freezer carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the selling tunnel freezer be supplied for my local voltage?
The standard configuration is 220 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
