The series tangential fan listed here carries voltage 1 AC series, blade material Cast Iron, documented exactly as the manufacturer publishes it. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Series Tangential Fan
- Model Number: MX***
- Voltage: Other
- Voltage 1: AC series
- Voltage 2: DC series
- Blade Material: Cast Iron
- Warranty: 1 Year
Technical Specifications
| Voltage | Other |
|---|---|
| Electric Current Type | AC |
| Mounting | Free Standing |
| Blade Material | Cast Iron |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX*** |
| Type | CROSS FLOW FAN |
| Core Components | Motor |
| Voltage 1 | AC series |
| Voltage 2 | DC series |
| Selling Units | Single item |
| Single Package Size | 7X7X43 cm |
| Single Gross Weight | 2.0 kg |
Product Details
Model | Size (MM) | Rated Volt (V) | Speed | Max. Airflow | Noise Level | ||||
Part No. | Length | Width | Height | DC/AC | RPM | CFM | dB-A | ||
DC30F | 132/194/232/285/338 | 50 | 48 | 12v/24v | 2600-3200 | 22-46 | 35-36 | ||
DC30FC | 145/207/245/347 | 45 | 45 | 12v/24v | 2600-3200 | 21-49 | 29-33 | ||
DC40F | 134/196/234/286/355/416/460 | 60 | 60 | 12v/24v | 2200-3000 | 24-98 | 36-44 | ||
DC43P | 134/195/239/306/316/416 | 60 | 60 | 12v/24v | 2400-2800 | 24-95 | 36-45 | ||
DC50F | 143/260/305/360/420/472 | 70 | 70 | 12v/24v | 2000-2800 | 32-145 | 39-46 | ||
DC50P | 133/193/246/298/346/406/468 | 67 | 65 | 12v/24v | 2000-2800 | 36-140 | 35-46 | ||
DC60F | 183/244/305/366/428/489 | 98 | 90 | 12v/24v | 1400-2500 | 60-156 | 44-50 | ||
DC60FH | 252/312/372/432/492 | 98 | 93 | 12v/24v | 3200-3900 | 162-319 | 58-66 | ||
DC60U | 185/245/305/365/425 | 95 | 82 | 12v/24v | 1400-2500 | 71-149 | 42-50 | ||
DC65U | 185/245/305/365/425/485 | 109 | 90 | 12v/24v | 1100-2200 | 81-191 | 43-49 | ||
AC30F | 154/222/260/310/366 | 50 | 48 | 110v/220v | 2650-3150 | 11-56 | 30-38 | ||
AC40F | 154/222/260/315/366/422/494 | 60 | 60 | 110v/220v | 1800-3150 | 28-92 | 35-44 | ||
AC43P | 160/222/264/315/375/435 | 66 | 60 | 110v/220v | 2300-3000 | 32-117 | 36-46 | ||
AC48U | 247/319/369/417/487 | 80 | 72 | 110v/220v | 1300-1600 | 37-93 | 40-48 | ||
AC50F | 162/267/320/377/437/493 | 70 | 70 | 110v/220v | 1300-2650 | 35-114 | 31-51 | ||
AC50P | 160/225/266/375/437/497 | 67 | 65 | 110v/220v | 1700-2900 | 32-155 | 33-45 | ||
AC60F | 191/262/323/384/446/507 | 98 | 90 | 110v/220v | 1600-2500 | 60-187 | 40-47 | ||
AC60FW | 411/473/534 | 98 | 90 | 110v/220v | 2400-2800 | 184-240 | 53-56 | ||
AC60L | 292/362/442 | 105 | 110 | 110v/220v | 2200-2650 | 194-230 | 46-56 | ||
AC60U | 260/325/385/438/503 | 95 | 82 | 110v/220v | 1600-2300 | 106-184 | 45-48 | ||
AC65U | 185/255/312/382/442/502 | 109 | 90 | 110v/220v | 1100-1600 | 71-184 | 40-50 | ||

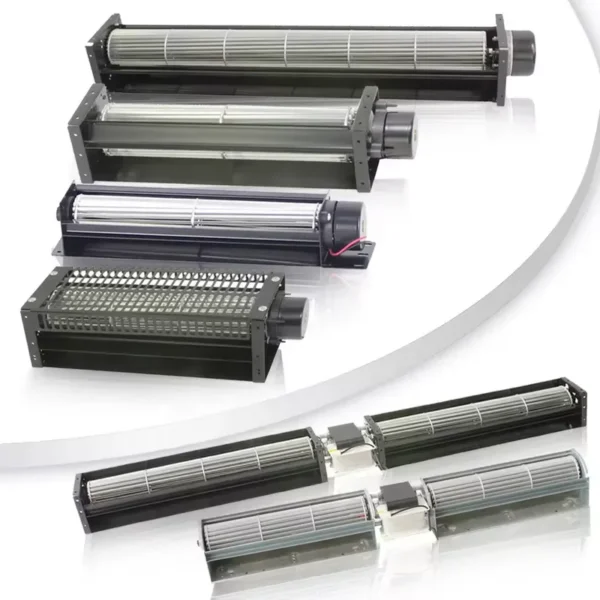

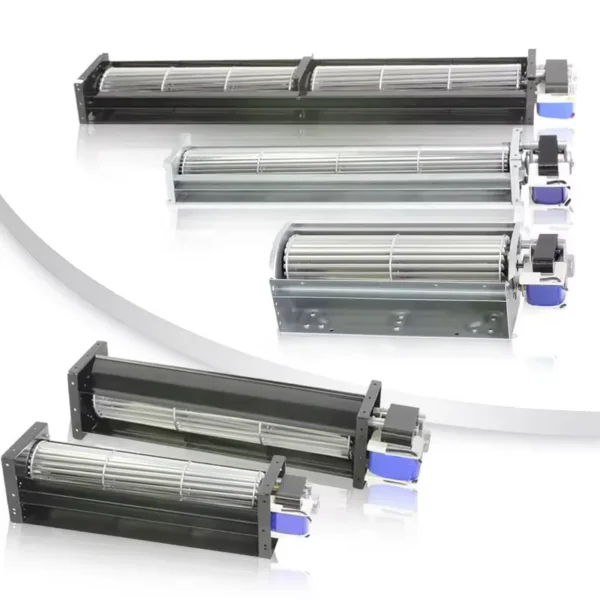

Product Name | Cross flow Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Metal |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 12v 24v 48v 110v 220v … |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/freezer/floor ventilation/elevator/air curtain/train/3D printer/server cooling/bus/heating/Power equipment, etc |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $20.02 / piece
- 100–999 piece: US $19.01 / piece
- 1000+ piece: US $18.01 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this series tangential fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the series tangential fan be supplied for my local voltage?
The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
