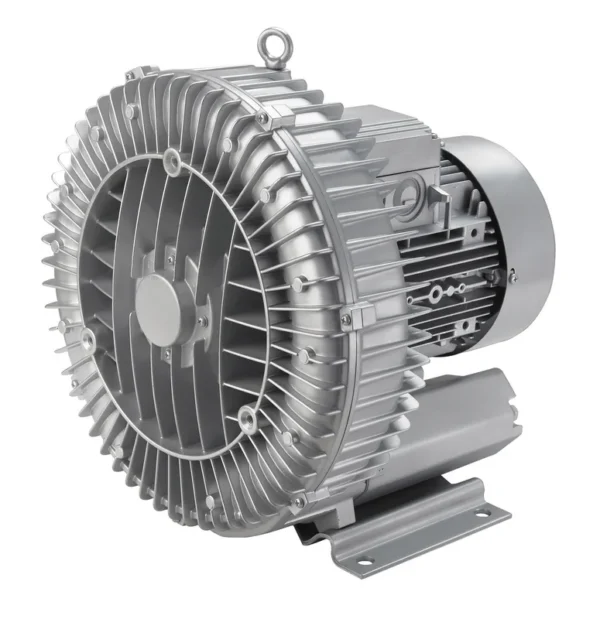

Side Channel Blower, 345-415, 318, Aluminum, Aluminium Alloy

This side channel blower is published with the manufacturer’s full specification — rated voltage 345-415/600-720Y, 380-480/660-720Y, maximum airflow 318/376m3/h. Made by Shanghai Zhangoco Electric Appliances Co., Ltd. (13 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Side Channel Blower

• Model Number: 2RB 710-h26
• Power Source: Electric
• Rated Voltage: 345-415/600-720Y, 380-480/660-720Y
• Maximum Airflow: 318/376m3/h
• Material: Aluminum
• Blade Material: Aluminium Alloy

Technical Specifications

Product Details

01

Not Cover

Exquisite mesh cover surface phos-phating, electrostatic spray painting.

Uniform color and not easy to remove paint.

02

Aluminum Shell

The shell is made of aluminum and professional turner.

Precise and firm,not fragile, and resistant to bumping.

Fire resistant and resistant to decay.

03

Junction Box

Tight connection, compact appear-

ance and high quality.

High quality and long service life.

04

Inlet And Outlet

The inlet and outlet are equipped with filter screen for effective

filtration.

Blocking impurities, keep the fan interior clean.

No	2RB 710-h26	50HZ	60HZ	1.The housings, cases, covers and blades are made of die cast aluminium, blade is Statically and dynamically balanced after machined. 2. NSK bearing, 3.The motor is copper wire winding 4.Stator is vacuum impregnated. All of these important parts and process including painting are made by ourselves in our factory. We take precise production as the most important factor of quality, and imported many CNC milling machines. The motor is IP 54 standard, and related test have been done. Running, flow and pressure data of each blower had been tested before leave our factory.
1	Power	3.0KW	3.45KW
2	Rated Voltage	200-240△ 345-415Y	220-275△ 380-480Y
3	Rated Current	12.5△/7.2Y	12.5△/7.3Y
4	Max airflow	376m3/h	318m3/h
5	Max Vacuum	-270mbar	-250mabr
6	Max pressure	290mbar	230mbar
7	Sound pressure level	69dB(A)	72dB(A)
8	Weight	34KGS	34KGS

Founded in 2004, Shanghai Zhangoco Electric Appliances Co.,Ltd is a company specializing in making air fluid equipment(compression and vacuum pumps).After 20 years development, we have become a professional manufacturer who is mainly committed to producing side channel blowers plus other kinds of air fluid equipments (vacuum pumps and compressors), forming the complete structure merging with R&D, production, sales and services. We have become the No.1 manufacturer in China and the leading manufacturer in the world in the industry of side channel blowers.

Q1: How to select a correct model of ring blower?

A1: Please check and advise the max airflow and max pressure of ring blower you need.

Q2: What is the material of your machine , is oil free?

A2: Our blower is aluminum alloy, motor is 100% copper coil . Yes,we are oil free.

Q3: How to operate your machine?

A3: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important.

Q4: You are trading company or manufacture?

A4: We have our own factory and international department. We produce and sell all by ourselves.

Q5: How to guarantee the quality and after sales service of your goods?

A5: 1).Strict detection during production.

2).Strict inspection on each product before shipment and intact product packaging are insured.

3).Follow up and adopt customers feedbacks in a timely manner after sales.

Q6: Is it OK to print my logo on pumps product?

A6:Yes. Please inform us formally before our production and confirm the design
firstly based on our sample.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–11 piece: US $325 / piece
  • 12+ piece: US $290 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this side channel blower?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a One year warranty. Spare parts and technical support remain available after the warranty period.

Can the side channel blower be supplied for my local voltage?

The standard configuration is 345-415/600-720Y, 380-480/660-720Y. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shanghai Zhangoco Electric Appliances Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Zhangoco Electric Appliances Co., Ltd. range on HVACR Nexus.
