Key specification for this sight glass: model number Reflex Gauge Glass. Everything below is reproduced from the factory data sheet. Made by Hengshui Lingjie Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Sight Glass
- Model Number: Reflex Gauge Glass
- Material: Other
- Place Of Origin: Hebei, China
- Application: Boiler
- Type: other
- Single Package Size: 40X40X40 cm
Technical Specifications
| Type | other |
|---|---|
| Material | Other |
| Application | Boiler |
| Finish | Zinc Plated, Black OxideBlack Oxide, Galvanized |
| Shape | Square |
| Packing | Other |
| Place Of Origin | Hebei, China |
| Model Number | Reflex Gauge Glass |
| Brand Name | REALMAX |
| Grade | Industrial |

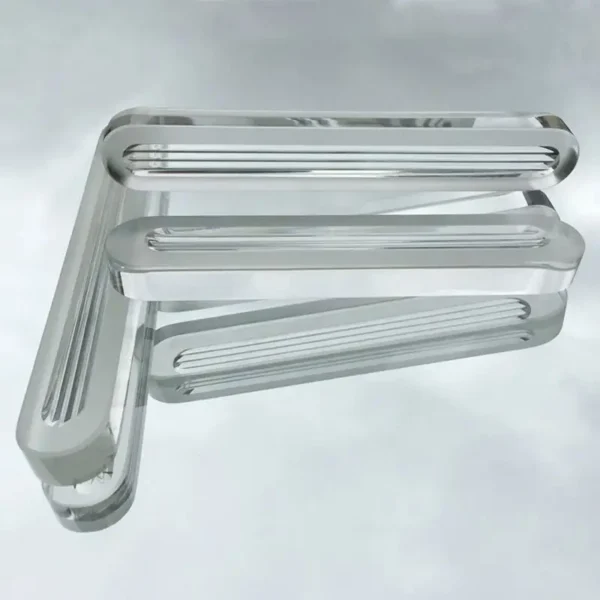

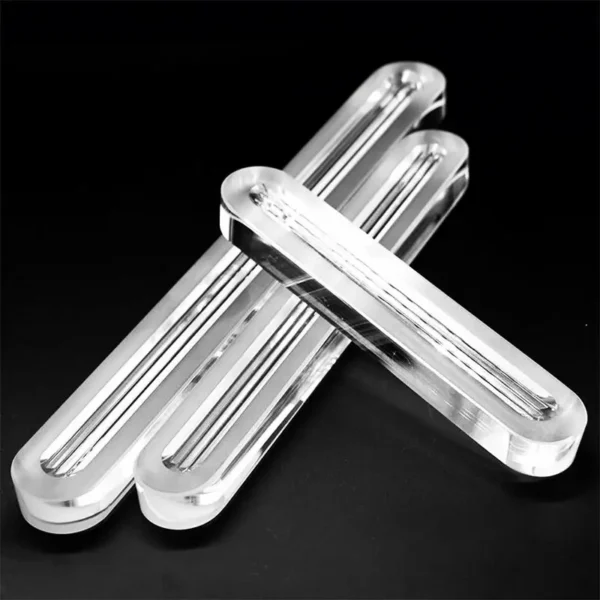

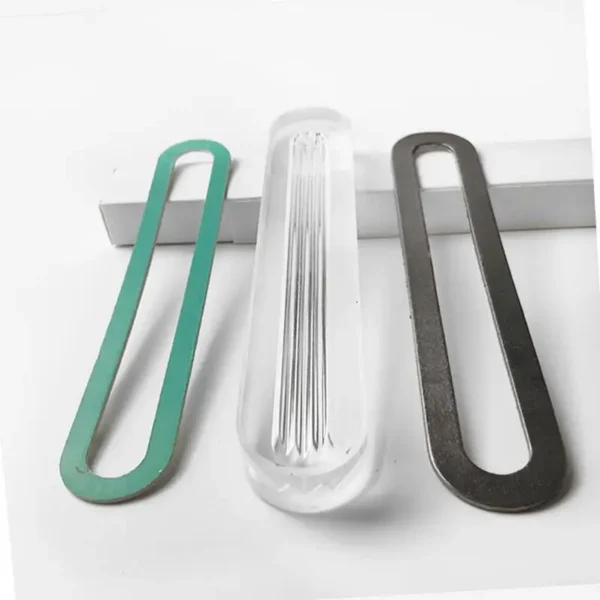

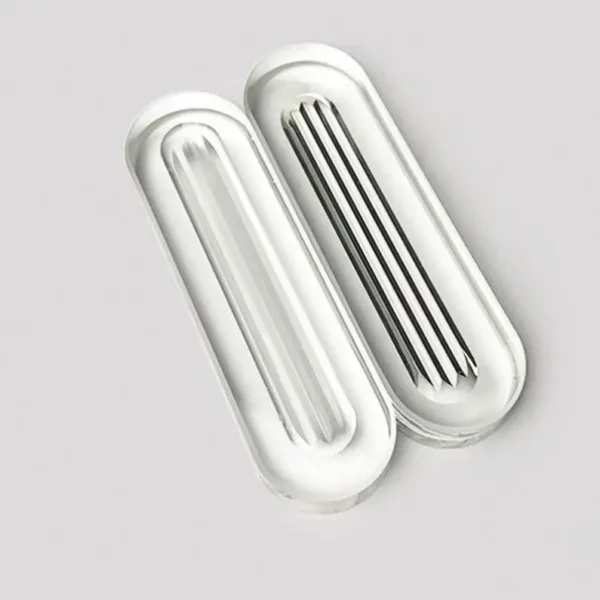

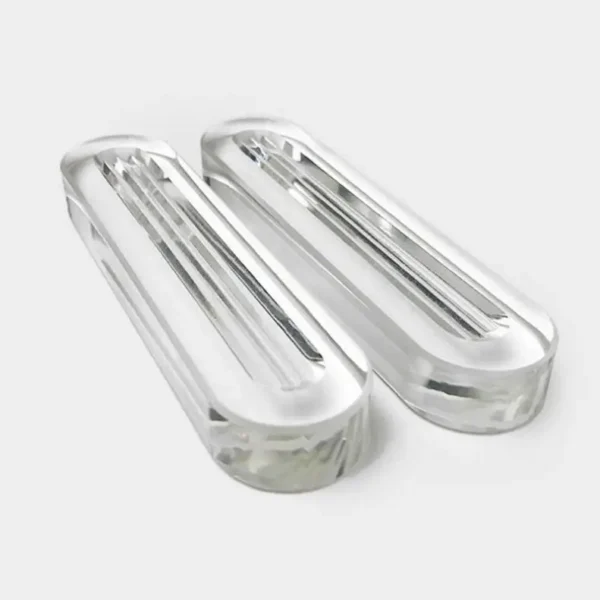

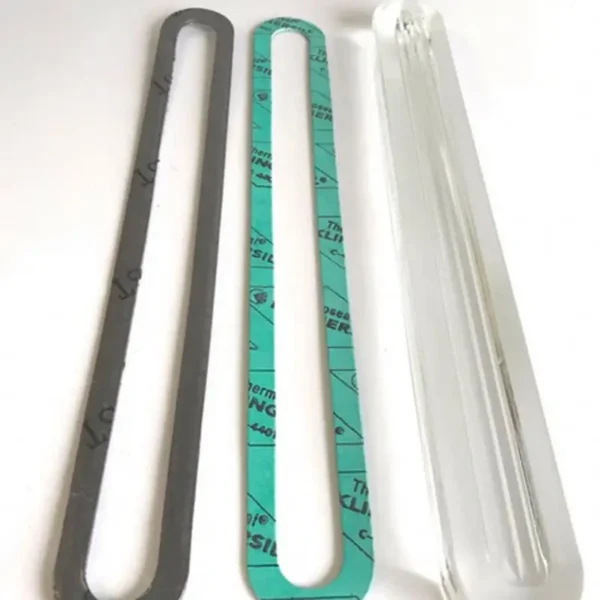

| Product Name | Borosilicate reflex gauge glass |
| Usage | Level gauge;boiler |
| Work Temperature | 260℃ |
| MOQ | 10 PCS |
| Selling Units | Single item |
| Single Package Size | 40X40X40 cm |
| Single Gross Weight | 10.000 kg |
Product Details
Product Name | Gauge Glass, Reflex Gauge Glass, Sight glass, level Gauge glass |
Material | Aluminosilicate glass, Borosilicate glass |
Color | Transparent, Red, Green |
Density | 2.62-2.67g/cm3 |
Transmissivity | 91.8%(8mm),91.9%(1mm) |
Hardness | >7 |
Tensile strength | 4.8x107pa(N/M2) |
Compressive strength | (0-300) 3.3±0.1×10-6K-1 |
Poisson's ratio | 0.18 |
Coefficient of thermal expansion | (0-300) 4±0.1×10-6K-1 |
Thermal conductivity | 1.2W·m-1·k-1 |
Softening point | 820±10°C |
Annealing point | 560°C |
Strain point | 516±10°C |
Electrical resistivity | >1018 Ωm |
Dielectric constant | 4.6 1 MHz, 25 |
Size | Width: 25-35 mm. Length: 70-400 mm. Thickness: 15-25 mm. |
Advantage | 1. More than 15 years experiences on glass manufacturing and exporting 2.Top quality glass with CE certificate, exporting to more 60 countries in the world 3.Unique designed strong wooden cases , solving the problem of breakage 4.Professional sales team, Personalized and focused service available 24 hours. |
Dimensions of Reflex Gauge Glass (mm) | ||||||||||||||||||
Size | TYPE A | TYPE B | TYPE H | |||||||||||||||
L | W | H | L | W | H | L | W | H | ||||||||||
HSSRX-0 | 95 | 30 | 17 | 95 | 34 | 17 | – | – | – | |||||||||
HSSRX-1 | 115 | 30 | 17 | 115 | 34 | 17 | 115 | 34 | 22 | |||||||||
HSSRX-2 | 140 | 30 | 17 | 140 | 34 | 17 | 140 | 34 | 22 | |||||||||
HSSRX-3 | 165 | 30 | 17 | 165 | 34 | 17 | 165 | 34 | 22 | |||||||||
HSSRX-4 | 190 | 30 | 17 | 190 | 34 | 17 | 190 | 34 | 22 | |||||||||
HSSRX-5 | 220 | 30 | 17 | 220 | 34 | 17 | 220 | 34 | 22 | |||||||||
HSSRX-6 | 250 | 30 | 17 | 250 | 34 | 17 | 250 | 34 | 22 | |||||||||
HSSRX-7 | 280 | 30 | 17 | 280 | 34 | 17 | 280 | 34 | 22 | |||||||||
HSSRX-8 | 320 | 30 | 17 | 320 | 34 | 17 | 320 | 34 | 22 | |||||||||
HSSRX-9 | 340 | 30 | 17 | 340 | 34 | 17 | 340 | 34 | 22 | |||||||||
HSSRX-10 | 370 | 30- | 17 | 370 | 34 | 17 | 370 | 34 | 22 | |||||||||
HSSRX-11 | 400 | 30 | 17 | 400 | 37 | 17 | 400 | 34 | 22 | |||||||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $8.76 / piece
- 100–499 piece: US $7.25 / piece
- 500–999 piece: US $6.33 / piece
- 1000+ piece: US $5.16 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sight glass?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hengshui Lingjie Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Hengshui Lingjie Technology Co., Ltd. range on HVACR Nexus.
