Key specification for this small boiler: 220V/380V, 1100m3/h. Everything below is reproduced from the factory data sheet. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Small Boiler
- Model Number: YN5-47
- Power Source Type: Corded Electric
- Power: 370W
- Voltage: 220V/380V
- Air Flow: 1100m3/h
- Blade Material: Cast Iron
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V/380V |
| Speed | 2800RPM |
| Blade Material | Cast Iron |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | QIOU |
| Model Number | YN5-47 |
| Material | Steel |
| Power | 370W |
| Air Flow | 1100m3/h |
| Pressure | 650Pa |
| Selling Units | Single item |
Product Details

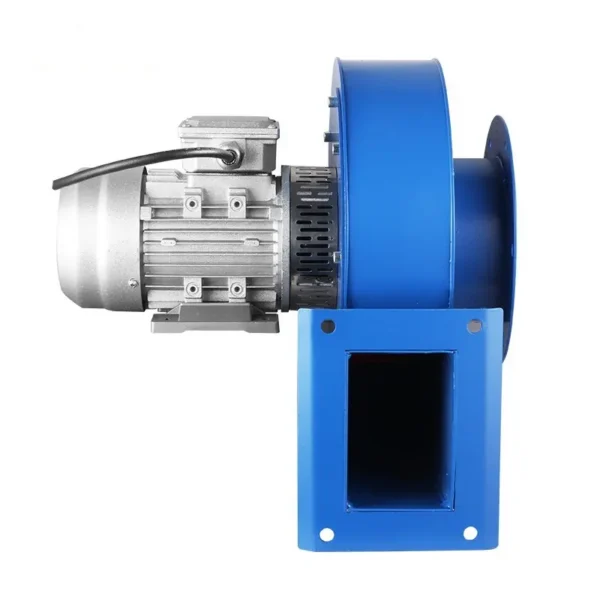

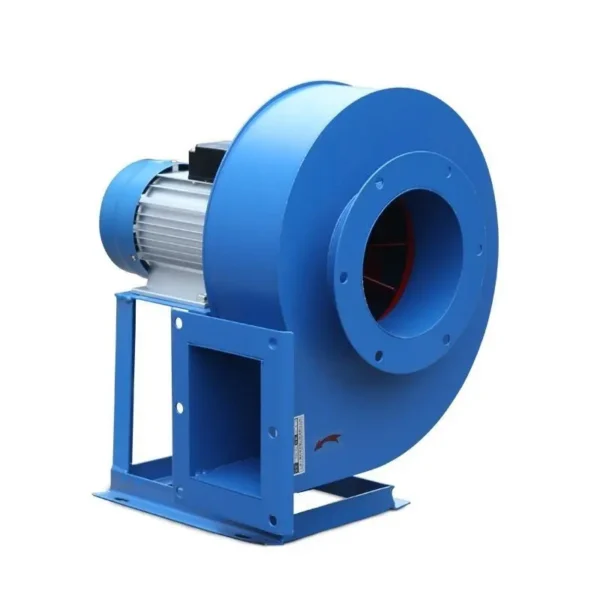

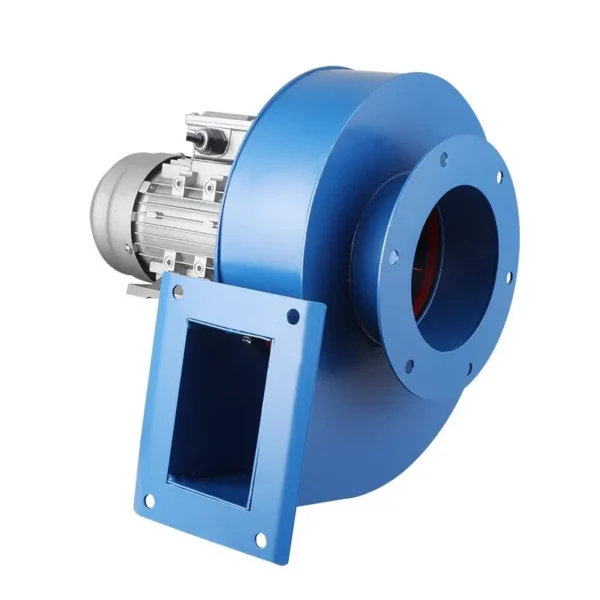

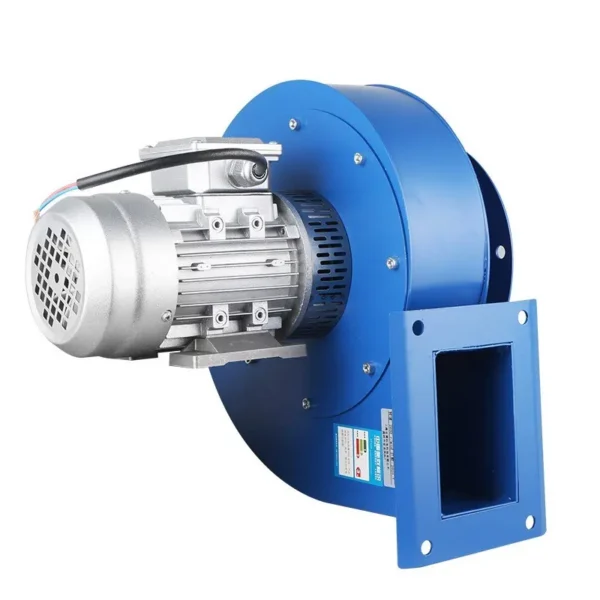

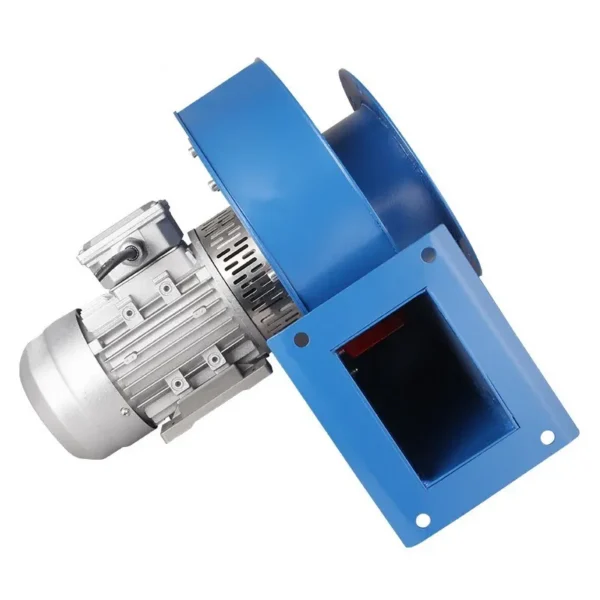

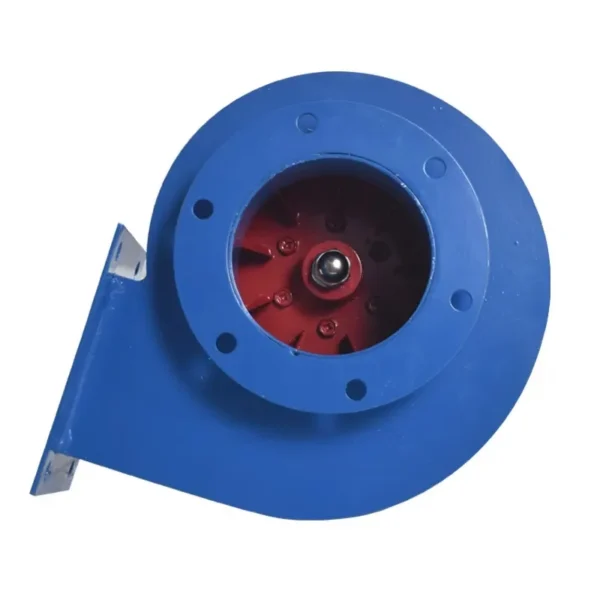

Small Boiler Centrifugal Induce Draft Fan 220V Y5-47 High Temperature Resistance Industrial Heater Chimney Exhaust Draft Fan
Y5-47 air-cooled high temperature resistant small boiler induced draft fan is specially developed according to the requirements of the boiler industry. This series of fans use aluminum alloy die-casting motor shell, the fan shell is phosphated and then sprayed or electrophoresed. The rotor and fan blades are double-sided and double-sided moving flat-street correction, high-temperature resistant high-quality bearings, detachable feet, flexible and changeable installation . It has the advantages of low noise, high efficiency, light weight, beautiful appearance, fast heat dissipation, high temperature resistance, low vibration and long life.
Features
1.High temperature resistance,high efficiency,high air volume,low vibration,low noise,laser cutting of wind shells,beautiful shape.
2.Y2 aluminum alloy die-casting material is used in the motor,which greatly reduces weight,achieves lightweight,convenient installation and novel shape.
3.The main components of the motor are high temperature resistant materials (high temperature bearings, high temperature grease, high temperature insulation materials, etc.).
4.The motor is cooled by connecting the heat insulating connecting seat (with internal cooling vanes) with the wind housing to ensure the normal operation of the motor at high temperature.
5.Widely used in heating furnace, hot air stove, numerical control boiler, steam boiler, drying. chemical industry, food, grain machinery and other related industries.
6.Normal operating temperature of fan: 180 °C-200°C.
Technical Parameters
| Model | Power(W) | Voltage(V) | Frequency(Hz) | Speed(r/min) | Air Flow(m3/h) | Pressure(Pa) |
| YN5-47 | 60 | 220/380 | 50/60 | 2800 | 240 | 310 |
| YN5-47 | 90 | 220/380 | 50/60 | 2800 | 350 | 360 |
| YN5-47 | 120 | 220/380 | 50/60 | 2800 | 480 | 450 |
| YN5-47 | 180 | 220/380 | 50/60 | 2800 | 650 | 510 |
| YN5-47 | 250 | 220/380 | 50/60 | 2800 | 860 | 580 |
| YN5-47 | 370 | 220/380 | 50/60 | 2800 | 1100 | 650 |
| YN5-47 | 550 | 220/380 | 50/60 | 2800 | 1450 | 680 |
| YN5-47 | 750 | 220/380 | 50/60 | 2800 | 1810 | 790 |
| YN5-47 | 1100 | 220/380 | 50/60 | 2800 | 2250 | 940 |
| YN5-47 | 1500 | 220/380 | 50/60 | 2800 | 2800 | 1140 |
| YN5-47 | 2200 | 220/380 | 50/60 | 2800 | 3100 | 1280 |
Q: How about the quality guarantee period?
R: One year.
Q: What tests do your products need to go through?
A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test.
Q: Can you provide samples?
A: After price confirmed, you can require for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable.
Q: Do you accept OEM or ODM orders?
A: Yes, we accept OEM and ODM from customers.
Q: How long is your delivery time?
A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time.
Q: How are you going to ship my order?
A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport.
If you have own freight forwarder, we can deliver the goods to them as well.
Q: When can I get the quotation?
R:We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly.
Q : What are your terms of payment?
A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this small boiler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the small boiler be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Qiou Mechanical And Electrical Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Taizhou Qiou Mechanical And Electrical Co., Ltd. range on HVACR Nexus.
