Solar attic air conditioner — 12V/24V/48, air flow 98 ~ 115 CFM. The complete factory specification follows. Made by LIANG HERNG ELEC MACH CO., LTD. (21 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Solar Attic Air Conditioner
- Model Number: AD120-38T
- Voltage: 12V/24V/48
- Air Flow: 98 ~ 115 CFM
- Blade Material: Plastic
- Warranty: 1 Year
- Certification: CE
Technical Specifications
| Voltage | 12V/24V/48 |
|---|---|
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| Model Number | AD120-38T |
| Air Flow | 98 ~ 115 CFM |
| Housing | Thermoplastic PBT, 94V-0 |
| Impeller | Thermoplastic PBT, 94V-0 |
| Bearing | Ball or Sleeve |
| Termination | 340mm Lead Wire 1007 AWG#24 |
| Operating Temperature | -20°C to +80°C |
| Weight | 320g |
| Function | Function type is optional |
| Certification | CE |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail |
| Core Components | Motor, Bearing |
| Selling Units | Single item |
| Single Package Size | 12X12X3.8 cm |
| Single Gross Weight | 0.3 kg |
Product Details

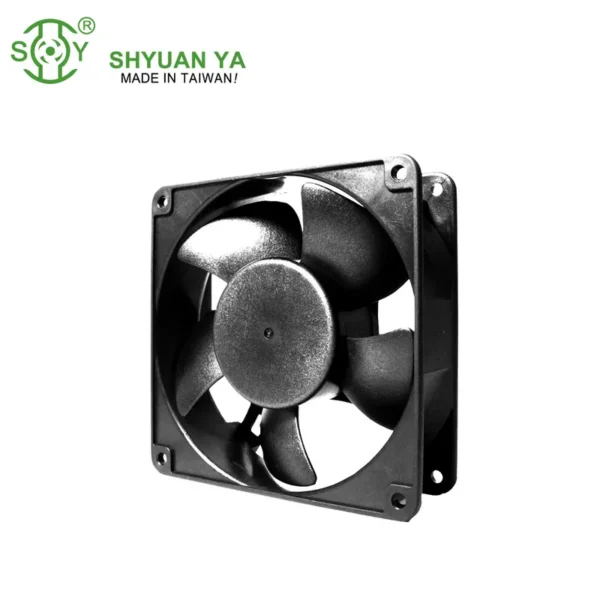

Brushless Air Blower DC 120x38mm Computer Fan
A Leader in Innovation
Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into Two Way 12v DC Home Solar Exhaust Fan. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each Attic Air Conditioner 300 Cfm Exhaust Fan carries Shyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturer. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.
Brushless Air Blower DC 120x38mm Computer Fan
Quick Detail 1
Brushless Air Blower DC 120x38mm Computer Fan| Air Flow:98 ~ 115 CFM |
| Housing:Thermoplastic PBT, UL94V-0 |
| Impeller:Thermoplastic PBT, UL94V-0 |
| Bearing:Ball or Sleeve |
| Termination:Lead Wire UL 1007 AWG#24 Red Wire: Positive Voltage (V+) Black Wire: Negative Voltage (V-) Yellow Wire: Function |
| Operating Temperature:-10°C to +70°C for Sleeve Type -20°C to +80°C for Ball Type |
| Weight:320g |
| Function:Function type is optional P: Lock Protection A: Rotation Detector |
Brushless Air Blower DC 120x38mm Computer Fan
 |
|
Professional & Customized Service
SHYUAN YA Group was founded in 1982 with more than 30 years’ experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers. Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan. |
| Short Production Time & Prompt Delivery

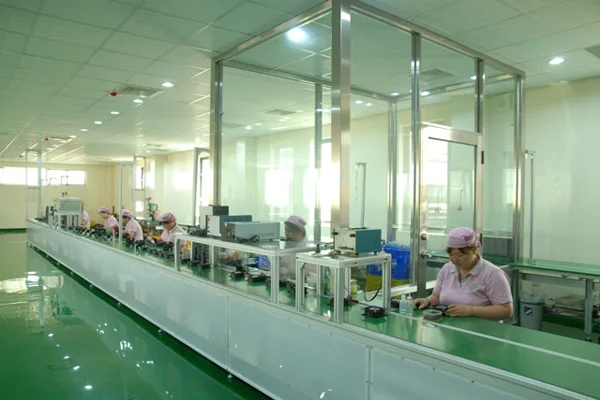

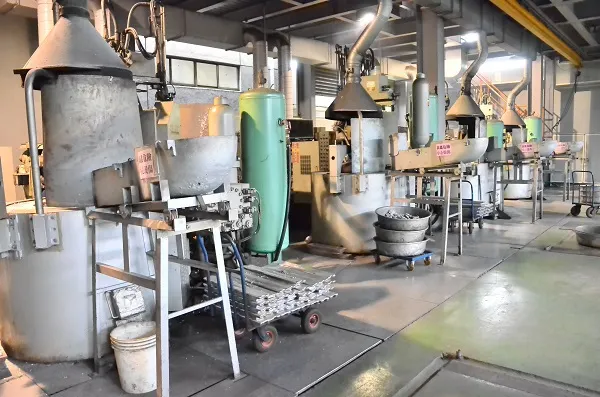

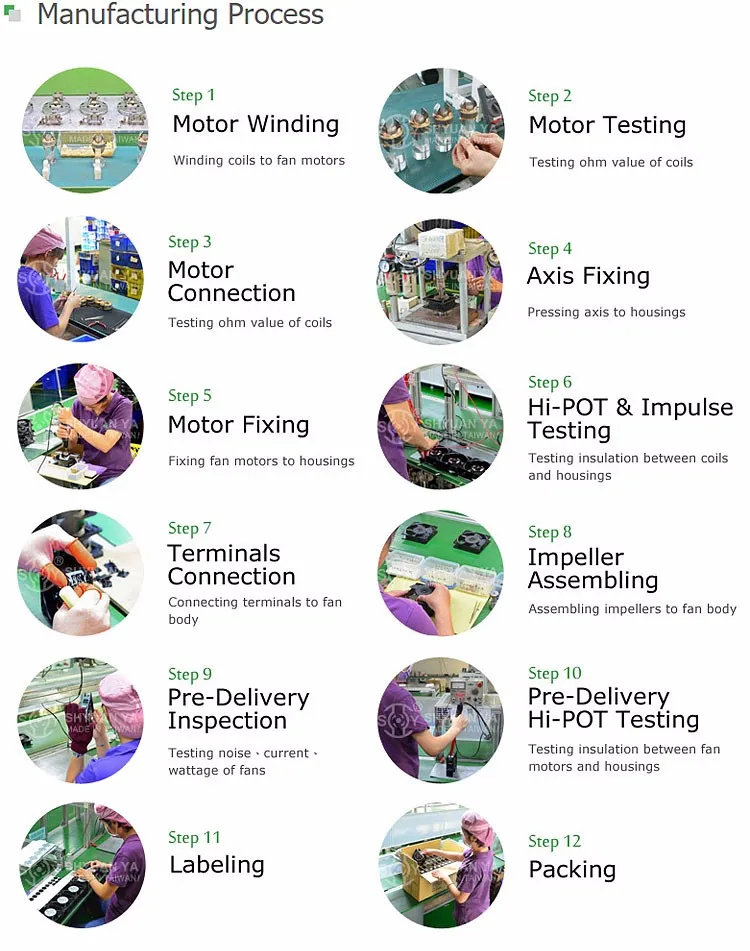

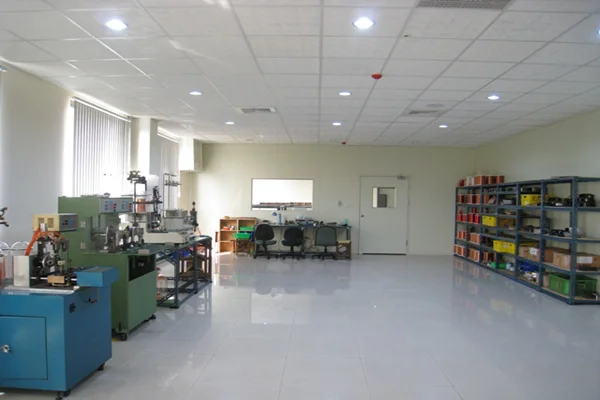

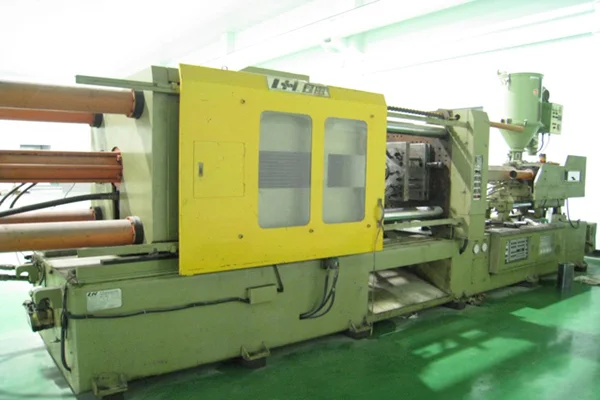

SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment. Our production lines include plastic injection, motor winding, and die casting processing lines. Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks. |
| Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM. |
Brushless Air Blower DC 120x38mm Computer Fan
Customer Services:
1. Warranty: 1 year warranty for all products.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Just in time delivery: Normally, Lead time is 30 days.
5. Customized Service: As we have our own molding department,
customized service can be provided.
6. Prompt customers Services: E-mail will be replied in 24 hours.
Questions & Answers:
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
Two Way 12v DC Home Solar Attic Air Conditioner 300 Cfm Exhaust Fan
Ordering and Pricing
- Minimum order quantity: 40 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this solar attic air conditioner?
The standard minimum order quantity is 40 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this solar attic air conditioner carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the solar attic air conditioner be supplied for my local voltage?
The standard configuration is 12V/24V/48. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by LIANG HERNG ELEC MACH CO., LTD.. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LIANG HERNG ELEC MACH CO., LTD. range on HVACR Nexus.
