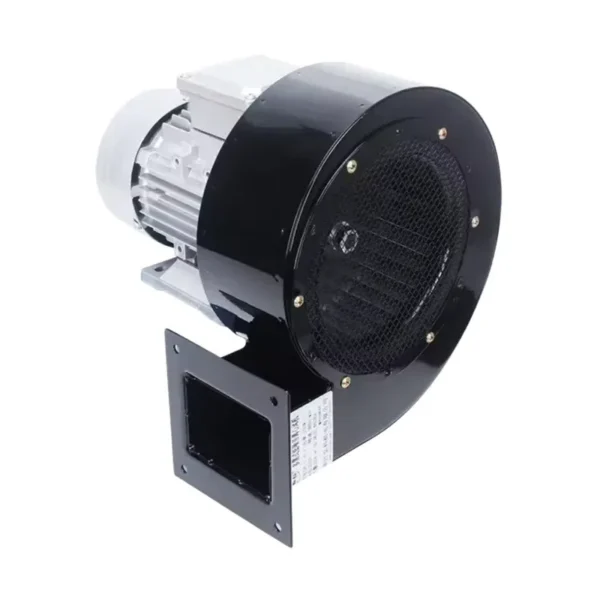

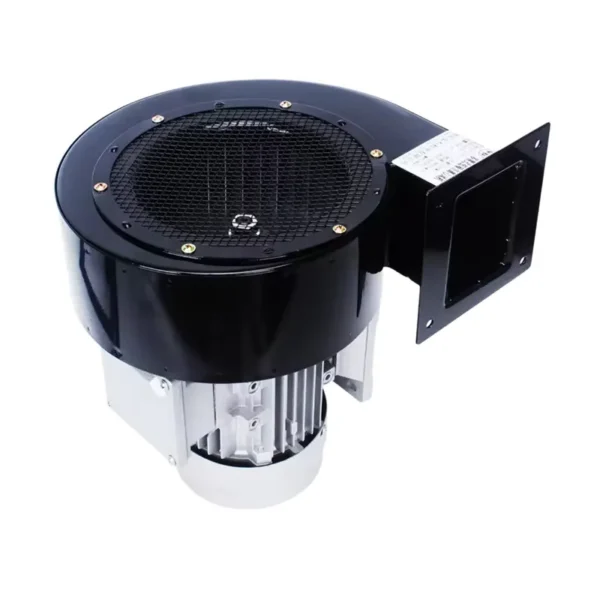

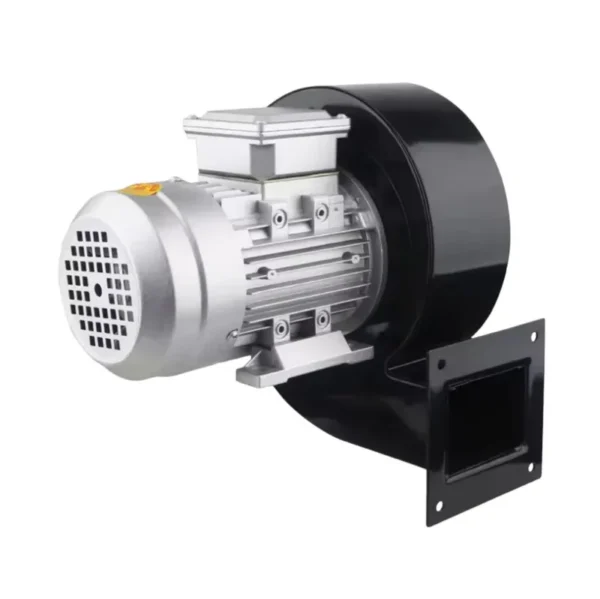

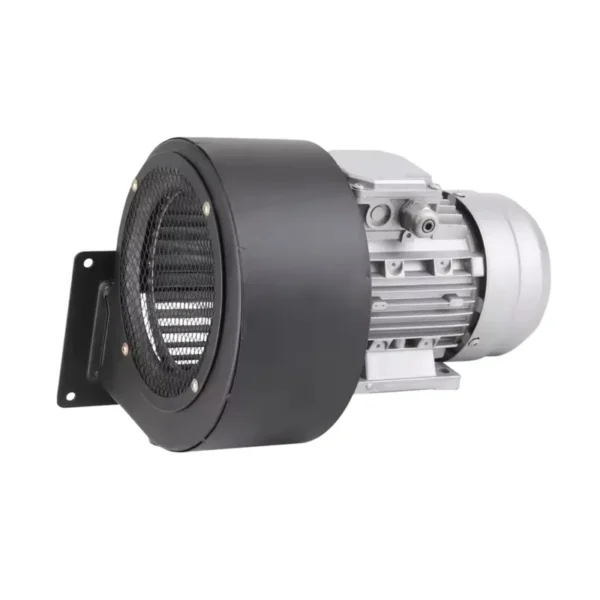

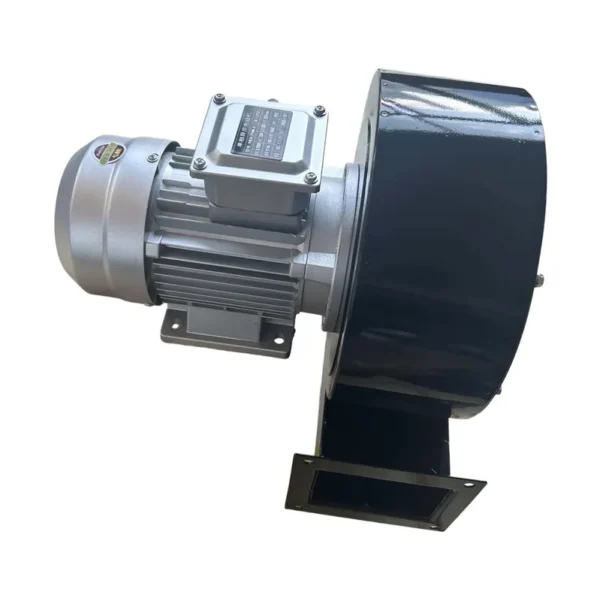

Key specification for this centrifugal blower: power source type Corded Electric, material Carbon Steel, Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Beijing Taihe Yuxiang Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Power Source Type: Corded Electric
- Voltage: 415V, 460V, 220v, 110V, 380v, Custom Voltage
- Material: Carbon Steel, Stainless Steel
- Blade Material: Carbon Steel
- Housing Material: Carbon Steel, Mild Steel, Galvanized Sheet
- Impeller Material: Aluminum Alloy,Cast Iron
Technical Specifications
| Duct Diameter | 24in, 36in, Flange |
|---|---|
| Mounting | Free Standing |
| Voltage | 415V, 460V, 220v, 110V, 380v, Custom Voltage |
| Motor Type | AC Motor, VFD Motor, EC Motor, Permanent Magnet Motor |
| Speed | 500RPM, 720RPM, 960RPM, 1450RPM, 1800RPM, 2900RPM, 3600RPM |
| Material | Carbon Steel, Stainless Steel |
| Blade Material | Carbon Steel |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM, Custom Specification, Custom Drawing, Custom Size |
| Noise Level | 40 dB and above |
| Place Of Origin | Beijing, China |
| Brand Name | Taihe Yuxiang |
| Model Number | Model Number:DF-1, DF-2, DF-3, DF-4, DF-5, DF-6, DF-7, DF-8, DF-9, DF-10, DF-11, Power:120W,180W,250W,370W,550W,750W,1100W,1500W,2200W,3KW,4KW,11KW,15KW, Material:Carbon Steel, 304 Stainless Steel, 316L Stainless Steel, Drive Type:Direct Drive, Belt Drive, Coupling Drive, Application:Industrial Ventilation, Dust Collection, Material Conveying, Kiln Furnace, Paint Booth, Air Volume:500-20000 m³/h, Static Pressure:330Pa,412Pa,450Pa,860Pa,850Pa,1020Pa,1210Pa,1050Pa,1260Pa,1240Pa,1380Pa,1220Pa,1360Pa,1300Pa,1470Pa,1050-1470Pa,, Rotation speed:Low Speed,High Speed,Ultra Low Speed,Variable Speed,Frequency Conversion,Speed Adjustable,Variable Frequency,VFD Controlled,Multi speed,Single Speed, Noise:72dB,75dB,76dB,80dB,82dB,83dB,84dB, Motor Pole:2 Pole, 4 Pole, 6 Pole, 8 Pole, Protection Grade:IP44, IP54, IP55, IP65, IP66, Frequency & Phase:50Hz Single Phase, 50Hz Three Phase, 60Hz Single Phase, 60Hz Three Phase, Mounting Type:Floor Mounted, Base Mounted, Ceiling Mounted, Duct Mounted, Wall Mounted, Impeller Type:Multi-Wing Forward Curved, Backward Curved, Backward Inclined, Airfoil Blade, Core Feature:High Pressure, Low Noise, High Efficiency, Energy Saving, Wear Resistant, Heat Resistant, Industry Application:Metallurgy, Chemical, Ceramic, Food, Textile, Woodworking, Construction |
| Color | Customized Service, Custom Made |
| Suction Type: | Single Suction, Double Suction |
| Housing Material | Carbon Steel, Mild Steel, Galvanized Sheet |
| Impeller Material | Aluminum Alloy,Cast Iron |
| Outlet Direction: | 0 Degree, 90 Degree, 180 Degree, 270 Degree |
| Seal Type | Labyrinth Seal, Mechanical Seal, Packing Seal |
| Casing Structure | Volute Casing, Spiral Volute, Volute-Less |
| Inlet Type | Single Inlet, Double Inlet |
| Trade Term | EXW, FOB, CFR, CIF, DDP, DAP |
| Delivery Way | Sea Freight, Air Freight, Express, Overseas Warehouse Delivery |
| Certification: | CE, ISO, ATEX |
| Selling Units | Single item |
| Single Package Size | 36X28X25 cm |
| Single Gross Weight | 1.0 kg |
Ordering and Pricing
- Minimum order quantity: 15 piece
- Volume pricing:
- 15–149 piece: US $40.83 / piece
- 150–749 piece: US $38.27 / piece
- 750+ piece: US $36.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 15 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with CE, ISO, ATEX documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 415V, 460V, 220v, 110V, 380v, Custom Voltage. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Taihe Yuxiang Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Beijing Taihe Yuxiang Technology Co., Ltd. range on HVACR Nexus.
