The sp3510-64 bldc servo motor listed here carries rated voltage Dc 24V, type Servo Motor, documented exactly as the manufacturer publishes it. Made by Ren Gong Mechanical Technology (Suzhou) Co., Ltd. (2 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Sp3510-64 Bldc Servo Motor
- Model Number: SP3510-64
- Rated Power: 82W
- Rated Voltage: Dc 24V
- Speed Rpm: 67rpm
- Speed(RPM): 67rpm
- Rated Speed: 67rpm
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | Dc 24V |
| Rated Power | 82W |
| Speed Rpm | 67rpm |
| Speed(RPM) | 67rpm |
| IP Rating | IP55 |
| Efficiency | IE3 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | 40.5mm(1.59in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Explosion-proof |
| Usage | Robot motor, Smart Home, Cosmetic Instrument, Home Appliance, Fan, Electric Bicycle, Car, Boat |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 3.41 A |
| Model Number | SP3510-64 |
| Torque | 9N.m(6.64lb.ft) |
| Place Of Origin | Jiangsu,China |
| Brand Name | RG |
| Product Name | Planetary reduction servo motor |
| Motor Type | Permanent BLDC Motor |
| Rated Current | 3.41A |
| Rated Torque | 9N.m |
| Lock-In Torque | 50N.m |
| Rated Speed | 67rpm |
| Encoder Resolution | 14 bit |
| Communication | CAN/RS485 |
| Size | 46mm*77.5mm |
| Selling Units | Single item |
| Single Package Size | 18X18X10 cm |
| Single Gross Weight | 2.0 kg |
Product Details
Integrated design saving more space

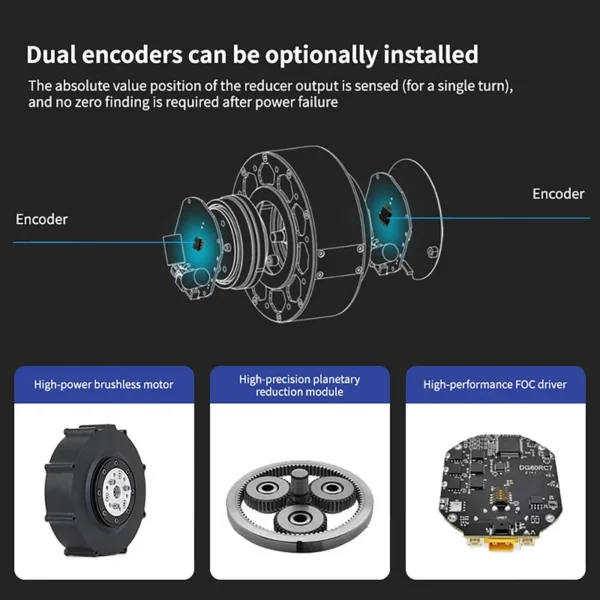

Built in 18BIT single coil absolute value magnetic encoder
Product Description：SP3510-64
All of our motors and planetary reducers can be customized with torque, voltage, speed, output size, etc.
Pls feel free to contact us for more details and requirements.

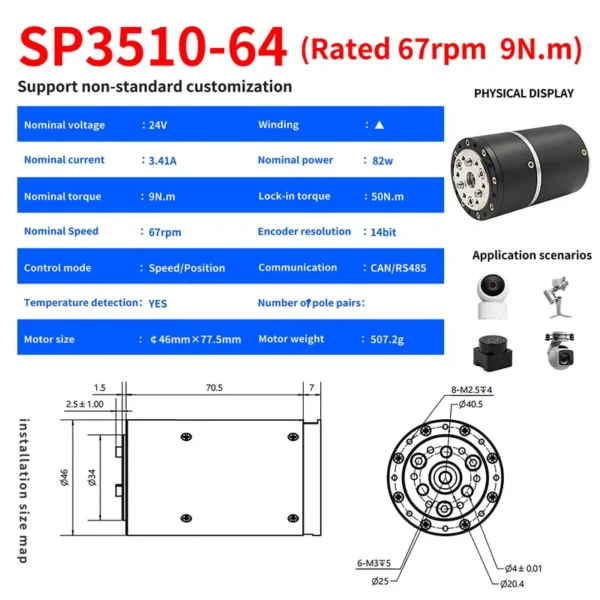

Basic parameters | ||||
Actuator | Unit | SP3510-64 | ||
Rated voltage | V | 24 | ||
Rated current | A | 3.41 | ||
Rated speed | rpm | 67 | ||
Rated power | W | 82 | ||
Rated torque | N.m | 9 | ||
Lock-in torque | N.m | 50 | ||
Motor efficency | % | 75 | ||
Communication | / | CAN/RS485 | ||
Temperature detection | / | YES | ||
FIELDS OF APPLICATION
Province specializing in the high-end transmission field. For more than ten years, the company has been deeply engaged in the
manufacturing of non-standard transmission equipment such as planetary gear reducers, commutators and servo motors.Thecompany has gathered a team of senior engineers from Japan and Taiwan, China, introduced international advanced gear manufacturing technology and precision processing equipment, and established a strict quality control system to provide high-quality support for industrial demands.
Authoritative Certification Quality Assurance
Some of our partners
Standard/Non-standard Customization Process
1.Before packaging, all products will be strictly inspected to check whether the input, output, appearance, etc. are consistent with the dimensions specified in the drawings.
Title goes here.
Title goes here.
1) How long is your delivery time?
2) What is your terms of payment?
3) What kind of products you provide?
4) Can you accept OEM and ODM order ;what about MOQ?
5) Do you have plan to develop agent?
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $239 / piece
- 50–99 piece: US $222 / piece
- 100+ piece: US $205 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sp3510-64 bldc servo motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the sp3510-64 bldc servo motor be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ren Gong Mechanical Technology (Suzhou) Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ren Gong Mechanical Technology (Suzhou) Co., Ltd. range on HVACR Nexus.
