Key specification for this spiral freezer: voltage customzied, 200kg/h. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Spiral Freezer
- Power(W): customzied
- Voltage: customzied
- Capacity: 200kg/h
- Material: Stainless Steel 304
- Refrigerant: R-404A
- Refrigerant Consumptiom: 75kw
Technical Specifications
| Type | Spiral Freezer |
|---|---|
| Temperature Control | -40℃ to 0℃, -45-0°c |
| Refrigerant | R-404A |
| Voltage | customzied |
| Compressor Brand | Bitzer, Fusheng |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Key Selling Points | Automatic |
| Power(W) | customzied |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 500 |
| Brand Name | UFEC |
| Dimension(L*W*H) | customzied |
| Belt Width | 450mm |
| Refrigerant Consumptiom | 75kw |
| Marketing Type | Ordinary Product |
| Product Name | spiral freezer |
| Freezer Type | Belt freezer |
| Material | Stainless Steel 304 |
| After-Sales Service Provided | online suport |
| Capacity | 200kg/h |
| Compressor | Bitzer |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

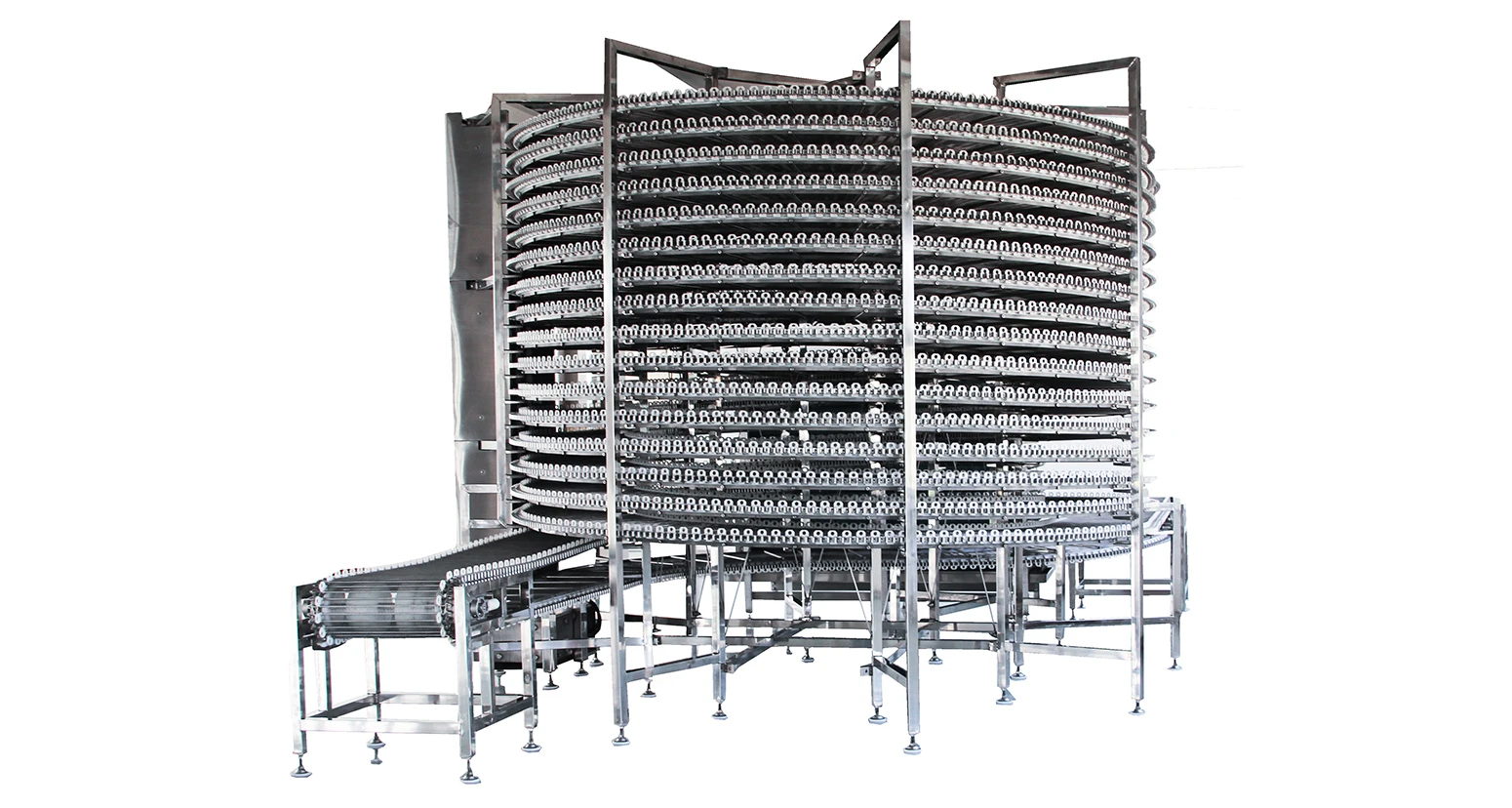

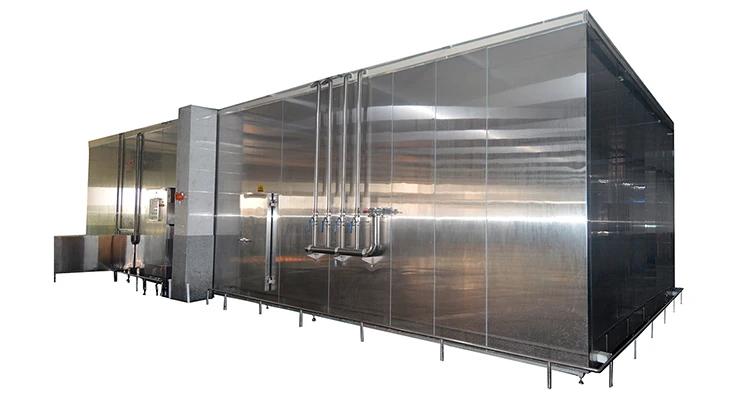

Slide-driving Spiral Freezer
The spiral quick freezer s an energy-saving quick freezing equipment with compact structure,wide application, small floor area and large freezing capacity. lt is widely used for quick freezing of conditioned food, ice cream, pastry, split meat and poultry, aquatic products, fried food, small packaged food, etc. lt is the preferred model for food processing enterprises at home and abroad.Our company mainly produces and sells D-type and G-type spiral quick freezers. Among them.D-type rotary drum type is characterized by simple structure, large capacity and convenient maintenance, while G-type sliding rail type has the advantages of multiple configurations, wider application scope and no belt turning. We can provide a full range of services including design,production, transportation and installation, which are favored by customers.
Slide-driving spiral freezer is innovated and designed by our company, it is a new freezing equipment with three national patents.

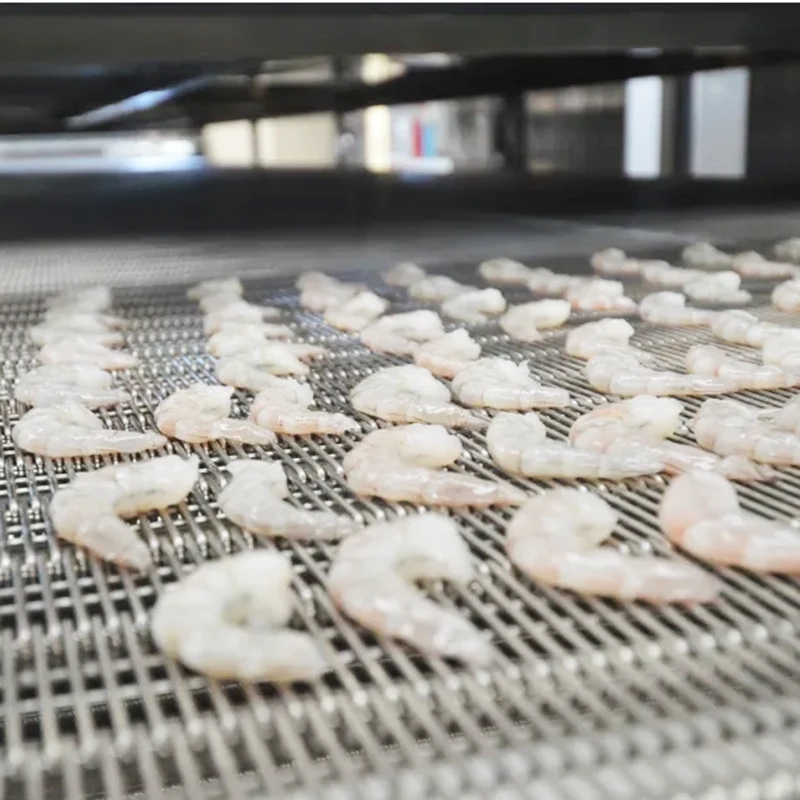

Comparing to the traditional single spiral IQF, slide-driving spiral freezer don’t have cage and tensioning device, completely solve the problem of Derailment, extended belt lifetime, lower installed power, while achieving single spiral IQF low inlet and low outlet, and it can be made into a variety of rotating track geometry as needed. The device is widely used in aquatic products,meat category, fruits and vegetables, prepared foods category, and pre-cooling, freezing, baking process.

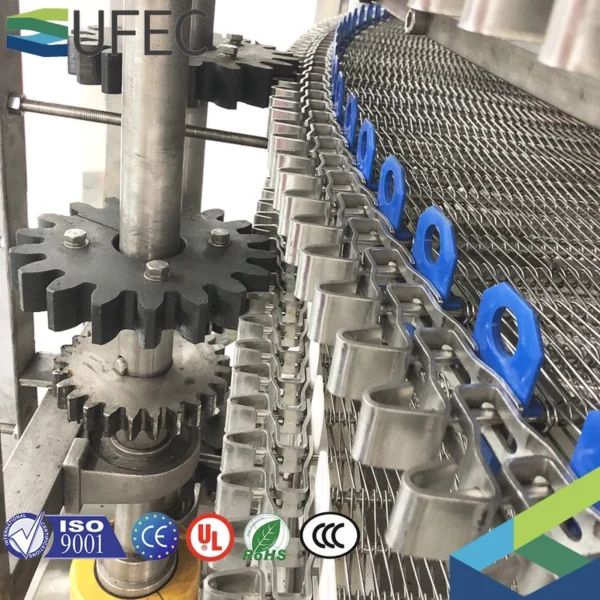

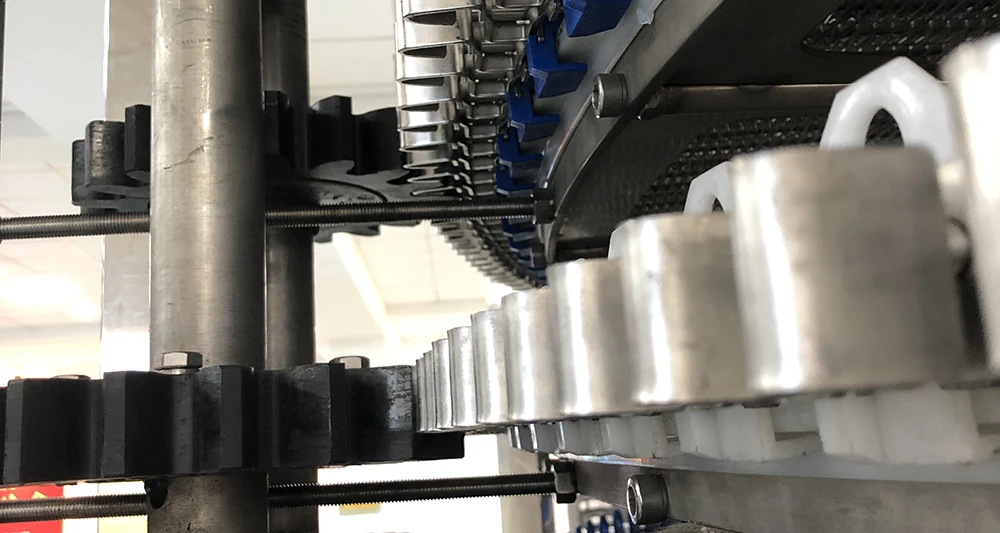

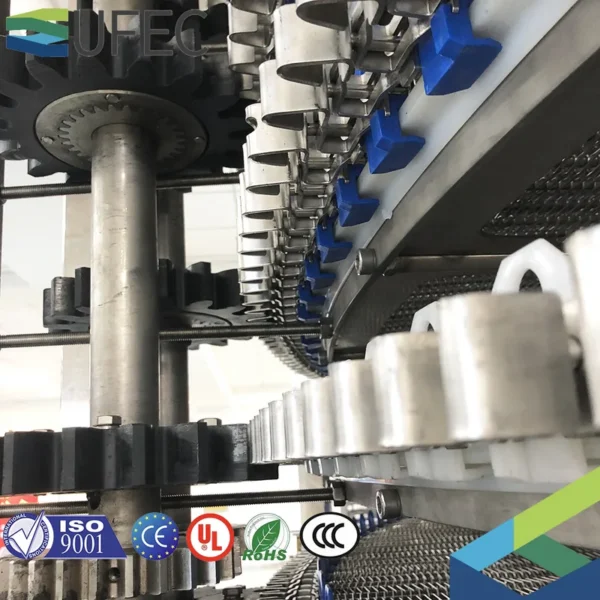

Our spiral freezer adopts a multi gear transmission method, and the belt buckle reaches the track through a sliding rod and runs on the polymer material track. The friction coefficient is small, and it has its own lubrication, which is not easy to generate dirt. It has two advantages: on the one hand, it eliminates the need for intermediate retainers and eliminates static friction of transmission components, resulting in severe wear and rolling of the belt; On the other hand, the special structure of the mesh belt tightly meshes with the slider, so that the overturning of the conveyor belt will never occur.

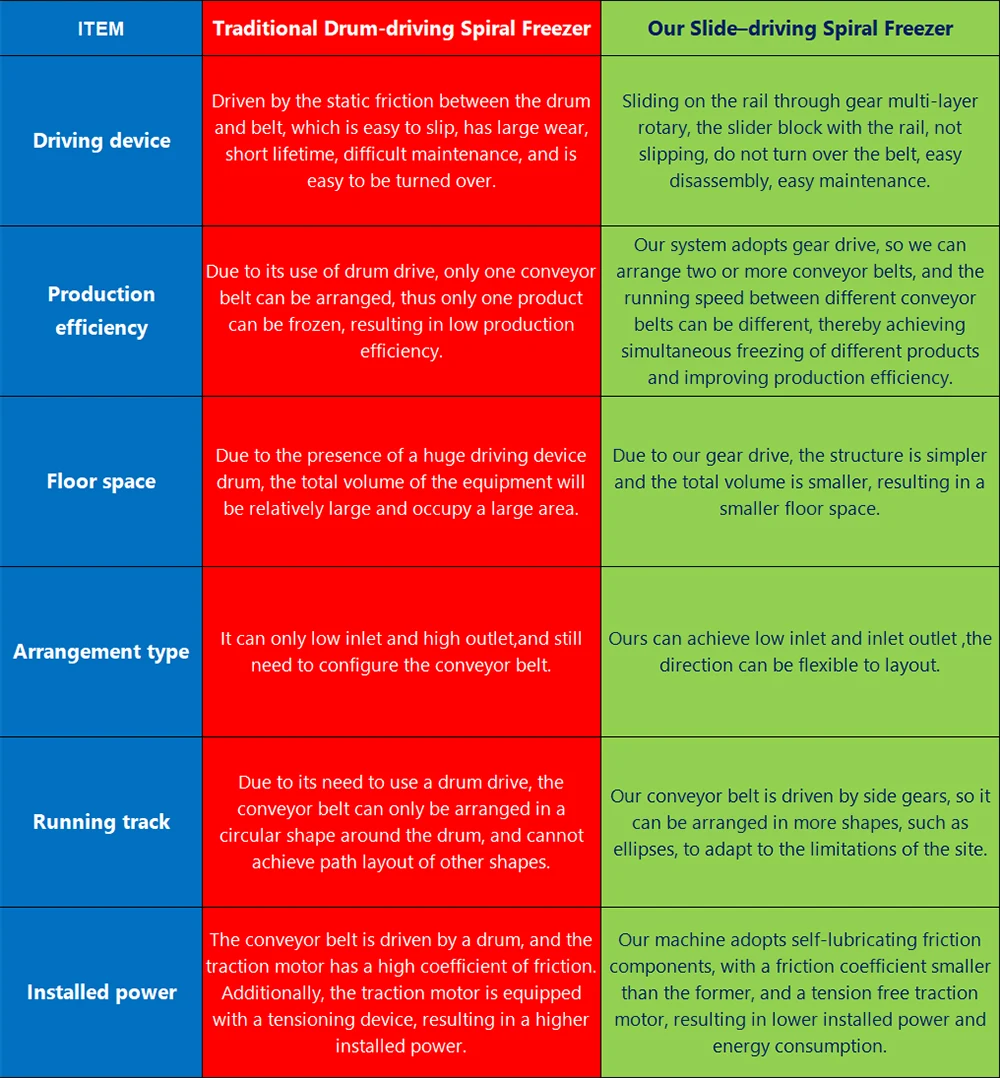

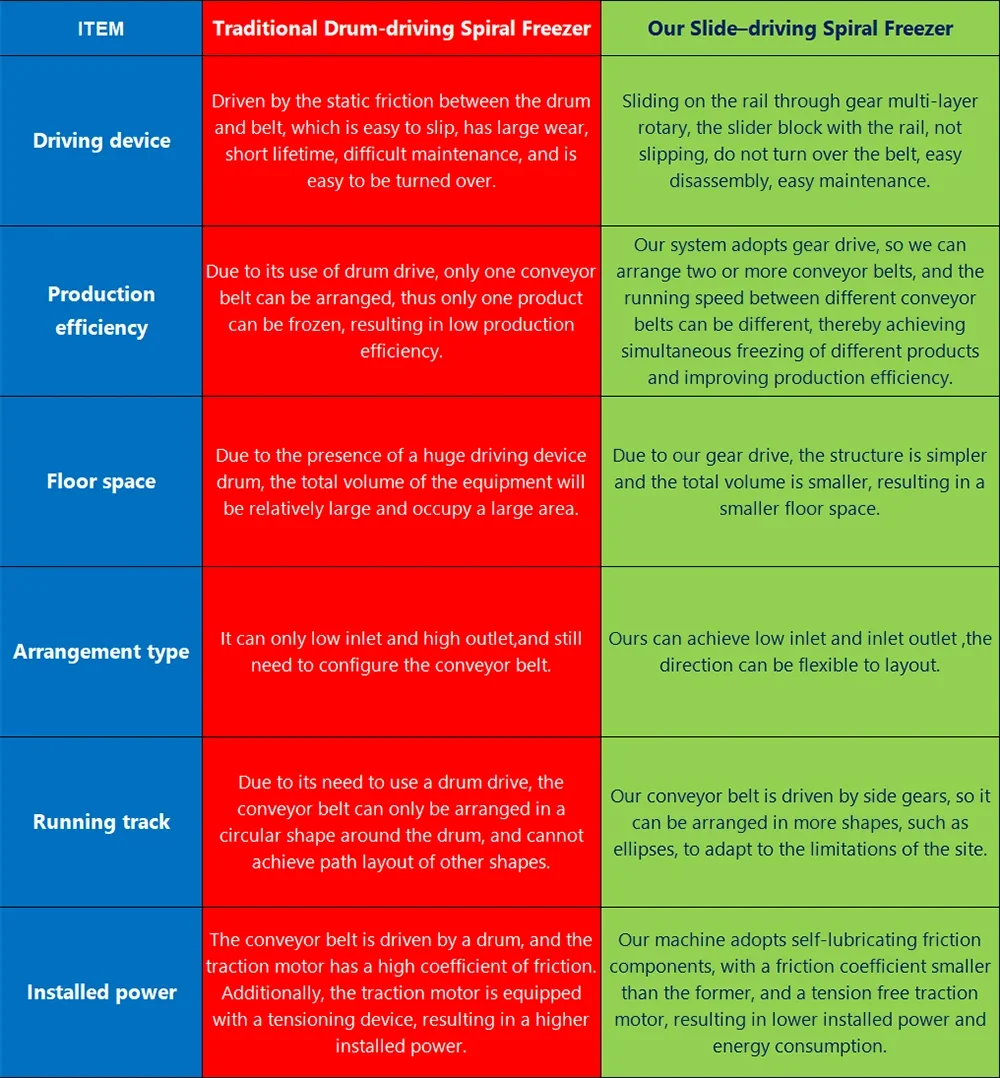

Compared with Traditional Spiral Freezer

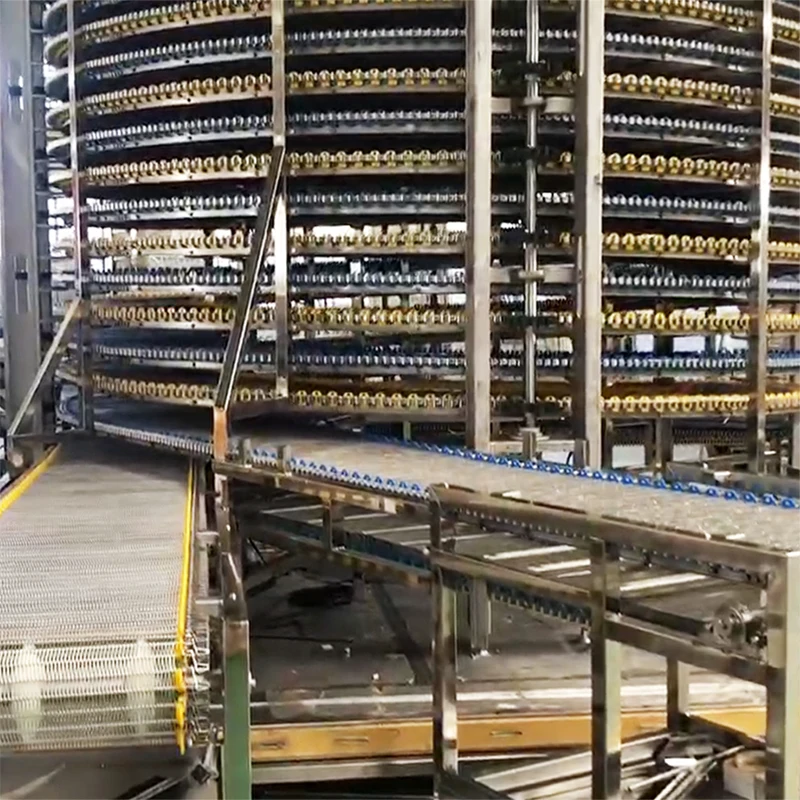

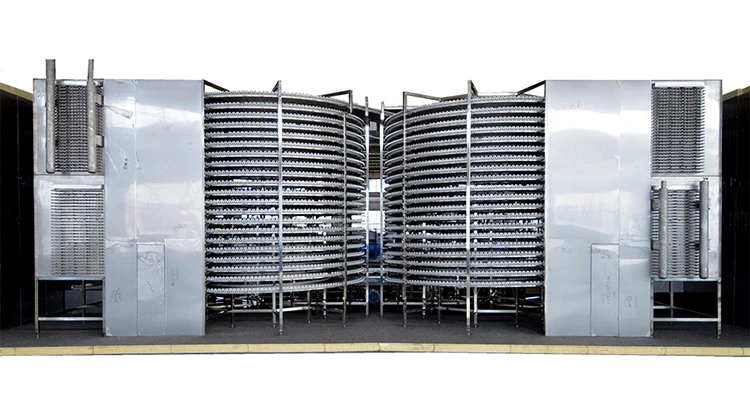

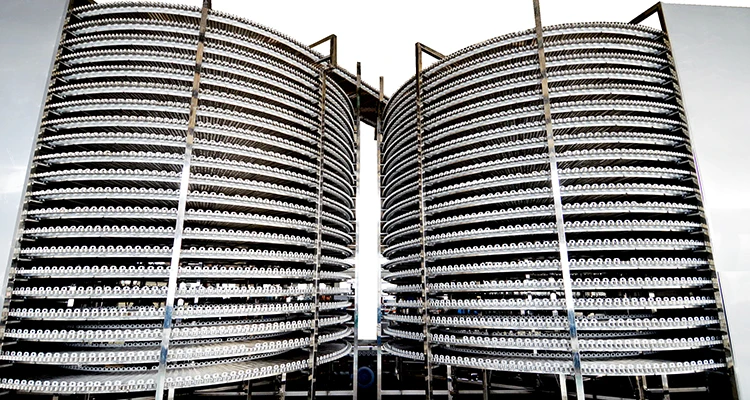

Thanks to our unique slide gear drive mode, our spiral freezer can arrange two conveyor belts simultaneously in a single spiral, with different operating speeds. This way, we can quickly freeze two different products at the same time, thereby improving production efficiency.

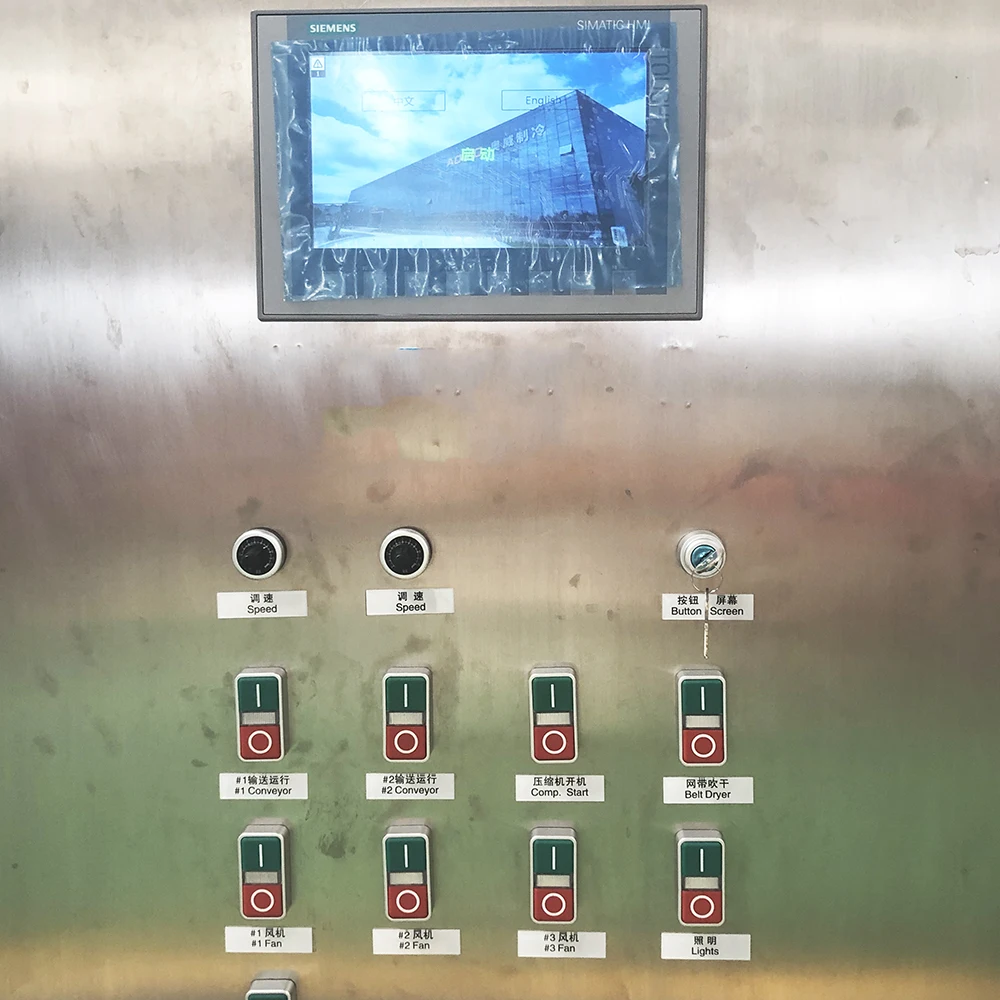

Independent research and development control programming design, man-machine interactive control interface, easy to operate and easy to learn.The components are provided by well-known international manufacturers. Double-door stainless steel waterproof electric control box. Automatic operation and manual operation modes are independent but complementary to each other.

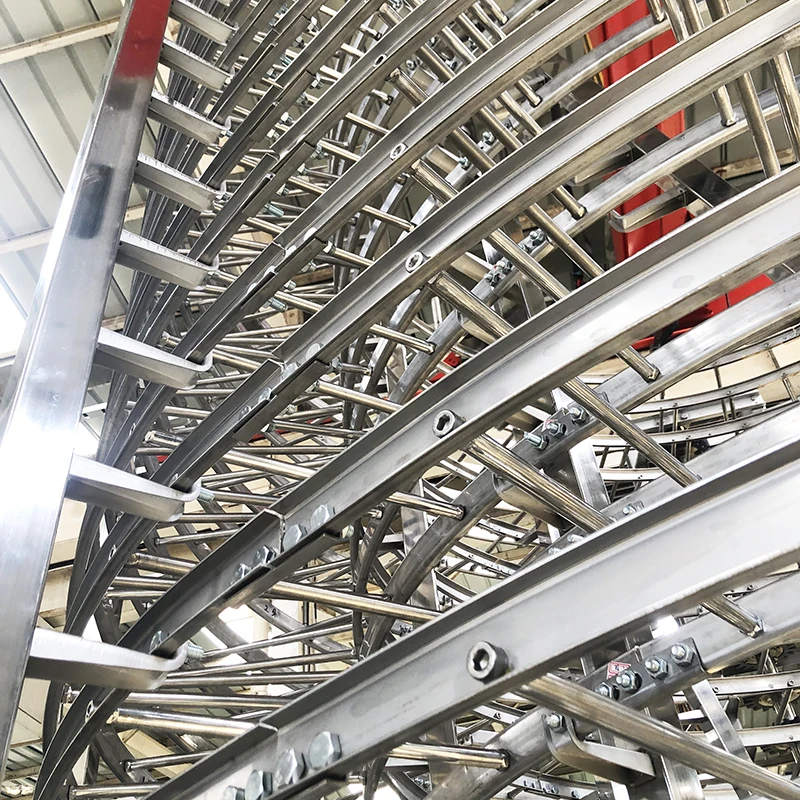

The overall framework of the equipment is made of high-strength stainless steel, which not only ensures the reliability and durability of the freezer, but also ensures the hygiene condition of the equipment, making it easier to clean the equipment after work.

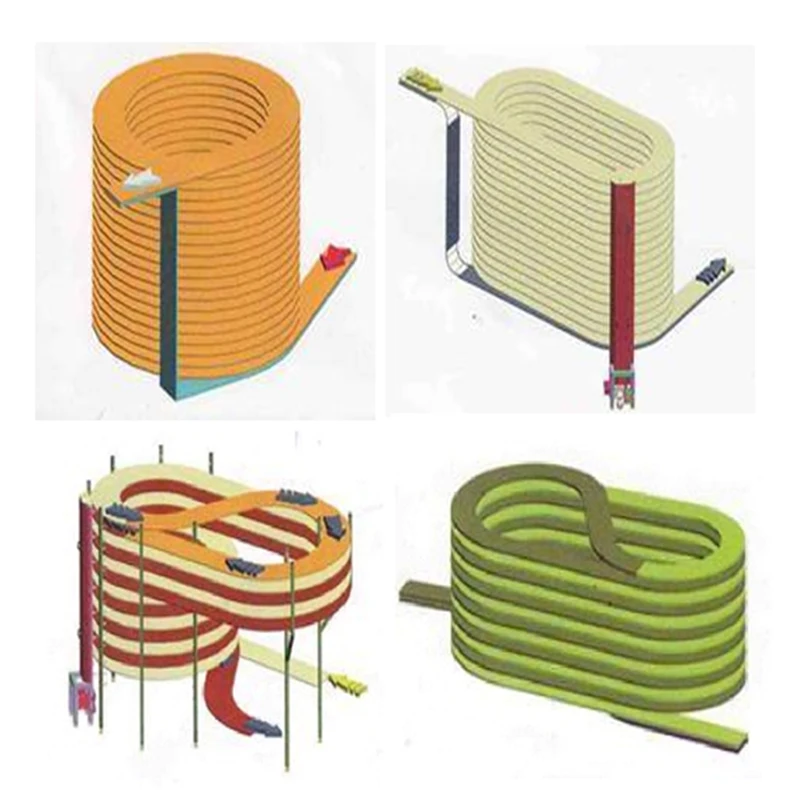

Due to the use of side gears to drive the transmission belt, the configuration of the conveyor belt can be diverse, making it more suitable for use in areas with limited space.

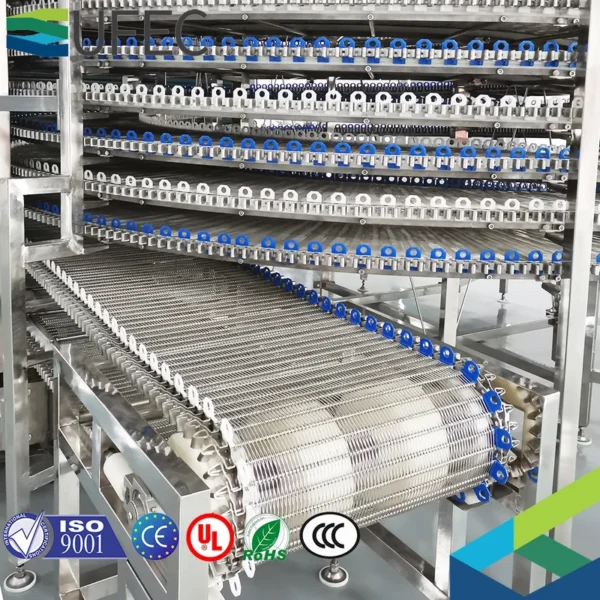

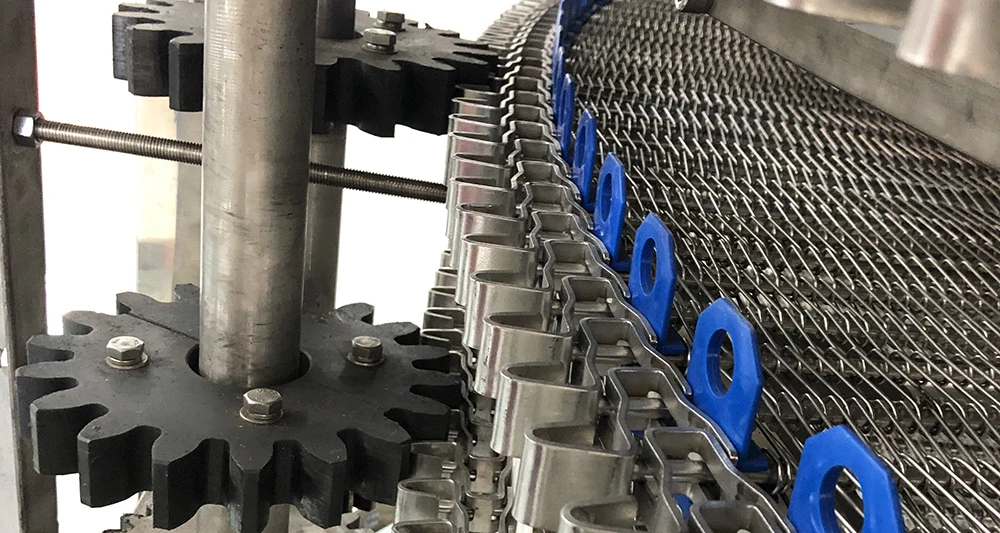

The mesh belt passes through the self-lubricating slider and friction band of the guide rail. The two are tightly meshed, so that the belt will never flip, completely solving the problems of downtime and maintenance difficulties caused by this.

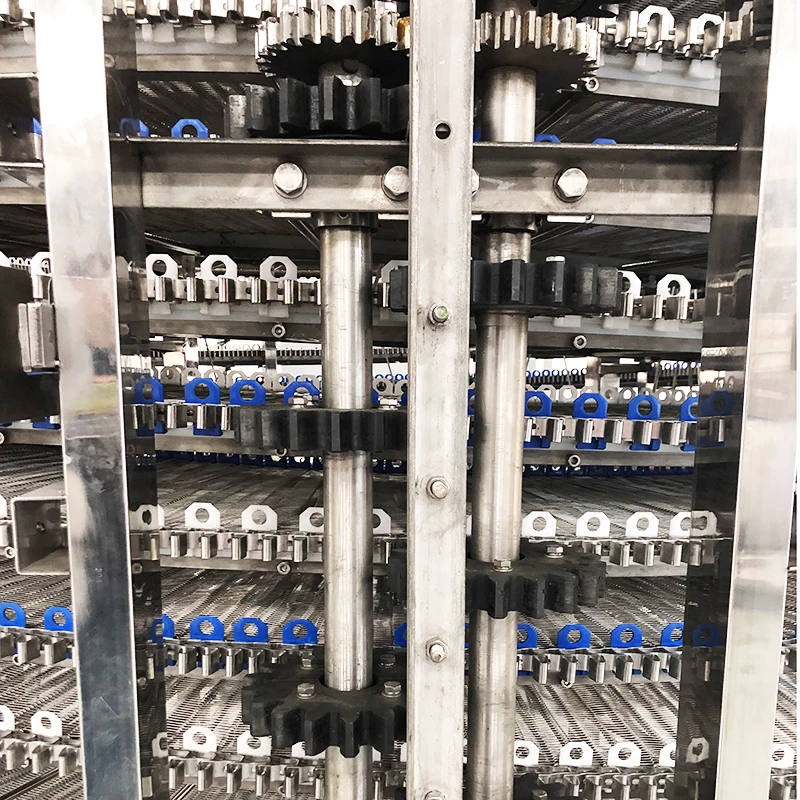

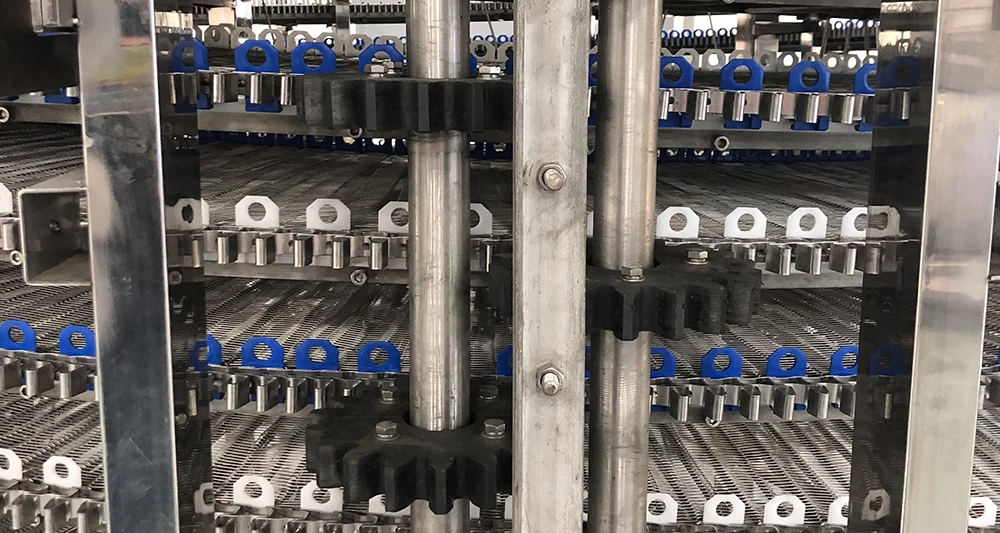

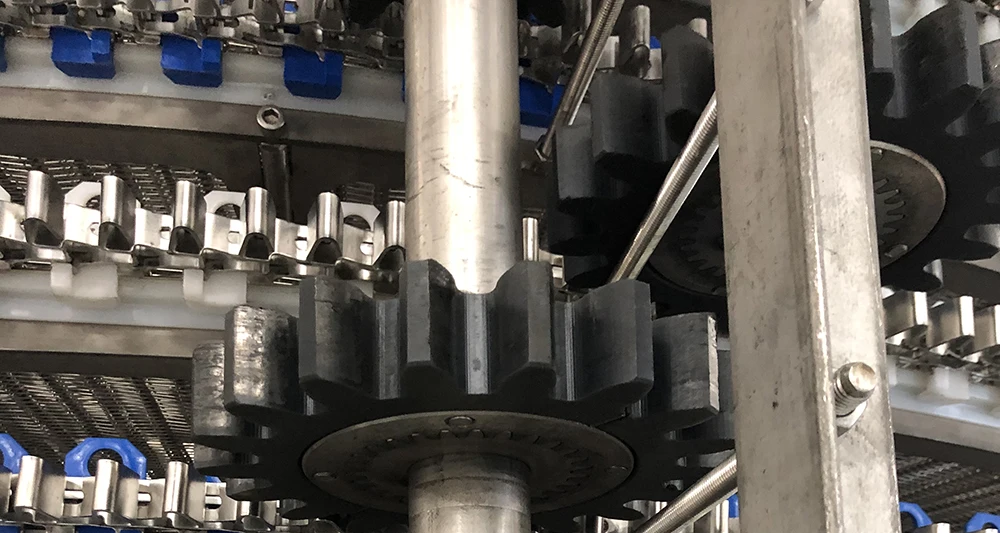

The driving device is driven by the gear side, and each layer of the net has an independent power source, and the net belt is uniform forced, independent gears, stable operation and easy maintenance.

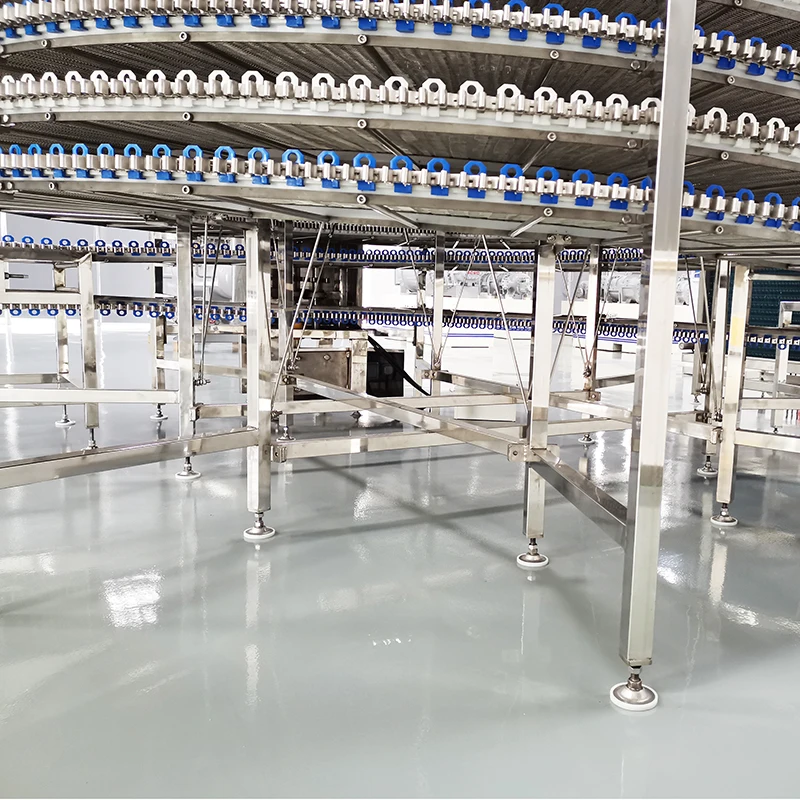

Adopting a drum free design with ample inner space, personnel can easily enter for hygiene and cleaning, truly achieving hygiene without blind spots.

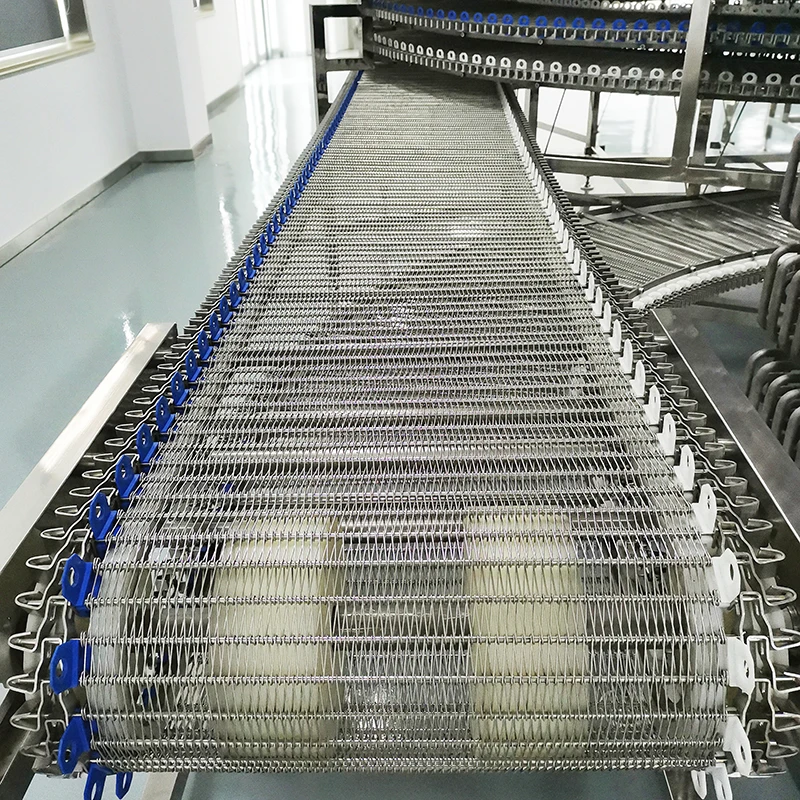

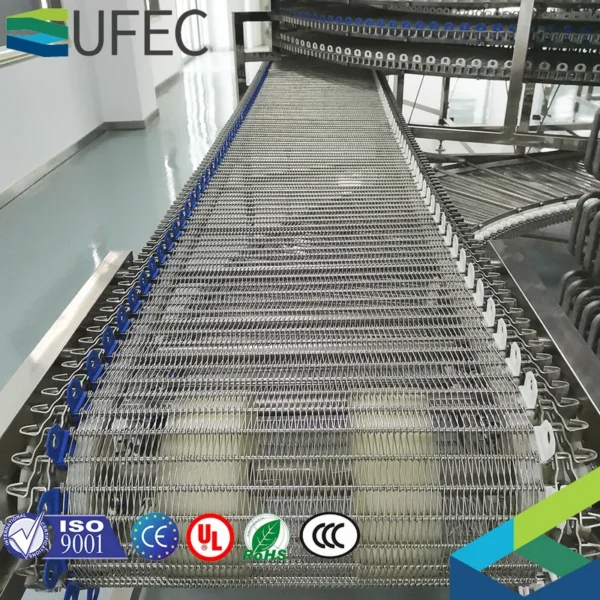

The conveyor belt is made of high-quality stainless steel material and has a variety of types, which can meet the needs of different products.
Why choose us?
1.We are a professional refrigeration equipment manufacturer integrating design, manufacturing, sales and service.
We can provide you with more comprehensive and reliable equipment and services.
2.We have many overseas branches that can provide you with reliable after-sales service (including on-site service and remote guidance service).
3.Our equipment adopts the latest design. Compared with traditional products, it has a more compact volume, more efficient output and more complete supporting facilities, which greatly reduces the cost of equipment maintenance and extends the service life of the equipment.
4.Our products use better materials, for example, the evaporator coil of the quick-freezer, we use more reliable and pressure-bearing stainless steel tubes, even copper tubes; For another example, our evaporative condenser, of the same model, uses thicker pipes and guard plates, so it has a heavier weight.
5.We are a factory designed, manufactured and sold by ourselves. We can achieve lower prices.
How I believe you?
We welcome and invite you to visit our customers' factories, overseas branches and China's head office to inspect our equipment and services on the spot. If it is not convenient for you to go abroad, we can also provide live video and other means to explore the factory online.
Where are you?

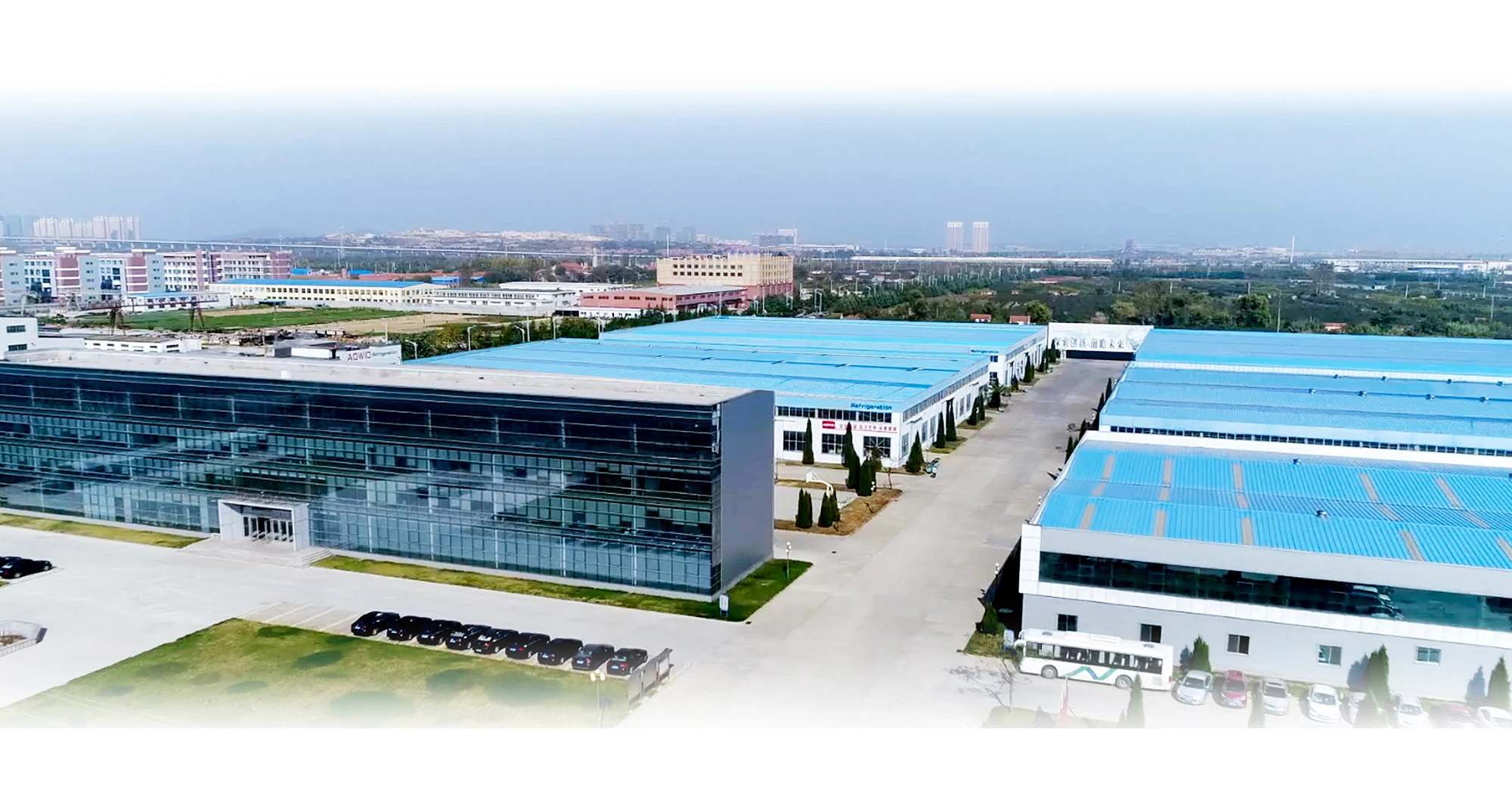

Our head office is set up in Yantai, Shandong, China, and has branches, offices or partners around the world. You can contact us through field visits, phone calls, email, WhatsApp or WeChat, etc.
How about the delivery time?
Different equipment requires different construction periods. Generally, we will clearly mark our construction period and delivery time for you in the quotation.
What kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
We can provide you with more comprehensive and reliable equipment and services.
2.We have many overseas branches that can provide you with reliable after-sales service (including on-site service and remote guidance service).
3.Our equipment adopts the latest design. Compared with traditional products, it has a more compact volume, more efficient output and more complete supporting facilities, which greatly reduces the cost of equipment maintenance and extends the service life of the equipment.
4.Our products use better materials, for example, the evaporator coil of the quick-freezer, we use more reliable and pressure-bearing stainless steel tubes, even copper tubes; For another example, our evaporative condenser, of the same model, uses thicker pipes and guard plates, so it has a heavier weight.
5.We are a factory designed, manufactured and sold by ourselves. We can achieve lower prices.
How I believe you?
We welcome and invite you to visit our customers' factories, overseas branches and China's head office to inspect our equipment and services on the spot. If it is not convenient for you to go abroad, we can also provide live video and other means to explore the factory online.
Where are you?
Our head office is set up in Yantai, Shandong, China, and has branches, offices or partners around the world. You can contact us through field visits, phone calls, email, WhatsApp or WeChat, etc.
How about the delivery time?
Different equipment requires different construction periods. Generally, we will clearly mark our construction period and delivery time for you in the quotation.
What kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $30000 / set
- 2+ set: US $28000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the spiral freezer be supplied for my local voltage?
The standard configuration is customzied. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yantai Guangwei Food Cold-Chain Technology Co.,Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, Trading Company. Browse the full Yantai Guangwei Food Cold-Chain Technology Co.,Ltd. range on HVACR Nexus.
