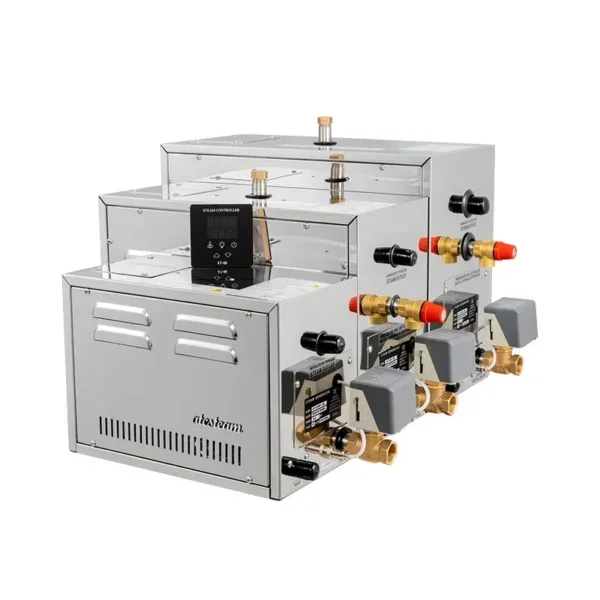

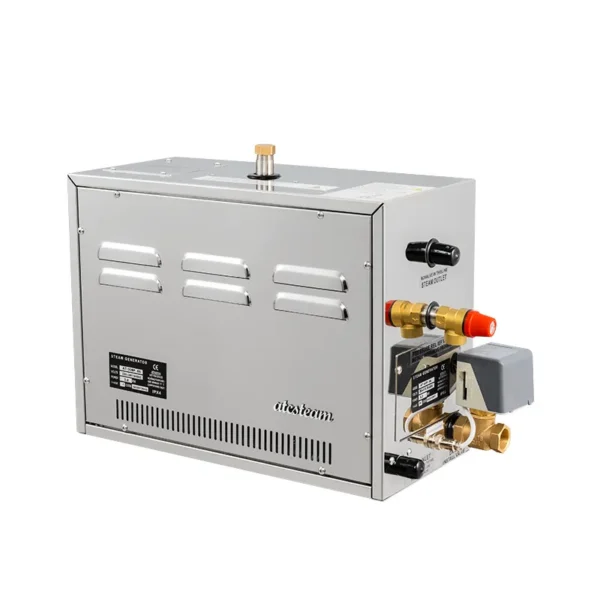

The steam bath generator listed here carries 220V/380V, power 3-21KW, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Steam Bath Generator
- Model Number: AT-B
- Power: 3-21KW
- Voltage: 220V/380V
- Main Material: good quality stainless steel
- Warranty: 1 Year
- Place Of Origin: GUA
Technical Specifications
| Application | Bathroom |
|---|---|
| Main Material | good quality stainless steel |
| Feature | Computer Control Panel |
| After-Sale Service | Online Technical Support |
| Warranty | 1 Year |
| Design Style | Modern |
| Project Solution Capability | Others |
| Place Of Origin | GUA |
| Brand Name | DIOOIST |
| Model Number | AT-B |
| Power | 3-21KW |
| Voltage | 220V/380V |
| MOQ | 1 Set |
| OEM & ODM | Support |
| Control Panel | Touch Screen Control Panel |
| Style | Luxury Sauna Equipment |
| Main Function | Wet Sauna Shower Room |
| Frequency | 50 Hz-60hz |
| Service | 24 Hours Online Service |
| Selling Units | Single item |
| Single Package Size | 65X28X52 cm |
| Single Gross Weight | 20.0 kg |
Product Details
Products Information
Features | Rated Power | 3-21KW |
Voltage | 220-240V/380-415V | |
Frequency | 50 ~ 60HZ | |
Housing Material | Stainless Steel | |
Heating Elements material | Stainless Steel SUS 304 with UL Certificate | |
Standard Functions | Water tank material | Stainless Steel SUS304 |
Auto water inlet | Water get into the tank automatically | |
Auto power off | Powered off automatically | |
Time setting | 1-12Hour or 1-60min | |
Temperature setting | 25~55℃ | |

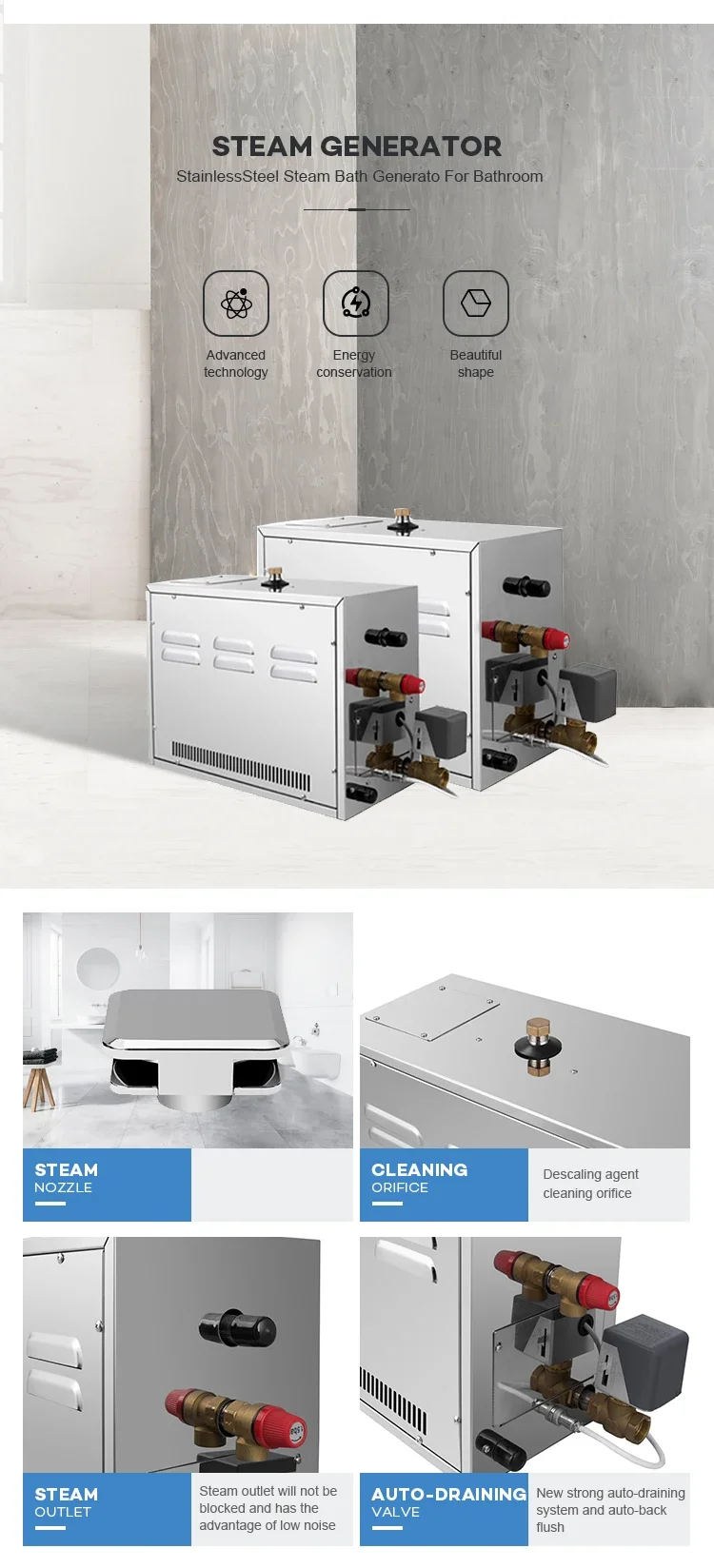

Standard Configurations | Electrolytic plate with spray | Long Lifetime Durable In Use |
Stainless Steel 304 Steam nozzle | Durable, Mute .Beautiful | |

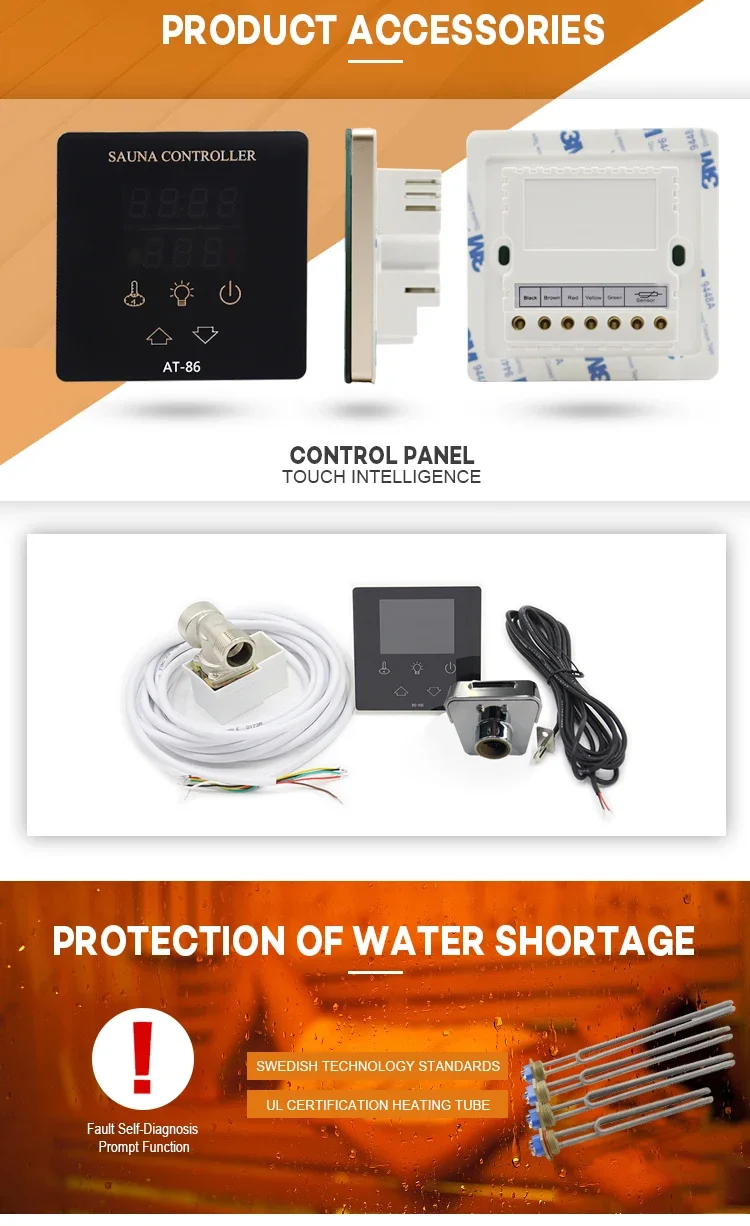

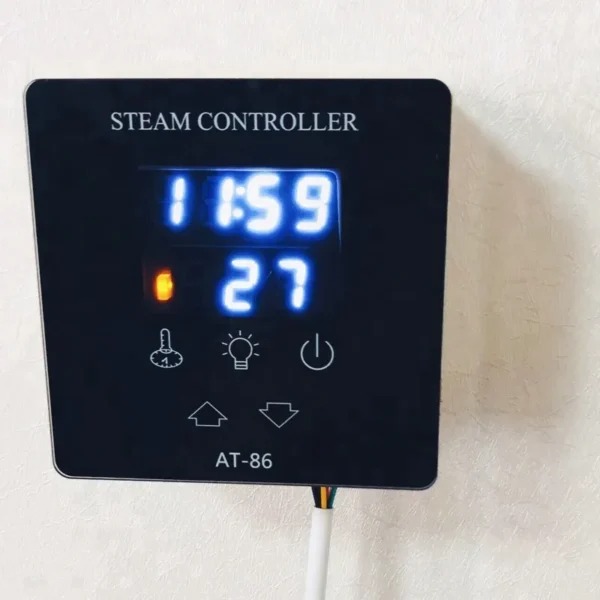

Optional Functions & Equipments | Optional controller | AT-86 |
Aroma pump | Aromatherapy, two ways pumps | |
Descaling pump | Clean water scale by pouring cleaning solution into water tank automatically | |
Water softener | Prevent metals into the water tank | |
Auto draining | Drain out water automatically after steam shower | |
Auto flushing | Flush water tank automatically, to reduce water scale | |
Big diameter auto draining valve | Drain out hard water and lime scale, extend service life |
Details Images
FAQ
1 What’s the difference between a Steambath and Sauna bath ?
First, both steam and sauna systems provide similar benefits for your mental and physical well-being. The difference between a
steambath and a sauna is basically “wet heat” versus “dry heat”.Sauna room temperatures may actually be higher, but you may “feel
the heat” more by adding steam.It really comes down to personal preference. Diooist steam bath system, however, can generally be
more easily integrated into an existing bathroom or new home plan at lower cost.
2 Are there any restrictions on using steambath or saunabath?
Yes. Doctors consider “steam and sauna” generally healthy to use, but people suffering from heart disease, high blood pressure,
diabetes, pregnant women and the elderly who are not in good health should not take a steambath or saunabath without consulting a
physician. Women who are pregnant should also consult their physician before use.
3 I have very hard water. Is there anything that I need to do to protect my steam unit?
You may want to consider a whole house water treatment system if the water quality is a concern.The Diooist steam generator can
operate in conjunction with a water softener. It is important to realize that good water is a condition which is desirable for
drinking as well as protecting the plumbing systems,decorative hardware, faucets and glass from the negative effects of hard
water. An automatic drain is also available but not required for the generator.
4 Is it available to use essential oil in steam bath room?
Yes, you can drip two drops fragrance oil in the steam head's slot, it will bring you wonderful feeling,but remember! Do not drip
oil into steam head because it may cause burn, Note: the steam temperature is 212 ° F, so cannot make the steam head upward in
such hot condition. Fragrance oil are extracted from herbs, flowers, fruits, and trees, it has a role to promote the excitement
and relaxation, aromatherapy treatment including different effecting, such as breathing relaxed, reduce anxiety, stress and
fatigue, relieve headache.please consult your doctor before use aromatherapy, especially for pregnant women, the elderly, who have
high blood pressure,diabetes, heart disease, alcoholism and poor health may not allow to enjoy aromatic steam bath.
5. Where the controller should be installed?
Controller should be installed outside of the steam room, but convenient to operate from the high 1.5 to 1.6 meter, its location
as far as possible away from the steam head.
6 Where the location of the steam head should be installed?
Steam head should be higher than the ground or tub bottom 12 "from any corner 6" far, the nozzle should be as far away as
possible from specific bathing place (standing or sitting).
7 What is your payment terms?
Paypal/West union/TT, 30% as deposit, the rest balance before shipping. 100% in advance for sample order.
8 What about maintenance?
The user should clean the water level detector frequently under professional technical people’s advice.
First, both steam and sauna systems provide similar benefits for your mental and physical well-being. The difference between a
steambath and a sauna is basically “wet heat” versus “dry heat”.Sauna room temperatures may actually be higher, but you may “feel
the heat” more by adding steam.It really comes down to personal preference. Diooist steam bath system, however, can generally be
more easily integrated into an existing bathroom or new home plan at lower cost.
2 Are there any restrictions on using steambath or saunabath?
Yes. Doctors consider “steam and sauna” generally healthy to use, but people suffering from heart disease, high blood pressure,
diabetes, pregnant women and the elderly who are not in good health should not take a steambath or saunabath without consulting a
physician. Women who are pregnant should also consult their physician before use.
3 I have very hard water. Is there anything that I need to do to protect my steam unit?
You may want to consider a whole house water treatment system if the water quality is a concern.The Diooist steam generator can
operate in conjunction with a water softener. It is important to realize that good water is a condition which is desirable for
drinking as well as protecting the plumbing systems,decorative hardware, faucets and glass from the negative effects of hard
water. An automatic drain is also available but not required for the generator.
4 Is it available to use essential oil in steam bath room?
Yes, you can drip two drops fragrance oil in the steam head's slot, it will bring you wonderful feeling,but remember! Do not drip
oil into steam head because it may cause burn, Note: the steam temperature is 212 ° F, so cannot make the steam head upward in
such hot condition. Fragrance oil are extracted from herbs, flowers, fruits, and trees, it has a role to promote the excitement
and relaxation, aromatherapy treatment including different effecting, such as breathing relaxed, reduce anxiety, stress and
fatigue, relieve headache.please consult your doctor before use aromatherapy, especially for pregnant women, the elderly, who have
high blood pressure,diabetes, heart disease, alcoholism and poor health may not allow to enjoy aromatic steam bath.
5. Where the controller should be installed?
Controller should be installed outside of the steam room, but convenient to operate from the high 1.5 to 1.6 meter, its location
as far as possible away from the steam head.
6 Where the location of the steam head should be installed?
Steam head should be higher than the ground or tub bottom 12 "from any corner 6" far, the nozzle should be as far away as
possible from specific bathing place (standing or sitting).
7 What is your payment terms?
Paypal/West union/TT, 30% as deposit, the rest balance before shipping. 100% in advance for sample order.
8 What about maintenance?
The user should clean the water level detector frequently under professional technical people’s advice.
Contact
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam bath generator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the steam bath generator be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
