Steam Boiler, 0.5-10, Q345R steel plate, Natural Circulation

The steam boiler listed here carries material Q345R steel plate, type Natural Circulation, documented exactly as the manufacturer publishes it. Made by Henan Zhongtai Boiler Co., Ltd. (2 years on the platform). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Steam Boiler

• Boiler Horsepower: 32 to 715 HP
• Steam Capacity: 0.5 to 10 ton per hour
• Material: Q345R steel plate
• Warranty: 2 Years
• Place Of Origin: Henan, China
• Application Field: Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper

Technical Specifications

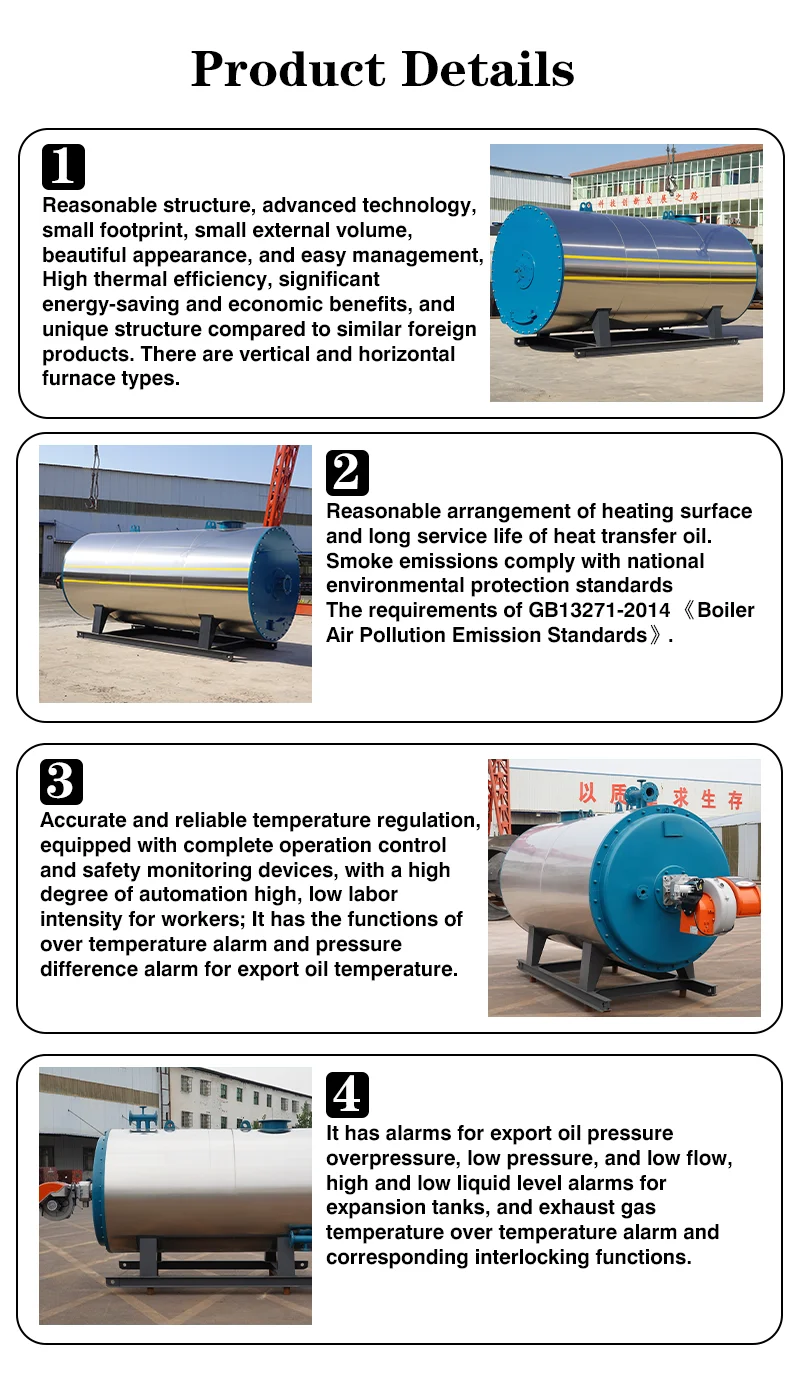

Product Details

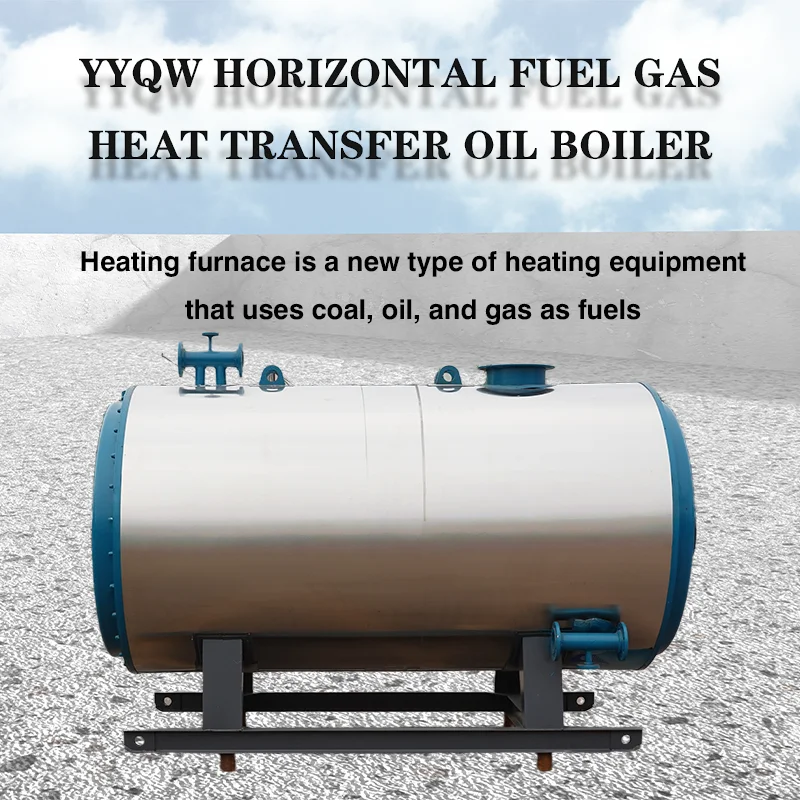

Technical Parameters of YYQW Horizontal Fuel Gas Heat Transfer Oil Boiler

Item/Model	YYQW-98YQ	YYQW-120YQ	YYQW-240YQ	YYQW-500YQ	YYQW-700YQ	YYQW-1000YQ	YYQW-1400YQ
Rated Thermal power(x10⁴Kcal/h)	9	10	20	40	60	80	120
Rated working pressure(MPa)	1	1	1	1	1	1	1
Rated oil outlet Temperature（℃）	310	310	310	310	310	310	310
Oil Storage（m³）	0.08	0.08	0.23	0.37	0.48	0.6	1.074
Circulating oil flow(m³/h)	9.664	9.8	19.328	40.267	56.374	80.534	115.747
Fuel Consumption Natural Gas(m³/h)	12	13	26	52	79	105	157
Fuel Consumption Liquid gas(m³/h)	9	10	21	42	63	84	126
Fuel Consumption City Gas(m³/h)	25	28	55	110	165	220	330
Fuel Consumption Light diesel(kg/h)	10	11	22	43	65	86	129
Fuel Consumption Heavy oil(kg/h)	10	11	22	44	66	88	132
Transport reference weight(T)	1.263	1.273	2	3	3.7	5	6.7
Transport reference dimension L (mm)	1600	1760	2300	2650	3200	3950	4600
Transport reference dimension W (mm)	1020	1172	1230	1420	1600	1750	1870
Transport reference dimension H (mm)	1450	1450	1580	2040	2210	2480	2775
Rmark	All the above values are calculated based on the low level heating value of natural gas 8,400Kcal/Nm³, low level heating value of liquefied gas 10,500Kcal/Nm³, low level heating value of city gas 4,000Kcal/Nm³, low level heating value of light oil 10,200Kcal/Kg, and low level heating value of heavy oil 10,000Kcal /Kg. The parameters are changed due to technical innovation, and the factory parameters are subject to the actual drawing.

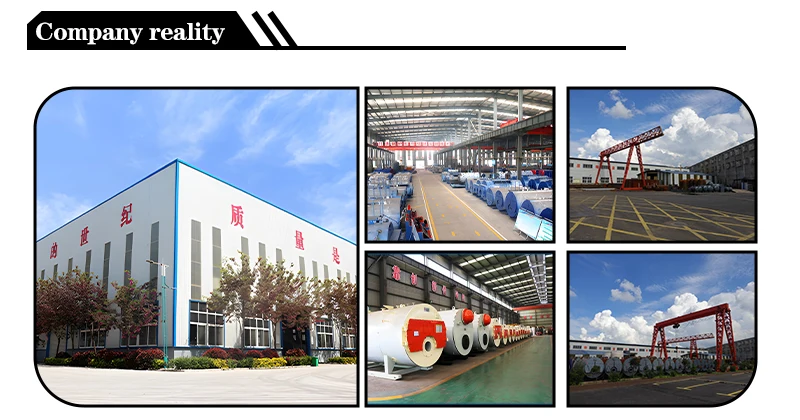

Henan Zhongtai Boiler Co., Ltd.

Henan Zhongtai Boiler Co., Ltd. Is A Professional Boiler Equipment Manufacturer Integrating Boiler Research And Development, Production, Sales, Installation And After-Sales Service. Founded In 2011, The Headquarters Of Zhongtai Boiler Is Located In Taikang County Industrial Agglomeration Zone, Zhoukou City, Henan Province. Zhongtai Has Passed The Iso9001 Quality System Certification And Possesses Leading Competitiveness In The Industry. Our Main Products Include Oil And Gas Boilers, Biomass Boilers, Electric Heating Boilers, Thermal Oil Boilers, Circulating Fluidized Bed Boilers, Heat Recovery Boilers, Steam Generators, Etc., Covering Eight Major Categories, 23 Product Series And Over 230 Models, Which Are Widely Used In Food Processing, Brewing, Chemical, Pharmaceutical, Textile, Building Materials And Other Industries. The After-Sales Service Of Henan Zhongtai Boiler Co., Ltd. Is Carried Out In Accordance With The New "Three Guarantees"Regulations Of The State And Provides Comprehensive Engineering After-Sales Service. In More Than 30 Provinces And Over 100 Cities Across The Country, We Implement Professional Service Concepts And Are On Standby Throughout The Process. We Will Track, Maintain And Service The Product Quality And Engineering Issues, As Well As Upgrade And Transformation Issues, With The User At The Center, To Ensure All Problems Are Resolved Smoothly. We Will Provide Quality Service For New And Old Customers As Our Responsibility, We Sincerely Welcome Customers To Consult And Discuss Business Cooperation!

1. How to get a detailed and exact offer?
Please let us know your required steam capacity, working pressure or steam temperature, fuel type. Then our sales-engineer will send you the detailed and exact offer.
2. How long does it take to get the boiler ready?
Usually our company have new stocks, we can manage the shipping within 1-3days. But you please contact us salesman to confirm in advance.
3. Can you assist us to do the installation and operation training?
Yes, our company will provide the drawings and operation manual. Also our engineer can provide the technical supports online.
4.Delivery time?
We have brand new inventory products, usually shipped within 1-3 days. Please contact the sales engineer to confirm the specific time.
5.Service life?
The design lifespan of the boiler is 16-26 years.
6.Does it support factory inspection?
Welcome to visit the factory at any time!
7.Warranty policy?
2-year warranty, lifetime maintenance of the host (not include damages caused by human factors）

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $7000 / set
  • 2+ set: US $5000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steam boiler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Zhongtai Boiler Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Zhongtai Boiler Co., Ltd. range on HVACR Nexus.
