This steam boiler is published with the manufacturer’s full specification — type Natural Circulation. Made by Taishan Group Taian Boao International Trade Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Steam Boiler
- Steam Capacity: Max. 400 t/h
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: For power plant or industrial production
- Type: Natural Circulation
- Grate Type: Step grate, chain grate, fixed grate, etc.
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Power Station, or industial |
| Fuel | Biomass |
| Pressure | 0.7-98 bar |
| Structure | Water Tube |
| Type | Natural Circulation |
| Core Components | PLC, pressure parts |
| Key Selling Points | High efficiency |
| Style | VERTICAL |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 25000 |
| Place Of Origin | Shandong, China |
| Brand Name | Taishan |
| Dimension(L*W*H) | Depending on the boiler capacity |
| Steam Capacity | Max. 400 t/h |
| Steam Temperature | 170-500 ℃ |
| Working Pressure | Max. 98 bar |
| Thermal Efficiency | 85%-90% |
| Combustion Method | The Mixture |
| Grate Type | Step grate, chain grate, fixed grate, etc. |
| Fuel Type | Biomass(woodchips, palm fiber, bagasse, etc.) |
| Application | For power plant or industrial production |
| Fuel Consumption | Depending on the boiler capacity |
| Selling Units | Single item |
| Single Package Size | 674X295X350 cm |
| Single Gross Weight | 26850.0 kg |

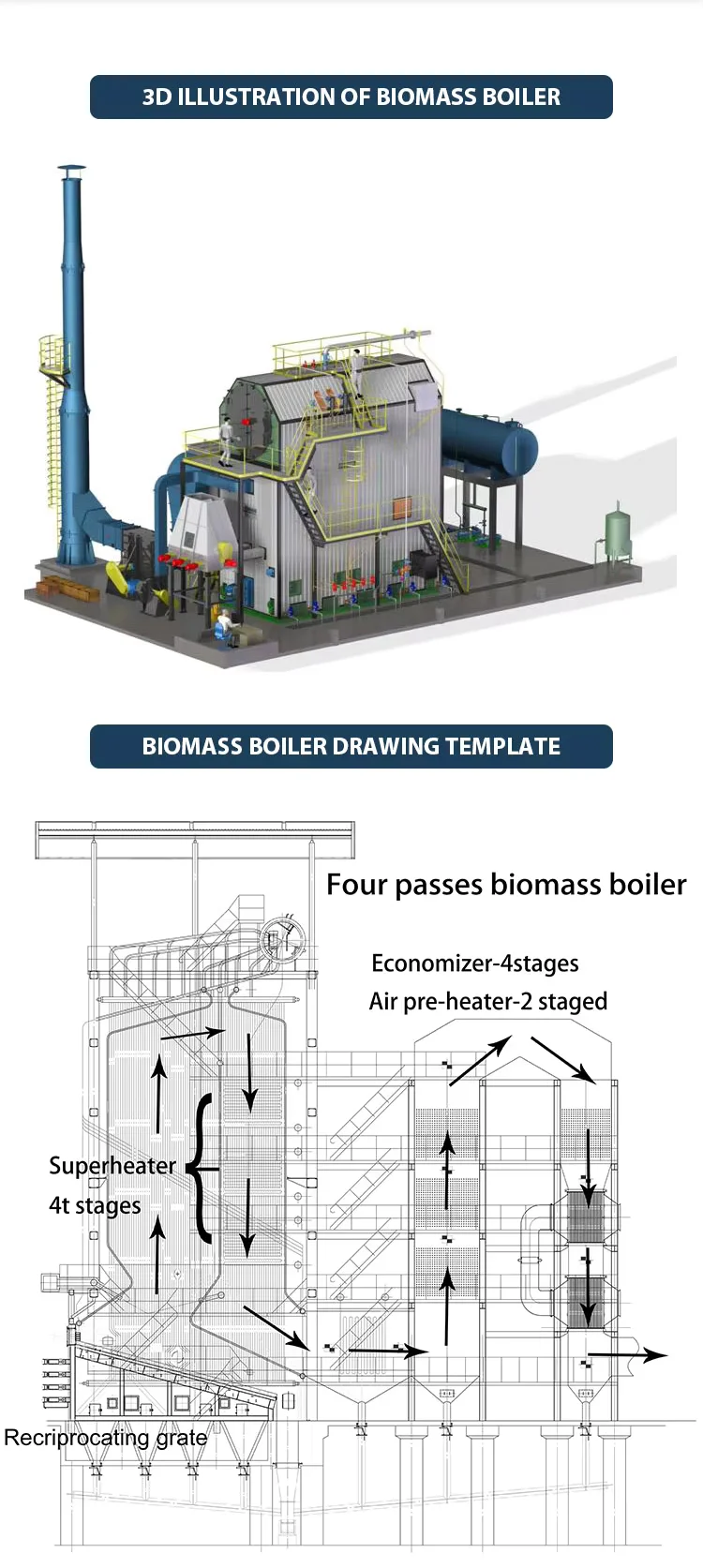

Product Details

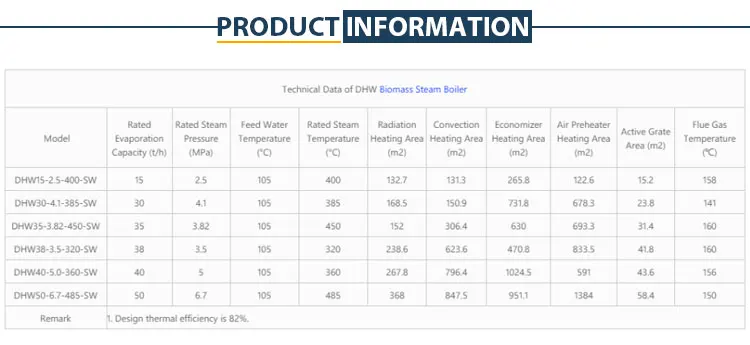

PRODUCT INFORMATION
Model | Rated Evaporation Capacity(t/h) | Rated Steam Pressure (MPa) | Feed Water Temperature(℃） | Rated Steam Temperature（℃） | Radiation Heating Area (m2) | Convection Heating Area (m2) | Economizer Heating Area (m2） | AirPreheaterHeating Area（m2) | Actice Grate Area (m2） |
DHW15-2.5-400-SW | 15 | 2.5 | 105 | 400 | 132.7 | 131.3 | 265.8 | 122.6 | 15.2 |
DHW30-4.1-385-SW | 30 | 4.1 | 105 | 385 | 168.5 | 150.9 | 731.8 | 678.3 | 23.8 |
DHW35-3.82-450-SW | 35 | 3.82 | 105 | 450 | 152 | 306.4 | 630 | 693.3 | 31.4 |
DHW38-3.5-320-SW | 38 | 3.5 | 105 | 320 | 238.6 | 623.6 | 470.8 | 833.5 | 41.8 |
DHW40-5.0-360-SW | 40 | 5 | 105 | 360 | 267.8 | 796.4 | 1024.5 | 591 | 43.6 |
DHW50-6.7-485-SW | 50 | 6.7 | 105 | 485 | 368 | 847.5 | 951.1 | 1384 | 58.4 |
Our group has various types of boilers that can meet your various needs. You can come to consult us by clicking on the text, and you will enjoy more favorable benefits and the latest product details and parameters;>>>>>>>>Go

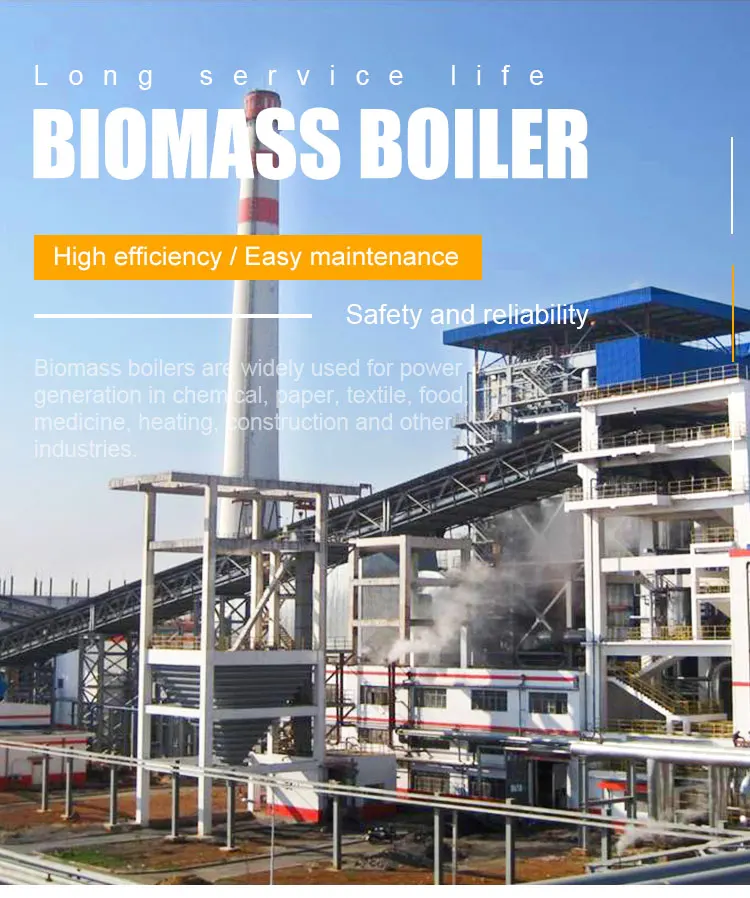

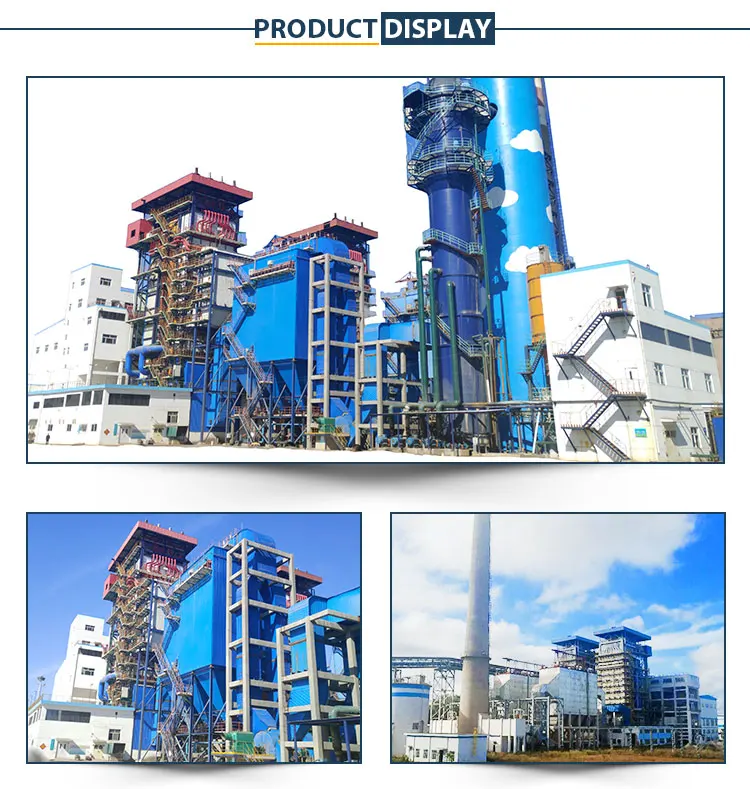

PRODUCT DISPLAY
Our products enjoy many certifications and honorary certificates, and are very reliable products; if you have questions about our products, you can ask us, we will be happy to answer your questions—–Click on the text to inquire with us>>>>>Go
PRODUCT FEATURES

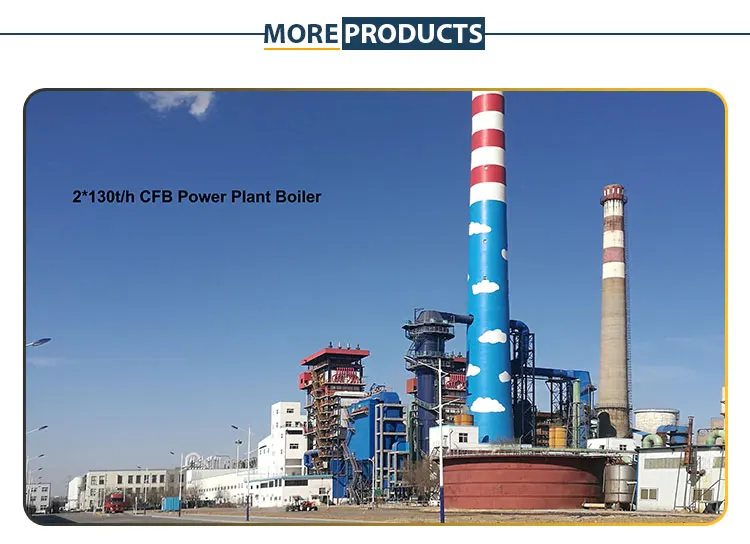

MORE PRODUCTS
WNS Gas/Oil Boiler
$34,500.00 – $155,800.00 / Set
Suitable fuel: LPG, LNG, diesel, heavy oil, biogas, etc.
Coal-fired steam boiler
$54,000.00 – $268,800.00 / Set
Suitable fuel: coal, biomass( woodchips, corn stalk, rice husk, palm fiber, etc.
CFB boiler
$82,000.00 – $1986,800.00 / Set
Suitable fuel: pulverized coal, solid pellet fuel
APPLICATION
WNS series gas/oil fired steam boiler is widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.
COMPANY INFORMATION
As the National Hi-tech Enterprise certificated by the government and the 500 Largest Machinery Industrial Enterprises, Taishan Group is leading industrial boiler and pressure vessel designer, manufacturer and exporter dedicated to supply turnkey coal fired boiler and industrial boiler solutions to worldwide customers. We are always working harder to become the leader in providing large or medium customized industrial boiler solution to meet market demands since its foundation in 1994. Our products extend as far as industrial boiler, power station boiler, pressure vessel, transformer, high-voltage switch, electric wire and cable, residual heat refrigeration machine, etc. Taishan Group has 1.02 million square meters factory with 0.6 billion dollars assets, we have 4,300 employees in 15 wholly-owned and holding subsidiaries, including Taishan Boiler Co., Ltd. Weihai Shidao Heavy Industry Co., Ltd. Shandong Luneng Taishan Power Equipment Co., Ltd. etc. Taian Boao International Trade Co., Ltd. is the wholly owned subsidiary company of Taishan Group who is responsible for exporting and import business. OK, this is a small demonstration of our factory. We are a listed group and have close cooperation with the world's top 500. Our group has been established for 44 years and has a professional and mature after-sales team in many countries. Welcome For your consultation, I can give you a detailed introduction to the strength of our factory; —Click the text to ask us, we will wait for your arrival in 24 hours >>>>>>>>Go

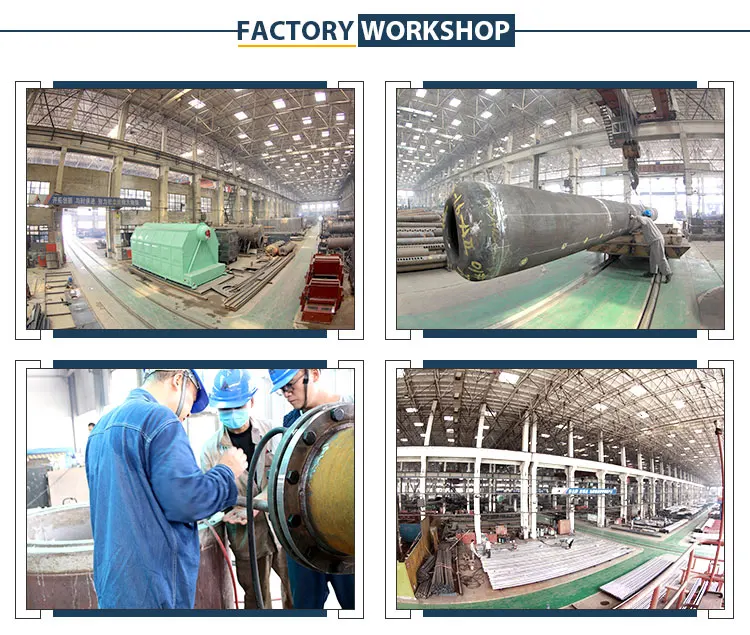

FACTORY WORKSHOP
CERTIFICATE
To know whether the product meets your needs, you can click on the text to inquire, we are waiting for your arrival; >>>>>>>>>>Go
OUR EXHIBITION
TYPICAL CUSTOMERS

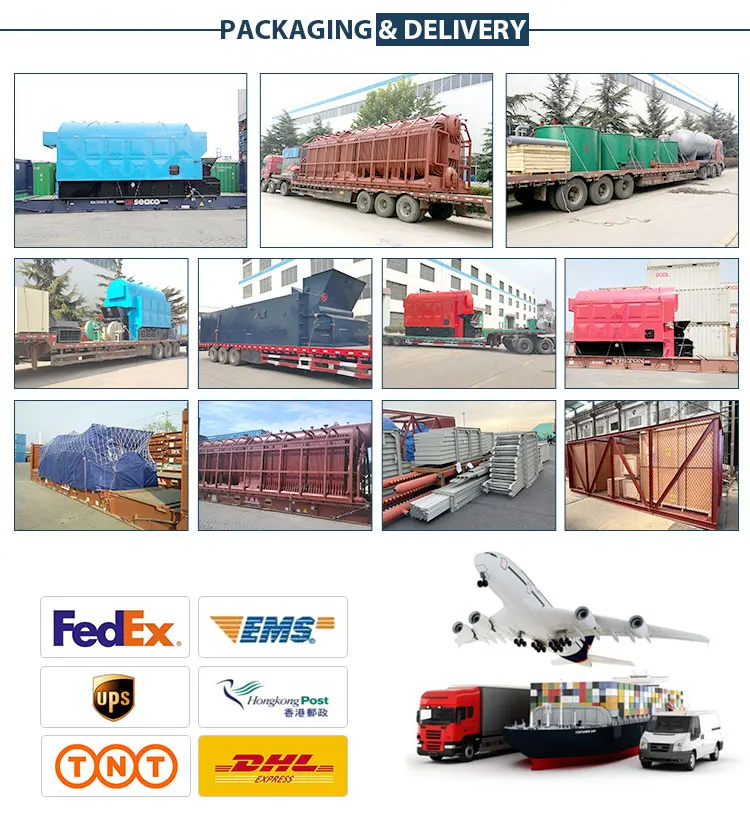

PACKAGING & DELIVERY
FAQ
1. How to get a boiler price?
Pls tell us below information to confirm the boiler model first, and then offer the right boiler price:
1.1 Which fuel you prefer for the boiler, coal, biomass, gas & oil, or others?
1.2 The boiler capacity
1.3 The boiler pressure
1.4 The boiler application
2. How long is the product warranty period ?
Our boilers have one year warranty period or depending on your requirements.
3. What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, and dispatch our engineers to your country and solve your problems right now.
4. What's the advantages of your company?
4.1 Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.
4.2 Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.
4.3 The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.
4.4 All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard
4.5 1-20T/H & 0.7-14MW boiler adopt big and high strength grate, add rolling device improves the boilers’ 4.6 Over 20T/H & 14MW boiler adopt flake type or beam type chain grate, less coal leakage, convenient burning adjustment. Closed soot cleaning avoid second pollution and save time and labor.
4.7 Dust inertia separation at the furnace outlet can reduce exhaust gas concentration and lessen abrasion of rear heat surface.
4.8 Compact structure makes its installation volume smaller than other types of boilers, it will shorten installation period and lower boiler room cost.
4.9 Big water volume benefits for power-off protection, high ability suitable for load changing.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–3 set: US $103500 / set
- 4+ set: US $103000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taishan Group Taian Boao International Trade Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taishan Group Taian Boao International Trade Co., Ltd. range on HVACR Nexus.
