Steam Boiler, 36KW, 50kg/hr, Carbon Steel

Steam boiler — material Carbon Steel, type Natural Circulation. The complete factory specification follows. Made by Zhangjiagang Future Boiler Manufacture Co., Ltd. (10 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steam Boiler

• Material: Carbon Steel
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Application Field: Garment Ironing & Construction Site
• Type: Natural Circulation
• Weight (Kg): 110

Technical Specifications

Product Details

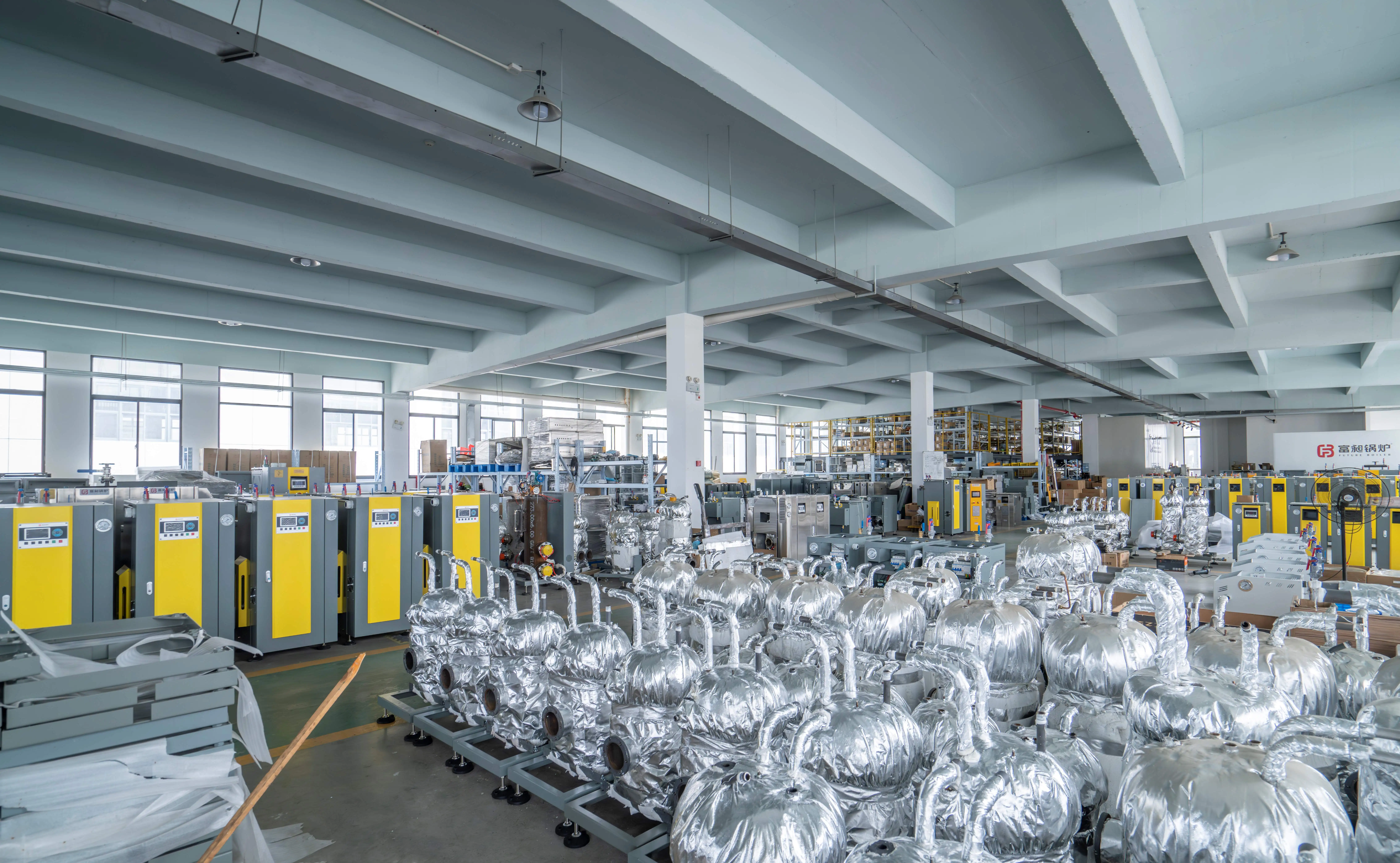

Company Profile

Zhangjiagang Future Boiler Manufacture Co., Ltd. is an enterprise engaged in the design and manufacture of boilers. The company holds the manufacturing license of Grade B, which is approved by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China(AQSIQ), and has been certified with the ISO9001 quality management system. Future Boiler specializes in electric steam boilers, oil (gas) fired steam boilers, electric hot water boilers, oil (gas) fired hot water boilers, organic heat carrier boilers, boiler accessories and auxiliary machines. We satisfy the requirements of different customers to the maximum extent. In the last few years, we have expanded product development and sales into the field of high-tech energy conservation and environmental protection. The company enjoys a good reputation in domestic and foreign-funded enterprises for its outstanding quality, consumption service. Our products are exported to more than 50 countries and regions, including America, European and other developed countries. To meet the growing market needs, we keep launching numerous innovative product concepts. "Chasteness, Carefulness, Patience and Permanent Fine Quality" is our company's entrepreneurial spirit, which is embodied in our sustainable progress in cooperation with customers, partners, internal staff and competitors.

Model	LDR0.009 -0.7	LDR0.013 -0.7	LDR0.017 -0.7	LDR0.025 -0.7	LDR0.035 -0.7	LDR0.05 -0.7
Item
Rated steam capacity(Kg/h)	9	13	17	25	35	50
Geometric volume(L)	14	16			29
Rated working pressure(MPa)	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temp(°C)	171	171	171	171	171	171
Input power(kW)	6	9	12	18	24	36
Input current(A)	27/9	40.5/13.5	18	27	36	54
Rated voltage(V)	220/380	220/380	380	380	380	380
Water inlet dia(DN)	15	15	15	15	15	15
Steam outlet dia(DN)	15	15	15	15	15	15
Safety valve dia(DN)	15	15	15	15	15	15
Blowdown valve dia(DN)	15	15	15	15	15	20
Overall dimension. L×W×H(mm)	650×390×750			750×450×1080
Net weight(Kg)	68	70	75	90	95	110

Model	LDR0.065 -0.7	LDR0.075 -0.7	LDR0.085 -0.7	LDR0.1 -0.7	LDR0.125 -0.7	LDR0.15 -0.7	LDR0.165 -0.7
Item
Rated steam capacity(Kg/h)	65	75	85	100	125	150	165
Geometric volume(L)	29					29/49	49
Rated working pressure(MPa)	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temp(°C)	171	171	171	171	171	171	171
Input power(kW)	48	54	60	72	90	108	120
Input current(A)	72	81	90	108	135	162	180
Rated voltage(V)	380	380	380	380	380	380	380
Water inlet dia(DN)	15	15	15	15	15	15	15
Steam outlet dia(DN)	15	15	15	20	20	20	20
Safety valve dia(DN)	15	15	15	20	2×15	2×15	2×15
Blowdown valve dia(DN)	20	20	20	20	20	20	20
Overall dimension. L×W×H(mm)	790×550×1160					620×820×1350			620×820×1390
Net weight(Kg)	150	155	158	189	192	210	280

Model	LDR 0.2-0.8	LDR 0.25-0.8	LDR 0.3-0.8	LDR 0.4-0.8	LDR 0.5-0.8
Item
Rated steam capacity (t/h)	0.2	0.25	0.3	0.4	0.5
Rated working pressure (MPa)	0.8 (1.0, 1.25, 1.6, 2.0)
Saturated steam Temp (°C)	175 (184, 193, 204, 213)
Input power (KW)	144	180	216	288	360
Input current (A)	216	270	324	432	540
Rated voltage oil(V)	Made to order
Thermal efficiency (%)	98
Water inlet dia (DN)	20	25	25	25	25
Steam outlet dia (DN)	25	32	32	32	40
Blowdown valve dia (DN)	25	32	32	32	32
Safety valve dia (DN)	25	25	25	32	40
Overall dimension. L×W×H (mm)	750×850×1600			1080×1350×2100			1210×1250 ×2310
Net weight (kg)	450	480	760	890	1020

Your Dedicated Sales Manager：Ms.Penny Poon

Here is my business card.
I am responsible for your pre-sales consultation,after-sales support and order follow-up.
We provide professional solutions & best service.Contact me anytime.I'm always online.ThanksuD83DuDC97

Products Description

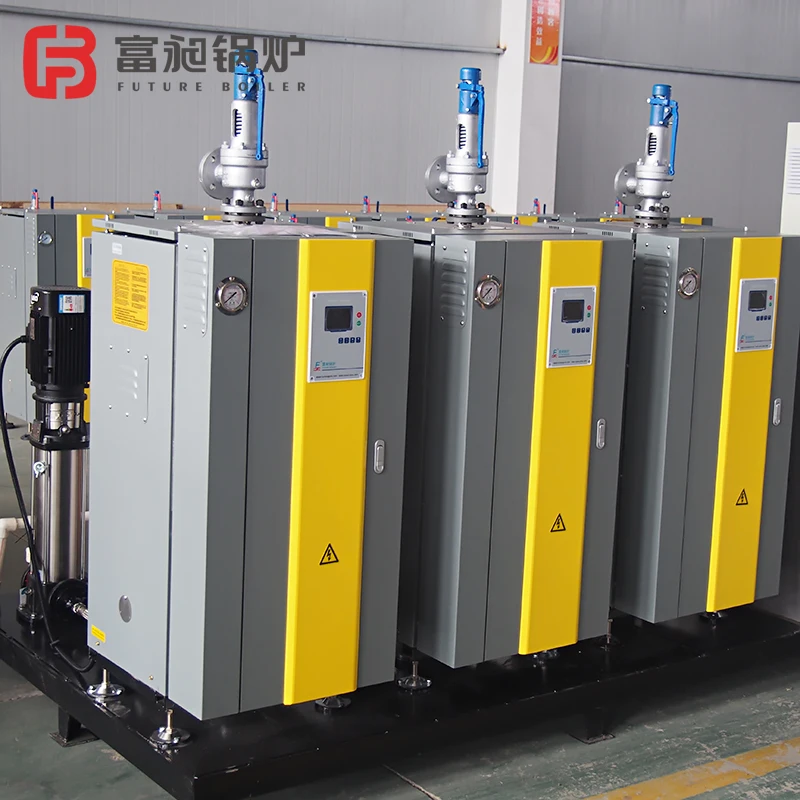

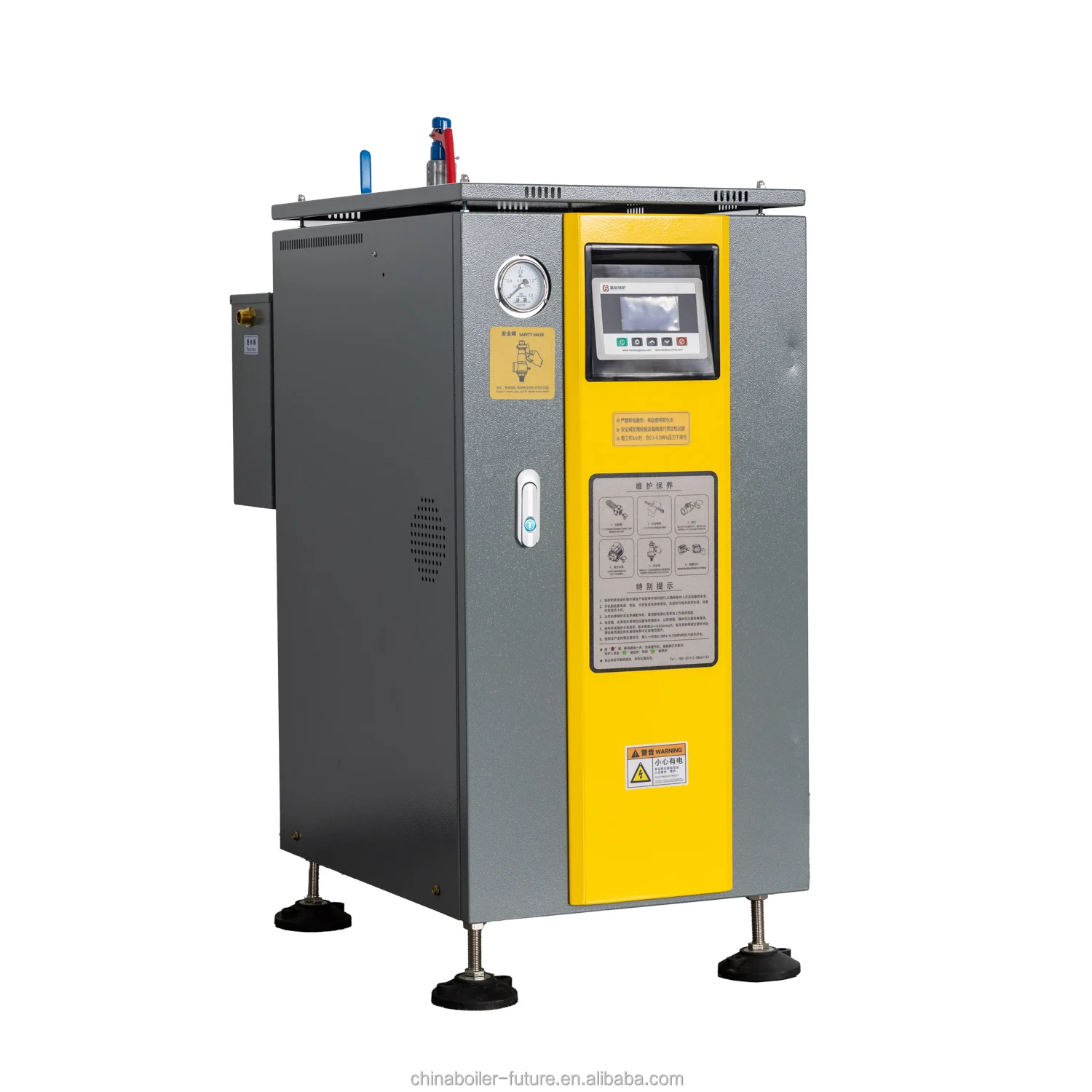

Mini Electric Steam Generator

Small electric steam generator is run by power energy, no noise and no pollution. Use of high quality heating element, the surface heat load is much lower and the thermal efficiency is higher. This product adopts cabinet design style, elegant appearance, compact internal structure and its ideal for saving space.

Use of titanium alloy heating  elements, it ensures long-term effective operation of the boiler. The warranty is 3 years operation without faults.

Mini Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.

Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.

Products Description

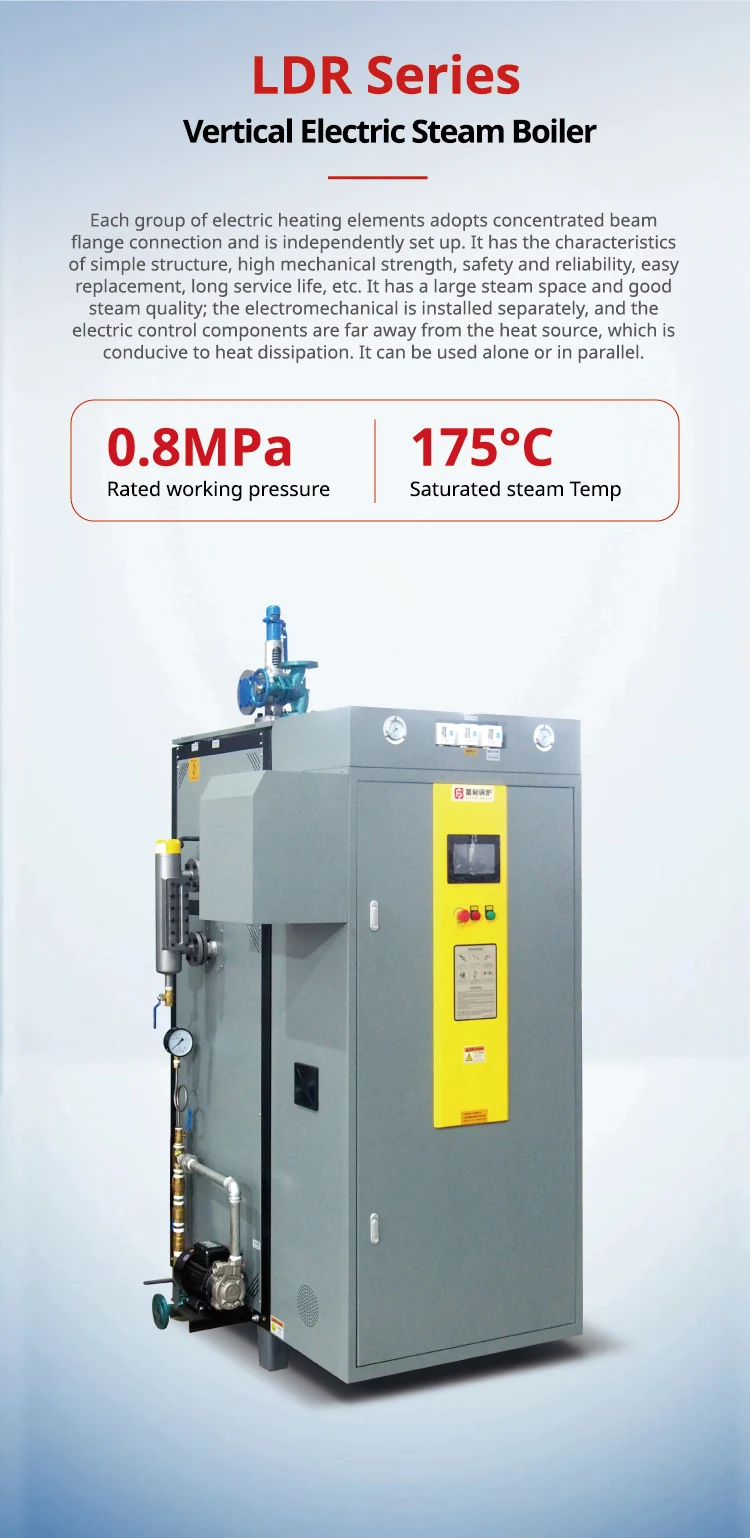

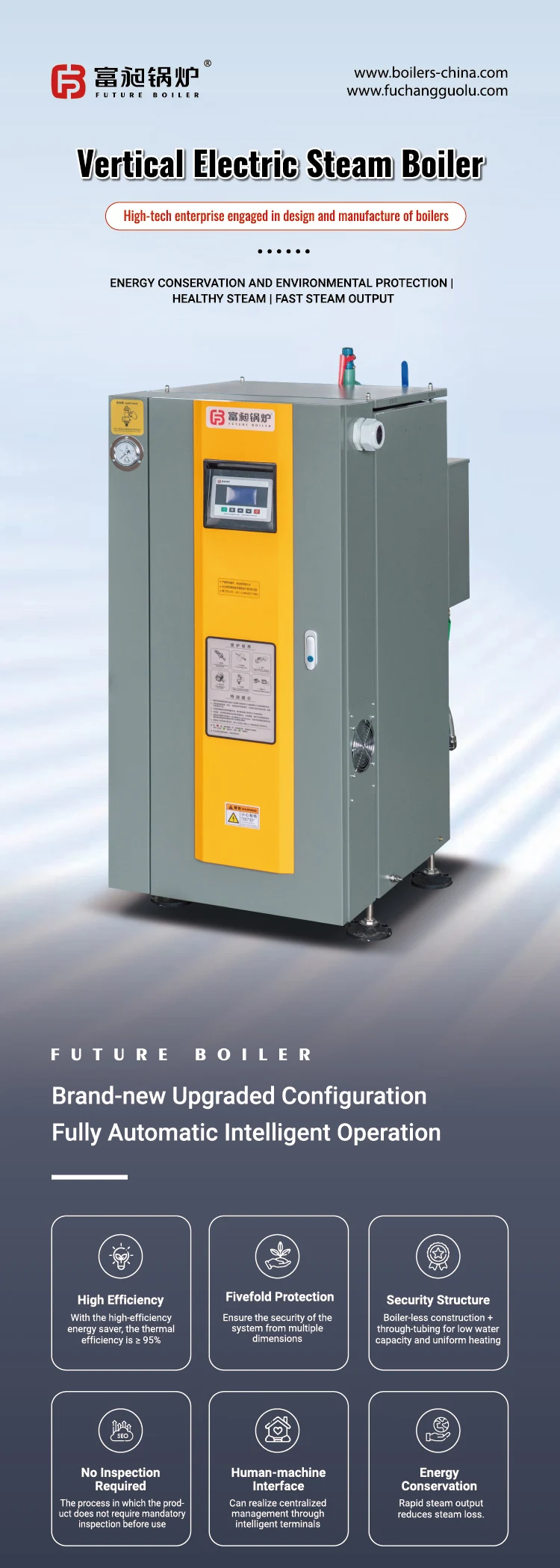

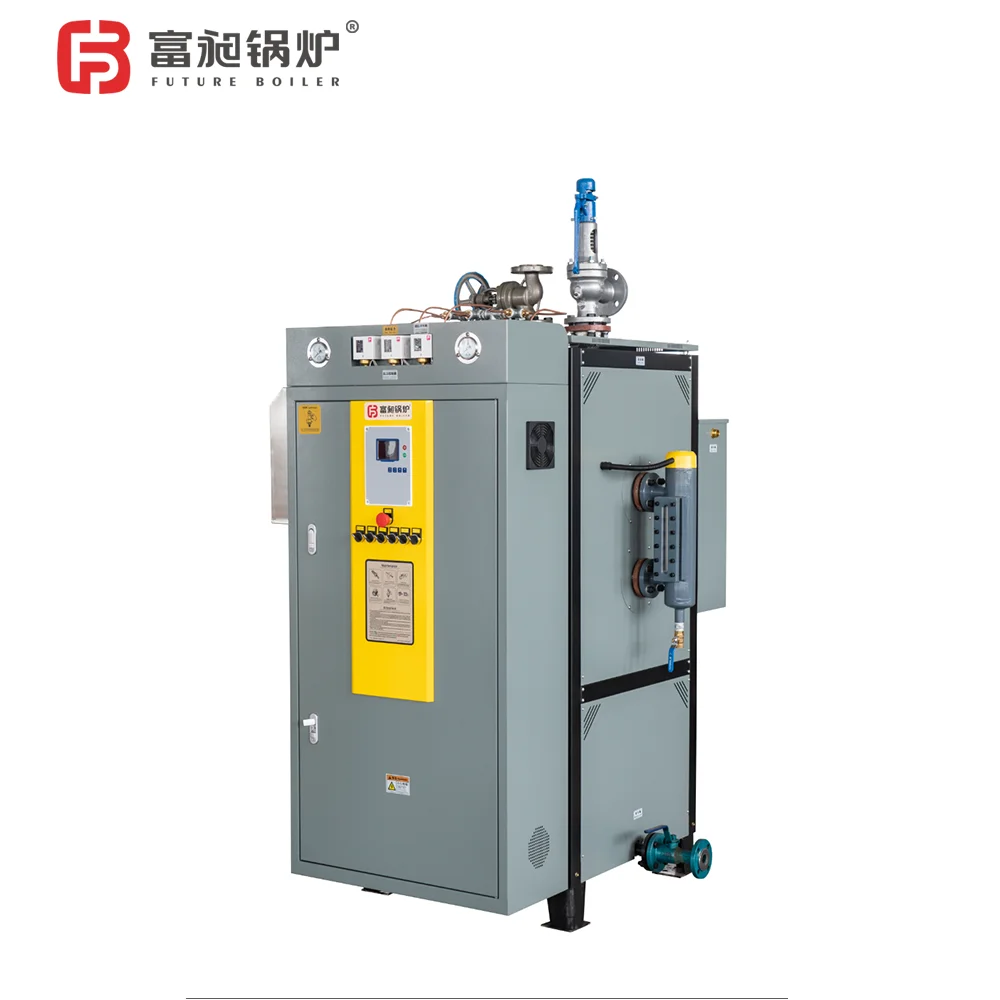

Vertical Electric Steam Boiler

Product Introduction:

Future Electric Steam Boiler has a higher thermal efficiency while radiation loss is minimal. With a carefully calculated heat to steam ratio, operating pressure is achieved quickly with maximum efficiency. Electric boiler has no exhaust going out the stack as associated with fossil fuel; therefore, electric boiler will be environmentally friendly. There is no NOx emission to the atmosphere.

^{The item is excellent absorption of similar products from Europe and USA, the new design is based on domestic actual situations. Specifications from 144KW-360KW will satisfy different usages and needs.}

^{By use of titanium alloy heating elements, high temperature resistance of electric wire is more than 1000°C, the service life is 8-12 times than traditional types, the application of magnesium rod anode technology, it ensures that heating tube difficult to be formed scale, so any other product is incomparable.}

^{Unique built-in steam-water separator solved a problem of steam with water which brought by similar products. And it's also the most significant difference compared with domestic similar products.}

^{All internal piping and boiler control system has been connected before delivering the factory. One-touch automatic control,safety, energy saving, environmental protection, durability, high output and low consumption, meanwhile thermal efficiency as high as 99%.}

Product Paramenters

Model			LDR0.2-0.8	LDR0.25-0.8	LDR0.3-0.8	LDR0.4-0.8	LDR0.5-0.8
Item	Unit
Rated steam capacity	Kg/h	200	250	300	400	500
Rated working pressure	MPa	0.8
Saturated steam temp.	°C	175
Input power	KW	144	180	216	288	360
Input current	A	169.2	235	270	329	547
Thermal efficiency	%	99
Water inlet dia.	DN	20	25	25	25	25
Steam outlet	DN	25	32	32	32	40
Blowdown valve dia.	DN	25	32	32	32	32
Safety valve dia.	DN	25	25	25	32	40
Overalldimension  （L×W×H）	mm	1130×750×1780	950×900×1830	1320×1040×1920	1380×1040×2070	1020×890×2350
Net weight	kg	450	650	760	890	1020

Products Description

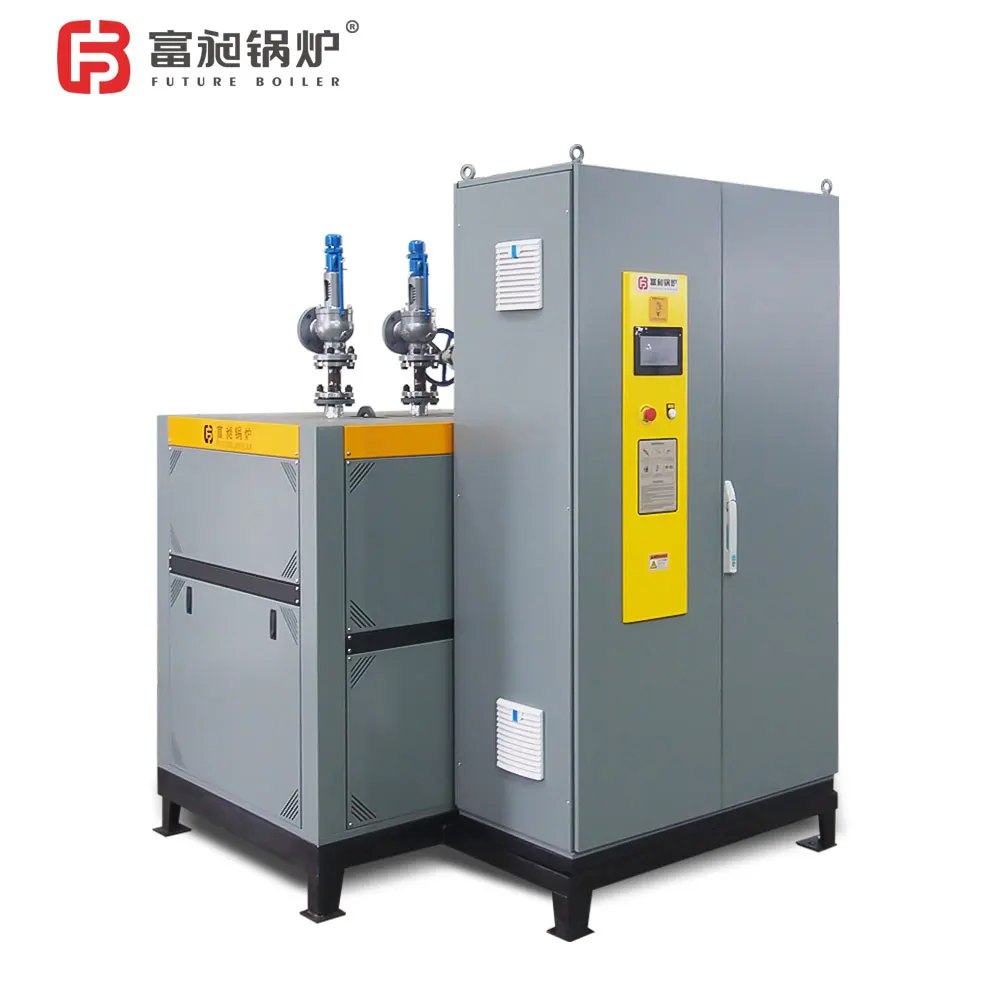

Horizontal Electric Steam Boiler
Product Introduction:

The product is a large-power horizontal steam boiler, furnace and electrical control cabinet is separated, avoiding electrical
components' aging then effect service life, running quiet and meet environmental protection requirements, there is no NOx emission to the atmosphere. Operating with PLC control system, free operating button, free light, touch screen panel, Chinese and English display human-computer dialogue, action authorized, real-time information, and auto turn-page.

PLC control system, automatically adjust the temperature, has six safety protections like over temperature, over load, short circuit, leakage of electricity, shortage of water and shortage of phase. Select excellent electric elements, easy and safe to install and use. Simple human-machine interface, boiler parameters, equipment running status and operation parameters are all displayed on the screen. Fuzzy control technology: minimize the metabolic load infection of heating network at the same time,maximum decrease the consumption of electricity and the heat efficiency is up to 99%.

By use of Titanium Alloy Heating Element, high temperature resistance of electric wire is more than 1000°C, service life is 8-12 times than traditional one, the application of magnesium rod anode technology, it ensures that the heating element difficult to form scale, any other product is incomparable.

Product Paramenters

_{Technical Parameters:}

_{Horizontal Electric Steam Boiler}

Model			WDR0.8-0.8	WDR1-1.0	WDR1.5-1.0	WDR2-1.0	WDR3-1.0	WDR4-1.25
Item	Unit
Rated steam capacity	t/h	0.8	1	1.5	2	3	4
Rated working pressure	MPa	0.8	1.0	1.0	1.0	1.0	1.25
Saturated steam temp.	℃	175	184	184	184	184	194
Input power	KW	576	720	1080	1440	2160	2880
Input current	A	892	1100	1650	2210	3260	4350
Electric voltage	V	380
Water inlet dia.	DN	32	40	40	40	40	40
Steam outlet dia.	DN	40	50	65	65	80	100
Blowdown valve dia.	DN	40	40	40	40	40	40
Safety valve dia.	DN	40	50	50	2×40	2×50	2×50
Overall dimension （L×W×H）	mm	2690×1500×1810	2870×1600×1950	3510×1890×2220	3620×1930×2310	4260×2100×2550	5030×2150×2550
Net weight	kg	2050	2580	3060	3520	4180	4850

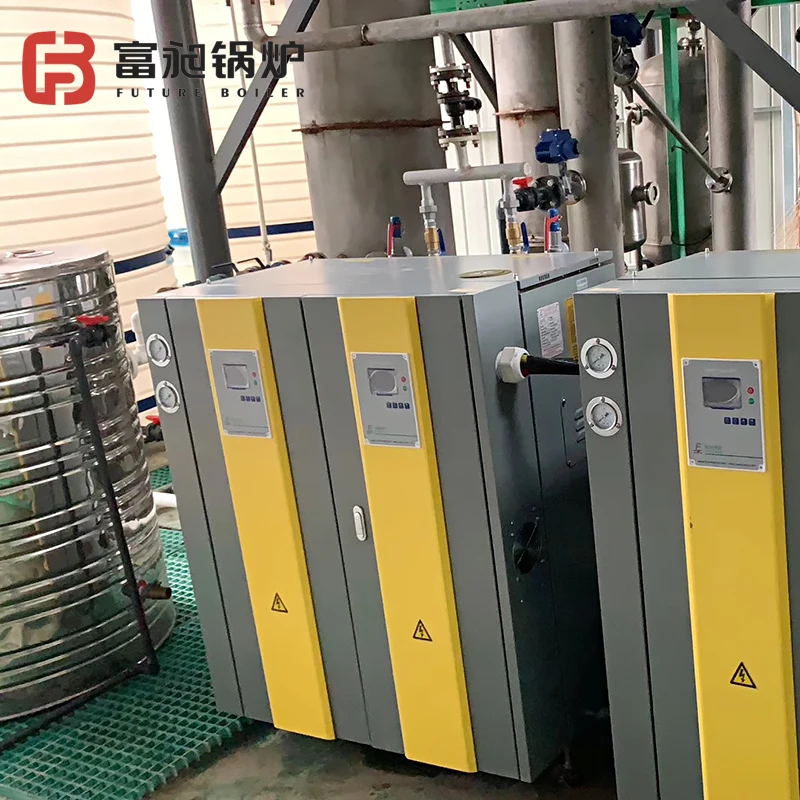

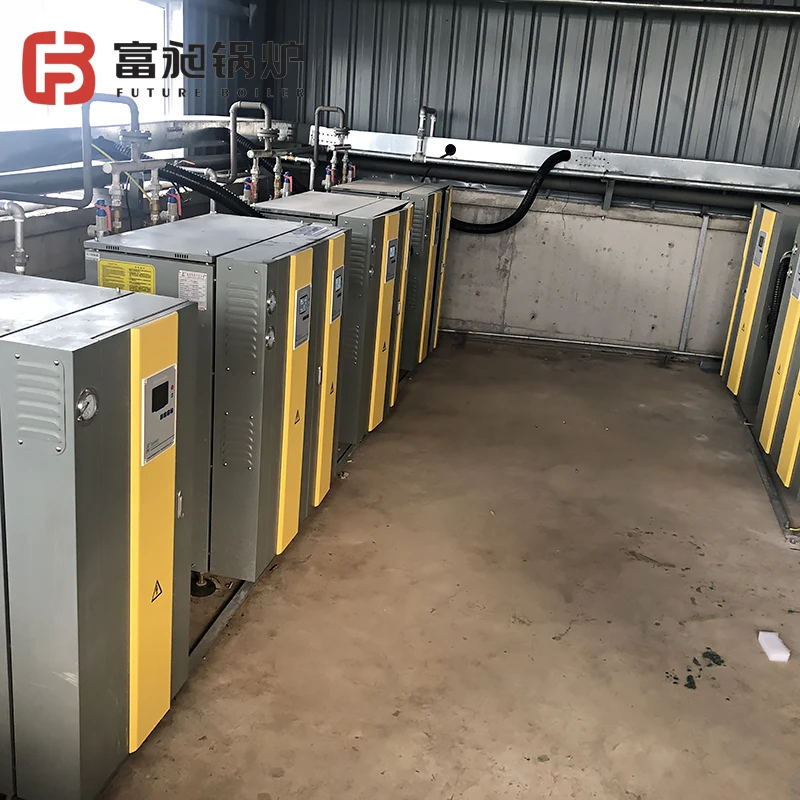

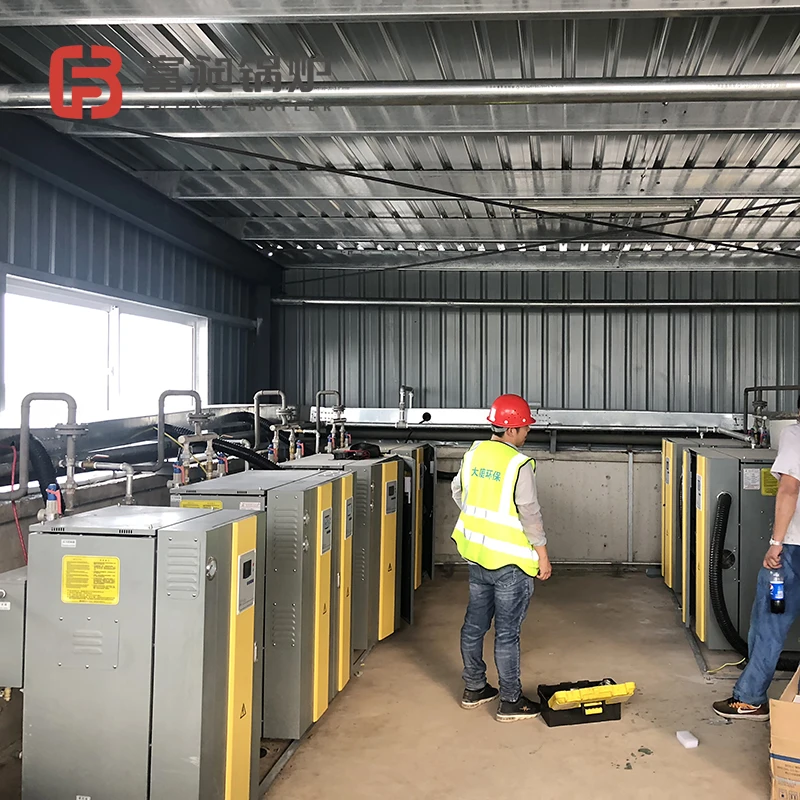

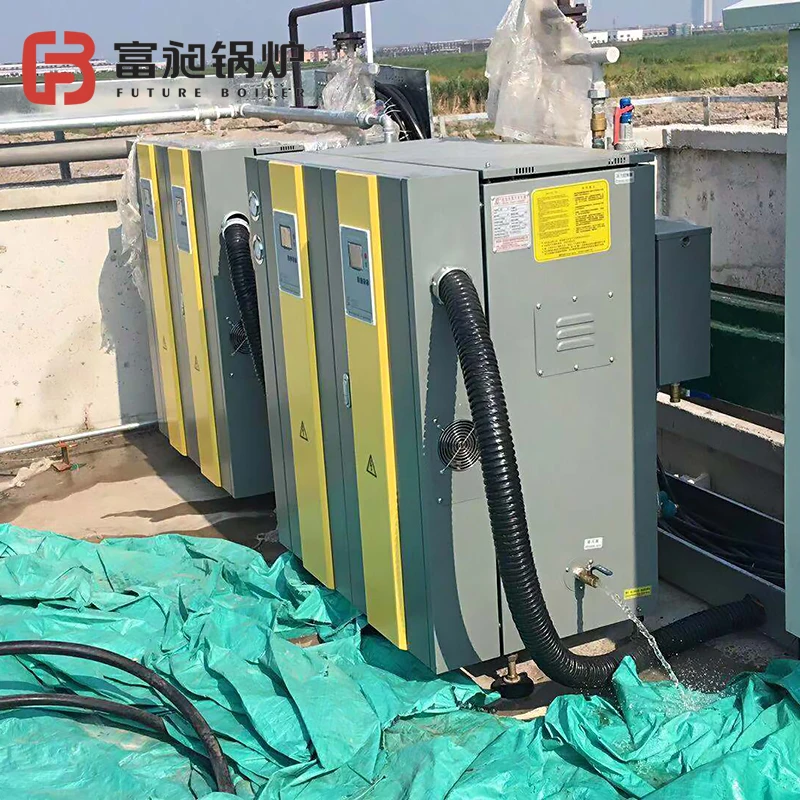

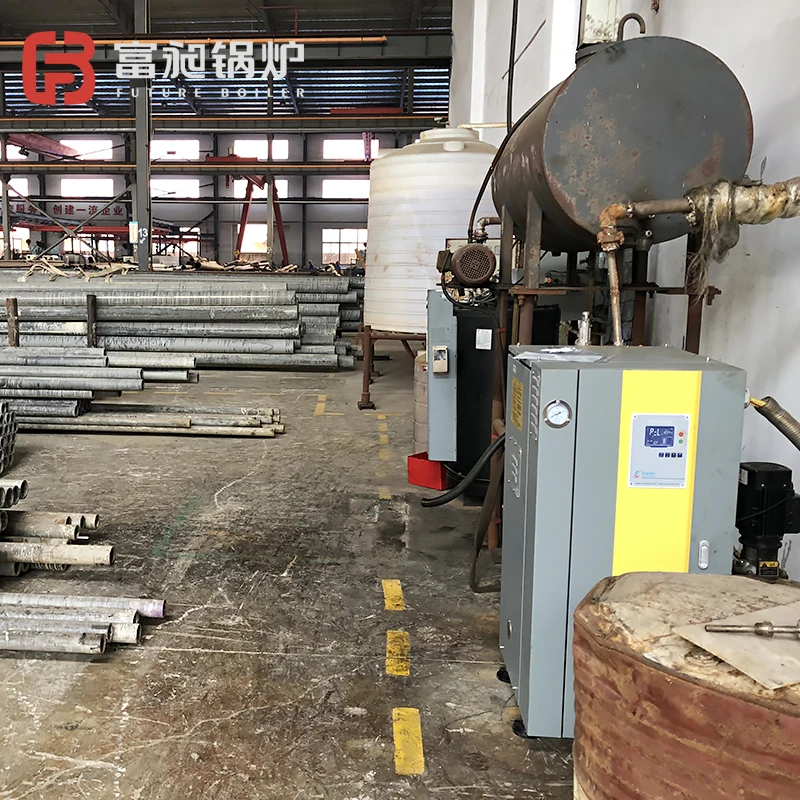

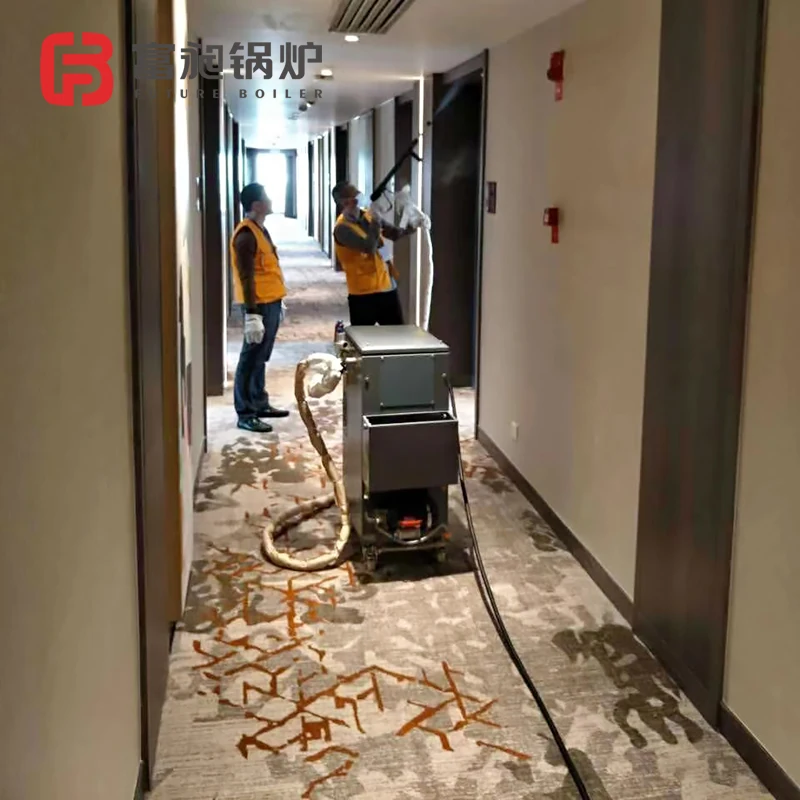

Customer Case

After Sales Service

AFTER SALES SERVICE

All our services have one thing in common. We make your business run better.

Guide Installation Service

Service Content: Check the customer's on-site goods, complete the whole process of installation, commissioning, trial operation and official operation. Term setting: Execute according to the contract. Service details: Our company guides the installation and commissioning of the boiler to ensure the boiler installation quality and commissioning smoothly (service fees are strictly in accordance with our company's charging standards).

Regular Return Visit Service

Service Content: Meet the customer's requirements to carry out the necessary repairs, and collect the feedback information period
setting: the first half of the purchase after the use, return once a month; purchase and use within two years; quarterly return visit; purchase for two years After that, return once a year. Service details: return visits by means of regular door-to-door and telephone calls, to understand the customer's use of the product, to listen to the customer's opinions; to provide quality services to the customer in a timely manner.

Free Training Service

Service Content: Train user side staff time limit: according to the training situations, the trainees are skilled in operation,can only be allowed to operation. Service details: Regularly hold training courses every year, freely train boiler operation management personnel for users to ensure stable and safe operation of boilers. (A separate training course is provided for users with a large number of staff.)

Lifetime Protection Service Content

Provide various types of furnace accessories, respond to the user's maintenance, transformation requirements set: permanent
service details: outside the product quality assurance period, our company still undertakes the after-sales service obligation,that is, to provide customers with product sets and accessories, for customers Solve the problem (the corresponding fee is charged at the cost price).

Our Customer

Our Customer

Future Boiler specializes in compact steam generators, electric steam boilers, oil (gas) fired steam boilers, electric hot water boilers, oil (gas) fired hot water boilers, organic heat carrier boilers, marine boilers and Boiler accessories & auxiliary machines. We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–49 set: US $1450 / set
  • 50–199 set: US $1100 / set
  • 200+ set: US $900 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steam boiler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhangjiagang Future Boiler Manufacture Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhangjiagang Future Boiler Manufacture Co., Ltd. range on HVACR Nexus.
