Steam boiler — type Natural Circulation, certification ASME CE ISO EAC. The complete factory specification follows. Made by Henan Yuanda Boiler Corporation Ltd. (16 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Steam Boiler
- Steam Capacity: 9-360kw;13-500kg
- Warranty: 1 Year
- Certification: ASME CE ISO EAC
- Place Of Origin: Henan, China
- Application: beer and brewery, laundry, cooking
- Type: Natural Circulation
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | electric |
| Pressure | Low Pressure |
| Type | Natural Circulation |
| Core Components | Main body |
| Key Selling Points | Remote Monitoring |
| Style | VERTICAL |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 500 |
| Place Of Origin | Henan, China |
| Brand Name | Yuanda Boiler |
| Dimension(L*W*H) | Depends on Capacity |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Product Name | Electric Industrial Steam Boiler Steam Generator For Cleaning Machine |
| Steam Capacity | 9-360kw;13-500kg |
| Working Pressure | 0.4mpa |
| Steam Temperature | 151°C |
| Design Efficiency (Gas) | 98 % |
| Application | beer and brewery, laundry, cooking |
| Certification | ASME CE ISO EAC |
| Selling Units | Single item |
Product Details

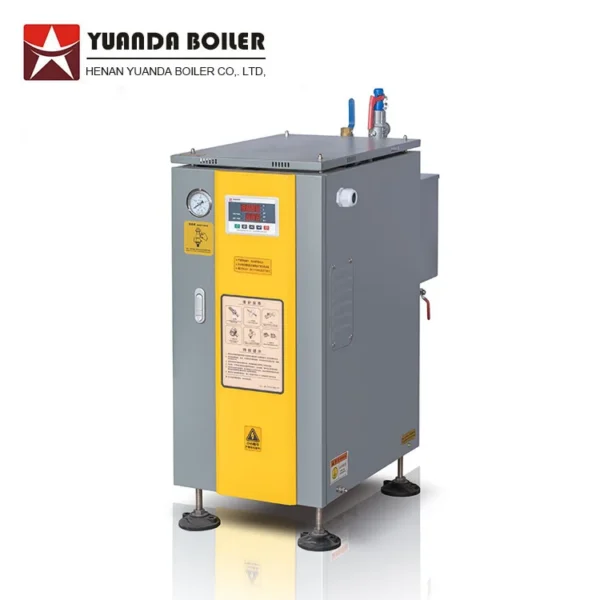

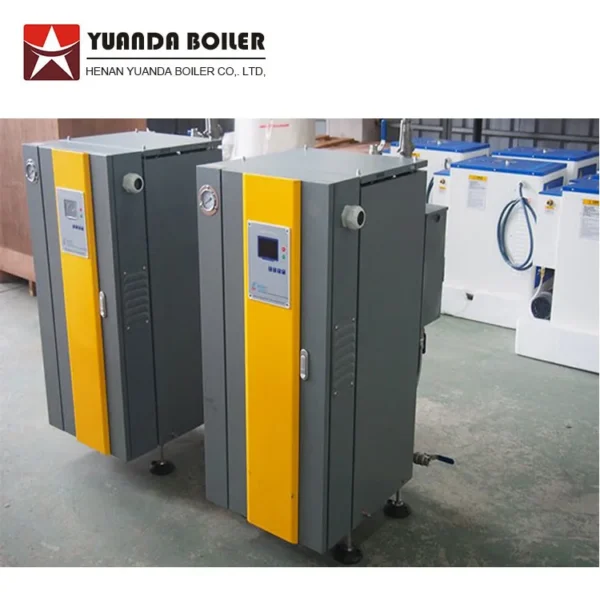

China Factory 9 12 24 25 36 48 60 72 80 96 100 120 150 180 360 kw Electric Steam Boiler
1.Pressure control system
Imported pressure controller circuit, high design stability, high accuracy of red flag pressure gauge, accurate display
2. Thicken stainless steel casing
304 thicken stainless steel shell, using special painting process, the shell is beautiful and durable, can be customized into food grade stainless steel
3.High temperature and high pressure water pump
The high-pressure vortex water pump of the iron body has good corrosion resistance and good passability, and the residual heat of the exhaust gas can be recovered by about 20%.
4.stainless steel heating tube
Wall thickness 1 mm, stamped and sealed, non-ordinary product welding, no leakage, no expansion and long service life
5.Brass liquid level float
Natural magnet copper level controller, anti-oxidation, anti-corrosion, prolongs service life, suitable for multi-water use
6.Stainless steel mechanical float
Stainless steel mechanical float ball has good corrosion resistance, and the ball has a threaded port, which can be replaced and repaired easily.
| Model | Rated capacity | Input power | Rated pressure | Steam temperature | Thermal efficiency | Dimension | Weight |
| Unit | kg/h | kw | Mpa | ℃ | % | mm | kg |
| LDR0.013-0.7 | 13 | 9 | 0.7 | 171 | 99.9 | 650×390×750 | 70 |
| LDR0.017-0.7 | 17 | 12 | 0.7 | 171 | 99.9 | 650×390×750 | 75 |
| LDR0.025-0.7 | 25 | 18 | 0.7 | 171 | 99.9 | 750×450×1050 | 90 |
| LDR0.035-0.7 | 35 | 24 | 0.7 | 171 | 99.9 | 750×520×1050 | 95 |
| LDR0.05-0.7 | 50 | 36 | 0.7 | 171 | 99.9 | 750×580×1150 | 101 |
| LDR0.065-0.7 | 65 | 48 | 0.7 | 171 | 99.9 | 800×580× 1200 | 115 |
| LDR0.075-0.7 | 75 | 54 | 0.7 | 171 | 99.9 | 800×580× 1300 | 140 |
| LDR0.085-0.7 | 85 | 60 | 0.7 | 171 | 99.9 | 800×600× 1300 | 145 |
| LDR0.1-0.7 | 100 | 72 | 0.7 | 171 | 99.9 | 860×650× 1390 | 172 |
| LDR0.11-0.7 | 110 | 80 | 0.7 | 171 | 99.9 | 860×650× 1390 | 185 |
| LDR0.125-0.7 | 125 | 90 | 0.7 | 171 | 99.9 | 860×650× 1430 | 190 |
| LDR0.15-0.8 | 150 | 108 | 0.8 | 175 | 99.9 | 920×760×1600 | 245 |
| LDR0.18-0.8 | 180 | 126 | 0.8 | 175 | 99.9 | 920×760× 1600 | 260 |
| LDR0.2-0.8 | 200 | 144 | 0.8 | 175 | 99.9 | 1130×750× 1780 | 450 |
| LDR0.25-0.8 | 250 | 180 | 0.8 | 175 | 99.9 | 950×900× 1830 | 650 |
| LDR0.3-0.8 | 300 | 216 | 0.8 | 175 | 99.9 | 1320×1040× 1920 | 760 |
| LDR0.4-0.8 | 400 | 288 | 0.8 | 175 | 99.9 | 1380×1040× 2070 | 890 |
| LDR0.5-0.8 | 500 | 360 | 0.8 | 175 | 99.9 | 1020×890× 2350 | 1020 |
1.Ironing washing industry: dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron, etc.
2.Electroplating cleaning industry: bath of plating bath, acid bath, cleaning pool heating constant temperature;
3.Food processing industry: tofu machine, rice noodle machine, steam box, sterilization tank, chartered plane;Application of coating equipment, sealing machine and other equipment;Hotels, enterprises and institutions canteen and various service stations disinfection, steamed rice and water supply and other industries;
4.Biological chemical industry: fermentation tank, reaction kettle, interlayer pot, mixer, emulsifying machine and other supporting use;
5.Packaging machinery industry: the label machine set standard machine supporting use;
6.Other industries :(oil field, automobile) steam cleaning industry, (hotel, dormitory, school) steam heating or hot water supply, (bridge, railway) concrete curing, etc.
Pre-sale service:
1.Free boiler system solution for your project.
2.Free boiler operation cost solution.
3.Free Boiler room design.
On-sale Service:
1.Timely Feedback on Production Status of Boiler & Auxillary Equipment with pictures and vedio;
2.Cooperate with client or third-party testing agency to inspect goods;
3.Provide detailed delivery list and quantity&weight&dimension.
4.Arrange shipping with our stable cooperate shipping if client have need.
5.Provide a full set of boiler factory documents (shipped with the goods):
General drawing;Boiler body drawing;Installation drawings; Foundation drawings; Installation and operation instructions;Summary table of strength calculation of pressure components;Quality certificate and Inspection certificate.
After-sale Service:
1.One year warranty with lifelong service.
2.Provide engineer abroad installation and commissoning service.
3.Provide boiler operator training service.
4. Provide boiler repair and maintenance services.
5.Provide original parts service.
Henan Yuanda Boiler Corporation Ltd, established in 1956. It is one of the leading boiler manufacturers which first obtained China boiler manufacturing license. We have A Class boiler license, D Class pressure vessel license and boiler installation, commissioning & maintenance license. Our company participated in drafting several national boiler standards, and has more than 60 patents.We have ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001:2007 Occupational Health And Safety Management System Certificates. In the past few years, we were awarded the "Civilized and Honest Enterprise" many times.we are a high-tech enterprise integrating R&D, manufacturing, sales and service.
We have ASME certificate for United states, Canada,Australia,Malaysia,Singapore,South Africa,etc; CE certificate for EU countries and EAC certificate for Russia, Uzbekistan, Kazakhstan, Kyrgyzstan,etc. Till now, our products have exported to 130+ countries all around the world. Our projects cover a variety of industries,such as food & beverage factory, textile & garment factory, chemical factory, Paper & packaging factory,hospitals, hotels,etc.
For more than 60 years, our company is committed to R&D and production of low-nitrogen, energy saving and intelligent boilers. We have the independent intellectual property rights of the boiler internet of Things DCS Data System. We Consists of special business Dept including technology center, manufacturing center, intelligent automation control center, engineering installation & maintenance service center, worldwide marketing center,and contract energy management center. Among them, our engineers has serviced 50+ countries abroad.
Our company keep the business philosophy of "Quality Oriented, Sincerity Promoted" to create greater value for customers and make greater contributions to the society.
Company Target : Be Century-old Enterprise, Create International Brand!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this steam boiler carry?
It is supplied with ASME CE ISO EAC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
