Key specification for this hot water boiler: type Natural Circulation. Everything below is reproduced from the factory data sheet. Made by Henan Yuanda Boiler Corporation Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Hot Water Boiler
- Thermal Power: 0.35 0.48 0.7 1.25 1.4 MW
- Warranty: 1 Year
- Certification: Boiler Manufacture Certificate, ISO and other certificates.
- Place Of Origin: Henan, China
- Type: Natural Circulation
- Weight (Kg): 1000
Technical Specifications
| Output | Hot Water |
|---|---|
| Usage | Industrial |
| Fuel | natural gas |
| Pressure | Max. 1.0MPa |
| Structure | Water Tube |
| Type | Natural Circulation |
| Core Components | Boiler main body |
| Key Selling Points | Energy Saving |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 1000 |
| Place Of Origin | Henan, China |
| Brand Name | Yuanda Boiler |
| Dimension(L*W*H) | Depends on Boiler Capacity |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Thermal Power | 0.35 0.48 0.7 1.25 1.4 MW |
| Heat Exchanger | seamless |
| Return Water Temperature | 50degree |
| Product Name | Vacuum Boiler 350Kw Hot Water Boiler For School |
| Certification | Boiler Manufacture Certificate, ISO and other certificates. |
| Selling Units | Single item |
Product Details

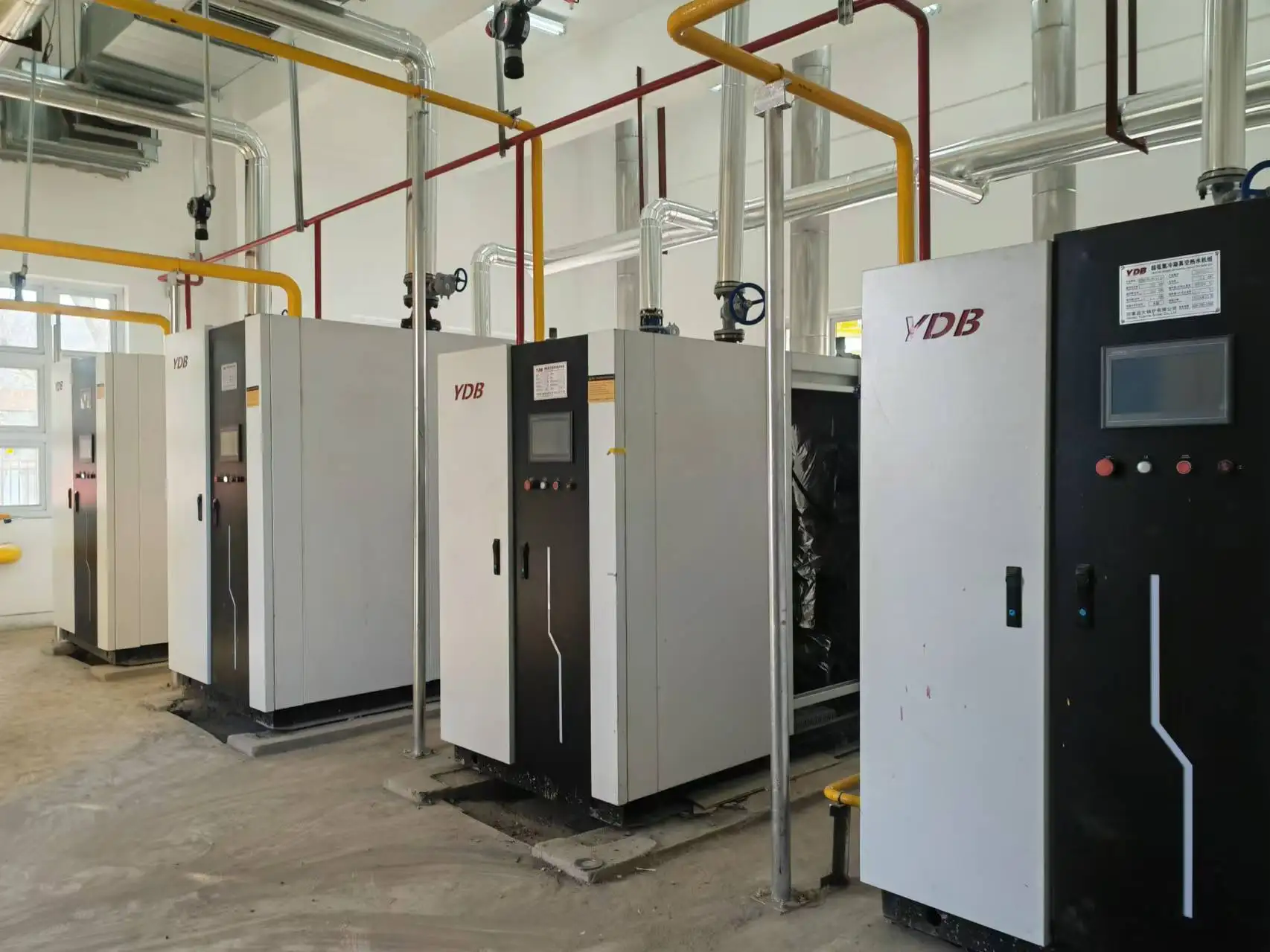

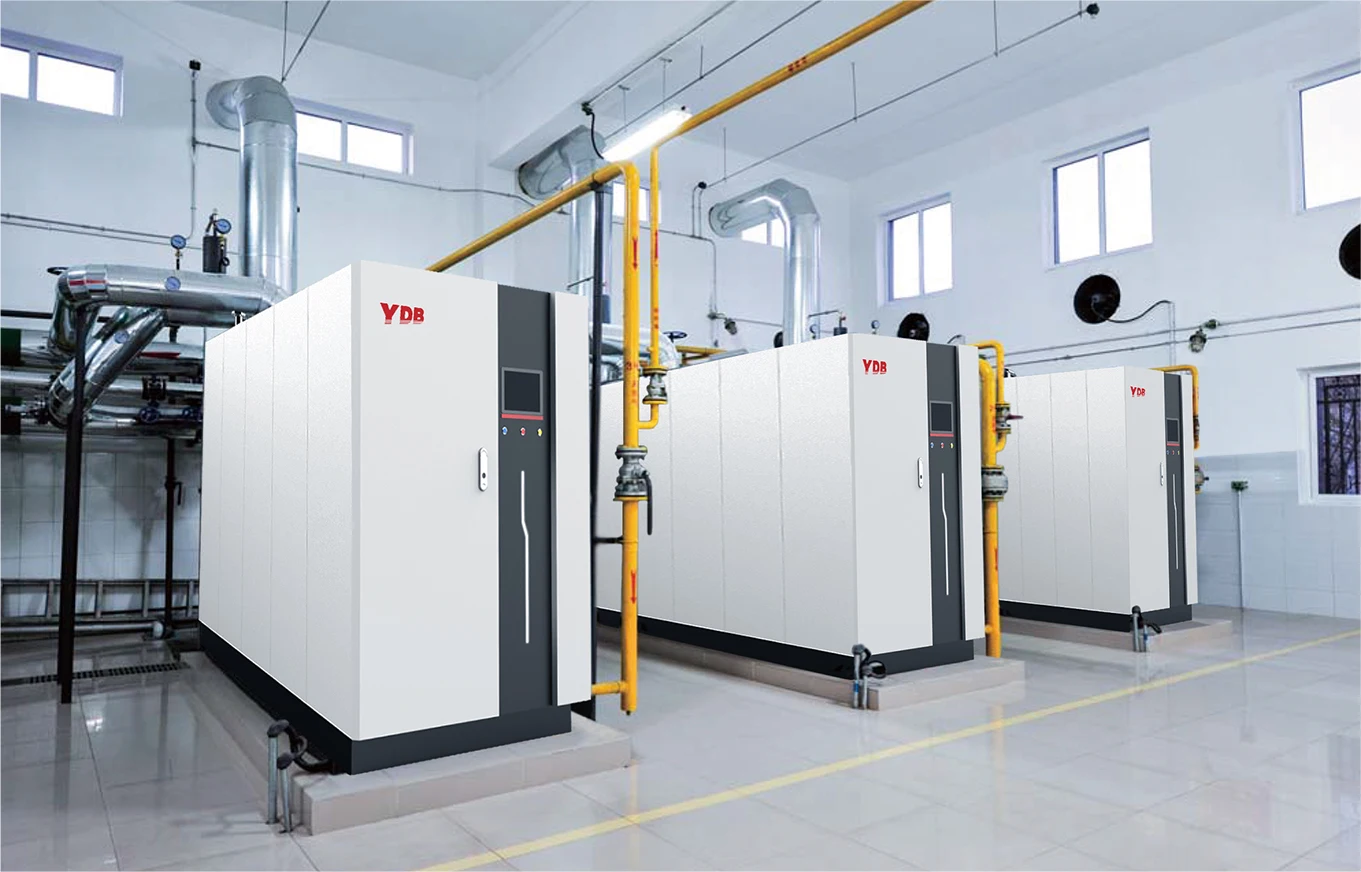

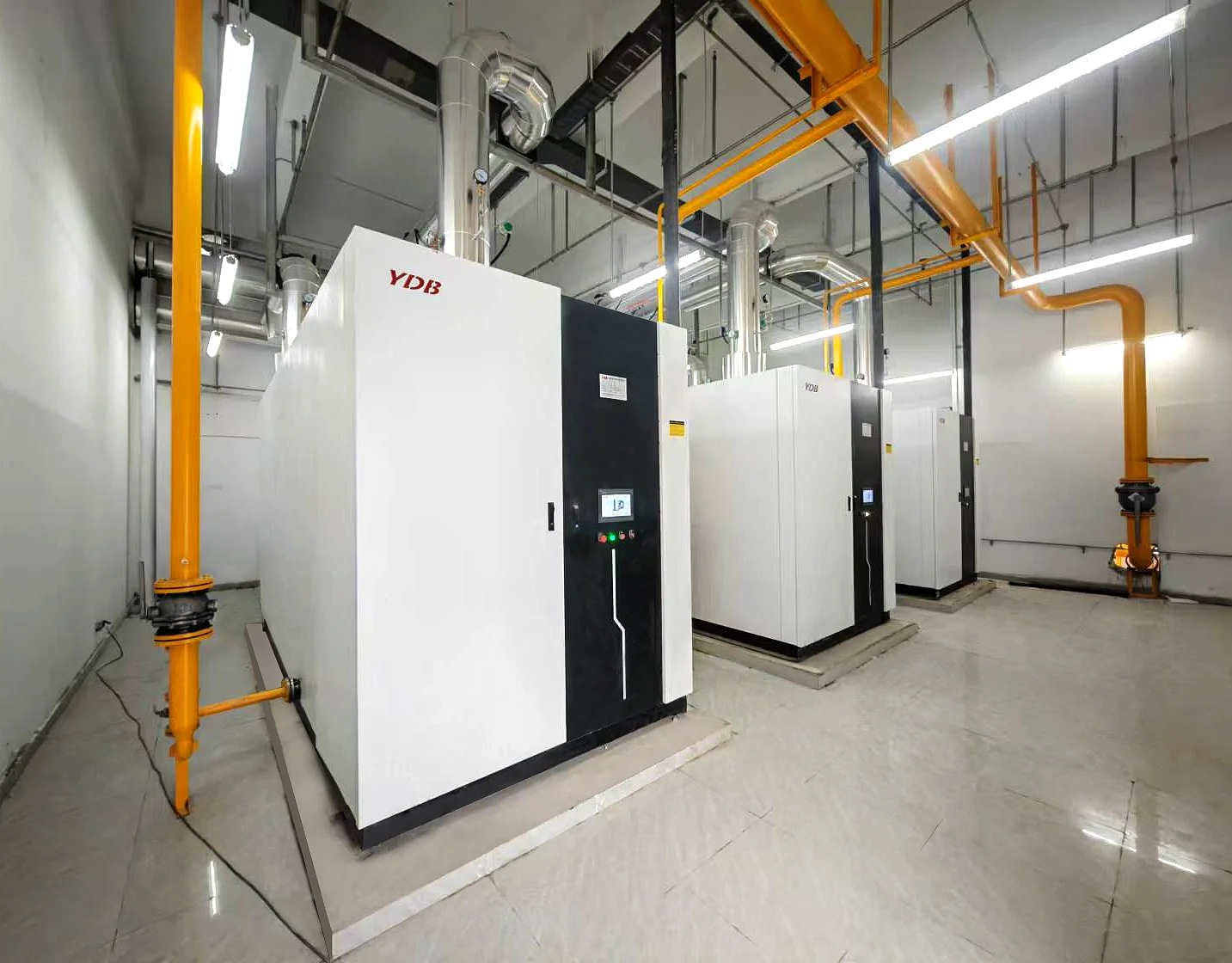

The YDB ultra-low nitrogen premixed condensing hot water boiler unit is a low-nitrogen premixed gas integrated hot water boiler jointly developed by Henan Yuanda Boiler Corporation Ltd. and the School of Energy and Power of Xi'an Jiaotong University.
The expert team of Xi'an Jiaotong University conducted a large number of calculations, simulations and emulations through computers, and then conducted repeated tests through the gas combustion test platform of Yuanda Boiler. They created a unique "comb-type" burner structure, highly coupled the burner and the boiler, and then made comprehensive use of air cooling and water cooling technology to make the unit's nitrogen oxide emissions less than 30mg under all working conditions.
The ultra-low nitrogen premixed condensing hot water unit has multiple functions such as heating hot water and sanitary hot water, and can provide multiple hot water according to user requirements. The boiler combustion chamber structure adopts a full-membrane wall natural circulation water tube single-return structure. The unique water tube single-return structure has a more compact water tube arrangement and a high flue gas heat transfer coefficient. The normal operating water volume of the boiler is only one-third of that of the fire tube boiler, and the boiler heats up faster. The boiler adopts post-premixed combustion technology, and a combination of air cooling and water cooling to reduce the flame temperature and achieve ultra-low nitrogen emissions.
(1) The boiler operates under negative pressure, without explosion risk:
(2) The burner adopts post-pre-wetting combustion, and no deflagration will occur:
(3) The special combustion head has a double anti-backfire structure and does not backfire;
(4) The valve group has an automatic leak detection function;
(5) It has multiple over-humidity and over-pressure interlocking protection such as outlet water temperature, boiler water temperature, exhaust gas temperature, and furnace body pressure;
(6) The ultimate mechanical explosion-proof device automatically opens when the set pressure is exceeded.
| Boiler capacity | *104kcal | 30 | 60 | 90 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | 900 | 1200 |
| kw | 350 | 700 | 1050 | 1400 | 2100 | 2800 | 3500 | 4200 | 5600 | 7000 | 10500 | 14000 | |
| Power distribution | KW | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 37 | 55 |
| Gas consumtion | m3 | 33 | 67 | 100 | 133 | 200 | 266 | 333 | 401 | 532 | 665 | 998 | 1330 |
| Combustion adjustment method | Electronic proportional regulation | ||||||||||||
| Thermal efficiency | >105% | ||||||||||||
| Output/Return water temperature | Vacuum | 80/60 60/50 | |||||||||||
| Normal pressure | 60/50 | ||||||||||||
1. High thermal efficiency——Save gas consumtion.
The burner can operate stably at a low excess air coefficient. It adopts air preheating and condensation heat exchange technology, with a lower exhaust temperature and a thermal efficiency of up to 109%.
2.Ultra-low nitrogen emission——Environmental friendly.
NOX emissions under all operating conditions are less than 30mg, fully applicable to the most stringent emission standards.
3.Integrated design of boiler control and burner control——More convenient and intelligent.
The burner adopts electronic proportional adjustment, which is simpler to operate and more convenient to use. The controller has functions such as circulation pump control, timing function, and climate compensation.
4.More safety measures, no explosion safety risks——Safty.
It has multiple over-temperature and over-pressure interlocking protections such as outlet water temperature, boiler water temperature, exhaust gas temperature, furnace pressure, etc.
Warranty:
One-year warranty and full-life service for all of our steam boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda boilers
Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing.
Maintenance and repair for one year.
Henan Yuanda Boiler Corporation Ltd, established in 1956. It is one of the leading boiler manufacturers which first obtained China boiler manufacturing license. We have A Class boiler license, D Class pressure vessel license and boiler installation, commissioning & maintenance license. Our company participated in drafting several national boiler standards, and has more than 60 patents.We have ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001:2007 Occupational Health And Safety Management System Certificates. In the past few years, we were awarded the "Civilized and Honest Enterprise" many times.we are a high-tech enterprise integrating R&D, manufacturing, sales and service.
We have ASME certificate for United states, Canada,Australia,Malaysia,Singapore,South Africa,etc; CE certificate for EU countries and EAC certificate for Russia, Uzbekistan, Kazakhstan, Kyrgyzstan,etc. Till now, our products have exported to 130+ countries all around the world. Our projects cover a variety of industries,such as food & beverage factory, textile & garment factory, chemical factory, Paper & packaging factory,hospitals, hotels,etc.
For more than 60 years, our company is committed to R&D and production of low-nitrogen, energy saving and intelligent boilers. We have the independent intellectual property rights of the boiler internet of Things DCS Data System. We Consists of special business Dept including technology center, manufacturing center, intelligent automation control center, engineering installation & maintenance service center, worldwide marketing center,and contract energy management center. Among them, our engineers has serviced 50+ countries abroad.
Our company keep the business philosophy of "Quality Oriented, Sincerity Promoted" to create greater value for customers and make greater contributions to the society.
Company Target : Be Century-old Enterprise, Create International Brand!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hot water boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this hot water boiler carry?
It is supplied with Boiler Manufacture Certificate, ISO and other certificates. documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
