The steam boiler listed here carries material Special steel for boilers, type Natural Circulation, documented exactly as the manufacturer publishes it. Made by Zhengzhou Dabonn Energy Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Steam Boiler
- Rated Capacity: 1T/h 10T/h 20T/h 30T/h
- Material: Special steel for boilers
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Textile Industry,Greenhouse Heating,
- Type: Natural Circulation
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Biomass, Rice Husk,Straw |
| Pressure | Max. 1.25MPa |
| Structure | Water-fire Tube |
| Type | Natural Circulation |
| Material | Special steel for boilers |
| Core Components | PLC, Gearbox |
| Key Selling Points | Low Maintenance Cost, Remote Monitoring, Easy to Operate |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 9860 |
| Place Of Origin | Henan, China |
| Brand Name | DBE |
| Dimension(L*W*H) | According to the boiler capacity |
| Product Name | Wood Pellet Fired Steam Boiler |
| Rated Capacity | 1T/h 10T/h 20T/h 30T/h |
| Application | Textile Industry,Greenhouse Heating, |
| Item | Chain Grate Stoker, Single Drum, Water-fire Tube Steam Boiler |
| Design Advantage | Custom Boiler Design |
| Keywords | Horizontal Single Drum Steam Boiler |
| Advantages | Automatic Biomass Boiler |
| Name | Biomass Fired Boiler |
| Function | Renewable Energy, Sustainable Heating |
| Rated Thermal Efficiency | ≥85% |
| Selling Units | Single item |
Product Details
Biomass Coal Steam Boiler

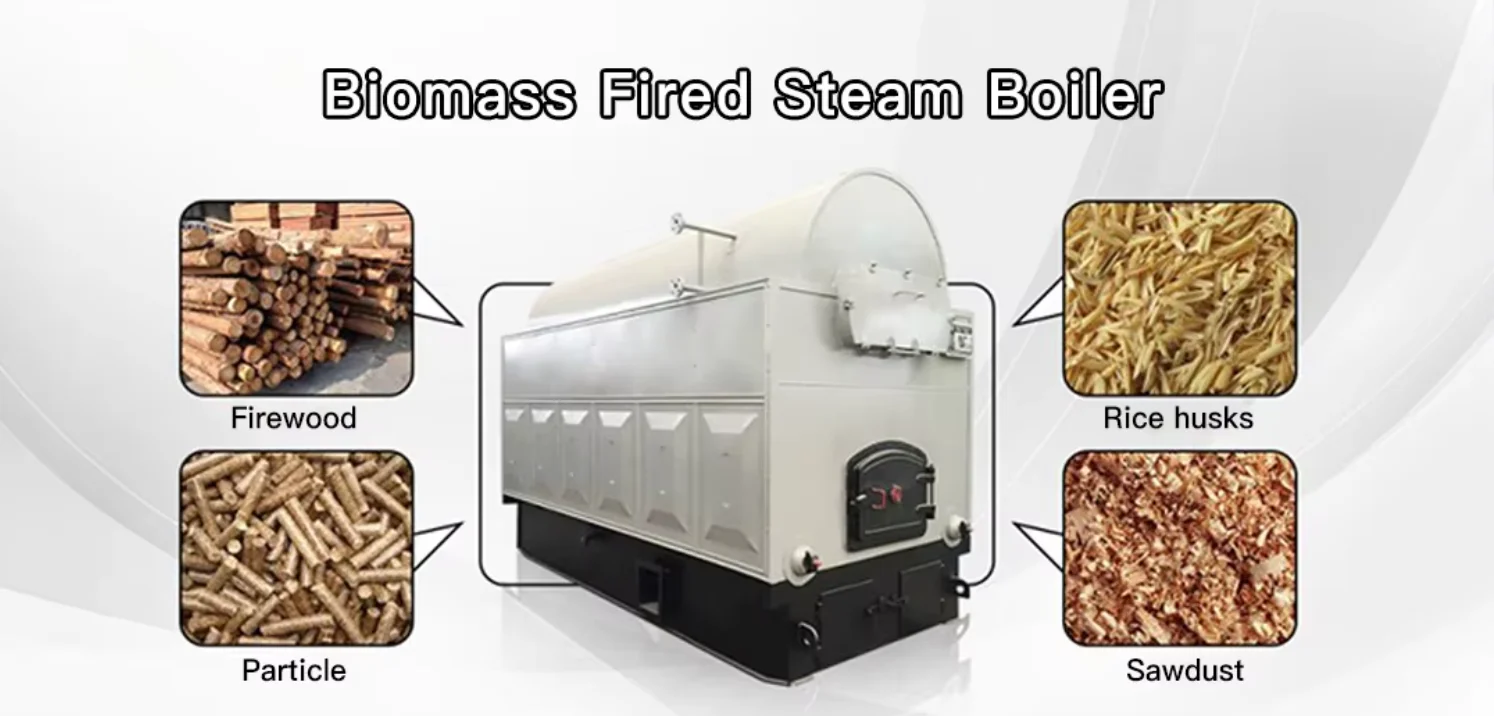

- Multi-Fuel Ready: Burns wood pellets, rice husk, bagasse, palm kernel shell, coconut shell, wood chips, straw and biomass briquettes – switch fuel without changing the boiler.
- Fully Automatic Control: PLC + touch screen control, auto feeding, auto ignition, auto water level and pressure control – one-button operation.
- Customized For Your Project: Capacity 1-40 t/h, pressure 0.7-2.5 MPa, fuel type, voltage and installation layout all customized to your plant.
- Every unit is built to ASME / ISO / CE standards with full radiography inspection on all pressure welds.
标题
Our biomass fired steam boiler is a complete industrial steam solution designed for factories that want to replace coal or oil boilers with renewable, low-cost energy. Built on our proven DZL (chain grate) and SZL (water tube chain grate) platforms, this wood pellet steam boiler and multi-fuel biomass boiler burns rice husk, bagasse, palm kernel shell (PKS), coconut shell, wood chips, sawdust, straw and biomass briquettes with stable steam output and minimal maintenance.
Certified Quality You Can Trust
1. A-Grade Boiler Manufacturing License (China's highest tier)
2. ASME / ISO / CE certified
3. 107+ technical patents in combustion, heat transfer, and control systems
Designed and manufactured under China A-class boiler license with 120+ patents: explosion-proof structure, multiple safety valves, low-water and over-pressure protection, and complete pressure-part quality records. Every boiler is hydro-tested before shipment.
标题
Customization – Built For Your Factory：Every project is different, and we build every boiler to match:
Capacity & pressure: from 1 t/h to 30 t/h, pressure 0.7-2.5 MPa or higher, saturated or superheated steam.
Fuel: tuned combustion system for your specific biomass fuel, including moisture and ash content analysis.
Power supply: customized voltage, frequency and control logic for your country (380V/50Hz, 440V/60Hz, 480V/60Hz…).
Climate & location: high-altitude, coastal anti-corrosion, desert and cold-climate versions.

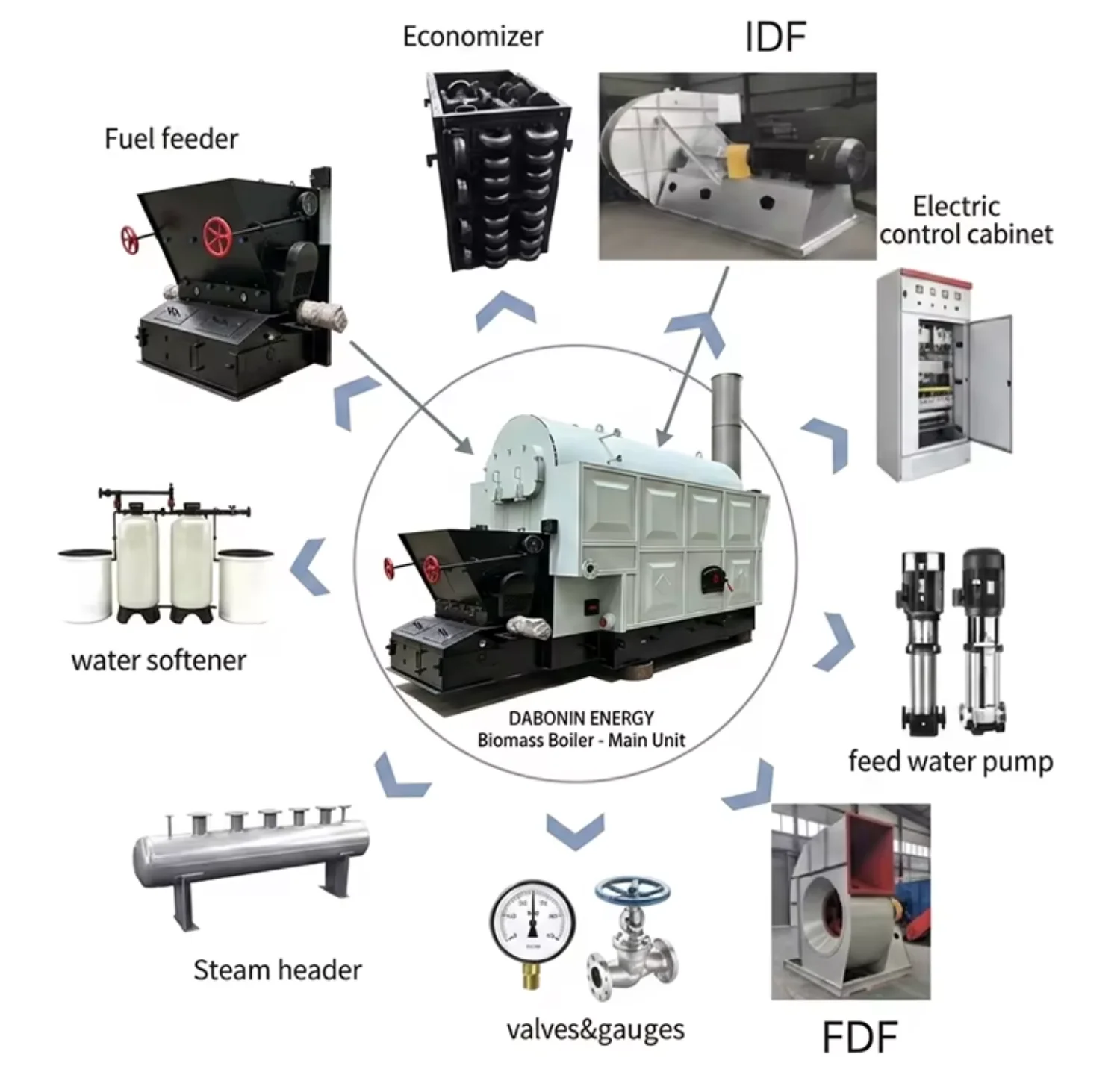

System integration: heat exchangers, steam accumulators, water treatment, chimney and fuel handling system as a complete turnkey package.
Boiler model | Rated capacity | Rated pressure | Rated tempe- | Exhaust tempe- | Thermal efficiency | Fuel comsum- | Design weight | Design dimension |
ton/h | Mpa | ℃ | ℃ | % | kg | ton | mm | |
DZL1 | 1 | 1.25/1.6/2.5/3.82 | 194/204226/450 | 109 | >82 | 187 | 15.2 | 5230*2000*2780 |
DZL2 | 2 | 131 | 375 | 23.8 | 5950*2400*3150 | |||
DZL4 | 4 | 140 | 758 | 27 | 6829*2620*3524 | |||
DZL6 | 6 | 139 | 1125 | 40 | 8170*3180*3804 | |||
DZL8 | 8 | 138 | 1508 | 45 | 8130*3300*3950 | |||
SZL10 | 10 | 153 | 2150 | 24 | 7645*3180*3526 | |||
SZL12 | 12 | 149 | 2400 | 24.3 | 9258*3294*3524 | |||
SZL15 | 15 | 150 | 2568 | 24.7 | 11010*3300*2200 | |||
SZL20 | 20 | 148 | 4267 | 26 | 16680*6200*8420 | |||
SZL25 | 25 | 151 | 4675 | 26.5 | 17550*7300*8900 | |||
SZL30 | 30 | 147 | 5610 | 27 | 18230*7600*9200 | |||
SZL40 | 40 | 152 | 7450 | 27.8 | 18750*8500*9600 |

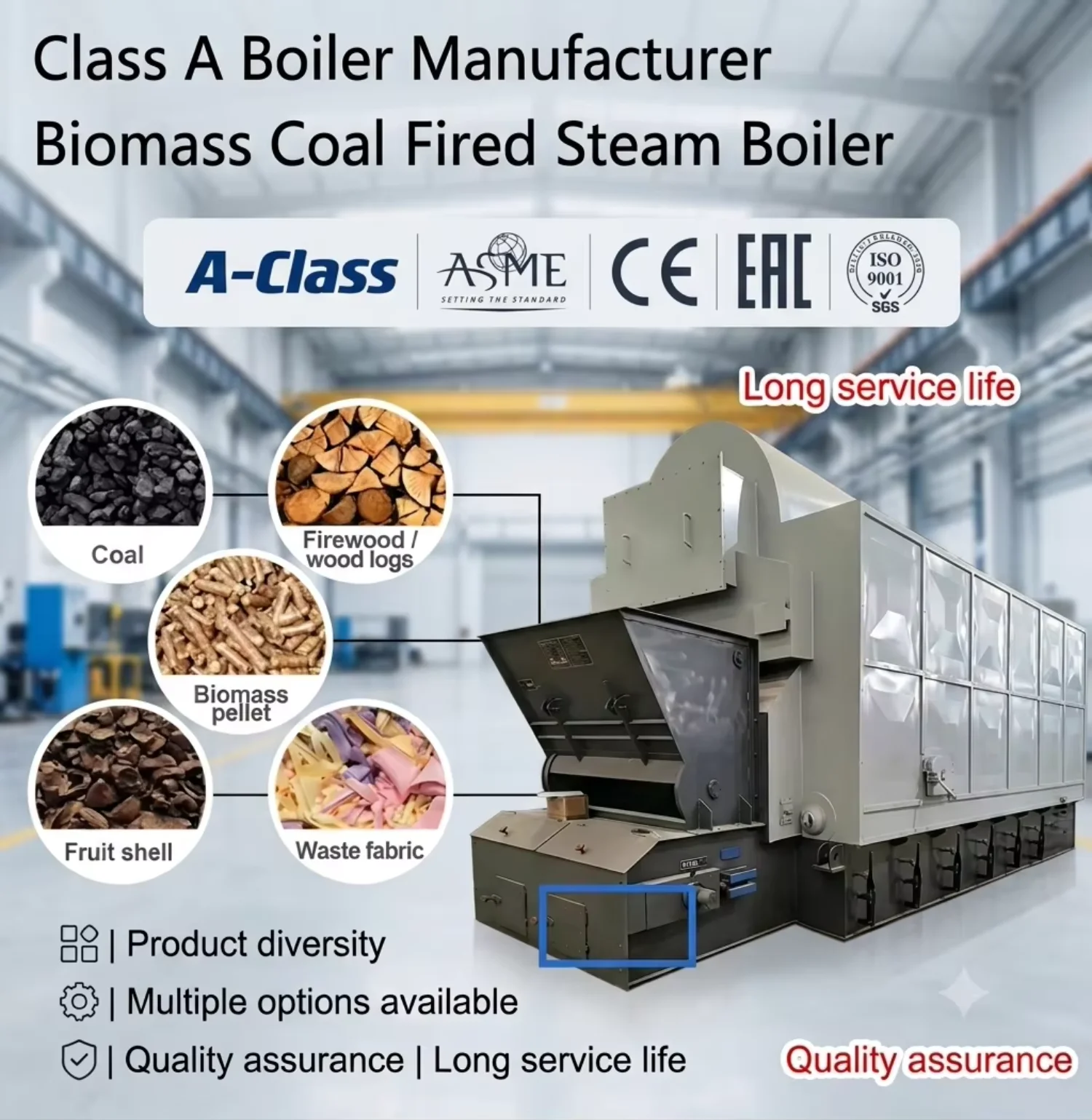

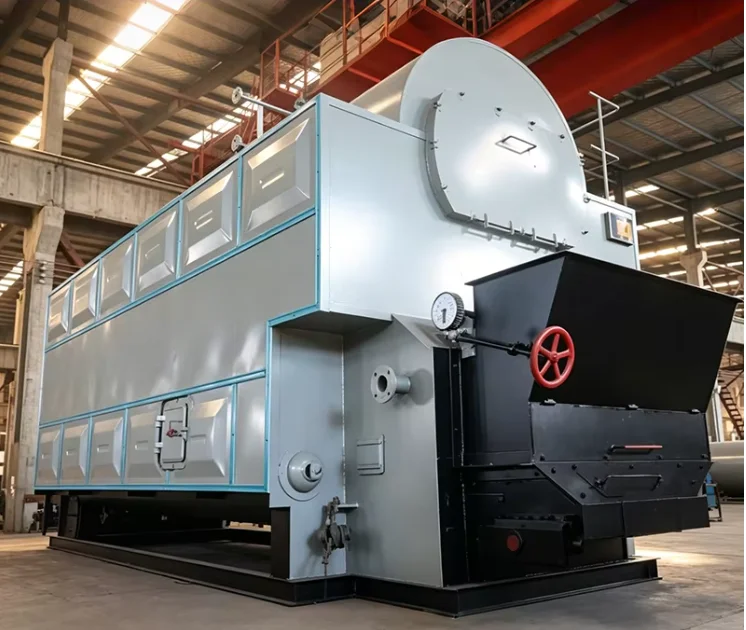

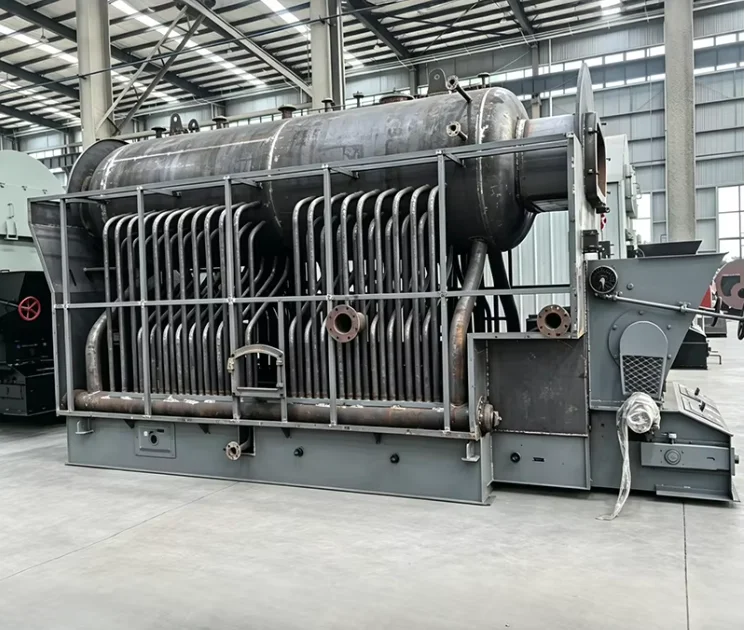

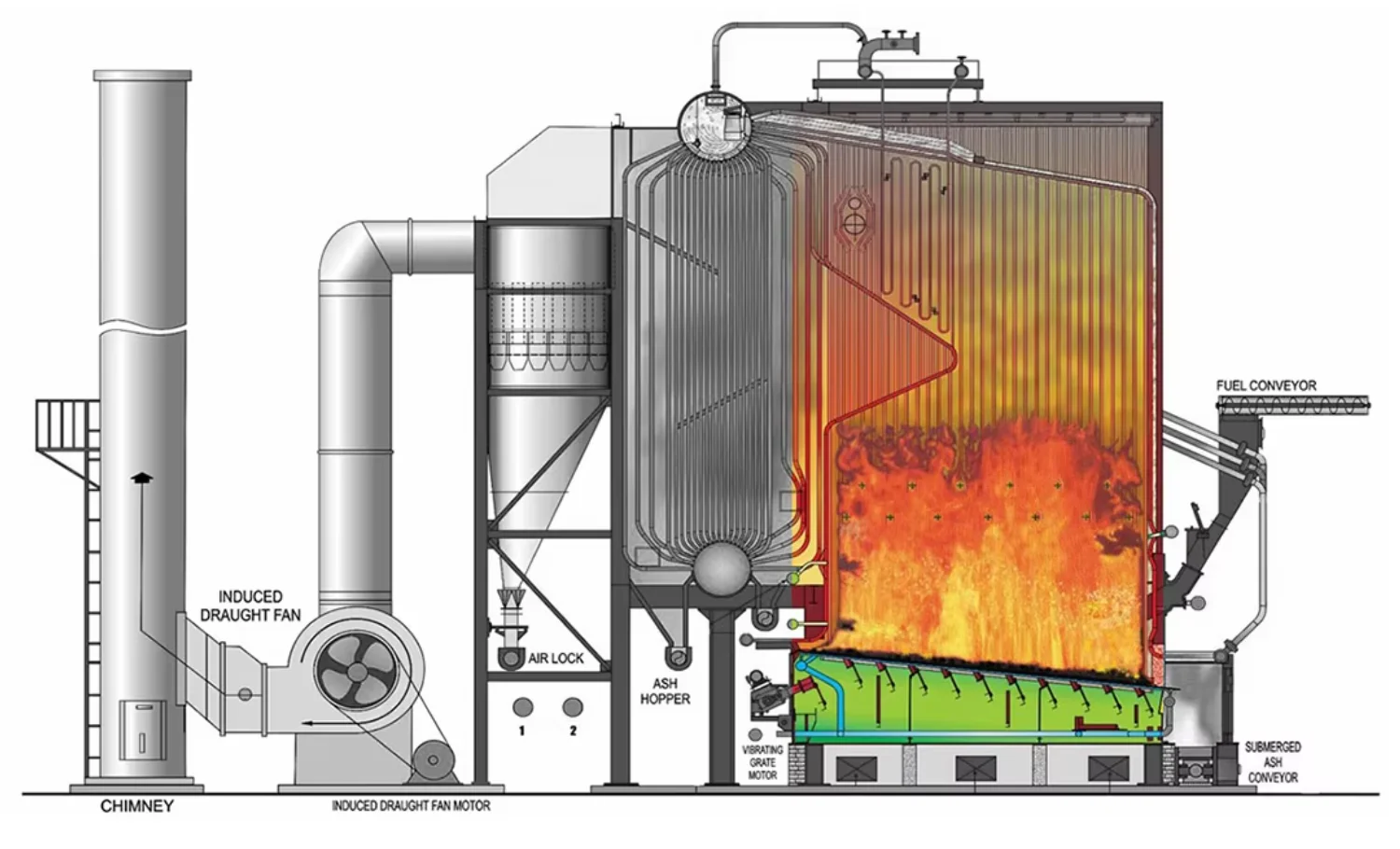

1. Multi-Fuel Biomass Combustion – One Boiler, Every Fuel
The chain grate design (DZL/SZL) accepts a wide range of biomass fuels without modification. Whether you have rice husk in Vietnam, bagasse in Thailand, palm kernel shell in Indonesia or wood pellets in Europe, our boiler burns it cleanly and efficiently. Ask us for a free fuel analysis to confirm the best combustion design for your local fuel.
2. Energy Saving Boiler Design – Lower Steam Cost
High thermal efficiency 99% comes from: large heating surface, optimized chain grate, three-pass flue gas flow, and optional economizer + air preheater to recover waste heat. The result is lower fuel consumption per ton of steam and a dramatically lower steam production cost versus oil or coal fired boilers.
3. Fully Automatic Operation – Less Labor, Fewer Errors
PLC-based automatic control with touch screen: automatic fuel feeding, auto ignition, auto water level, auto pressure control, auto alarm and safety shutdown. One operator can supervise multiple boilers. Remote monitoring and mobile alert are available on request.
Why Dabonn Biomass Boilers Deliver More Value | ||
Your Concern | Dabonn's Answer | |
Fuel cost is killing my margin | Our multi-fuel design burns biomass pellets, wood chips, palm shells, bagasse, rice husks — whatever is locally abundant and cheap | |
I worry about unstable steam output | Double-drum / water-fire tube hybrid design ensures steady pressure even under fluctuating load | |
Maintenance is a headache | Large furnace volume + optimized grate design = complete combustion, less ash, less cleaning | |
I need it to run 24/7 | Heavy-duty structure, thickened steel plates, and automatic slag removal for non-stop operation | |
Environmental compliance | Integrated dust removal + desulfurization options. Emissions meet EU / local standards | |
I don't have technical staff on site | Full PLC automation with remote monitoring support | |
Certifications & Quality Control
1. ISO 9001 / CE / ASME certified quality system
2. third-party inspection accepted before shipment
3. 100% hydrostatic test on every pressure part
4. Complete document package: drawings, test reports, operation manual, packing list
Factory Strength & 32+ Years Export Experience
Zhengzhou Dabonn Energy Co., Ltd. is a professional industrial boiler manufacturer with:
1. 32+ years of export experience serving buyers in 170+ countries across Southeast Asia, Africa, Latin America and the Middle East.
2. A-class boiler manufacturing license in China – the highest national qualification for pressure equipment.
3. 107+ patents in boiler design, combustion and control technology.

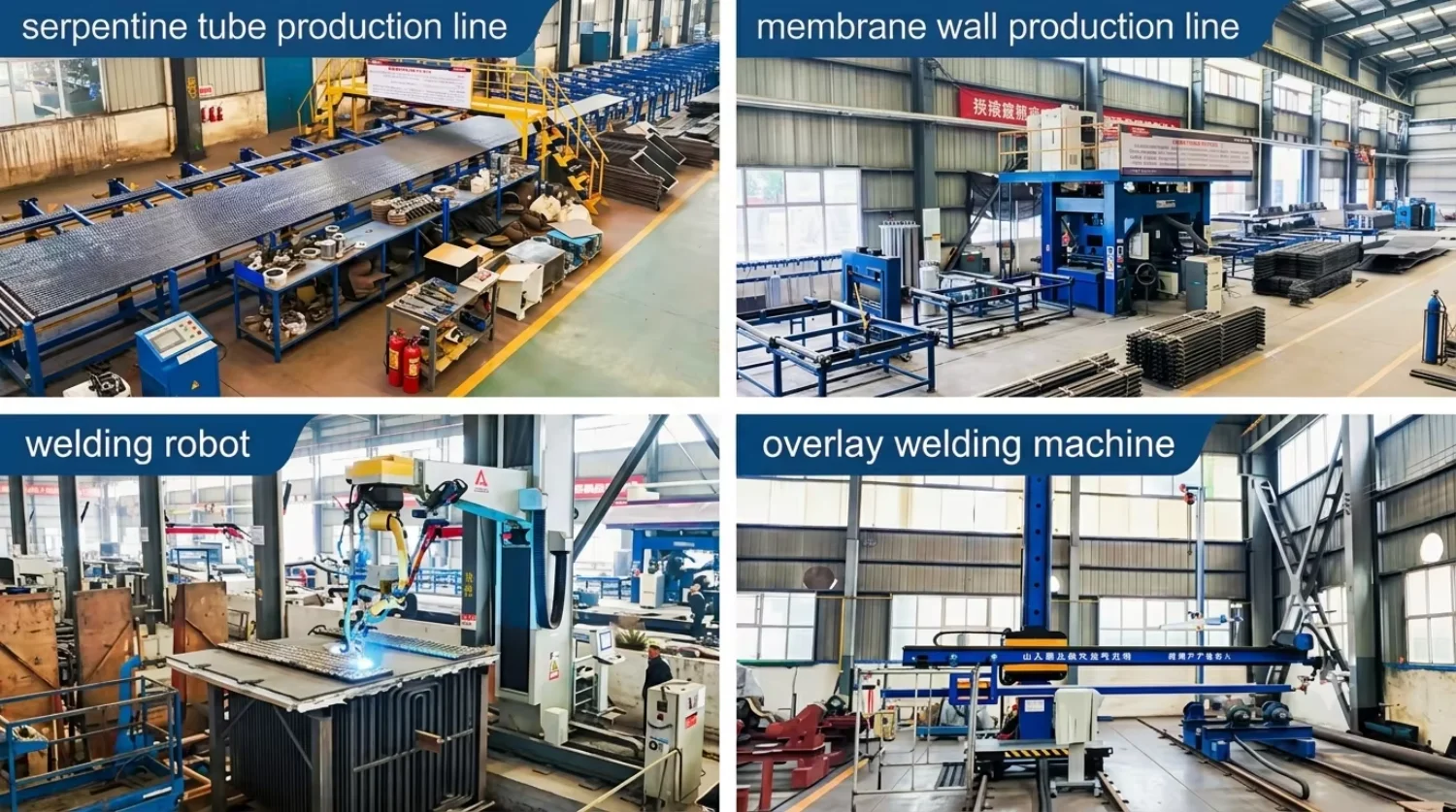

4.Full in-house production: design, plate cutting, welding, pressure testing, painting and testing under one roof.
5.Dedicated export team: English-speaking sales engineers, bilingual technical documentation, and after-sales support in your time zone.
FAQs
Can you design a boiler for my specific steam pressure and temperature requirements?
Yes. All our boilers are custom-engineered. Simply provide your required steam output (T/H), working pressure (MPa), steam temperature (°C), and fuel type.
Can we visit your factory?
Our factory is located in Henan, China. We have a professional team and advanced production equipment. We warmly welcome you to visit our factory.
How can I pay you?
T/T, Western Union, Money Gram and Ali Trade Assurance is better.
What trade methods are supported?
We can trade by EXW, CIF, FOB, FCA, CFR, DAP, DDP.
Why Choose Our Factory?

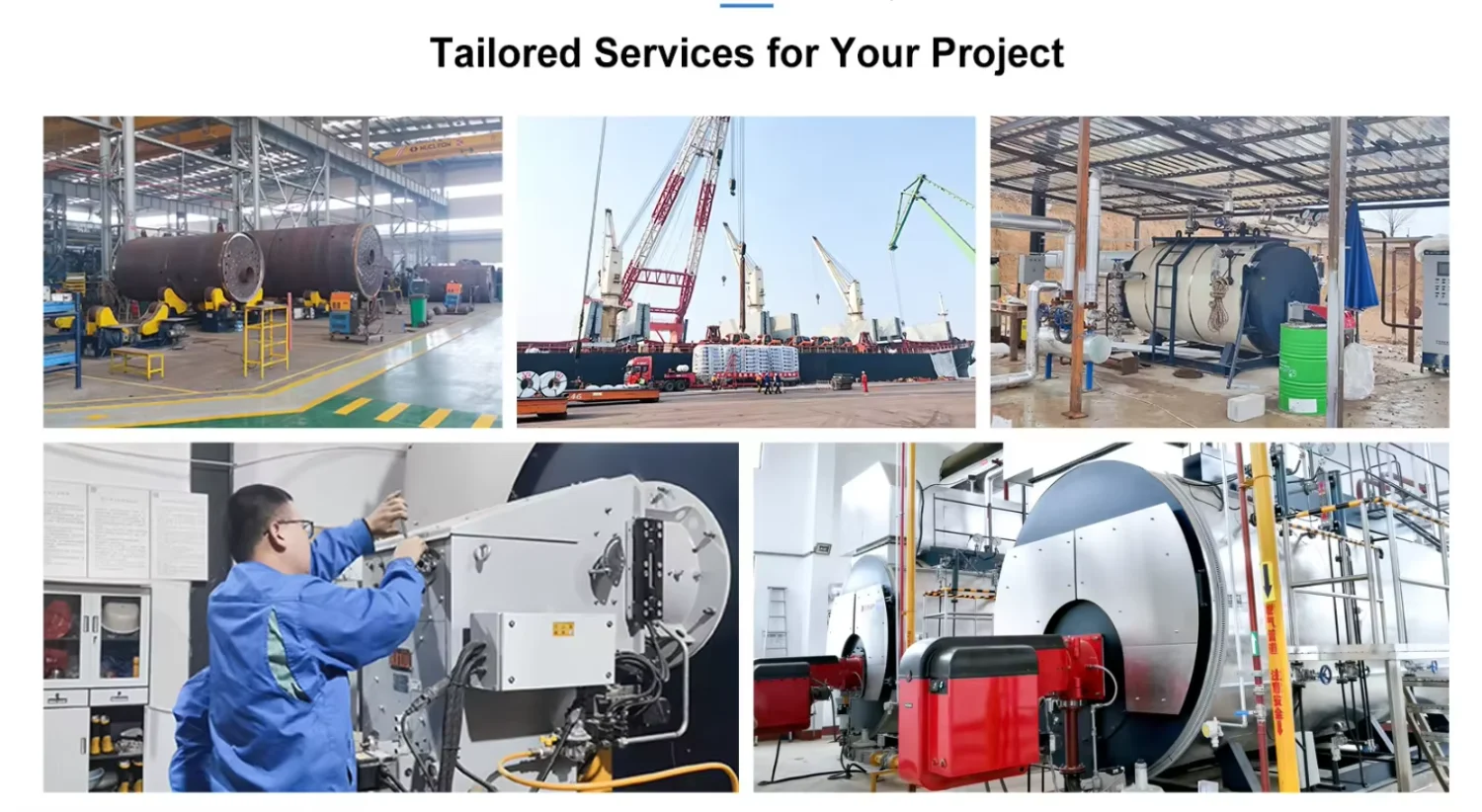

Full Lifecycle Support: Our engineers deliver remote technical support and after-sales services spanning engineering design, manufacturing and on-site commissioning.
What fuels can this biomass steam boiler burn?
Wood pellets, rice husk, bagasse, palm kernel shell (PKS), coconut shell, wood chips, sawdust, straw and biomass briquettes. The combustion system is tuned to your local fuel; coal/biomass dual fuel is also available.
Our Service & Support
Pre-sales: free technical consultation, fuel analysis, boiler selection and layout drawing.
Ordering: contract review, production photo & video updates, third-party inspection welcome.
Delivery: seaworthy export packing, complete shipping documents, delivery to your port.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $6000 / set
- 2+ set: US $5600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
