This steam generator is published with the manufacturer’s full specification — material Carbon Steel, Steel, type Natural Circulation. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Steam Generator
- Thermal Capacity: 0.5-3 t/h Steam Boiler
- Material: Carbon Steel, Steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Electric Steam Boiler
- Type: Natural Circulation
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Electric |
| Pressure | Low Pressure |
| Structure | electric heating tubes |
| Type | Natural Circulation |
| Material | Carbon Steel, Steel |
| Core Components | Electrical heat pipe |
| Key Selling Points | Long Service Life |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 1100 |
| Place Of Origin | Henan, China |
| Brand Name | Dabonn Energy |
| Dimension(L*W*H) | the models are different |
| Product Name | Electric Steam Boiler |
| Design Fuel | Electric Energy Steam Boiler |
| Thermal Capacity | 0.5-3 t/h Steam Boiler |
| Rated Thermal Efficiency | 98% |
| Type Of Boiler | Multiple Safety Protection |
| Application | Electric Steam Boiler |
| Keywords | Fully Automatic PLC Control Electric Steam Boiler |
| Item | Electric Heating Generator |
| Fuel Type | Electricty |
| Selling Units | Single item |
| Single Package Size | 300X300X600 cm |
| Single Gross Weight | 230.0 kg |
Product Details
Electric Steam Boiler
- Zhengzhou Dabonn Energy Co., Ltd. presents the WDR Series Horizontal Fully Automatic Electric Steam Boiler — a high-performance industrial electric steam generator engineered for clean, efficient, and reliable steam production. With a rated thermal efficiency of up to 98%, this all-electric heating solution eliminates on-site combustion emissions, making it the ideal choice for facilities requiring clean steam without fossil fuel dependency.
- Our electric steam boiler serves a wide range of industrial applications including food processing, beverage production, commercial laundry, textile processing.
- Backed by 32+ years of export experience across 80+ countries, Dabonn Energy delivers ASME/ISO-certified industrial electric boilers with full customization capabilities — from capacity and voltage to pressure rating and auxiliary equipment.
1. 98% Thermal Efficiency — Maximum Energy Conversion

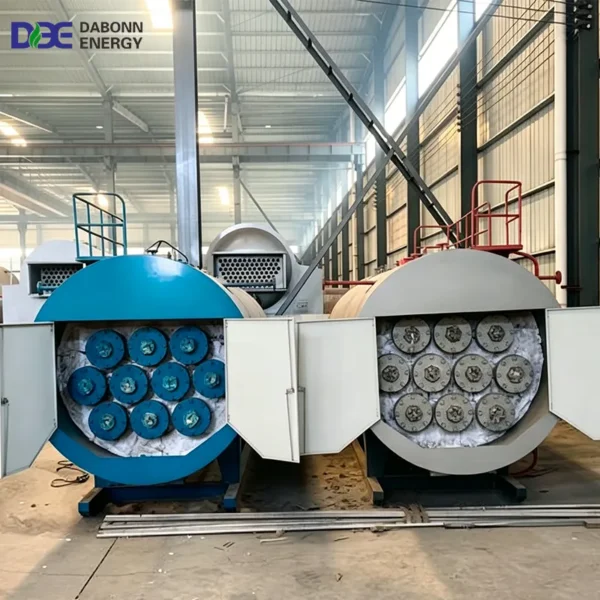

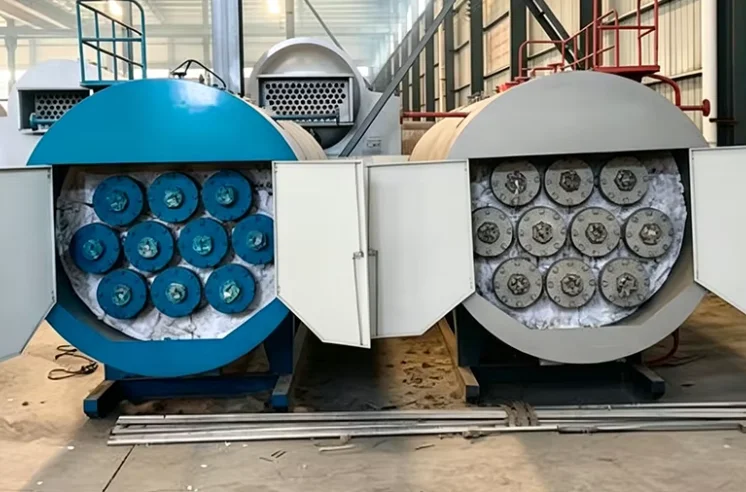

All electric power input is converted directly into heat through high-quality stainless steel heating elements immersed in water, achieving near-perfect energy utilization. No flue gas losses, no heat exchanger degradation — just clean, consistent steam on demand.
2. Clean, Emission-Free Steam Generation
Unlike gas-fired or oil-fired steam boilers, the electric steam boiler produces zero on-site emissions — no CO₂, NOx, SOx, or particulate matter. This eliminates the need for exhaust stacks, fuel storage tanks, and complex flue gas treatment systems. Ideal for facilities with strict environmental regulations or limited ventilation, including food-grade and pharmaceutical-grade cleanrooms.
标题

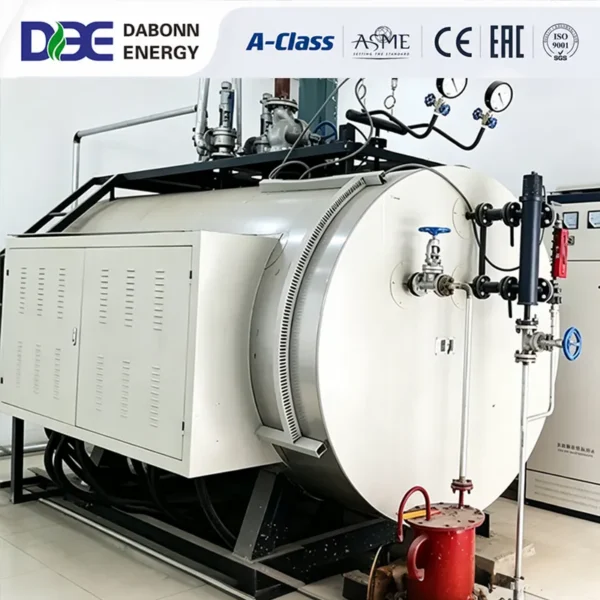

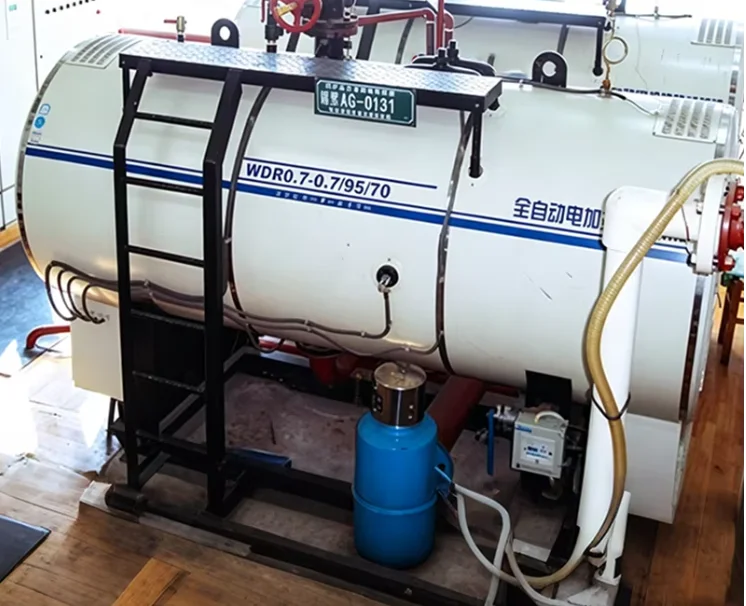

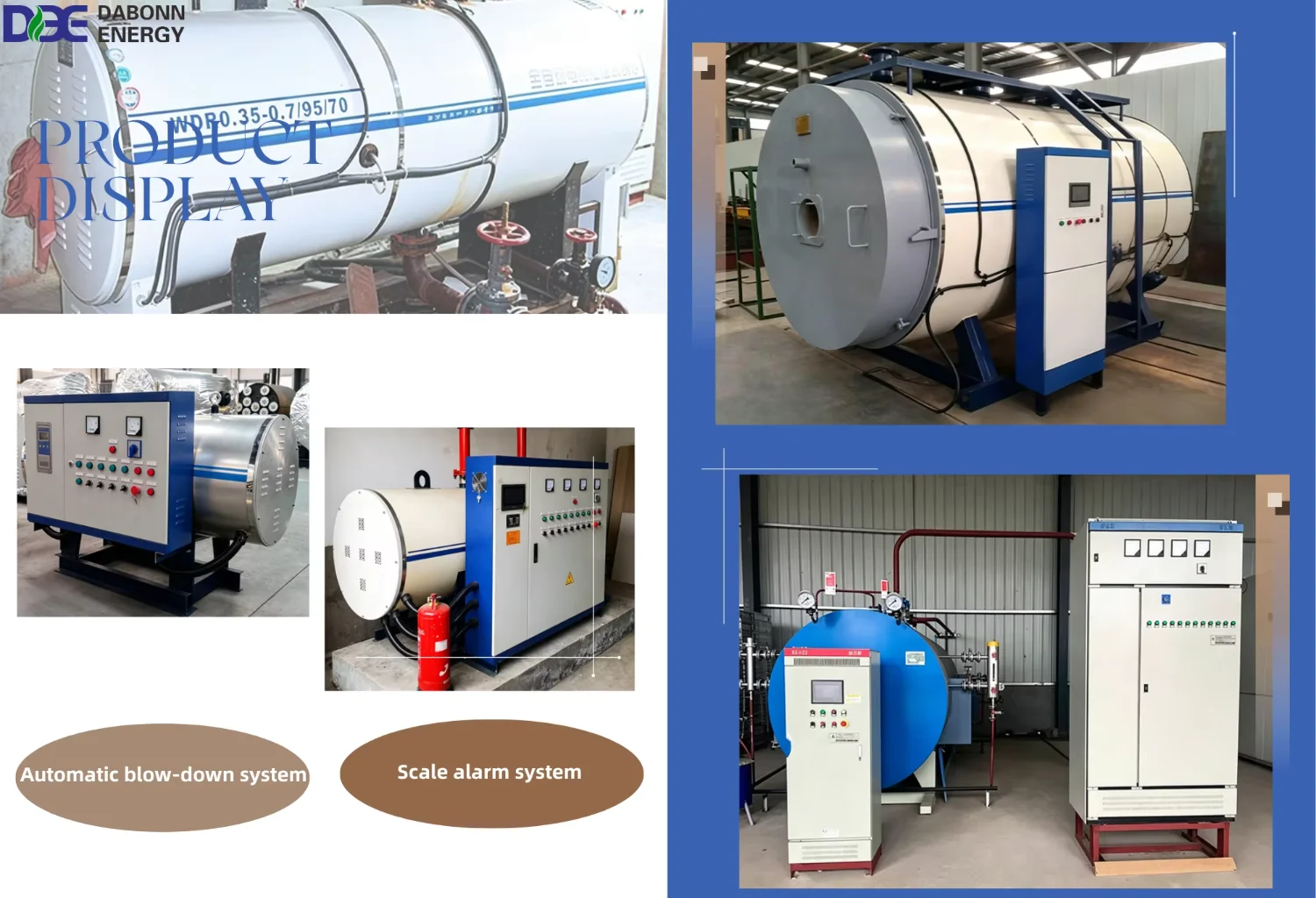

Designed with a horizontal electric heating tube structure and natural circulation system, the WDR series delivers consistent steam output with fully automatic PLC control, multiple layers of safety protection, and minimal maintenance requirements.

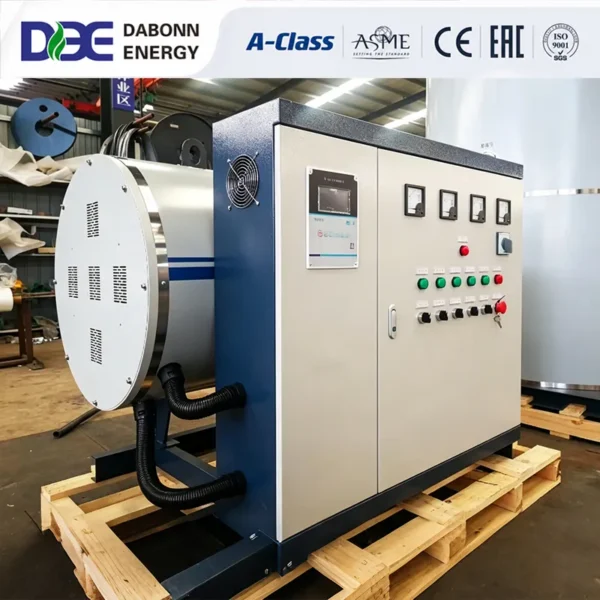

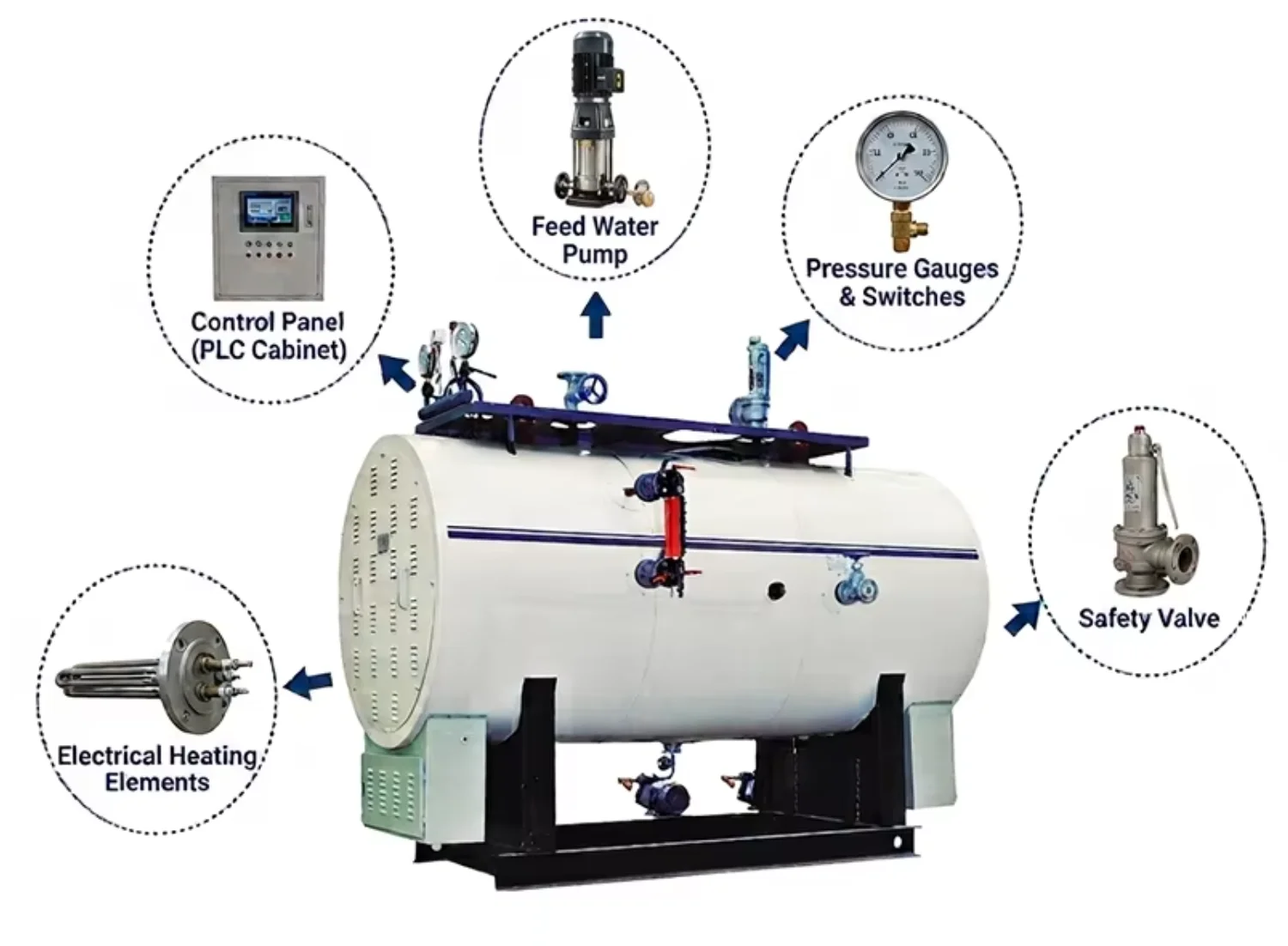

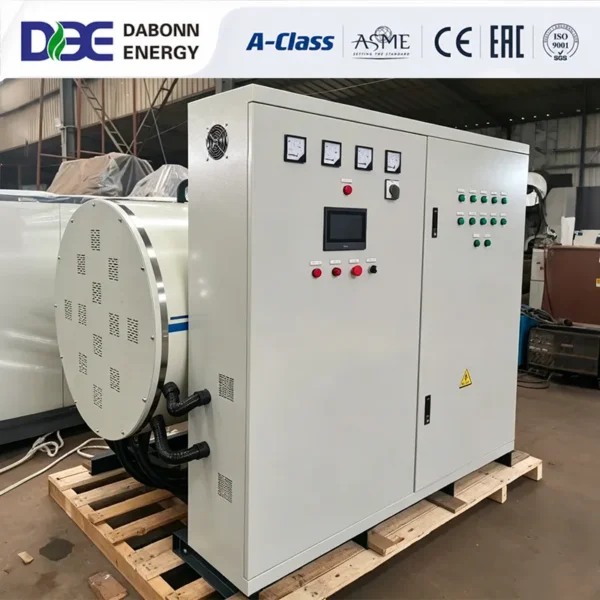

All components — boiler body, control cabinet, feed water pump, and safety valves — are skid-mounted on a single steel base frame for quick plug-and-play installation.
Model | Rated capacity （T/h) | Rated pressure （Mpa） | Steam temperature （℃） | Thermal efficiency （%） | Power （KW） | Design fuel |
WDR0.3-0.7 | 0.3 | 0.7 1.0 1.25 1.6 2.5 | 171 184 194 205 225 | ≥98 | 216 | electricity |
WDR0.5-0.7 | 0.5 | 360 | ||||
WDR0.7-0.7 | 0.7 | 504 | ||||
WDR1.0-0.7 | 1 | 720 | ||||
WDR1.0-1.0 | 1 | 720 | ||||
WDR2.0-0.7 | 2 | 1440 | ||||
WDR2.0-1.0 | 2 | 1440 | ||||
WDR2.0-1.25 | 2 | 1440 | ||||
WDR2.0-1.6 | 2 | 1500 | ||||
WDR2.0-2.5 | 2 | 1500 |

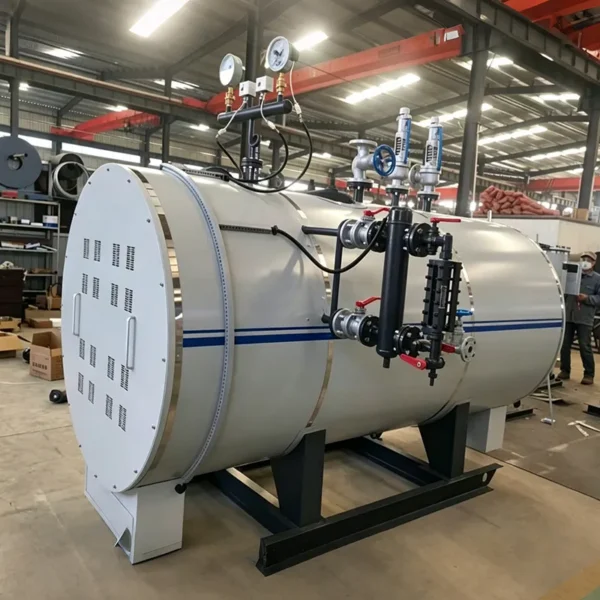

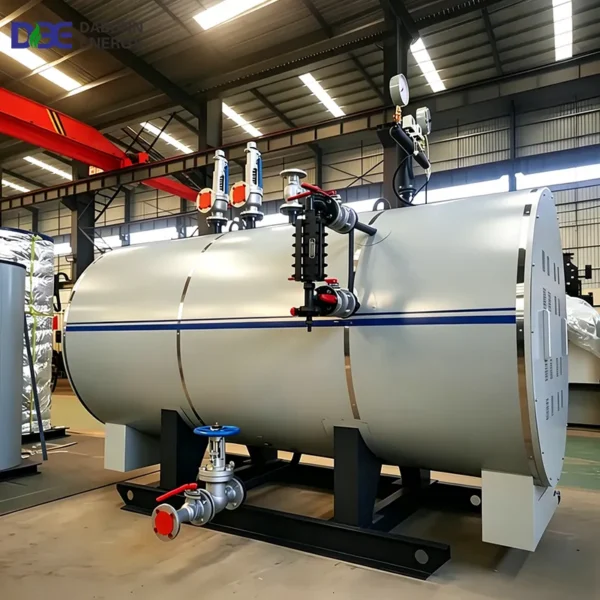

Compact Horizontal Design — Space-Saving Installation

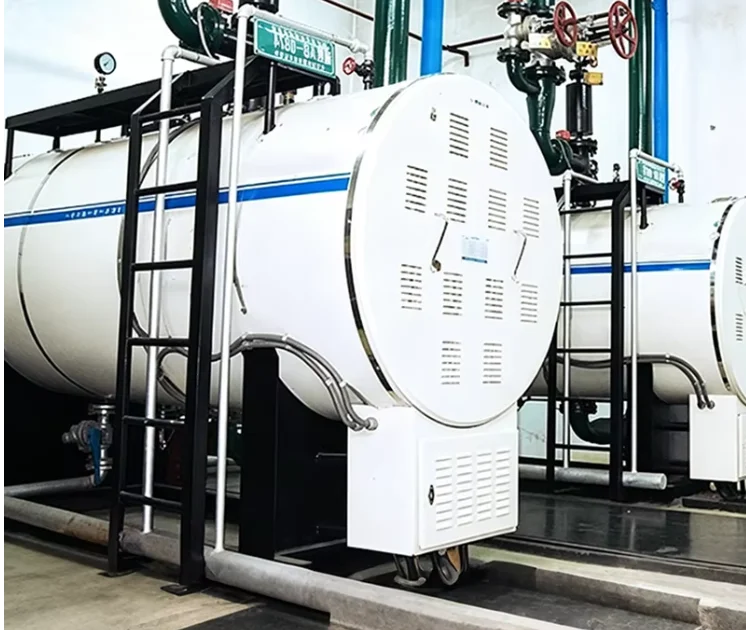

The horizontal fire tube configuration with integrated electric heating elements creates a compact footprint that fits easily into existing boiler rooms, basements, or production floor spaces.
Durable Carbon Steel Construction with Premium Insulation
The boiler shell is fabricated from high-quality carbon steel (Q245R/Q345R boiler-grade plate) with full-penetration welded seams, hydrostatically tested to 1.5× design pressure.
Fast Steam Output — Ready in Minutes
Electric heating elements reach operating temperature within 5–8 minutes from a cold start — significantly faster than gas-fired or oil-fired boilers that require burner purge cycles and gradual warm-up.
标题
1. A-Class Boiler Manufacturing License — certified design, fabrication, and installation 2. ISO 9001 / CE / ASME certified quality system 3. 107+ proprietary patents in combustion efficiency, heat recovery, and automation 4. 1200+ global projects delivered, covering food processing, textile, paper, and agro-industries
FAQs
Can the boiler voltage and frequency be customized for my country's power grid?
Absolutely. We manufacture electric steam boilers compatible with power grids worldwide — including 220V/60Hz (common in the Philippines and parts of South America), 380V/50Hz (Europe, Africa, Middle East), 440V/60Hz (North America), 480V/60Hz (USA industrial standard), and 690V/50Hz (heavy industrial). Simply specify your local power supply specifications when placing your inquiry.
Can we visit your factory?
Our factory is located in Henan, China. We have a professional team and advanced production equipment. We warmly welcome you to visit our factory.
How can I pay you?
T/T, Western Union, Money Gram and Ali Trade Assurance is better.
What trade methods are supported?
We can trade by EXW, CIF, FOB, FCA, CFR, DAP, DDP.
What are the advantages of an electric steam boiler over a gas-fired steam boiler?
Electric steam boilers offer several key benefits:
(1) Zero on-site emissions — no exhaust stacks, fuel storage, or flue gas treatment required;
(2) 98% thermal efficiency vs. 85–92% for gas boilers — no combustion heat loss;
(3) Compact footprint — no burner, no chimney, no fuel supply system;
(4) Silent operation — ideal for noise-sensitive environments;
(5) Lower maintenance — fewer moving parts, no soot cleaning, no burner tuning.

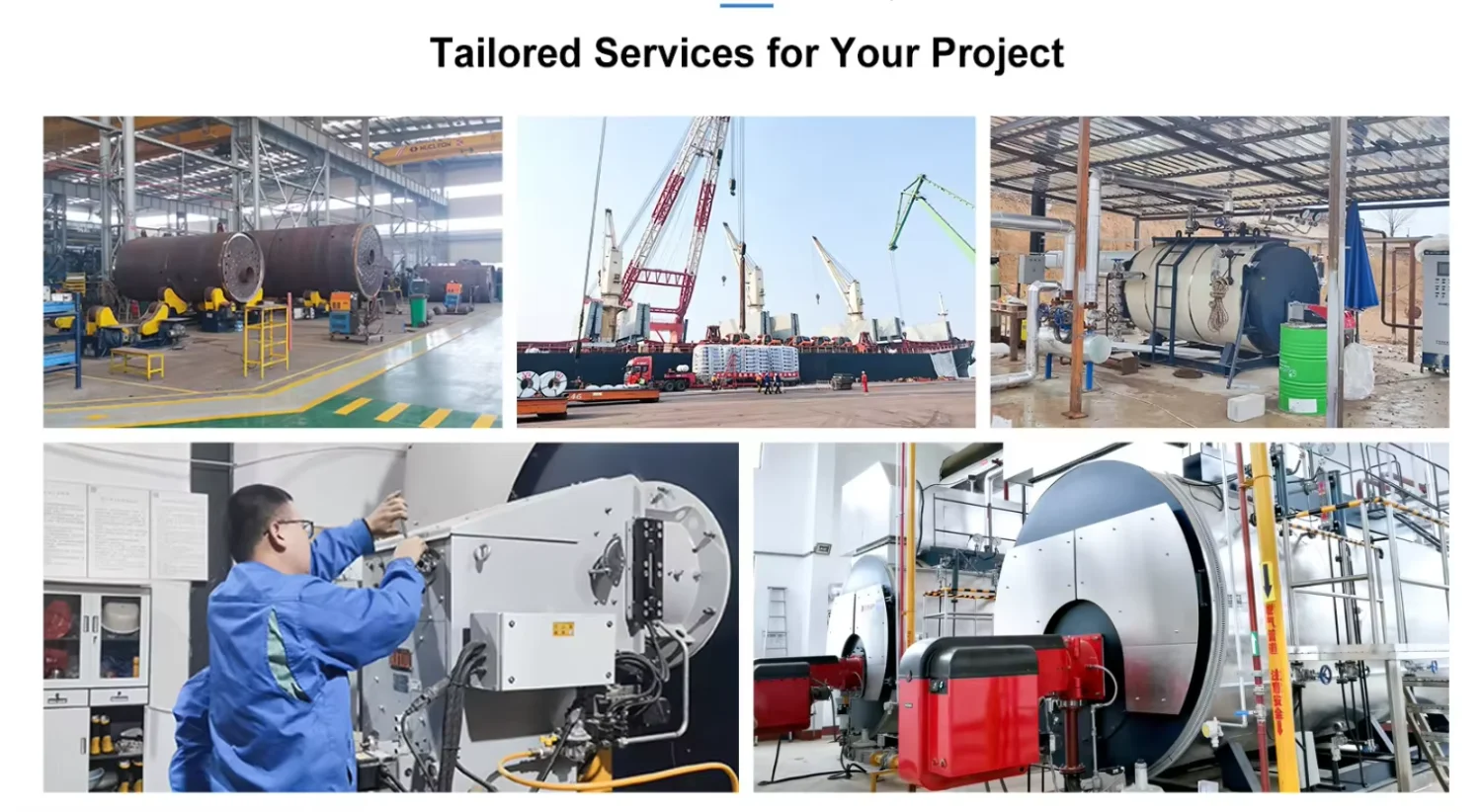

Professional Pre-Sales & After-Sales Support
Pre-sales engineering: Our technical team evaluates your steam demand profile, available power supply, water quality conditions, and local installation codes to recommend the optimal boiler configuration — at no cost.
Installation guidance: Detailed installation drawings, piping diagrams, electrical schematics, and commissioning checklists provided with every shipment.
Spare parts availability: Dedicated spare parts inventory with express international shipping — heating elements, gaskets, control boards, pumps, and safety valves always in stock.
On-site service: Factory-trained engineers available for overseas installation, commissioning, and operator training (service terms negotiated separately).
Zhengzhou Dabonn Energy Co., Ltd.
107+ Patents · A-Grade Boiler License · 170+ Countries · Your Fuel, Our Engineering
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1 piece: US $5100 / piece
- 2+ piece: US $4500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam generator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhengzhou Dabonn Energy Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Zhengzhou Dabonn Energy Co., Ltd. range on HVACR Nexus.
