Steam boiler — type Natural Circulation, model number WDR Series. The complete factory specification follows. Made by Zhangjiagang Hua Dong Boiler Co., Ltd. (10 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Steam Boiler
- Model Number: WDR Series
- Warranty: 1 Year
- Certification: ISO9001,ASME,SGS,EN,TUV
- Place Of Origin: Jiangsu, China
- Application: Industrial
- Type: Natural Circulation
Technical Specifications
| Output | Hot Water / Steam |
|---|---|
| Usage | Industrial |
| Steam Production | Max. 60t/h |
| Fuel | Biomass Briquetting |
| Pressure | Low / High Pressure |
| Structure | fire tube and water tube |
| Type | Natural Circulation |
| Core Components | NoEnName_Null |
| Key Selling Points | High Safety Level |
| Style | Vertical |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | HDB Electric Steam Boiler |
| Dimension(L*W*H) | customized |
| After-Sales Service Provided | No overseas service provided |
| Product Name | Electric Steam Boiler |
| Certification | ISO9001,ASME,SGS,EN,TUV |
| Model Number | WDR Series |
| Surface Treatment | Painted |
| Application | Industrial |
| Packing | Seaworthy Packing of Electric Steam Boiler |
| Packaging Details | Seaworthy Packing of Electric Steam Boiler. |
| Port Of Dispatch | shanghai |
| Selling Units | Single item |
| Single Package Size | 4.6X2.3X1.8 cm |
| Single Gross Weight | 68.000 kg |
| Supply Ability | 50 sets per Year |
Product Details

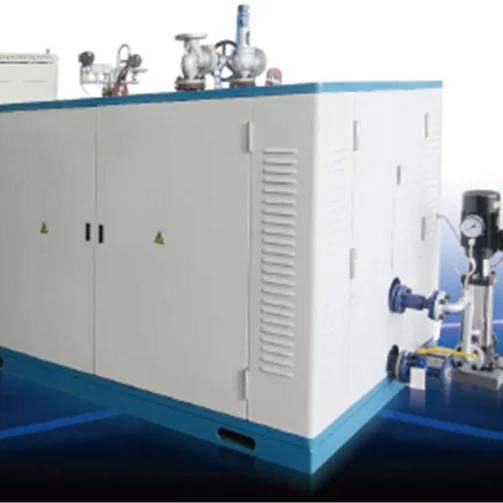

Electric Steam Boiler
PLC Control Electric Steam Boiler Small Steam Turbine Electric Generator
Product Description
The product is a large-power horizontal steam boiler, furnace and electrical control cabinet is separated, avoiding electrical components' aging then effect service life, running quiet and meet environmental protection requirements, there is no NOx emission to the atmosphere. Operating with PLC/LCD control system, free operating button, free light, touch screen panel, Chinese and English display, human-computer dialogue, action authorized, real-time information, and auto turn-page.
Features
1. PLC control system, automatically adjust the temperature, has six safety protections like over temperature, over load, short circuit, leakage of electricity, shortage of water and shortage of phase. Select excellent electric elements, easy and safe to install and use. Simple human-machine interface, boiler parameters, equipment running status and operation parameters are all displayed on the screen. Fuzzy control technology: Minimize the metabolic load infection of heating network at the same time, maximum decrease the consumption of electricity and the heat efficiency is up to 99%.
2. By use of Nichrome Heating Element, high temperature resistance of electric wire is more than 1000° C, service life is 5-10 times than traditional one, the application of magnesium rod anode technology, it ensures that the heating element difficult to form scale, any other product is incomparable.
Technical Parameters
| Model | WDR0.8-0.8 | WDR1-1.0 | WDR1.5-1.0 | WDR2-1.0 | WDR3-1.0 | WDR4-1.25 | |
| Item | Unit | ||||||
| Rated Steam Capacity | t/h | 0.8 | 1 | 1.5 | 2 | 3 | 4 |
| Rated Working Pressure | Mpa | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.25 |
| Saturated Steam Temperature | ° C | 175 | 184 | 184 | 184 | 184 | 194 |
| Input Power | KW | 576 | 720 | 1080 | 1440 | 2160 | 2880 |
| Input Current | A | 892 | 1100 | 1650 | 2210 | 3260 | 4350 |
| Voltage | V | 380(customers requirements) | |||||
| Water Inlet | DN | 32 | 40 | 40 | 40 | 40 | 40 |
| Steam Outlet | DN | 40 | 50 | 65 | 65 | 80 | 100 |
| Blowdown Valve | DN | 40 | 40 | 40 | 40 | 40 | 40 |
| Safety Valve | DN | 40 | 50 | 50 | 2× 40 | 2× 50 | 2× 50 |
| Dimension | mm | 2690 | 2870 | 3510 | 3620 | 4260 | 5030 |
| Weight | kg | 2050 | 2580 | 3060 | 3520 | 4180 | 4850 |
Competitive Advantage
Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $500000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this steam boiler carry?
It is supplied with ISO9001,ASME,SGS,EN,TUV documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhangjiagang Hua Dong Boiler Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhangjiagang Hua Dong Boiler Co., Ltd. range on HVACR Nexus.
