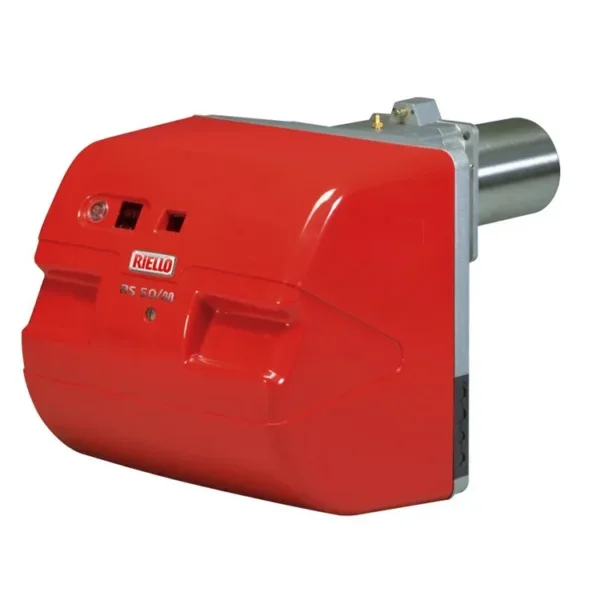

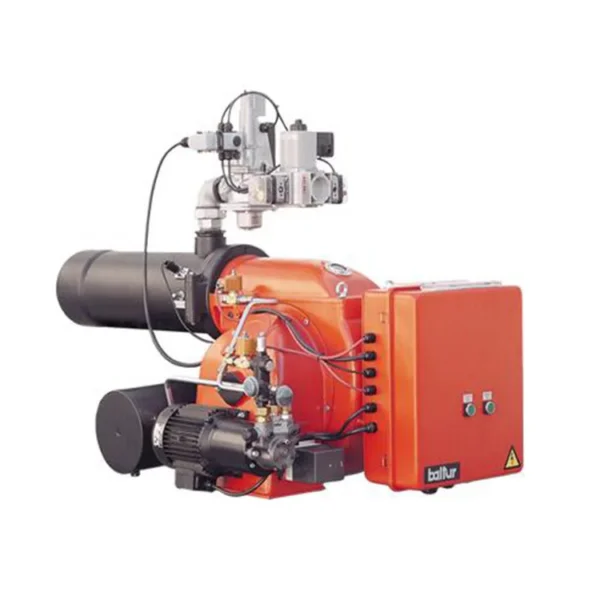

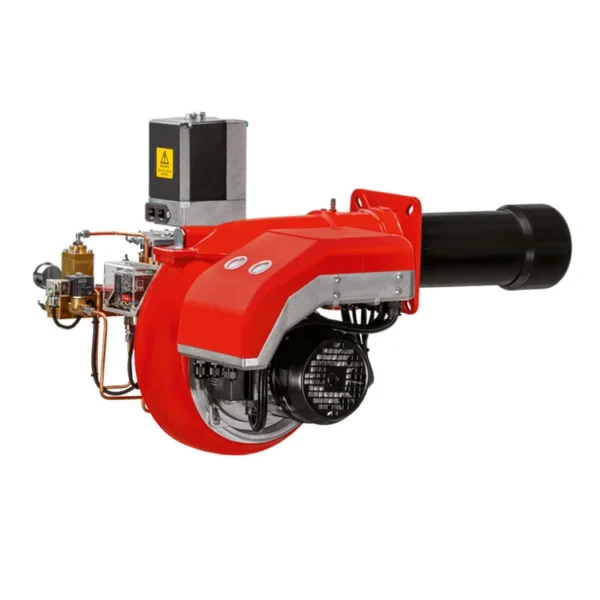

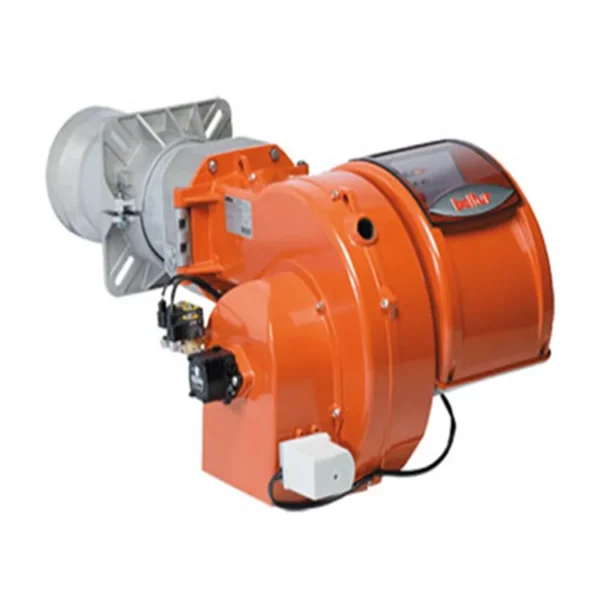

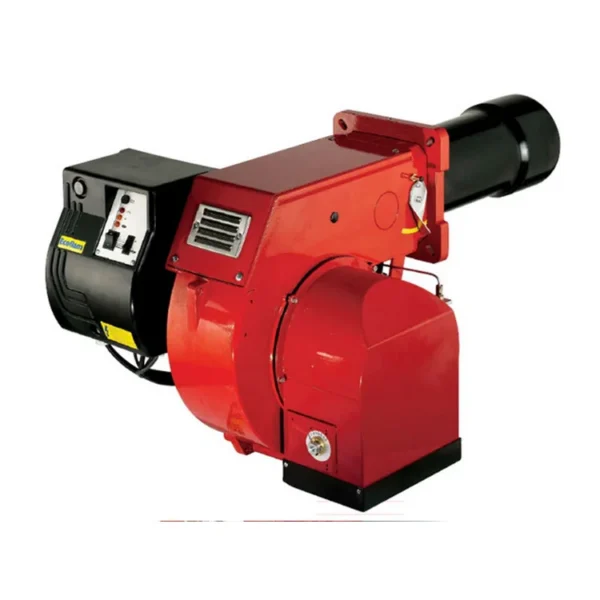

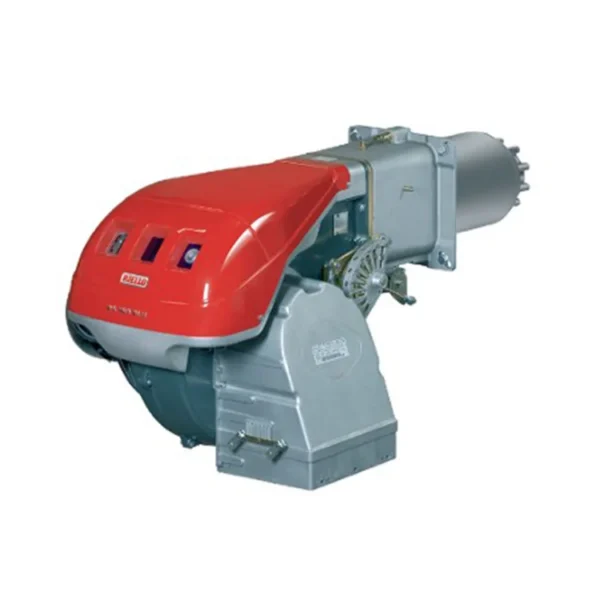

Steam boiler — material Stainless Steel, type Gas Burner. The complete factory specification follows. Made by Qingdao East Power Industry Equipment Co., Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Voltage: 110V / 220V / 230V / 240V / 380V; 50HZ / 60HZ
- Material: Stainless Steel
- Warranty: 6 Months
- Place Of Origin: Shandong, China
- Application: Boiler System
- Feature: Eco-Friendly
Technical Specifications
| Type | Gas Burner |
|---|---|
| Material | Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 6 Months |
| Weight (Kg) | 32 |
| Place Of Origin | Shandong, China |
| Brand Name | Riello, Olin, Baltur,Weishaupt |
| Product Name | Boiler Spare Parts Burners |
| Fuels | Oil; Gas |
| Application | Boiler System |
| Keywords | Boiler Gas Burner Industrial Gas Burner |
| Color | Customers’ Requirement |
| Brand | Riello |
| Available | 12 Month |
| Feature | Eco-Friendly |
| Voltage | 110V / 220V / 230V / 240V / 380V; 50HZ / 60HZ |
| Selling Units | Single item |
Product Details
Products Description
Serie TBG PN
Technical and functional features
* Low NOx and CO gas-fired burners, EN676 "Classe III".
* Two-stage progressive/modulating operation.
* Ability to operate with output modulation by means of automatic RWF40 regulator mounted on the control panel (to be ordered separately with the modulation kit).
* Compatible with any type of combustion chamber, according to EN303 standard..
* Burnt gas recycling blast-pipe able to achieve very low pollutant emissions, particularly with regard to nitrous oxides (NOx).
* High blowing efficiency, low electrical input, low noise.
* Air-gas mixing at blast-pipe.
* Maintenance facilitated by the fact that the mixing unit can be removed without having to remove the burner from the boiler.
* Fan speed adjustment in relation to changes in burner demand provided by means of inverter, to obtain a significant reduction in noise levels and electricity consumption (version V only).
* Gas regulation by means of a proportional working valve that is pneumatically driven.
* Ability to add a valves seal control device to the train.
TBG 45 – 60 PN
* Regulation of air flow rate for first and second stage with damper closure on standby to prevent in-flue heat dispersion.
* Air capacity adjustment with linear opening controlled by electric servomotor.
* Modulation ratio 1:4.
* Comes with 4 and 7-poles connectors, 1flange and 1 insulating seal to connect the burner to the application.
TBG 85 – 120 – 150 – 210 PN
* Ambidextrous hinged combustion head allowing an easy maintenance access without removing the burner from the boiler..
* Air capacity adjustment with linear opening controlled by electric servo motor.
* Automatic closure of the air damper during stand-by..
* Electrical panel that connects by 4 and 7 pole plugs/sockets provided.
* Electrical panel with protection rating of IP 55.
* Sliding boiler coupling flange to adapt to the head protrusion of the various types of boilers.
* Modulation ratio 1:3.
Design features
* Light die-cast aluminium ventilation unit.
* Air intake with butterfly gate for the regulation of the air combusting flow rate, with sound insulation and designed for
optimal air damper opening linearity.
* Sliding boiler coupling flange to adapt the head protrusion to the various types of boilers.
* Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
* Flame viewer.
* Air pressure switch to ensure the presence of combustion air.
* Gas train gas with safety valve and pneumatically activated proportional working, minimum pressure switch, pressure regulator and gas filter.
* Flame scanning by ionisation electrode.
* Built-in PCB into the control panel .
* Error proof connectors for gas train electrical supply.
* 7-pole outlet for burner electrical and thermostat connections, and 4-pole outlet for second stage control or for the
connection of the capacity electronic regulator.
* Prepared for microamperometer connection with ionisation cable.
* Electrical protection rating IP44.
TBG 45 – 60 PN
* High performance centrifugal fan.
* Mono-phase electric motor to run fan for TBG 45, three-phase for TBG 60 (variable speed drive with V version)..
* Synoptic control panel with led of operation and block and burner off, operation and block indicator.
* Sequence controller – EN 298..
TBG 85 – 120 – 150 – 210 PN
* Centrifugal fan in light aluminum alloy.
* Three-phase light aluminum alloy electric motor. .
* Combustion air input with sound insulation and designed for optimal air damper opening linearity.
* Light die-cast aluminium alloy electrical panel.
* Control panel with display diagram for working mode with indication lights, start/stop switch, automatic/manual mode selector, minimum/maximum selector and enabled for installation of RWF40 regulator.
* Electronic sequence controller with diagnosic lamps – EN 298..
Technical and functional features
* Low NOx and CO gas-fired burners, EN676 "Classe III".
* Two-stage progressive/modulating operation.
* Ability to operate with output modulation by means of automatic RWF40 regulator mounted on the control panel (to be ordered separately with the modulation kit).
* Compatible with any type of combustion chamber, according to EN303 standard..
* Burnt gas recycling blast-pipe able to achieve very low pollutant emissions, particularly with regard to nitrous oxides (NOx).
* High blowing efficiency, low electrical input, low noise.
* Air-gas mixing at blast-pipe.
* Maintenance facilitated by the fact that the mixing unit can be removed without having to remove the burner from the boiler.
* Fan speed adjustment in relation to changes in burner demand provided by means of inverter, to obtain a significant reduction in noise levels and electricity consumption (version V only).
* Gas regulation by means of a proportional working valve that is pneumatically driven.
* Ability to add a valves seal control device to the train.
TBG 45 – 60 PN
* Regulation of air flow rate for first and second stage with damper closure on standby to prevent in-flue heat dispersion.
* Air capacity adjustment with linear opening controlled by electric servomotor.
* Modulation ratio 1:4.
* Comes with 4 and 7-poles connectors, 1flange and 1 insulating seal to connect the burner to the application.
TBG 85 – 120 – 150 – 210 PN
* Ambidextrous hinged combustion head allowing an easy maintenance access without removing the burner from the boiler..
* Air capacity adjustment with linear opening controlled by electric servo motor.
* Automatic closure of the air damper during stand-by..
* Electrical panel that connects by 4 and 7 pole plugs/sockets provided.
* Electrical panel with protection rating of IP 55.
* Sliding boiler coupling flange to adapt to the head protrusion of the various types of boilers.
* Modulation ratio 1:3.
Design features
* Light die-cast aluminium ventilation unit.
* Air intake with butterfly gate for the regulation of the air combusting flow rate, with sound insulation and designed for
optimal air damper opening linearity.
* Sliding boiler coupling flange to adapt the head protrusion to the various types of boilers.
* Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
* Flame viewer.
* Air pressure switch to ensure the presence of combustion air.
* Gas train gas with safety valve and pneumatically activated proportional working, minimum pressure switch, pressure regulator and gas filter.
* Flame scanning by ionisation electrode.
* Built-in PCB into the control panel .
* Error proof connectors for gas train electrical supply.
* 7-pole outlet for burner electrical and thermostat connections, and 4-pole outlet for second stage control or for the
connection of the capacity electronic regulator.
* Prepared for microamperometer connection with ionisation cable.
* Electrical protection rating IP44.
TBG 45 – 60 PN
* High performance centrifugal fan.
* Mono-phase electric motor to run fan for TBG 45, three-phase for TBG 60 (variable speed drive with V version)..
* Synoptic control panel with led of operation and block and burner off, operation and block indicator.
* Sequence controller – EN 298..
TBG 85 – 120 – 150 – 210 PN
* Centrifugal fan in light aluminum alloy.
* Three-phase light aluminum alloy electric motor. .
* Combustion air input with sound insulation and designed for optimal air damper opening linearity.
* Light die-cast aluminium alloy electrical panel.
* Control panel with display diagram for working mode with indication lights, start/stop switch, automatic/manual mode selector, minimum/maximum selector and enabled for installation of RWF40 regulator.
* Electronic sequence controller with diagnosic lamps – EN 298..
Please Click Here to Learn About Chinese Burner!!
Product Paramenters
European Standard for The Emission of Pollutants From Oil and Gas Burners | ||||||||||
Class) | EN676:Natural Gas | EN276:Light Oil | ||||||||
NOx | CO | NOx | CO | |||||||
Natural Gas | LPG | |||||||||
I | ≤170 | ≤230 | ≤100 | ≤250 | ≤110 | |||||
II | ≤120 | ≤180 | ≤185 | ≤110 | ||||||
III | ≤80 | ≤140 | ≤120 | ≤60 | ||||||
Company Profile
FAQ
If you meet other problem,contact us first .
1. Have you improved and innovated your product?
As a factory,we improve and innovate all the time,we take customers requirment seriously.
We change the manual air flap to automatic system.To low down the noise.
We use one air compressor for two or three air solenoid system,to reduce the cost for customer.
If you have any requirement for burner,please let me know.
2.Customers have their own oil system,no need of oil pump system.Is that ok?
Yes,it's ok.Please let me know first.To see if we have to change the print board accordingly.
3.Do customers need to prepare the pre-filer?
No.We have it with the burner.If you have your own ideas,then it's ok.
4.Is necessary the burner working with 1 unit outside compressor?
Yes.It is.Because the simple principle is high pressure atomizing.
ps:Air compressor is better bigger than small.Bigger one can supply enough compressed air once,while small capacity compressor may work continually.
5.I am not so familiar about burner,which type should I choose?
It's ok.Contact us,we will guide you the best burner.
1. Have you improved and innovated your product?
As a factory,we improve and innovate all the time,we take customers requirment seriously.
We change the manual air flap to automatic system.To low down the noise.
We use one air compressor for two or three air solenoid system,to reduce the cost for customer.
If you have any requirement for burner,please let me know.
2.Customers have their own oil system,no need of oil pump system.Is that ok?
Yes,it's ok.Please let me know first.To see if we have to change the print board accordingly.
3.Do customers need to prepare the pre-filer?
No.We have it with the burner.If you have your own ideas,then it's ok.
4.Is necessary the burner working with 1 unit outside compressor?
Yes.It is.Because the simple principle is high pressure atomizing.
ps:Air compressor is better bigger than small.Bigger one can supply enough compressed air once,while small capacity compressor may work continually.
5.I am not so familiar about burner,which type should I choose?
It's ok.Contact us,we will guide you the best burner.
If you are interested in us, please feel free to contact us!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 6 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the steam boiler be supplied for my local voltage?
The standard configuration is 110V / 220V / 230V / 240V / 380V; 50HZ / 60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao East Power Industry Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao East Power Industry Equipment Co., Ltd. range on HVACR Nexus.
