Sterilizing oven dryer stove — voltage 220-380V/customizable, 10kw. The complete factory specification follows. Made by Henan Vibrate Machinery Equipment Co., Ltd. (3 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Sterilizing Oven Dryer Stove
- Power(W): 10kw
- Voltage: 220-380V/customizable
- Material: SUS304, SUS304L, SUS316, SUS316L
- Warranty: 1 Year
- Certification: CE ISO
- Place Of Origin: Henan, China
Technical Specifications
| Type | hot air circulation drying |
|---|---|
| Voltage | 220-380V/customizable |
| Heating Method | Electric Heating |
| Material | SUS304, SUS304L, SUS316, SUS316L |
| Power(W) | 10kw |
| Application | Chemicals Processing, Plastics Processing, Food Processing |
| Core Components | Bearing, Gear, Motor, Gearbox, PLC, Engine, Other |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Operating System Language | English, Spanish, German, Japanese, Korean |
| Place Of Origin | Henan, China |
| Weight (Kg) | 300 |
| Brand Name | VBJX |
| Dimension(L*W*H) | 1000*750* 1450mm |
| Condition | New |
| Certification | CE ISO |
| Selling Units | Single item |
| Single Package Size | 120X100X160 cm |
| Single Gross Weight | 350.000 kg |
Product Details

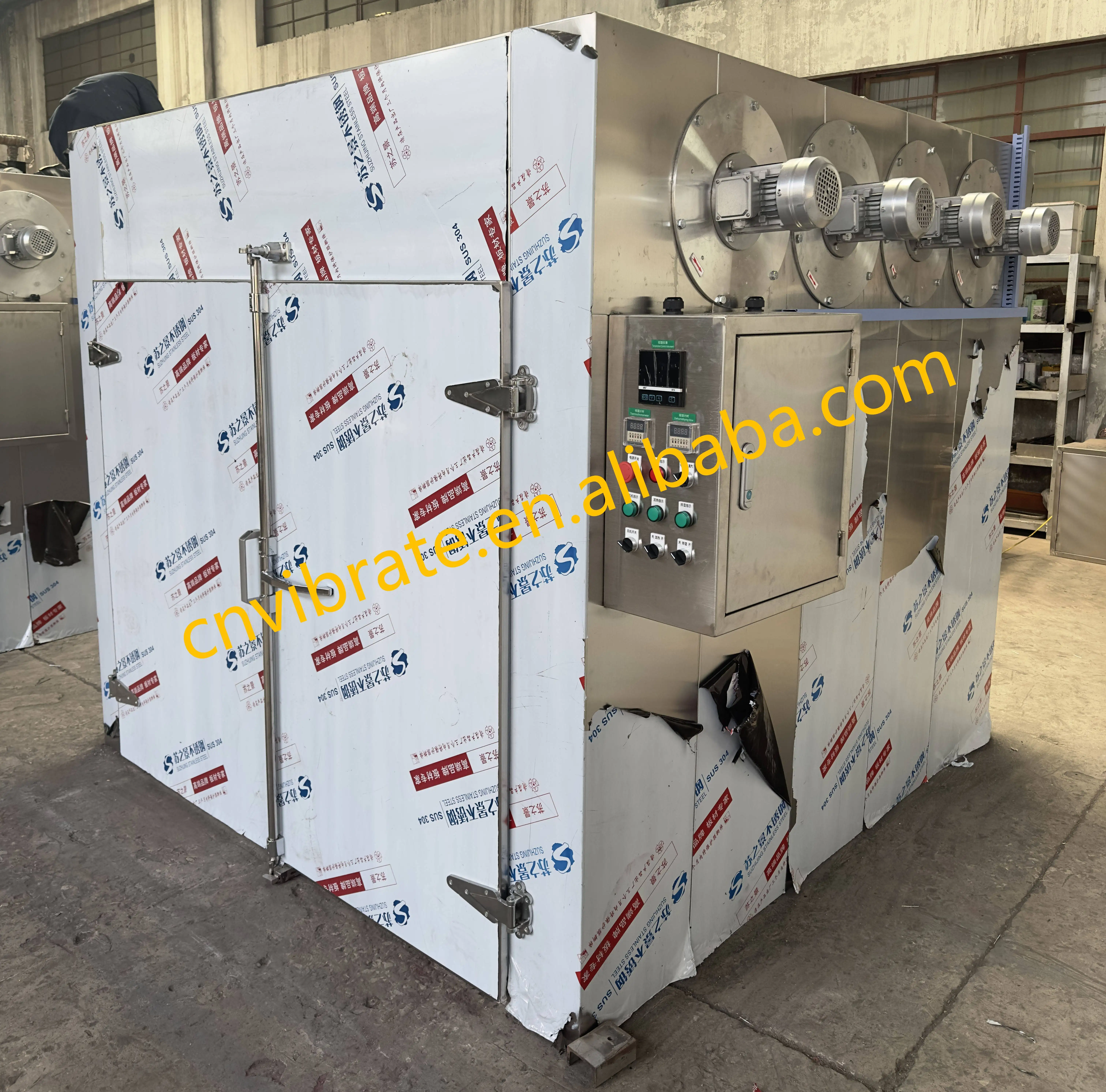

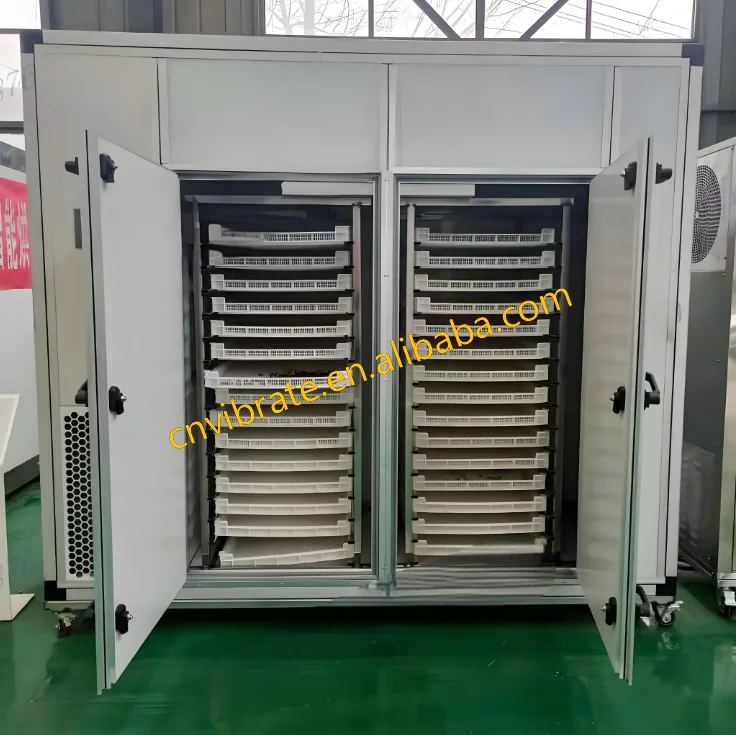

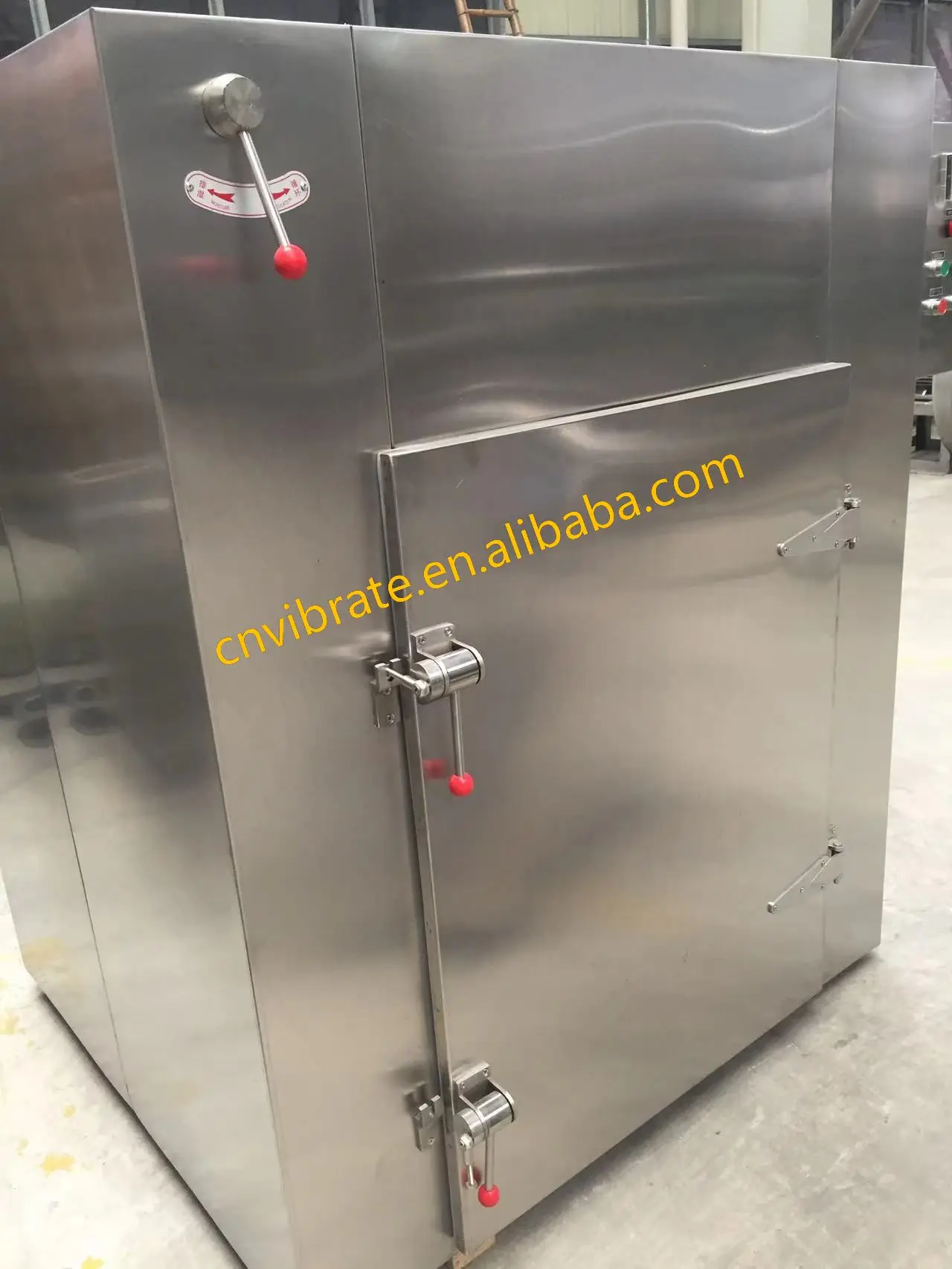

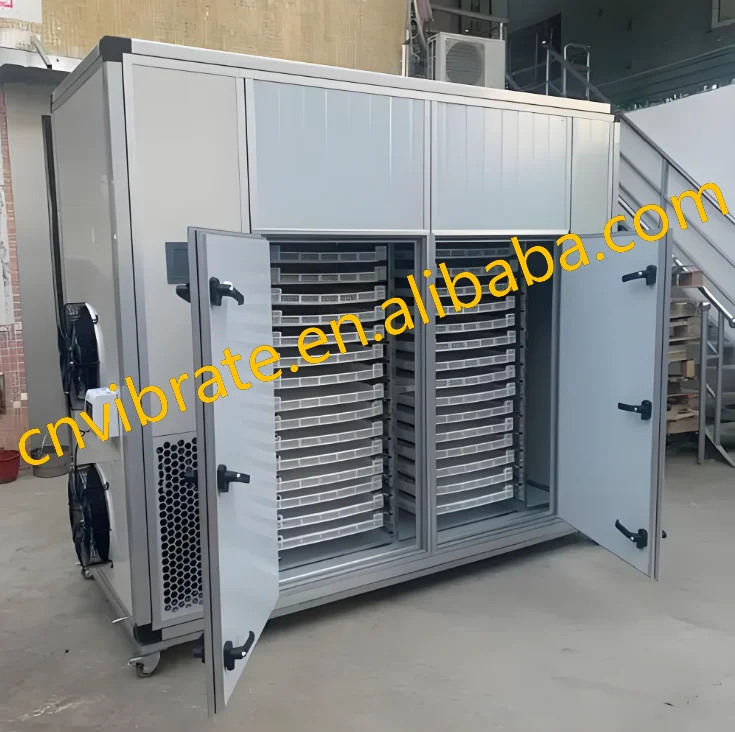

Product show

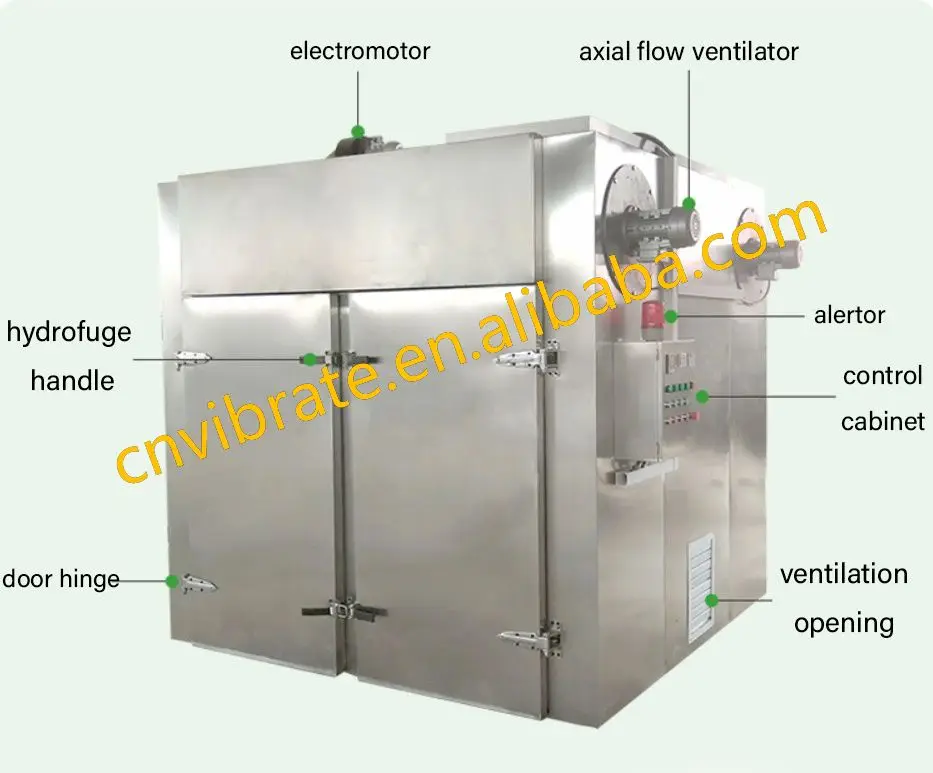

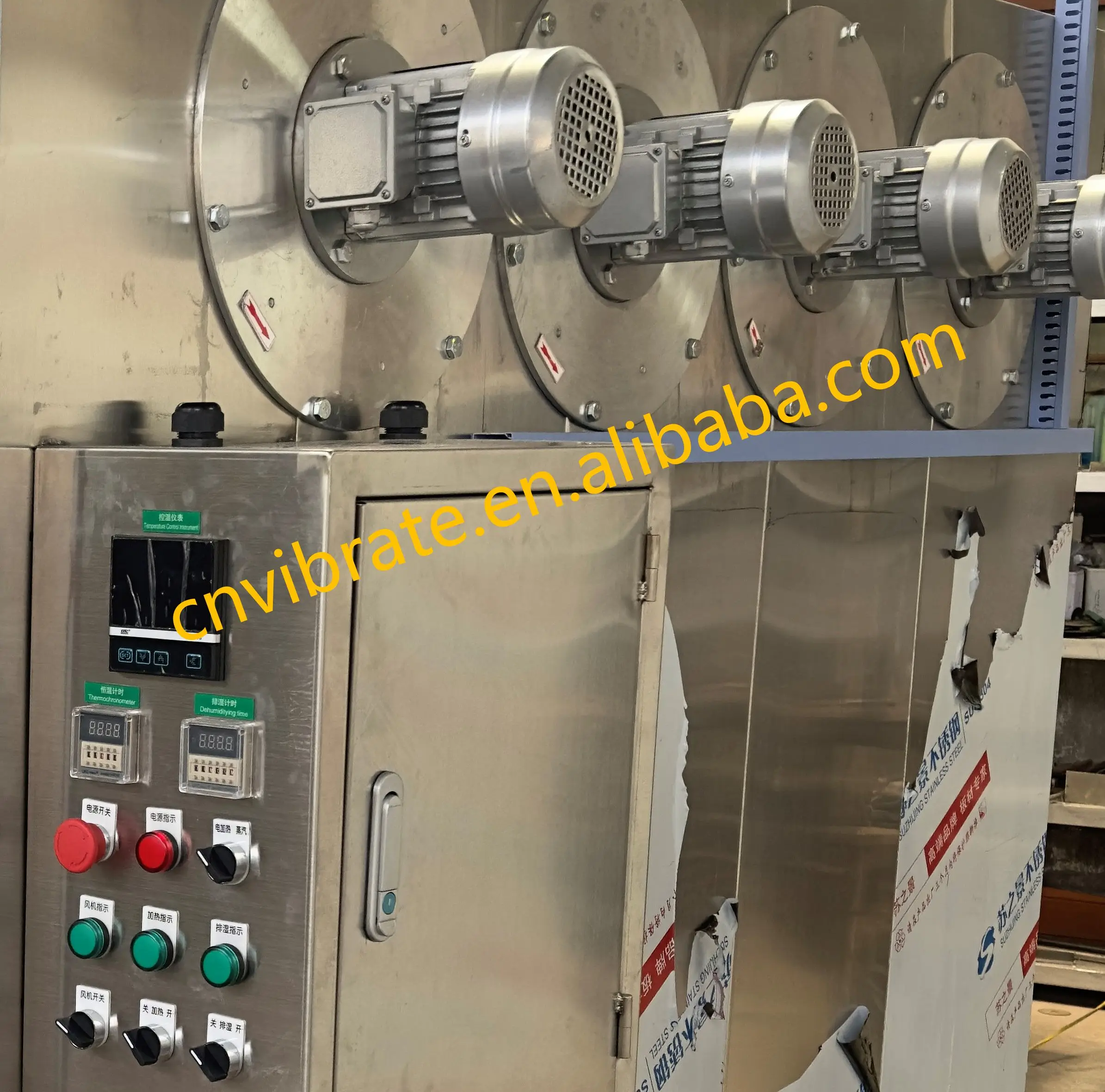

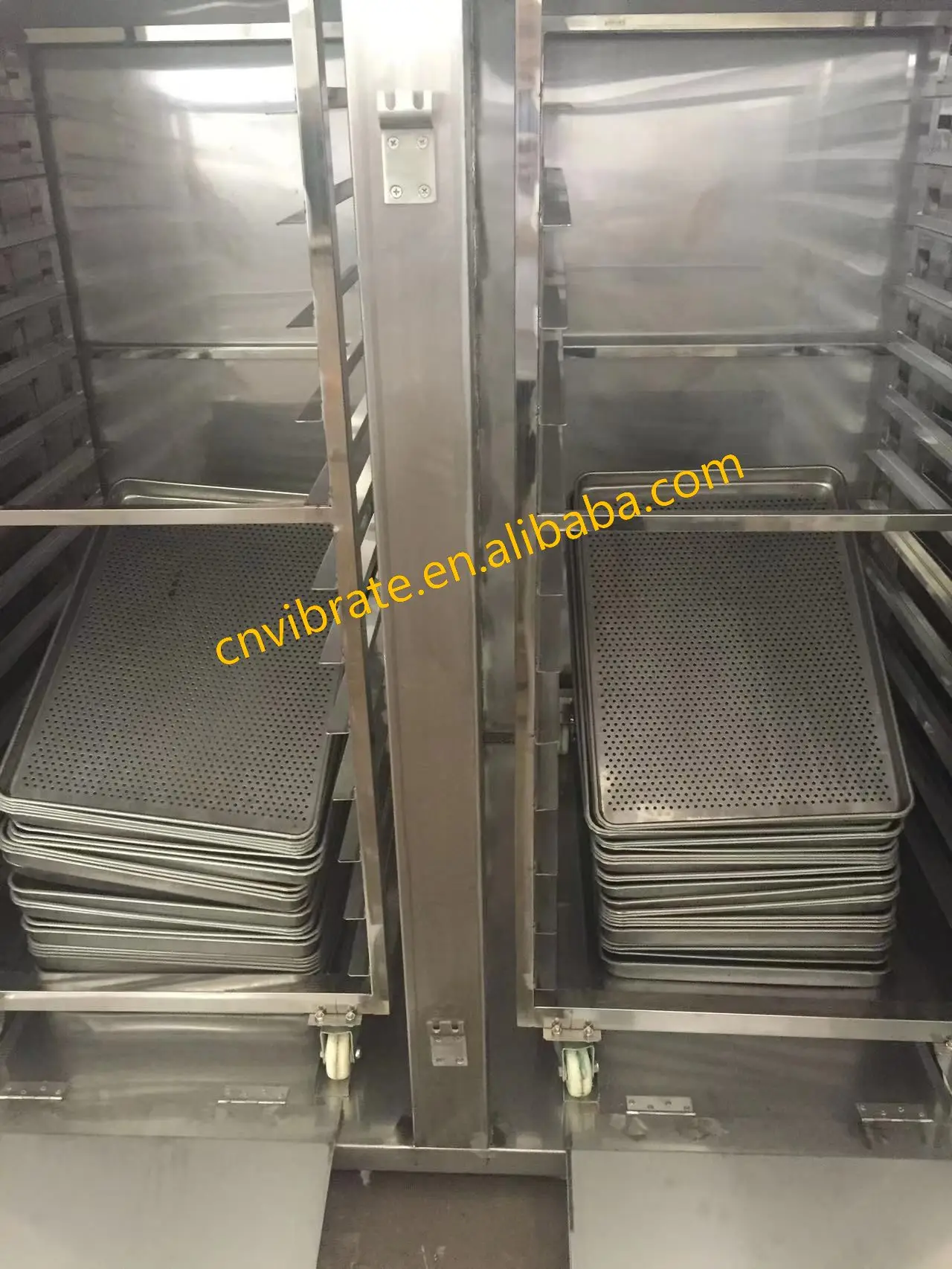

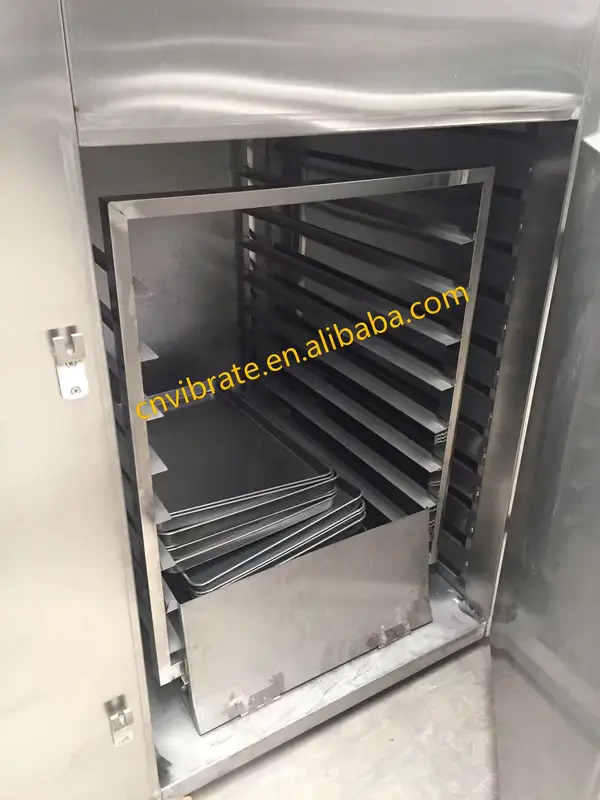

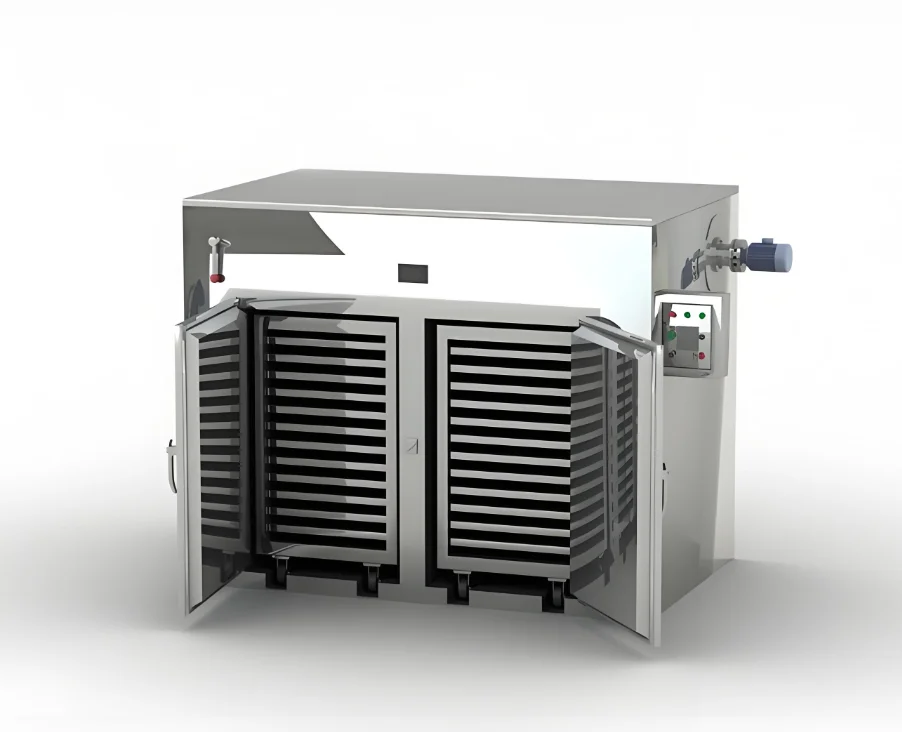

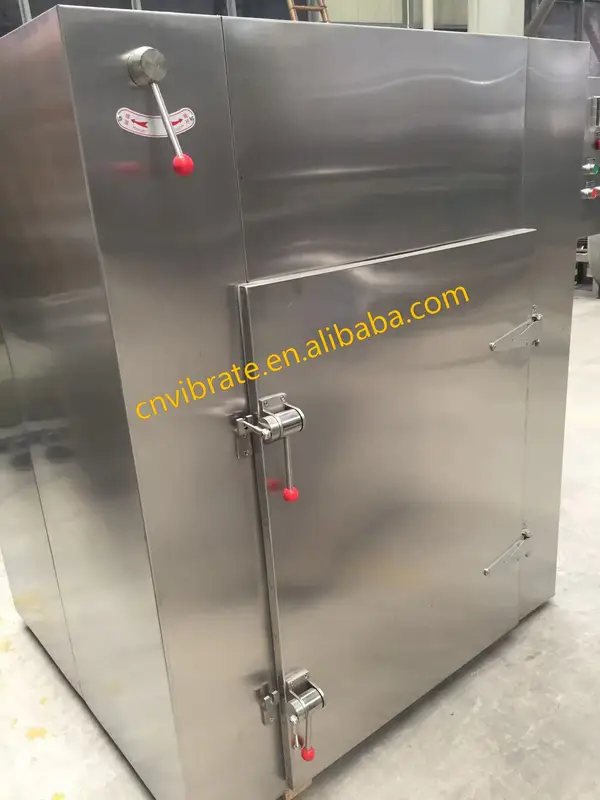

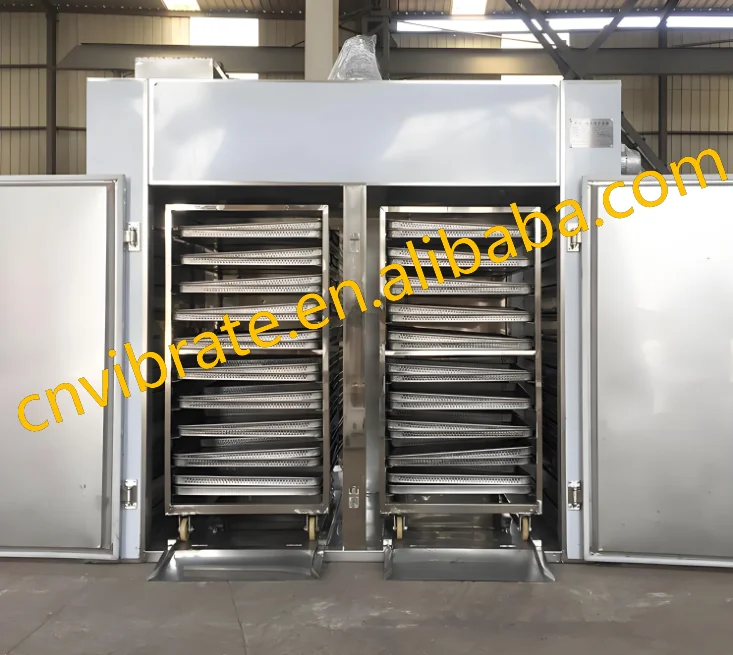

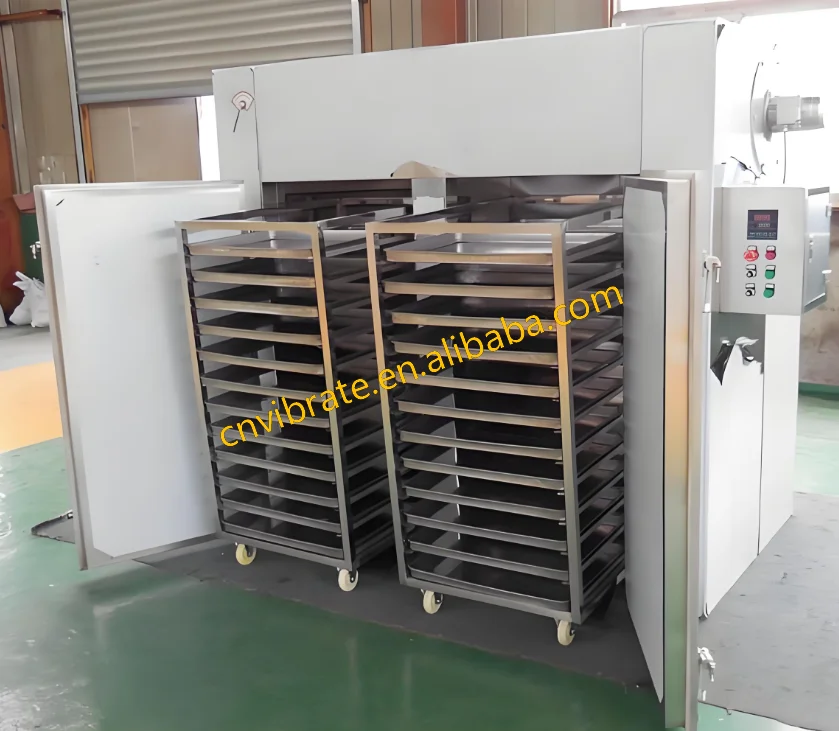

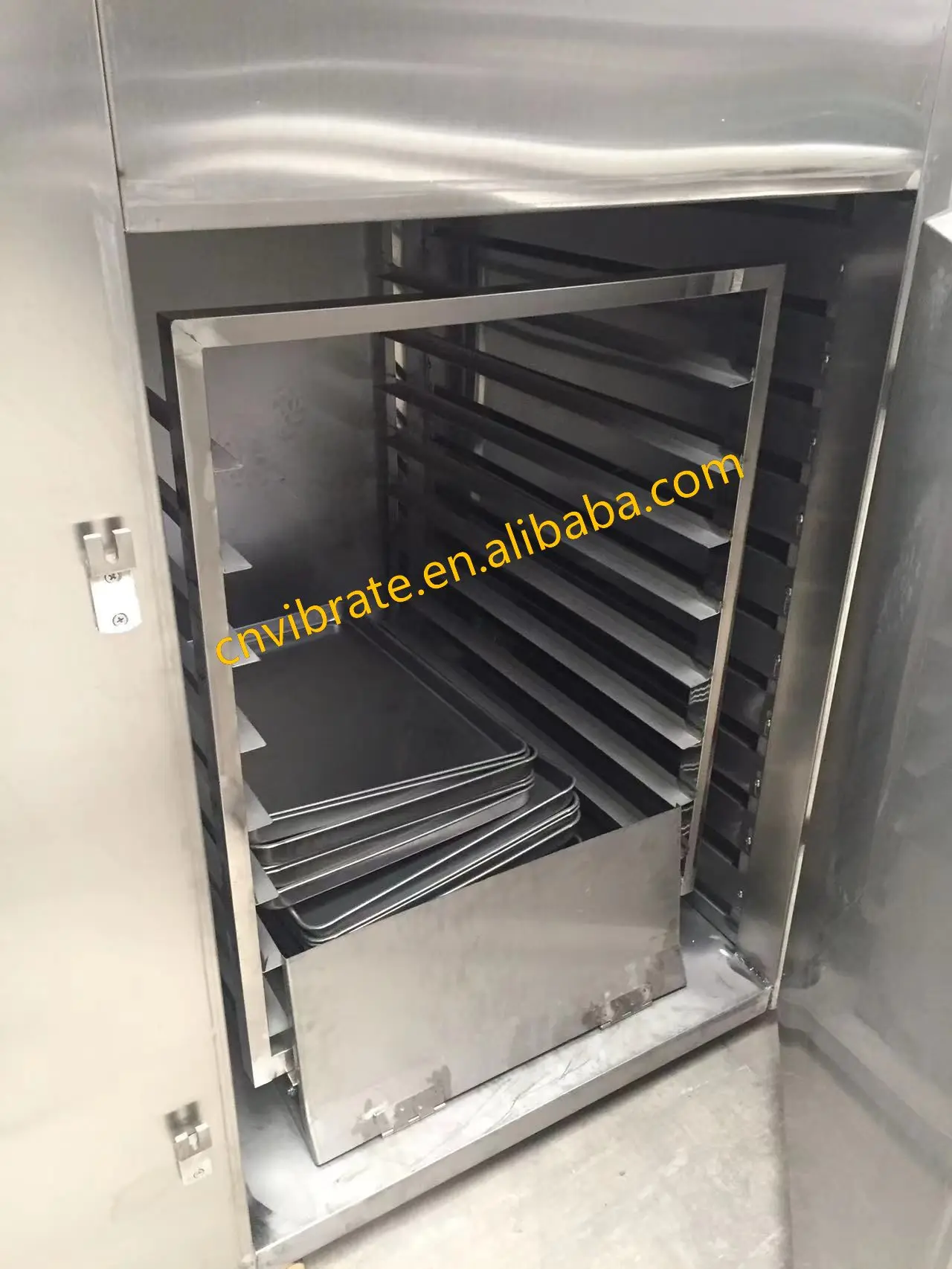

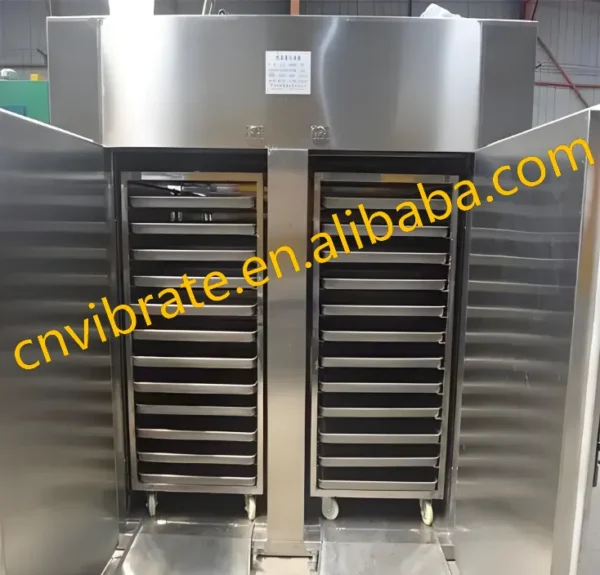

VBJX Hot Air Circulation Drying Oven
Hot air dryer is the use of heat pump principle and sensible heat transfer technology to provide high temperature hot air equipment, widely used in the printing industry, compared with traditional electric heating, energy saving ratio of up to 60%-90%.
1. CT-C series hot air circulation oven is made of SUS304 stainless steel wire drawing plate with a thickness of 1.5mm. 2.Electricity, far infrared temperature 50 ~ 300℃. fully enclosed structure, overall beautiful. 3. the control adopts PLC touch screen program control (intelligent digital display instrument) user selection. 4. the inlet and outlet are purified by high efficiency filter, and the internal structure meets the requirements of "GMP".
5.control instruments are: A, ordinary digital display instrument, B, intelligent digital program instrument, C, touch screen PLC program display (user selection). 6.the heating tube output adopts solid state control to ensure that the temperature of the oven is stable during the heating process. 7.digital display voltage, ammeter (display working voltage, display heating tube working current) power supply AC380V/220V/50HZ. 8.car oven car for electric drive (button control). 9.oven insulation material using high quality aluminum silicate fiber cotton (to ensure that the oven in the heating process of the shell surface temperature ≤15℃).

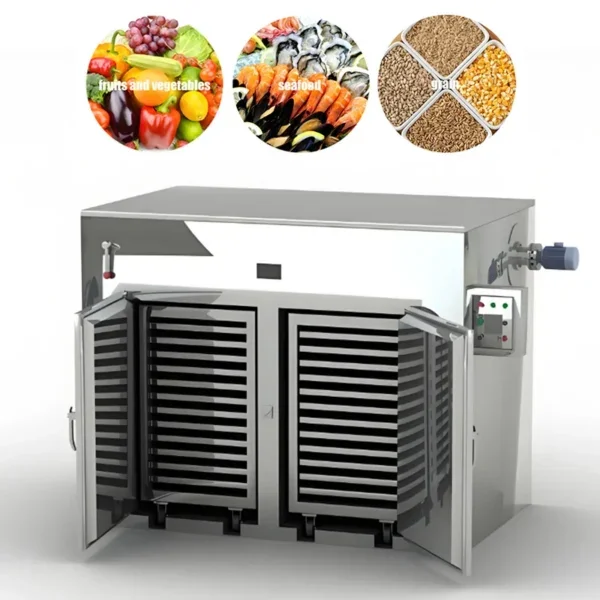

Application scene
1.Food processing industry: used to dry vegetables, fruits, meat and other foods to extend their shelf life, increase the quality and taste of food. 2.Chemical industry: Used for drying chemical raw materials, chemical products, powders, particles, etc., such as ceramic raw materials, dyes, pigments, etc. 3.Pharmaceutical industry: used for the drying of medicinal materials in the pharmaceutical process, as well as the drying process in the production of drugs. 4.Agriculture: Used for the processing of agricultural products, such as the drying of grains, feed, wood, etc., and the seed treatment of crops. 5.uilding materials industry: used for drywall, mortar, bricks and other building materials in the production process of drying. 6.Textile industry: used for the drying of fibers, fabrics, garments, etc., as well as the drying of dyed fabrics.
Technical Parameters
model | Dimensions (D * W * H) mm | heating method | power /area | Explosion-proof motor power/set | output (kg) | baking tray | doors/car | Dehumidifying fan |
CT-C-0 | 1000*750* 1450 | Electric heating/ Steam heating | 9KW/9㎡ | 0.45KW/2 | 80 | 24 | 1/1 | 0.25KW |
CT-C-Ⅰ | 1000*1700* 1450 | 电-蒸汽 | 18KW-25㎡ | 0.45KW/2 | 160 | 48 | 2/2 | 0.25KW |
CT-C-Ⅱ | 2000*1700* 1450 | 电-蒸汽 | 27KW-35㎡ | 0.45KW/4 | 320 | 96 | 2/4 | 0.37KW |
CT-C-Ⅲ | 2000*2650* 1450 | 电-蒸汽 | 36KW-48㎡ | 0.45KW/8 | 500 | 144 | 3/6 | 0.37KW |
CT-C-Ⅳ | 2000*3500* 1450 | 电-蒸汽 | 48KW-90㎡ | 0.45KW/8 | 650 | 192 | 4/8 | 0.37KW |
Our Advantages
1. safety: use the heat in the air to heat the water temperature, water and electricity are completely separated, and set up
multiple protection, there is no safety risk.
3. not affected by the environment: is an all-weather hot water supply system, regardless of cloudy days, rainy days, spring, summer, autumn and winter, day and night, as long as there is air there is hot water, you can -10℃ ~ 30℃ low temperature heat energy, through the role of the heat pump unit, to provide a temperature of about 60℃ hot water.
4. intelligent: can automatically run, without duty, with temperature control device and insulation layer, can automatically
water, heating, power off, can provide hot water 24 hours, both hot water, air conditioning, heating multiple functions.
multiple protection, there is no safety risk.
2. energy saving: use a small amount of electricity to carry the heat energy in the air to the water supply water heating, the
energy consumption is 1/5 of the electric water heater; Gas water heater 1/6; 1/4 of the fuel water heater; 2/3 of ordinary solar energy; And can use low power to achieve more energy saving effect.
energy consumption is 1/5 of the electric water heater; Gas water heater 1/6; 1/4 of the fuel water heater; 2/3 of ordinary solar energy; And can use low power to achieve more energy saving effect.
3. not affected by the environment: is an all-weather hot water supply system, regardless of cloudy days, rainy days, spring, summer, autumn and winter, day and night, as long as there is air there is hot water, you can -10℃ ~ 30℃ low temperature heat energy, through the role of the heat pump unit, to provide a temperature of about 60℃ hot water.
4. intelligent: can automatically run, without duty, with temperature control device and insulation layer, can automatically
water, heating, power off, can provide hot water 24 hours, both hot water, air conditioning, heating multiple functions.
5. easy installation: the air energy water heater occupies a small space, the shape is similar to the air conditioning outdoor unit, can be directly connected to the thermal insulation water tank or heating pipe network, suitable for high-rise buildings in large and medium-sized cities, for large central heating problems, is the best choice. Do not need solar panels, reduce the floor area of 95%, and the use of solar hot water equipment can reduce the solar collector area of 50%, save a lot of solar collector floor area, reduce the volume of hot water tank.
Product packaging
1.We will provide customers with complete packaging and transportation services, according to customer needs to provide land or sea transportation and other ways.

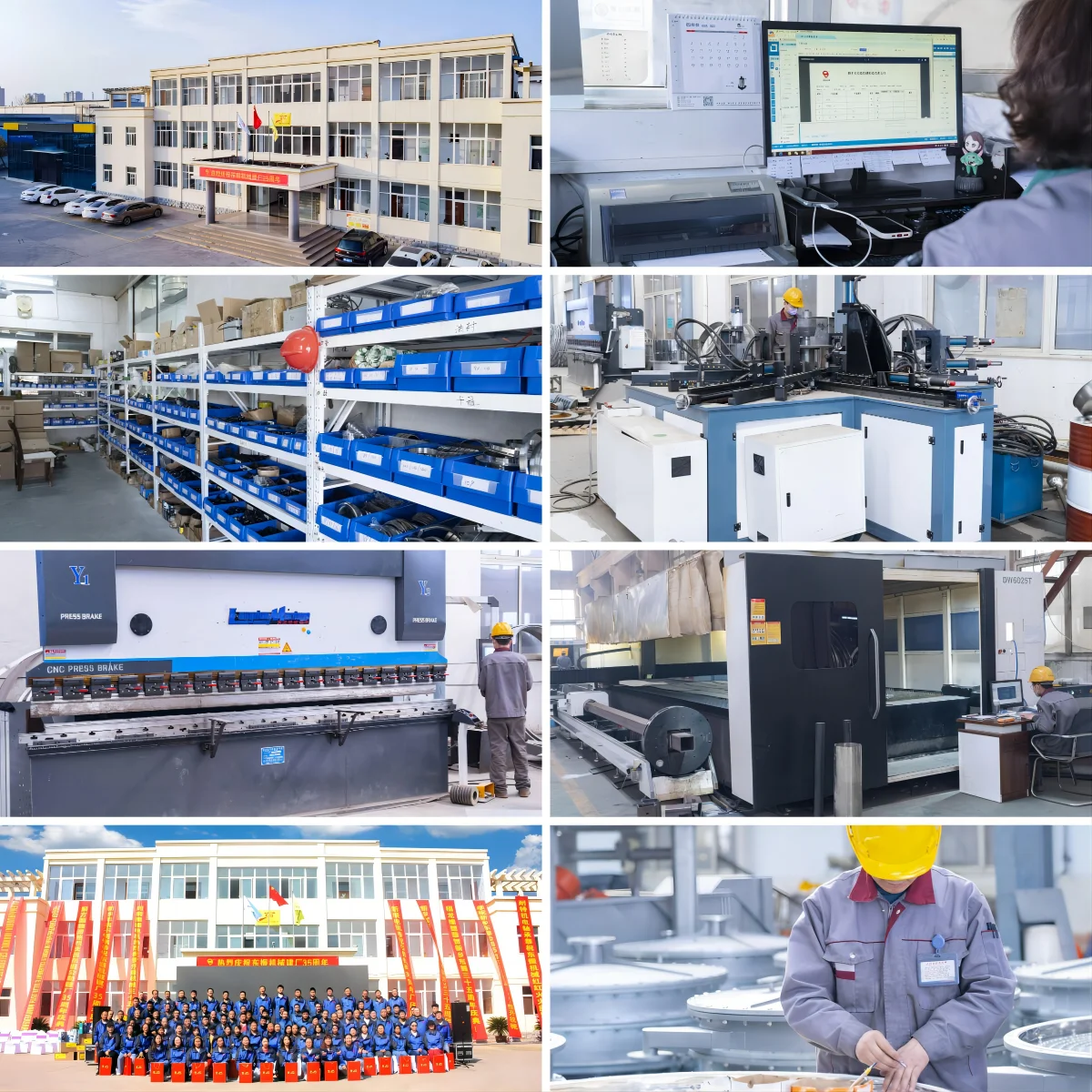

Company Profile
Henan Vibrate Machinery Equipment Co., Ltd.
1.With 36 years of professional production of rubber, food, medicine, chemical and mineral equipment experience, and has a good cooperative relationship with the world 500.
2.All raw materials purchased with domestic and foreign well-known manufacturers.
3.We have designed production lines for many companies, such as cosmetics production line ,clove production line, blue bubbleproduction line, flour production line, yeast production line, detergent production line,etc.
4.1 Years Warranty, 14 Days Delivery, Factory Price.
5.14800㎡ factory, Own R&D Team.
6.Free design service, free professional solutions.
7.Passed ISO9001, CE, SGS, Intetek certificates.
3.We have designed production lines for many companies, such as cosmetics production line ,clove production line, blue bubbleproduction line, flour production line, yeast production line, detergent production line,etc.
4.1 Years Warranty, 14 Days Delivery, Factory Price.
5.14800㎡ factory, Own R&D Team.
6.Free design service, free professional solutions.
7.Passed ISO9001, CE, SGS, Intetek certificates.
Certifications
FAQ
Q:How do you guarantee the quality of the machine？
A: We have export experience for 5 years and customers who bought our machine have tested the machine before it was shipped .
Q:Can the voltage of the machine be adapted ?
A:We can adapt the machine to your needs to match your local voltage.
Q:Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q:Can I go to China and visit your factory?
A:Sure, we are in Henan, China, welcome to our factory.
Q:Do you have operation manual with the machine?
A:Yes, of course, it is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.
Q:How about the packing?
A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
Q: What is warranty period of machine?
A:One year upon you receive the goods.
A: We have export experience for 5 years and customers who bought our machine have tested the machine before it was shipped .
Q:Can the voltage of the machine be adapted ?
A:We can adapt the machine to your needs to match your local voltage.
Q:Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q:Can I go to China and visit your factory?
A:Sure, we are in Henan, China, welcome to our factory.
Q:Do you have operation manual with the machine?
A:Yes, of course, it is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.
Q:How about the packing?
A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
Q: What is warranty period of machine?
A:One year upon you receive the goods.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $3950 / set
- 10–49 set: US $3850 / set
- 50+ set: US $3750 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sterilizing oven dryer stove?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this sterilizing oven dryer stove carry?
It is supplied with CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the sterilizing oven dryer stove be supplied for my local voltage?
The standard configuration is 220-380V/customizable. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Vibrate Machinery Equipment Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Vibrate Machinery Equipment Co., Ltd. range on HVACR Nexus.
