This super slim panel is published with the manufacturer’s full specification — voltage AC 100V~240V, 380 V, power source Electric. Made by Jiangxi Jinjinwo Environmental Protection Co., Ltd. (1 year on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Super Slim Panel
- Model Number: T35-11-3.15
- Power Source: Electric
- Voltage: AC 100V~240V, 380 V
- Material: Carbon Steel
- Blade Material: Carbon Steel
- Speed: 2900rpm
Technical Specifications
| Blade Diameter | 10 in |
|---|---|
| Voltage | AC 100V~240V, 380 V |
| Speed | 2900rpm |
| Type | exhaust fan |
| Material | Carbon Steel |
| Blade Material | Carbon Steel |
| Mounting Type | Free Standing, Wall Fan, Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OBM, ODM, OEM |
| Place Of Origin | Jiangxi, China |
| Brand Name | XJTKJ |
| Model Number | T35-11-3.15 |
| Product Name | Ventilation Exhaust Fan |
| Usage | Exhaust Ventilation .Placed |
| Motor Type | AC Cooper Motor |
| Pressure(Pa) | 192-294 |
| Fan Height | in |
| Function | Ventilation, heat dissipation and smoke exhaust |
| Advantage | Professional/Saving Engergy/Simple Structure |
| Color | Grey/Red/Custom Color |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

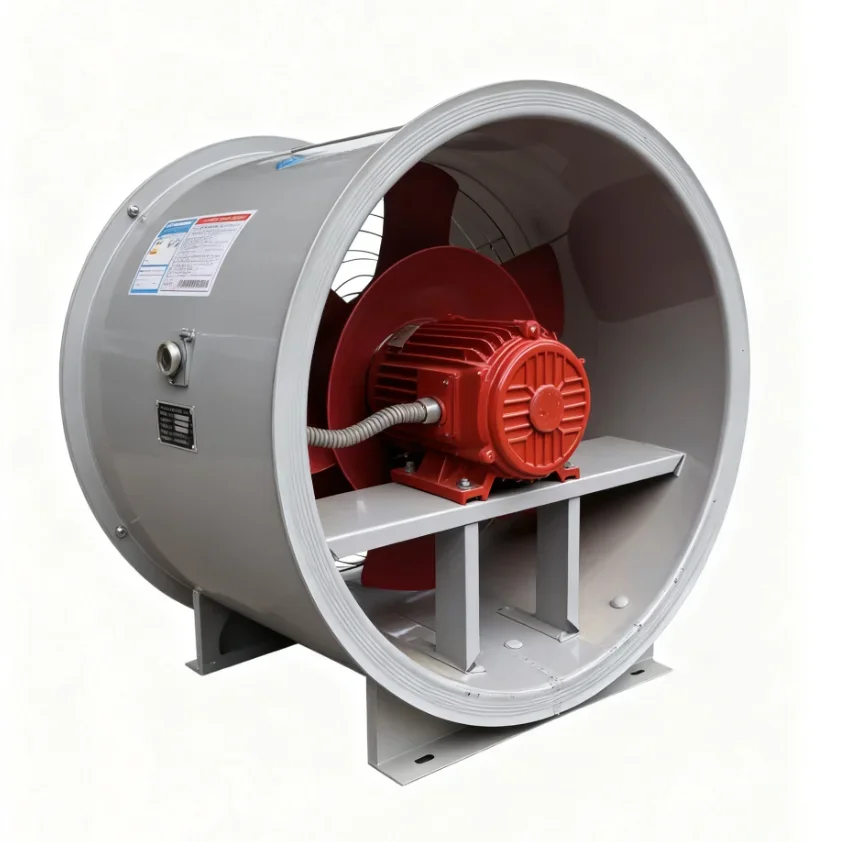

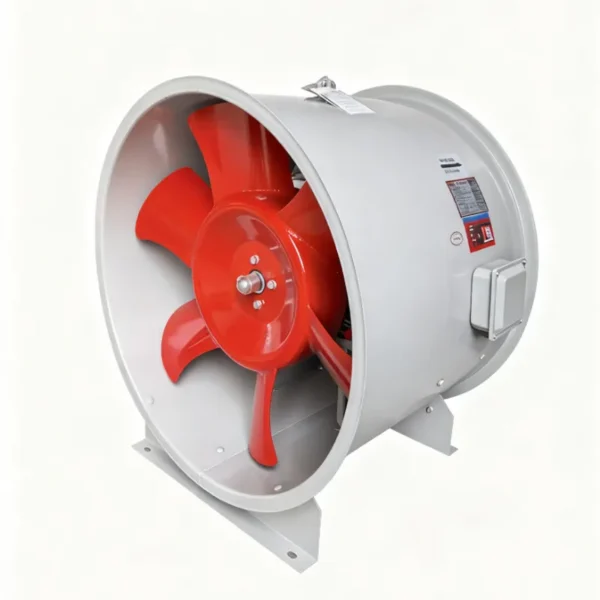

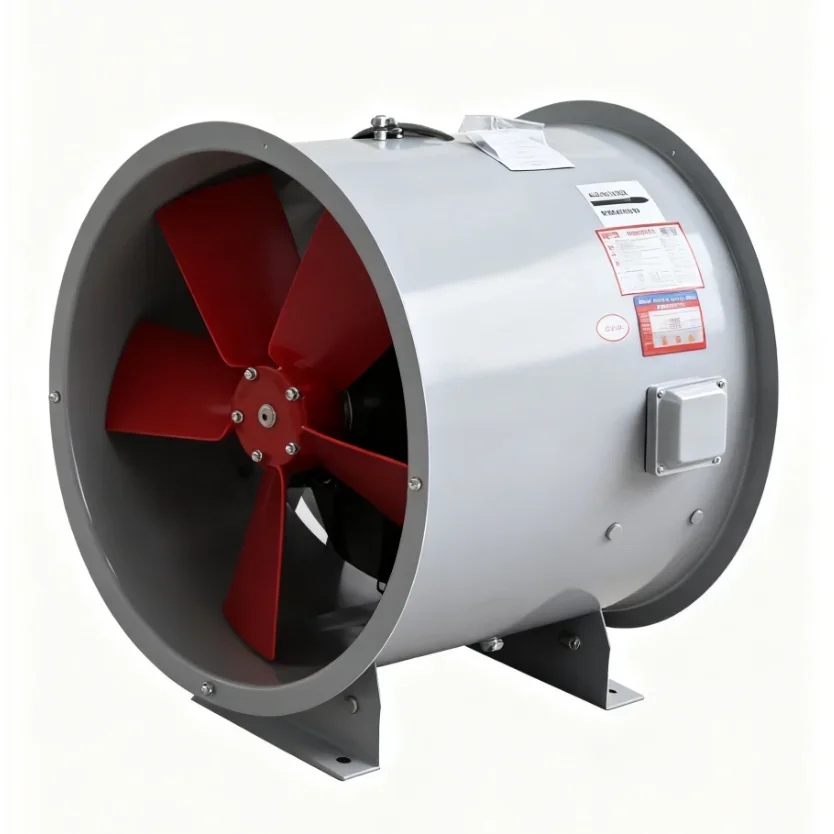

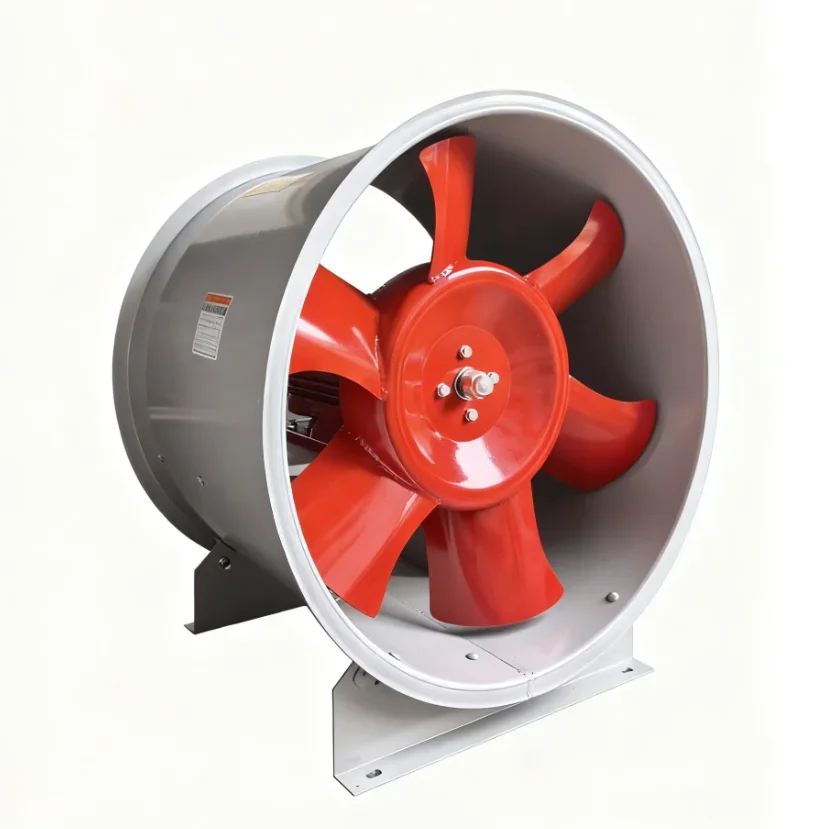

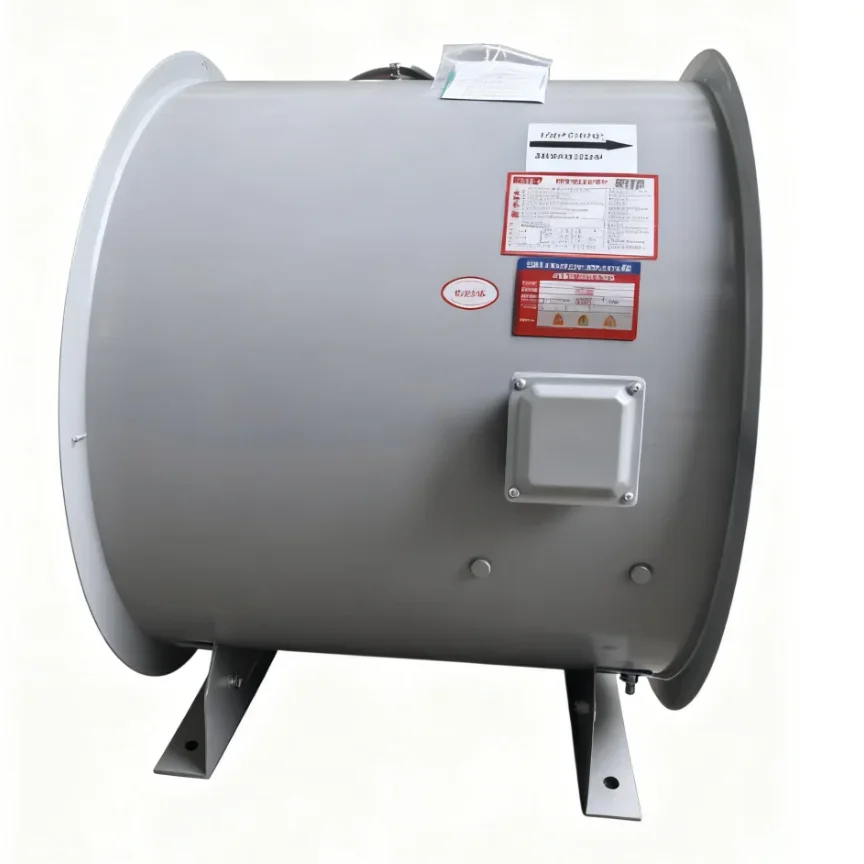

T35-11 type axial flow fan
| 型号 Model | 风量（m³/h） Air volume | 全压（Pa） Total pressure | 功率（KW） Power | 转速（r/min） Rotational speed |
| T35-11-2.8 | 1640 | 152 | 0.12 | 2900 |
| 2100-3000 | 169-186 | 0.18 | ||
| 3200 | 232 | 0.25 | ||
| 800-1350 | 40 | 0.025 | 1450 | |
| 1400-1600 | 48-60 | 0.04 | ||
| T35-11-3.15 | 2340 | 192 | 0.18 | 2900 |
| 3100 | 214 | 0.25 | ||
| 3800-4200 | 226 | 0.37 | ||
| 4550 | 294 | 0.55 | ||
| 1150 | 48 | 0.025 | 1450 | |
| 1500-1900 | 54 | 0.04 | ||
| 2070 | 59 | 0.06 | ||
| 2270 | 74 | 0.09 | ||
| T35-11-3.55 | 3300 | 241 | 0.37 | 2900 |
| 4400-5500 | 275 | 0.55 | ||
| 6000 | 300 | 0.75 | ||
| 6500 | 373 | 1.1 | ||
| 1680 | 61 | 0.04 | 1450 | |
| 2200 | 68 | 0.06 | ||
| 2700-3000 | 72 | 0.09 | ||
| 3265 | 93 | 0.12 | ||
| T35-11-4 | 4800 | 310 | 0.55 | 2900 |
| 6300-8500 | 345-380 | 1.1 | ||
| 9300 | 474 | 1.5 | ||
| 2400 | 77 | 0.09 | 1450 | |
| 3100-3900 | 87 | 0.12 | ||
| 4260 | 95 | 0.18 | ||
| 4670 | 119 | 0.25 | ||
| T35-11-4.5 | 3420 | 98 | 0.12 | 1450 |
| 4500 | 110 | 0.18 | ||
| 5880 | 113 | 0.25 | ||
| 6070-6660 | 121-150 | 0.37 | ||
| T35-11-5 | 4700 | 122 | 0.25 | 1450 |
| 6170-7650 | 136 | 0.37 | ||
| 8320 | 149 | 0.55 | ||
| 9100 | 185 | 0.75 | ||
| 3100-6100 | 53-81 | 0.37 | 960 | |
| T35-11-5.6 | 6600 | 151 | 0.37 | 1450 |
| 8660 | 169 | 0.55 | ||
| 10300 | 174 | 0.75 | ||
| 11600-12800 | 186-232 | 1.1 | ||
| 4300-8470 | 67-101 | 0.37 | 960 | |
| T35-11-6.3 | 9390 | 192 | 0.75 | 1450 |
| 12300 | 214 | 1.1 | ||
| 15290-16640 | 228 | 1.5 | ||
| 182150 | 294 | 2.2 | ||
| 6220-10100 | 84-96 | 0.37 | 960 | |
| 11000-12000 | 104-128 | 0.75 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $30 / set
- 100–499 set: US $29 / set
- 500+ set: US $28 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this super slim panel?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the super slim panel be supplied for my local voltage?
The standard configuration is AC 100V~240V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangxi Jinjinwo Environmental Protection Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Jiangxi Jinjinwo Environmental Protection Co., Ltd. range on HVACR Nexus.
