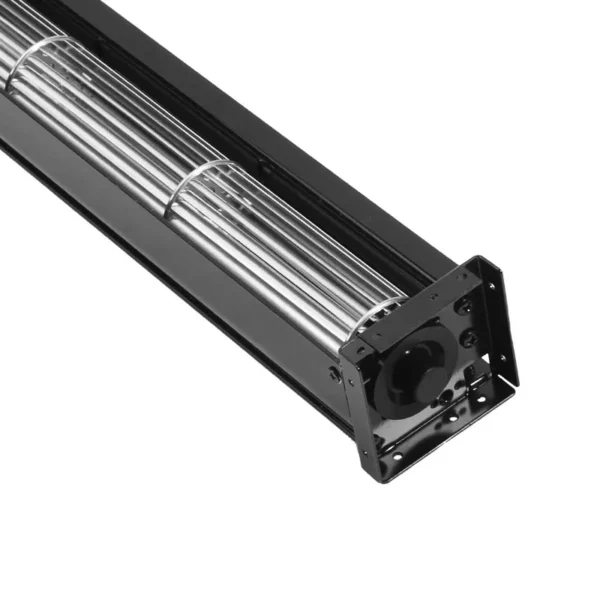

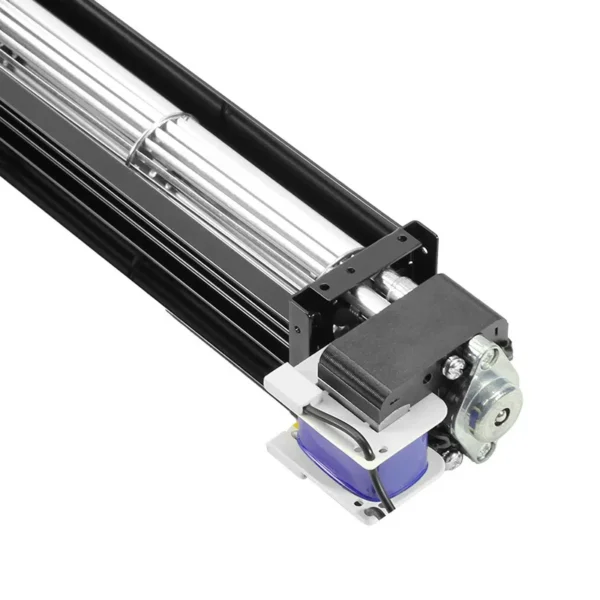

This tangential fan is published with the manufacturer’s full specification — voltage AC 120/230V, blade material STAINLESS STEEL. Made by Dongguan Kuhong Electronics Co., Ltd. (8 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Fan
- Model Number: CM30920-LB
- Voltage: AC 120/230V
- Blade Material: STAINLESS STEEL
- Material: Aluminum Alloy, Steel
- Impeller Material: Aluminumu Alloy
- Speed: 2400RPM
Technical Specifications
| Voltage | AC 120/230V |
|---|---|
| Speed | 2400RPM |
| Mounting | Other |
| Blade Material | STAINLESS STEEL |
| Material | Aluminum Alloy, Steel |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | coolcom |
| Model Number | CM30920-LB |
| Application | Air Curtain |
| Bearing Type | NMB Ball Bearing |
| Impeller Diameter | 30Mm |
| Key Word | Cross Flown Fan |
| OEM /ODM | Acceptable |
| Function | Ventialing |
| Impeller Material | Aluminumu Alloy |
| Product Name | Tangential Fan |
| Motor Type | AC Motor |
| Selling Units | Single item |
| Single Package Size | 45X15X15 cm |
| Single Gross Weight | 2.0 kg |
Product Details

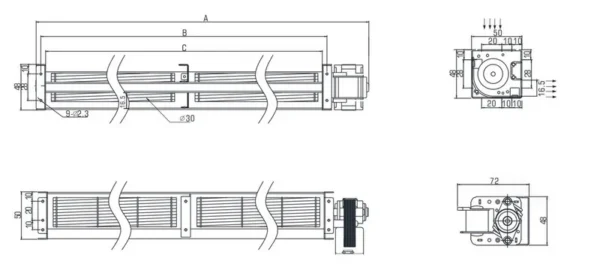

| MODEL | IMPELLER SIZE(MM) | BEARING TYPE | VOLTAGE/FREQUENCY V/HZ | CURRENT(A) | SPEED(RPM) | AIR FLOW(M3/H) | PRESSURE(PA) | NOISE(DB) | BLOWER |
|---|---|---|---|---|---|---|---|---|---|
| CM30530HB02-LB | A=605 B=540 C=530 | NMB | 220V/50Hz | 0.14 | 2400 | 100 | 18 | 33 | Double |
| CM30610HB02-LB | A=685 B=620 C=610 | NMB | 220V/50Hz | 0.15 | 2400 | 115 | 18 | 32 | Double |
| CM30718HB02-LB | A=793 B=728 C=718 | NMB | 220V/50Hz | 0.15 | 2400 | 120 | 18 | 35 | Double |
| CM30800HB02-LB | A=875 B=810 C=800 | NMB | 220V/50Hz | 0.15 | 2400 | 110 | 17 | 35 | Triple |
| CM30854HB02-LB | A=929 B=854 C=854 | NMB | 220V/50Hz | 0.15 | 2400 | 135 | 17 | 36 | Triple |
| CM30920HB02-LB | A=995 B=930 C=920 | NMB | 220V/50Hz | 0.15 | 2400 | 145 | 17 | 36 | Triple |
| CM30986HB02-LB | A=1061 B=996 C=986 | NMB | 220V/50Hz | 0.15 | 2400 | 170 | 17 | 38 | Triple |
| item | 30mm Impeller Diameter Cross flow fan |
| Blade Material | Aluminum Alloy |
| voltage | 120V/240V |
| mounting | Duct mounting |
| speed | 2400RPM |
| customized support | OEM, ODM, OBM |
| place of origin | China |
| brand name | coolcom |
| warranty | 1 Year |
| After-sales Service Provided | Online support |
Certification
Packing
1. coolcom cross flow fans with high air flow value and low noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature.
2. The Ball Bearing and BLDC External Rotor Motor provide smooth operation and minimal maintenance requirements, reducing downtime and costs for businesses like advertising companies and home use applications.
3. .Offering a wide selection of voltage options (120V/230V), this versatile industrial ventilation fan can be easily integrated into various environments, including garment shops, home use applications, and construction worksites.
4.The COOLCOM 0mm 110V/230V AC Blower Industrial Exhaust Ventilation Fan comes with a 1-year warranty and provides exceptional after-sales support, including online consultations and customization options like OEM, ODM, and OBM, catering to the needs of various industries and applications.
Based in 2011, DONGGUAN KUHONG ELECTRONICS CO.,LTD is a distinguished manufacturer of cross flow fans, centrifugal fans, pipeline fans, brushless dc motors, and EC motors. Promoting our own branded product, 'COOLCOM FAN', we provide full support for OEM&ODM. The products are widely utilized in HVAC, ventilation, heating, air conditioning&refrigeration, home appliance, and varied industries.
Our company has a strong R&D and engineering team with 16 years' expertise, developing and implementing product designs independently. We offer tailored, customized solutions to meet each client's unique requirements. Our extensive experience and more than 1,000 varied product ranges and engineering solutions cater to clients around the world.
At COOLCOM FAN, our priority is to satisfy customers with our top-notch service, flexible pricing, and high-quality products. Our ISO9001 certified factory complies with the CE, RSH, EMC, and LVD standards. Our company is an energetic blend of young and dedicated engineers and sales staff, continuously striving to develop innovative, quieter, stronger, and more durable motor and fan products.
COOLCOM FAN: Your trusted partner for advanced motor and fan solutions. We're here to support your inquiries and provide customized solutions on motor and fan products. Connect with us today!
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Domestic Market(40.00%),North America(20.00%),South America(10.00%),Mid East(10.00%),South Asia(10.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cross flow fan,centrifugal fan,ec fan,axial fan,dc motor
4. why should you buy from us not from other suppliers?
we had 16 years RD,manufacture and sales experience, we committed to support customer with high quality product,value-base price and flexible service! our service and quality are top-notch,It's our belief that the margin and our quality will make you happy
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $50 / piece
- 500–999 piece: US $34 / piece
- 1000+ piece: US $33 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential fan be supplied for my local voltage?
The standard configuration is AC 120/230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Kuhong Electronics Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Kuhong Electronics Co., Ltd. range on HVACR Nexus.
