The tangential fan listed here carries 12V, 12CFM, documented exactly as the manufacturer publishes it. Made by Beijing Zihang Dahui Electronics Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Tangential Fan
- Model Number: HCD25150A12BF
- Voltage: 12V
- Voltage Range: 12V
- Air Flow: 12CFM
- Blade Material: Cast Iron
- Material: Aluminum Alloy
Technical Specifications
| Voltage | 12V |
|---|---|
| Speed | 3400rpm |
| Mounting | Free Standing |
| Blade Material | Cast Iron |
| Material | Aluminum Alloy |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 2 Years |
| Place Of Origin | Beijing, China |
| Brand Name | hang da hui |
| Model Number | HCD25150A12BF |
| Type | low noise tangential fan 25*150 cross flow fan 12vdc |
| Motor Type | DC |
| Voltage Range | 12V |
| Max Pressure | 1.3mmAq |
| Installation | Duct fan |
| Air Flow | 12CFM |
| Selling Units | Single item |
| Single Package Size | 20X5X5 cm |
| Single Gross Weight | 0.500 kg |
Product Details

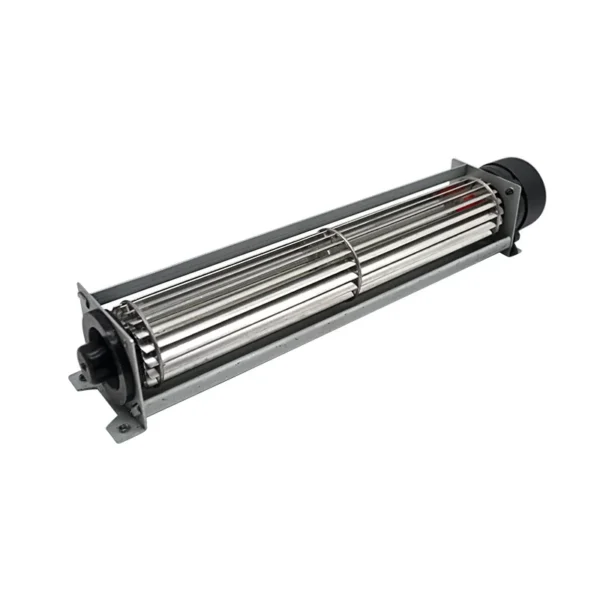

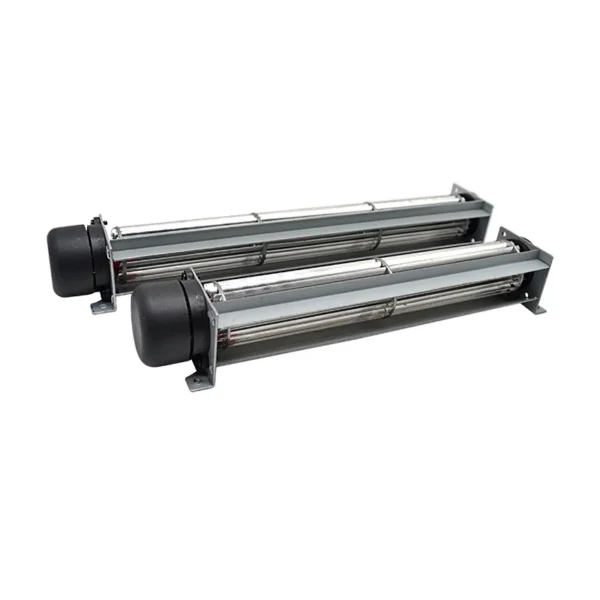

Factory price can be customized mini low noise tangential fan 25*150 cross flow fan 12vdc
| DC cross flow fan product overview | ||
| texture of material | Wind wheel — aluminum; shell — cold rolled sheet (electrophoresis) | |
| Fan rotation direction | From the direction of the fan blade, it is anticlockwise | |
| insulation resistance | More than 500 megohm | |
| Operating ambient temperature | -40℃~70℃ | |
| life | S (oil bearing) 40000 hours, B (ball bearing) 60000 hours | |
| The company can make the following special function fans according to customers' requirements: | ||
| 1.PWM speed regulation | 2.TC temperature control, RD alarm | 3.FG |
| 4.Soft start | 5. IC protection, with locked rotor, automatic restart | 6.waterproof |
1 What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
2 What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3 How many types bearing of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.
4 How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5 How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $16 / piece
- 500+ piece: US $11 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Zihang Dahui Electronics Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Zihang Dahui Electronics Co., Ltd. range on HVACR Nexus.
