The tangential fan listed here carries voltage 24 VDC, 582 m3/H, documented exactly as the manufacturer publishes it. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.

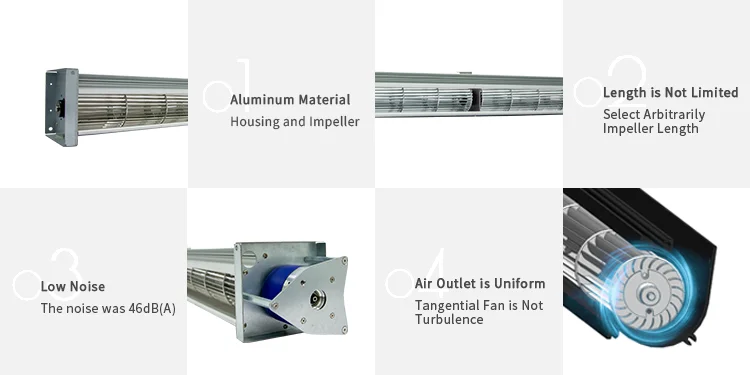

Key Features of This Tangential Fan
- Model Number: PC80B24615B
- Voltage: 24 VDC
- Air Flow: 582 m3/H
- Blade Material: Aluminium alloy
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 24 VDC |
|---|---|
| Blade Material | Aluminium alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC80B24615B |
| Insulation Class | Class B |
| Input Current | 1.85 A |
| Acoustical Noise | 46 dB(A) |
| Direction Of Rotation | Clockwise seen on motor |
| Dimension | 615x635x695 (see dimension drawing) |
| Air Flow | 582 m3/H |
| Static Pressure | 30 Pa |
| Operating Temperature | -25℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ |
| Selling Units | Single item |
Product Details
PRODUCT SPECIFICATIONS
1.General Characters
24Rated Voltage | 24 VDC | Insulation Class | Class B |
Operating Voltage | 16 ~ 28 VDC | Rated Speed | 1600 RPM |
Input Current | 1.85 A | Speed Control | Control input 0~10VDC |
Input Power | 44.4 W | Dielectric Strength | 5mA maximum at 500VAC 50Hz five second Between frame and (+) terminal |
Acoustical Noise | 46 dB(A) | Air Flow | 582 m³/h |
50 Mega Ohm minimum at 500VDC Between frame and (+) terminal | Locked rotor protection Polarity protection Automatic restart capability | ||
Direction of Rotation | Clockwise seen on motor | Protection Type | IP44 |
Input Power | 44.4 W | Static Pressure | 30 Pa |
2. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
Over Voltage Protection | The circuit will be shut down automatically when input voltage over 15VDC. And re-started when Voltage down to 15VDC below. |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V. |

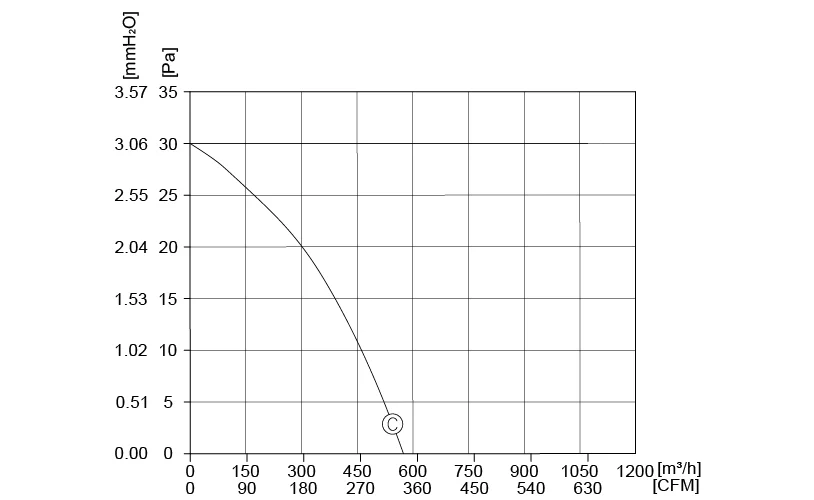

3. Airflow Curve

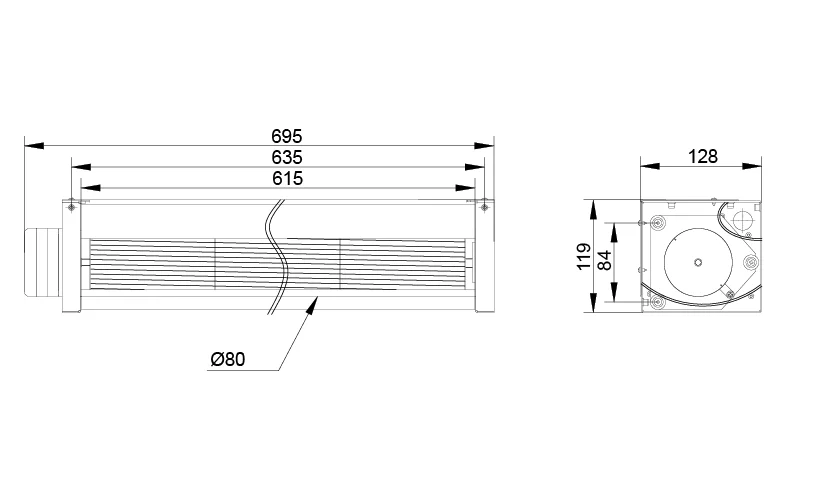

4. Outline Drawing
Certifications
Application Scopes
Recommend Products
Model Part No. | Rated Voltage VDC | Air Flow m³/H | Air Pressure Pa | Rated Speed RPM | Sound Level dB(A) | Total Length mm |
PC80B24415B | 24 | 430 | 33 | 1850 | 51 | 492 |
PC80B24500B | 24 | 500 | 33 | 1700 | 48 | 598 |
PC80B24615B | 24 | 582 | 30 | 1600 | 46 | 695 |
PC80B24700B | 24 | 660 | 30 | 1700 | 48 | 798 |
PC80B24916B | 24 | 1307 | 22 | 1400 | 54 | 995 |
PC80B241116B | 24 | 1082 | 24 | 1700 | 54 | 1195 |
PBM DC Tangential Blowers with Different Impeller Sizes
PBM Cross Flow Fan 30mm Blades
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.
Heater.
PBM Cross Flow Fan 40mm Blades
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.
PBM Cross Flow Fan 43mm Blades
Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.
PBM Cross Flow Fan 45mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 50mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 60mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM Cross Flow Fan 65mm Blades
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PBM DC Tangential Blowers with Different Motor Sizes
PBM DC 37.5mm Motor
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.
PBM DC 50mm Motor
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery, Storage Heaters,
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.
PBM DC 72mm Motor
Application: Refrigeration and Display Cabinets, Air Conditioning Fans (Air Conditioning Fans, Building Fans, Tower fans), Air Heaters, Electric Fireplaces, Air Curtain Machines, Embedded Ovens, Wood-burning Stoves, Air Conditioners and Storage Heaters etc.
PBM DC Tangential Blowers with X1/X2/X3 Machine Type
Single Tangential Blower
Double Tangential Blower
Triple Tangeltial Blower
Product Overview
Exhibition Show
Packing Detail
FAQ
Q: What are the typical applications for these cross-flow blowers?
A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $64.46 / piece
- 500+ piece: US $61.23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 24 VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
