The tangential fan listed here carries voltage 110/120/220/230/12/24, blade material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Fan
- Model Number: LW
- Voltage: 110/120/220/230/12/24
- Blade Material: Stainless Steel
- Material: Plastic, Aluminum Alloy, Steel
- Fan Casing Material: galvanized steel
- Speed: 4000 RPM, 1100 rpm, 990rpm
Technical Specifications
| Voltage | 110/120/220/230/12/24 |
|---|---|
| Speed | 4000 RPM, 1100 rpm, 990rpm |
| Mounting | Wall Fan |
| Blade Material | Stainless Steel |
| Material | Plastic, Aluminum Alloy, Steel |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Video Technical Support |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Brand Name | Longwell |
| Model Number | LW |
| Fan Type | tangential blower fan / cross flow fan |
| Fan Casing Material | galvanized steel |
| Bearing | Ball Bearing /sleeve bearing |
| Motor Type | AC motor , BLDC motor |
| Fan Diameter | 100mm |
| Fan Length | customization available up to 800mm |
| Application | Over , heater , air purifier , home appliances , floor heating , |
| Lead Time | 15-25days |
| Item Name | Cross flow fan/impeller 30mm , |
| Selling Units | Single item |
| Single Package Size | 15X15X40 cm |
| Single Gross Weight | 3.000 kg |
Product Details

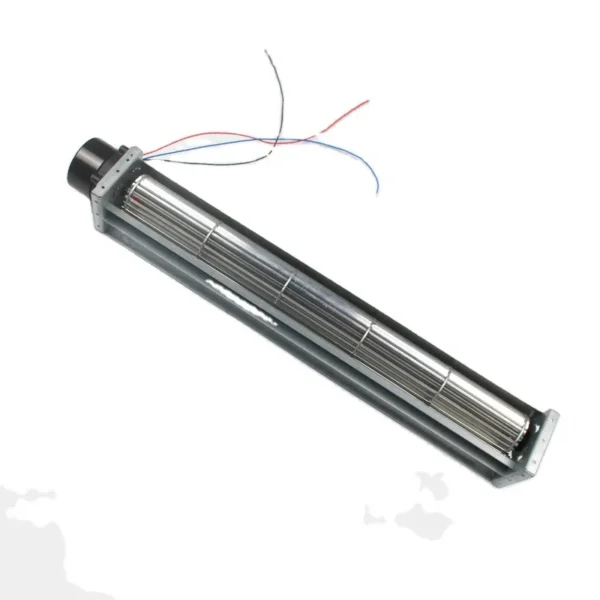

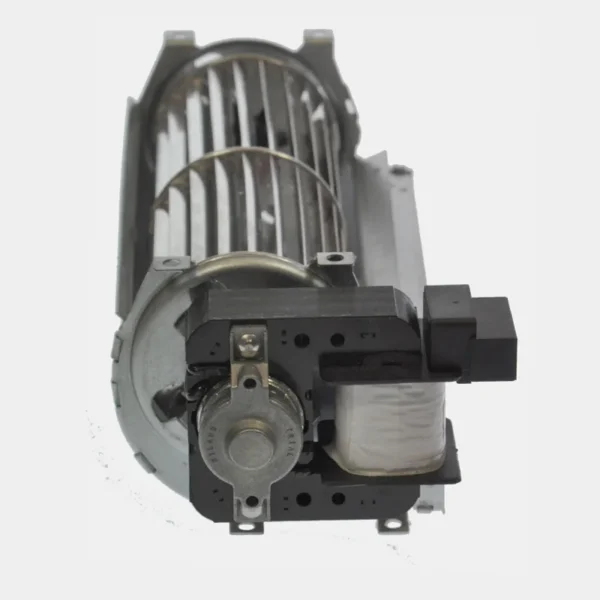

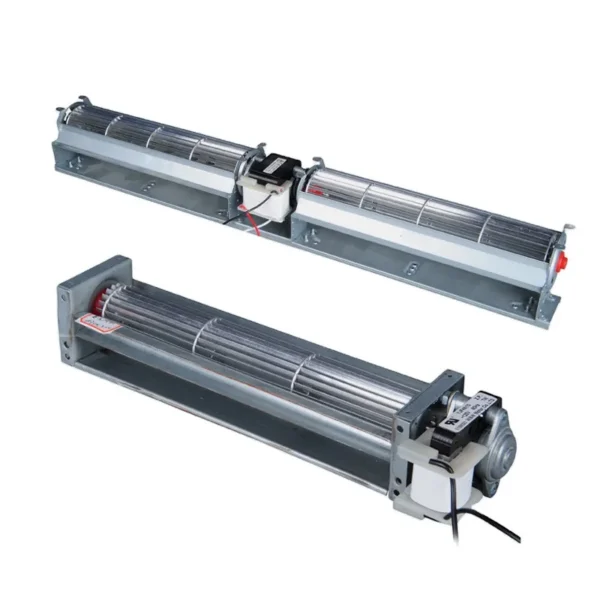

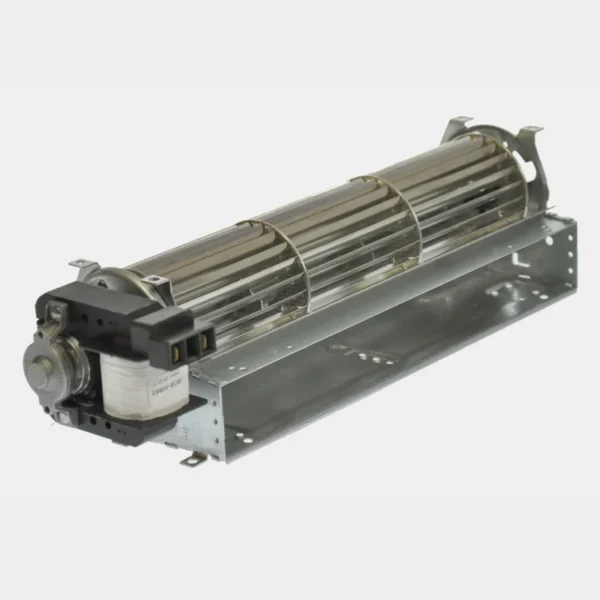

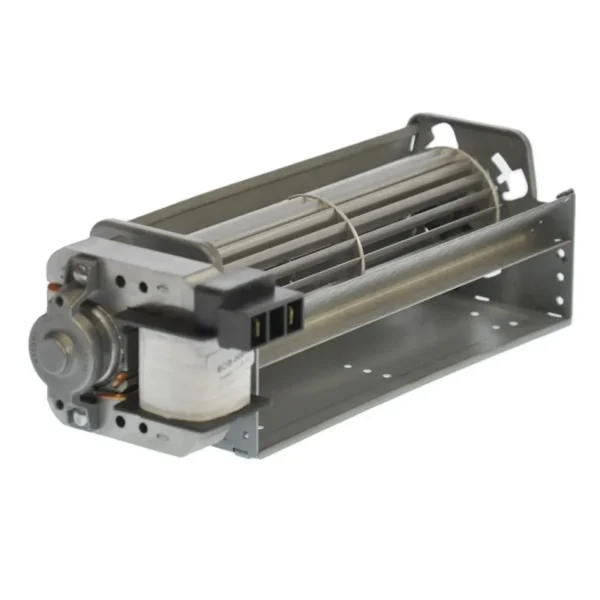

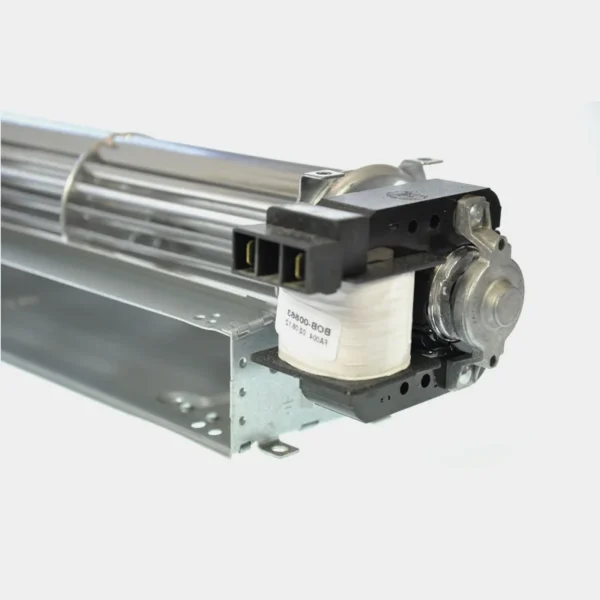

- Cross flow fans are used for cooling circuit boards or other applications requiring wide and uniform air flow such as air curtains ;
- These fans provide right-angle & left angle air flow and a rectangular shape ,allowing for installation in corners and space saving ;
- With UL Certificating ;
- Voltage can be designed as 12V / 24V / 48V / 115V /230V ;
- Max Air volume : 4200 m³/h ;
- Max Speed :2600 RPM ;
- Max Power :335 W ;
- Impeller Material : Aluminum Alloy or Plastic ;
- Housing Material : Galvanized Sheet Steel ;
- Motor Type : Shaded Pole Motor ;
- Insulation Class : B/F/H
- Bearing Type : Ball Bearing
- Operating Temperature : – 25 ℃ ~ + 60 ℃
- Storage Temperature : – 15℃ ~ + 40 ℃
| Sample: | 5~10 days; |
| Bulk Order: | 18~23 days after receiving order information; |
| Package: | Standard exporting carbon package with pallet.(Package can be customized); |
| Shipment: | Air express,sea shipment,EXW,LCL,etc; |
| Paymen: | 100% in advance for sample;30% T/T in advance,70% paid before delivering for Bulk orders |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 110/120/220/230/12/24. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
