Key specification for this tangential fan: voltage 120/230 V, blade material aluminum. Everything below is reproduced from the factory data sheet. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Tangential Fan
- Model Number: AFS60184
- Voltage: 120/230 V
- Blade Material: aluminum
- Material: Aluminum Alloy
- Speed: 2500RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 120/230 V |
|---|---|
| Speed | 2500RPM |
| Mounting | Industrial Equipment |
| Blade Material | aluminum |
| Material | Aluminum Alloy |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | AFS60184 |
| Color | Black, Silver |
| Certification | ce |
| Size | 60x184mm |
| Type | CROSS FLOW FAN |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Selling Units | Single item |
| Single Package Size | 20X20X38 cm |
| Single Gross Weight | 1.5 kg |
Product Details

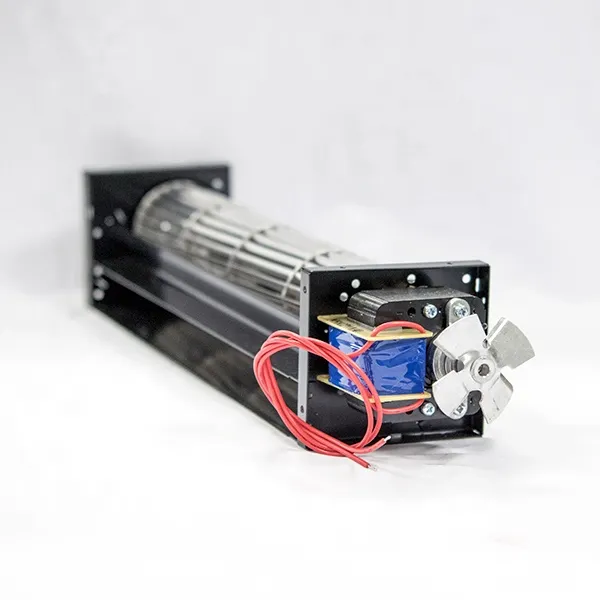

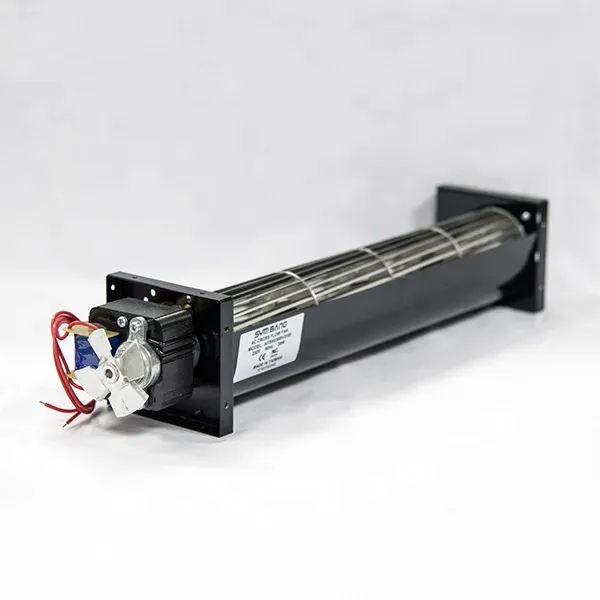

AFS60184 120/230V Tangential Fan 60mm Diameter Fan Blade
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum Ø60 |
| BEARING | Ball or Sleeve |
| OPERATING VOLTAGE | 85VAC TO 125VAC FOR 115V TYPE |
| 185VAC TO 245VAC FOR 230V TYPE | |
| DIELETRIC STRENGTH | 1500VAC FOR 1 MINUTE |
| INSULATION | Class A |
| INSULATION RESISTANCE | 10M Ohms Min. @500 VDC |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| SAFETY | Impedance Protected |
| ROHS COMPLIANCE | Yes |
| MOTOR TYPE | Shaded Pole Motor |
| Model No. | RATED | FREQUENCY | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | (Hz) | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | ||||
| AFS60184V1H | 120 | 60 | 0.55 | 37 | 2500 | 0.29 | 7.3 | 106 | 3 | 47 |
| AFS60184V1L | 120 | 60 | 0.33 | 23 | 1700 | 0.15 | 3.8 | 63 | 1.8 | 35 |
| AFS60184V2H | 230 | 50 | 0.27 | 34 | 2500 | 0.21 | 5.4 | 106 | 3 | 47 |
| AFS60184V2L | 230 | 50 | 0.17 | 23 | 2000 | 0.15 | 3.7 | 88 | 2.5 | 39 |
| AFS60245V1H | 120 | 60 | 0.6 | 42 | 2000 | 0.2 | 5.1 | 106 | 3 | 42 |
| AFS60245V1L | 120 | 60 | 0.42 | 31 | 1900 | 0.19 | 4.9 | 102 | 2.9 | 41 |
| AFS60245V2H | 230 | 50 | 0.27 | 35 | 2200 | 0.18 | 4.6 | 133 | 3.8 | 44 |
| AFS60245V2L | 230 | 50 | 0.23 | 31 | 2000 | 0.15 | 3.9 | 118 | 3.3 | 42 |
| AFS60306V1H | 120 | 60 | 0.63 | 42 | 1900 | 0.19 | 4.7 | 114 | 3.2 | 42 |
| AFS60306V2H | 230 | 50 | 0.28 | 36 | 2200 | 0.18 | 4.6 | 154 | 4.4 | 44 |
| AFS60368V1H | 120 | 60 | 0.64 | 43 | 1700 | 0.12 | 3 | 133 | 3.8 | 41 |
| AFS60368V2H | 230 | 50 | 0.3 | 38 | 1900 | 0.17 | 4.2 | 167 | 4.7 | 43 |
| AFS60429V1H | 120 | 60 | 0.64 | 44 | 1400 | 0.09 | 2.2 | 139 | 3.9 | 41 |
| AFS60429V2H | 230 | 50 | 0.31 | 40 | 1800 | 0.13 | 3.3 | 180 | 5.1 | 43 |
Application:
1. Power Supply Units
2. Measuring Instruments
3. Electronic Switch Systems
4. Automatic Vending Machines
5. Air-conditioning & Heating Apparatus
6. Computers(CPU, Peripheral & Terminal Equipment)
7. Medical Equipment
8. Acoustic Equipment
9. Flight Instrumentation
10. Numerical Control(NC)Units
11. Data Communications Terminal Equipment
12. Office Machinery Appliances & Copying Machines
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade |
|
|
Our factory :
Our certificate :
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this tangential fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 120/230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
