The centrifugal fan listed here carries voltage 115/230/380 V, power source type Corded Electric, documented exactly as the manufacturer publishes it. Made by ACTIVA INC. (15 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: ACF17065-da
- Power Source Type: Corded Electric
- Voltage: 115/230/380 V
- Material: Plastic
- Blade Material: Plastic
- Warranty: 1 Year
Technical Specifications
| Mounting | Industrial Equipment |
|---|---|
| Voltage | 115/230/380 V |
| Material | Plastic |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | ACF17065-da |
| Certification | ce |
| Size | 170x65mm |
| Type | Centrifugal Fan |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Selling Units | Single item |
| Single Package Size | 20X20X8 cm |
| Single Gross Weight | 1.0 kg |
Product Details
WHY CHOOSE US:

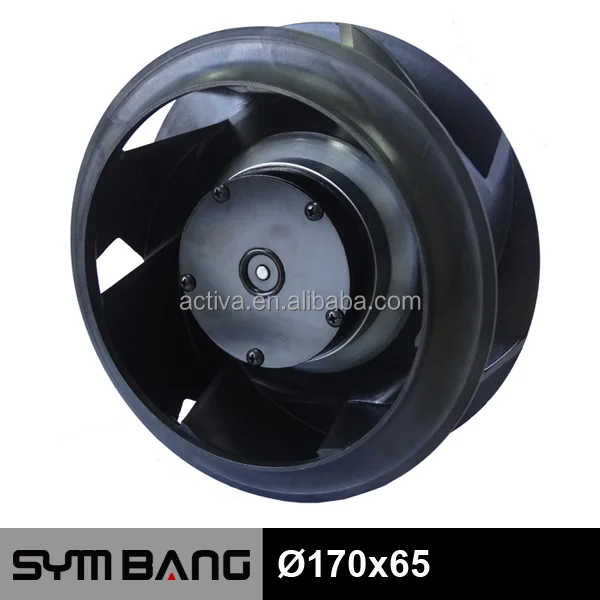

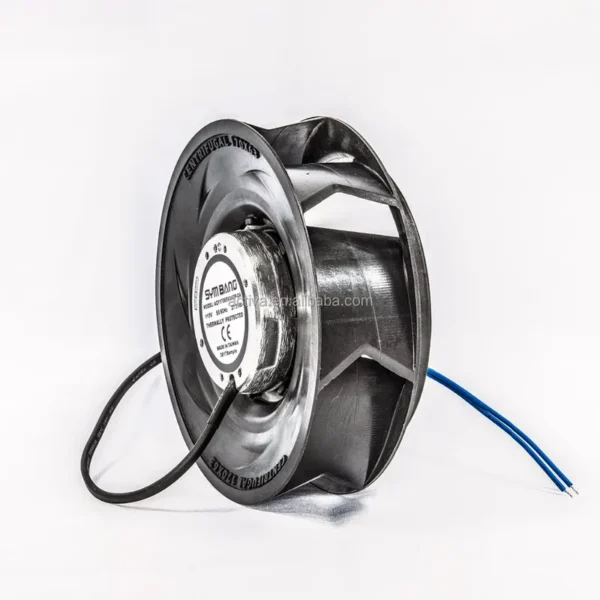

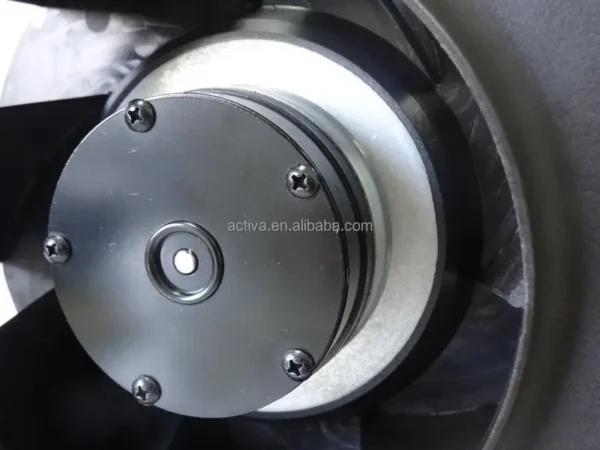

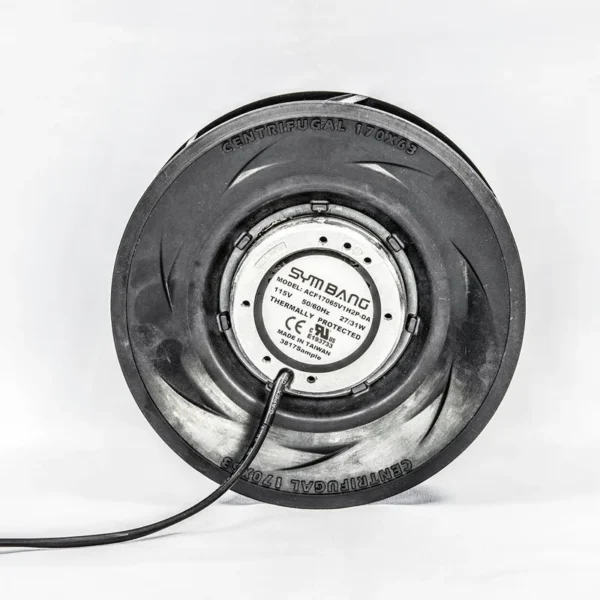

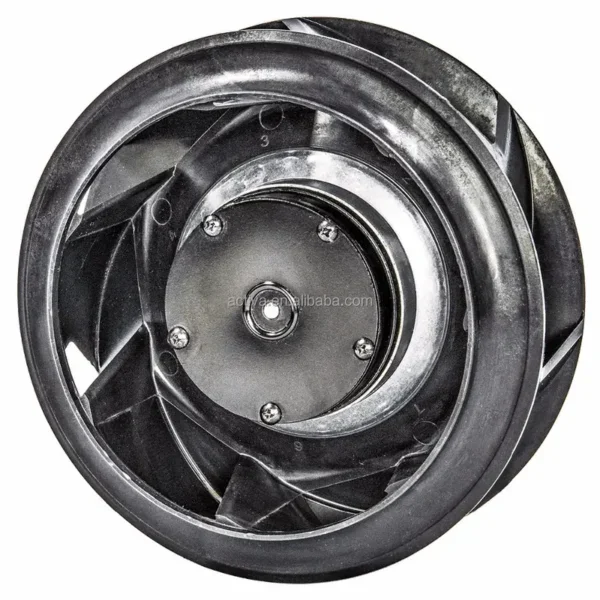

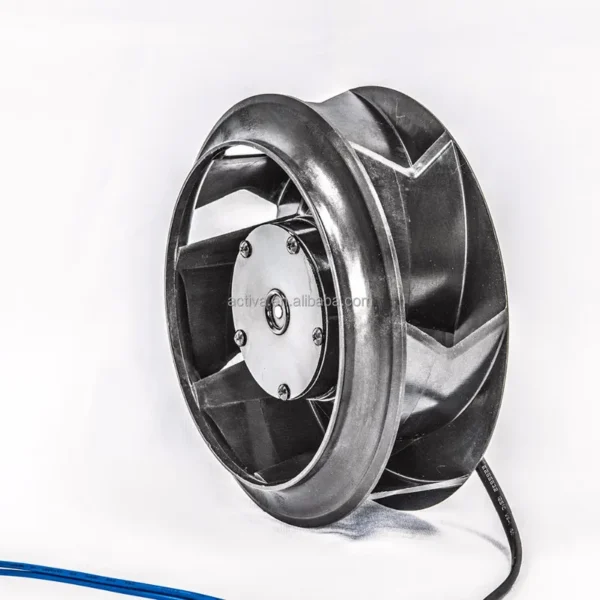

Taiwan 115v 230v radial high cfm backward curved impeller fan (acf17065-da)

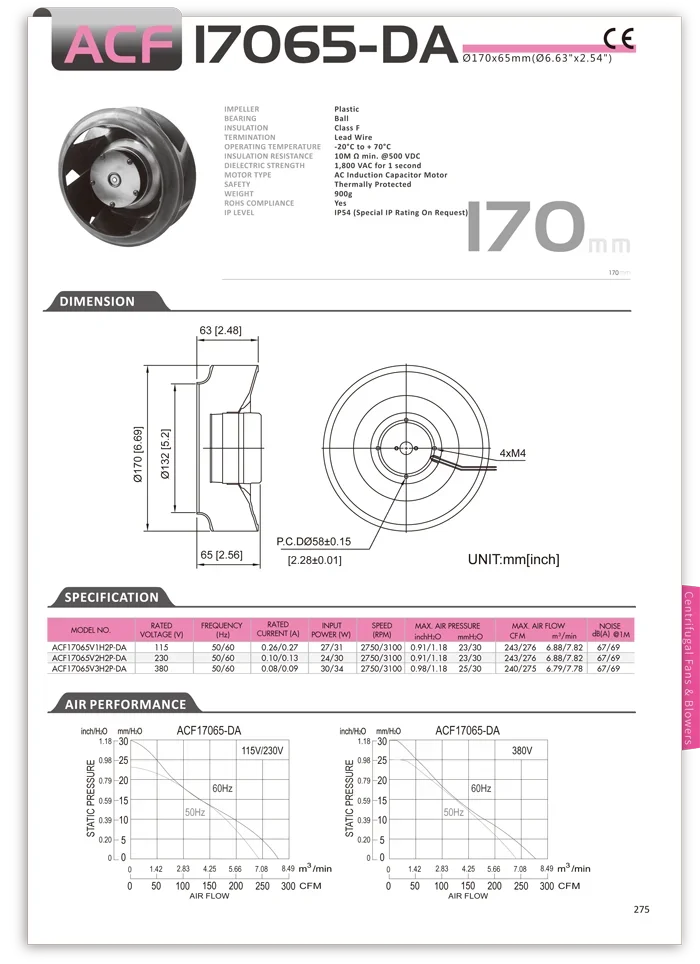

| Model No. | RATED VOLTAGE(V) | FREQUENCY(Hz) | RATED CURRENT(A) | INPUT POWER(W) | SPEED(RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | |||||||
| ACF17065V1H2P-DA | 115 | 50/60 | 0.26/0.27 | 27/31 | 2750/3100 | 0.91/1.18 | 23/30 | 243/276 | 6.88/7.82 | 67/69 |
| ACF17065V2H2P-DA | 230 | 50/60 | 0.10/0.13 | 24/30 | 2750/3100 | 0.91/1.18 | 23/30 | 243/276 | 6.88/7.82 | 67/69 |
| ACF17065V3H2P-DA | 380 | 50/60 | 0.08/0.09 | 30/34 | 2750/3100 | 0.98/1.18 | 25/30 | 240/275 | 6.79/7.78 | 67/69 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade |
|
|

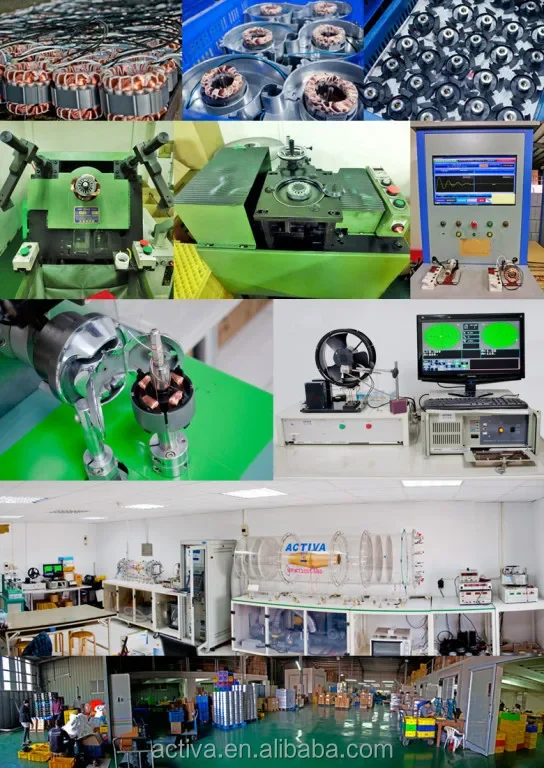

Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 115/230/380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
